MMBT3904T
View detailed images (4)

MMBT3904T

SKU: MMBT3904T

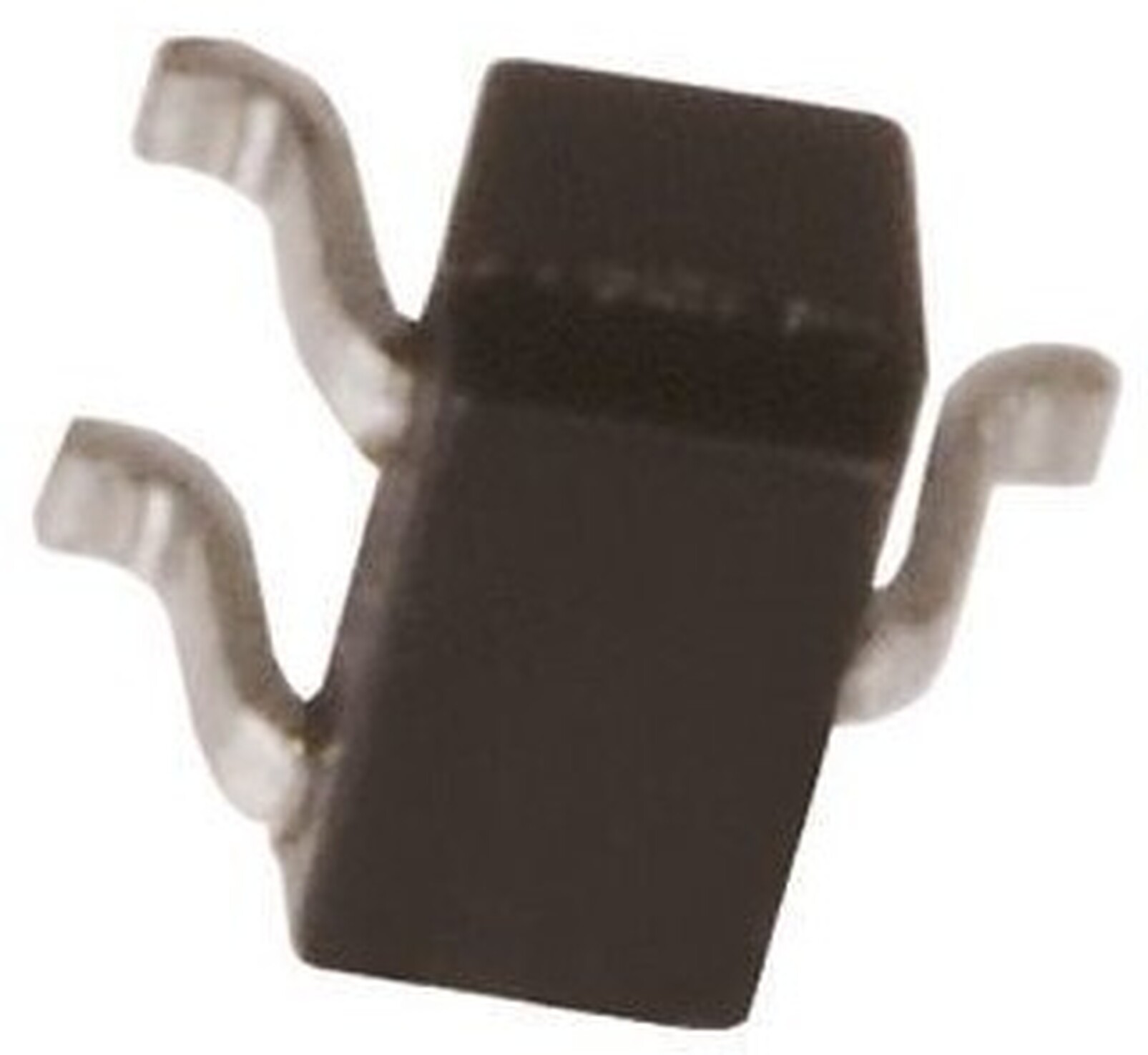

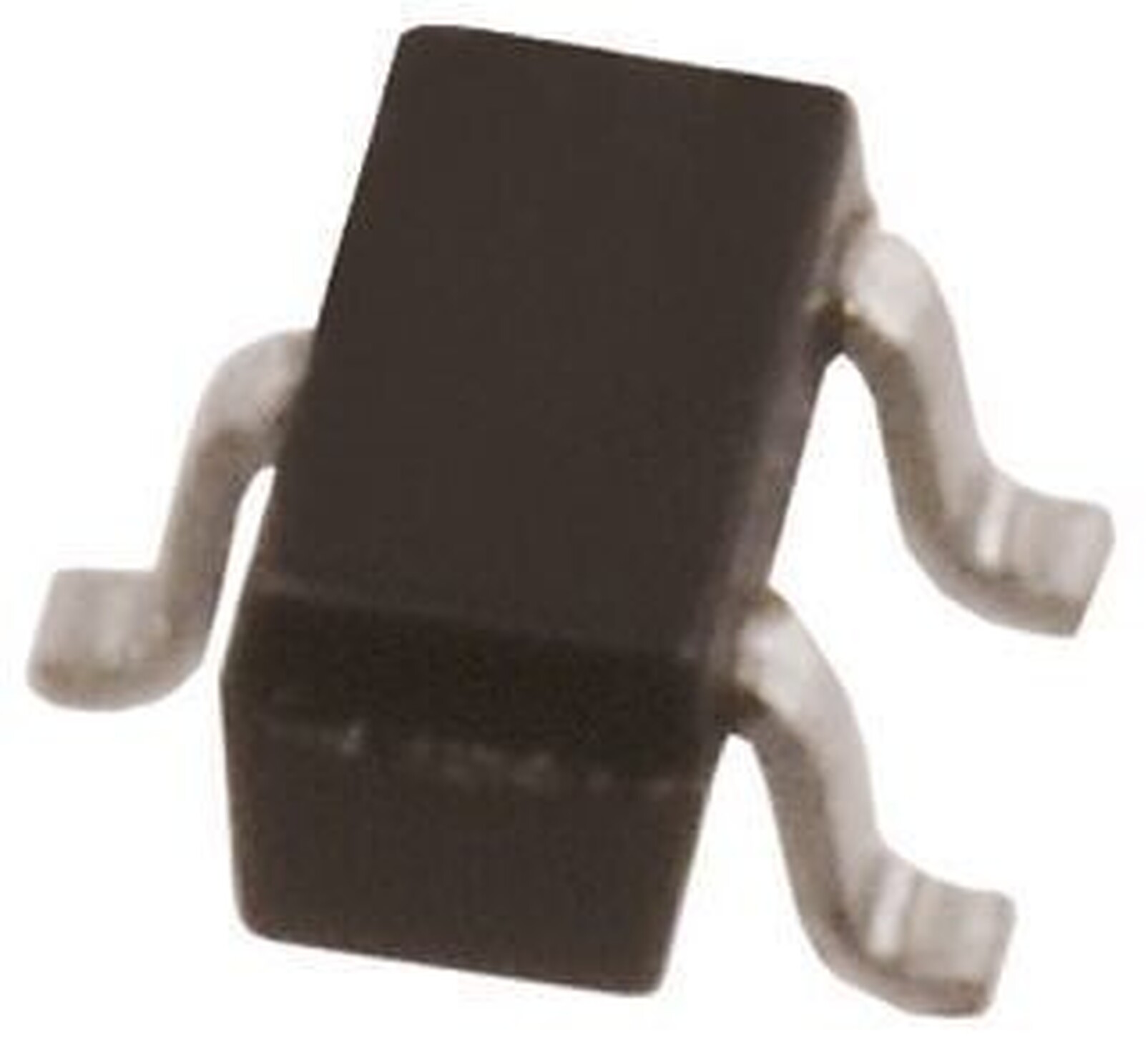

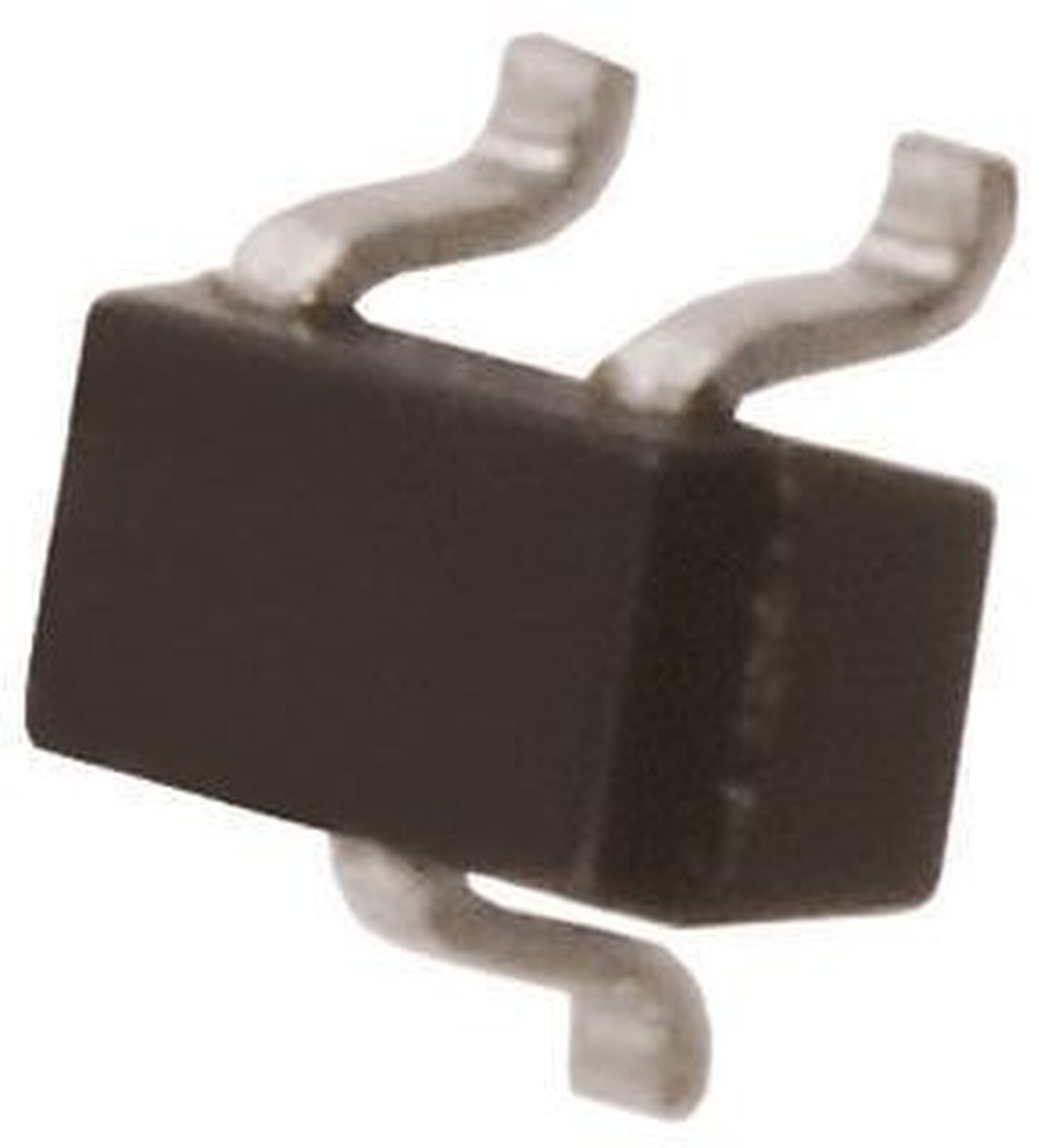

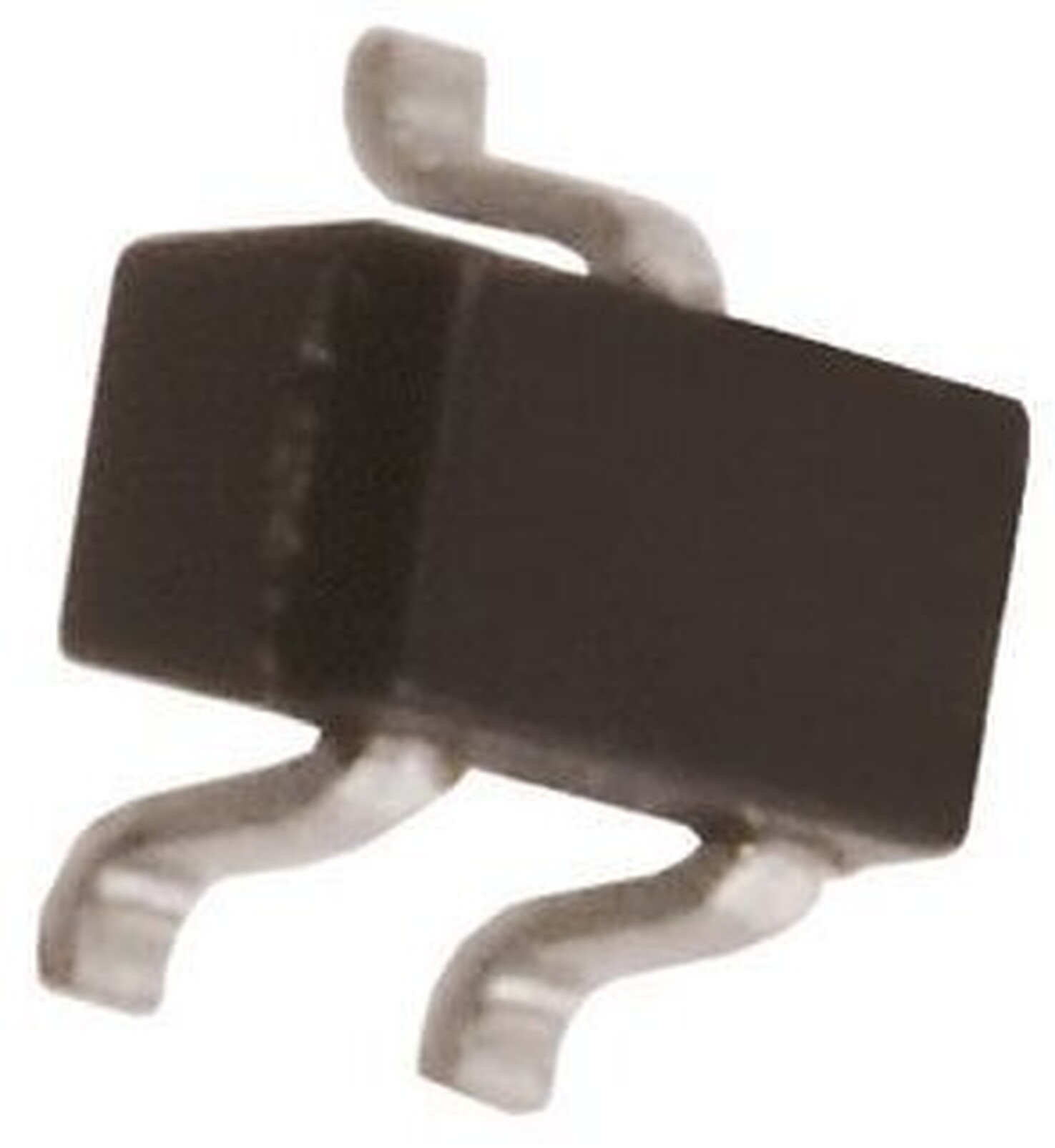

MMBT3904T Transistor Silicon NPN CASE: SOT523 MAKE: Diodes Inc
Product specifications
Type Transistor Silicon NPN
Case SOT523
Manufacturer Diodes Inc
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Emitter Voltage |Vce| 40 V
Maximum Collector Current |Ic max| 0.2 A
Transition Frequency (ft): 300 MHz
Forward Current Transfer Ratio (hFE), MIN 70
SMD Transistor Code 1N
SKU 433571
