MMBTA55
View detailed images (4)

MMBTA55

SKU: MMBTA55

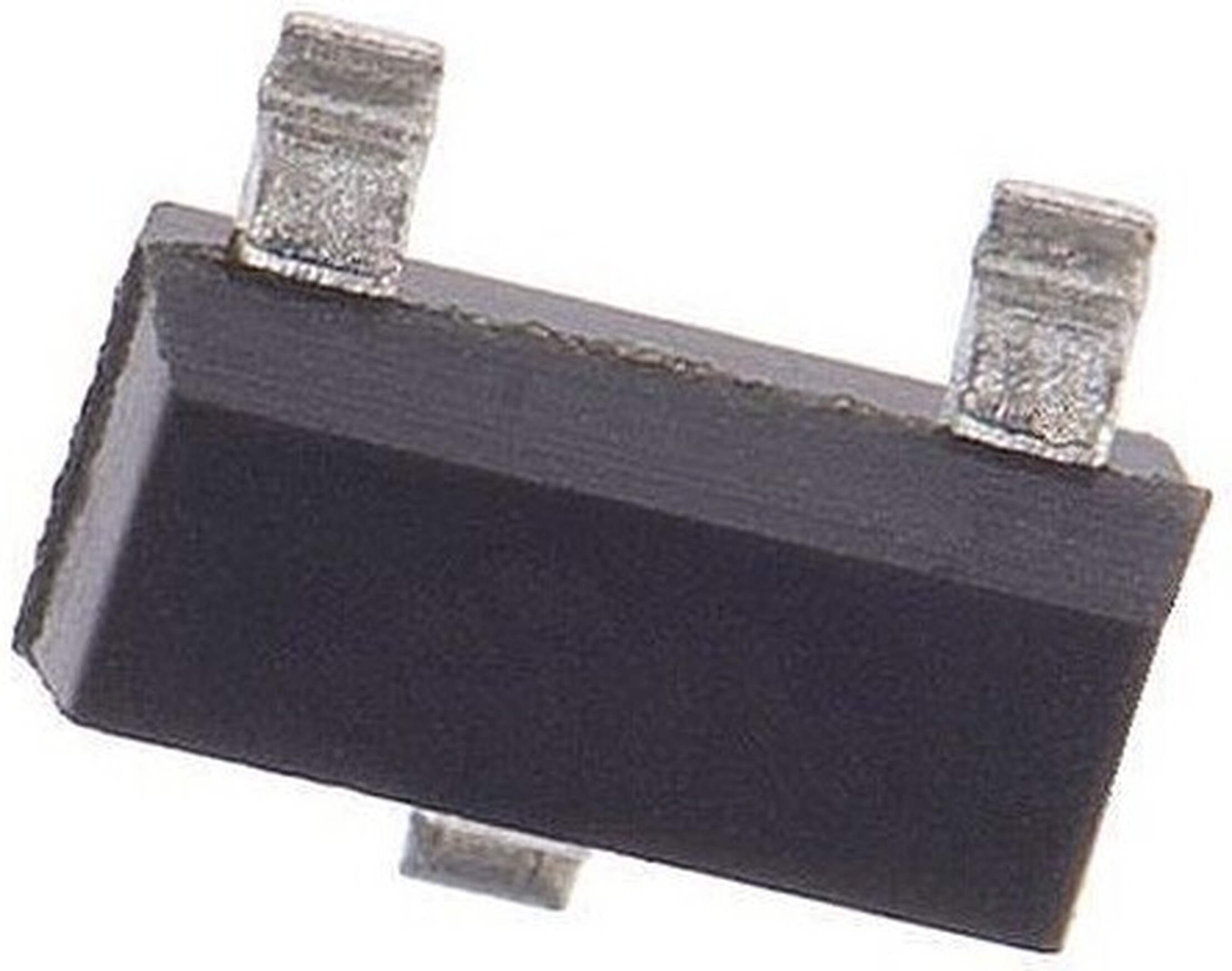

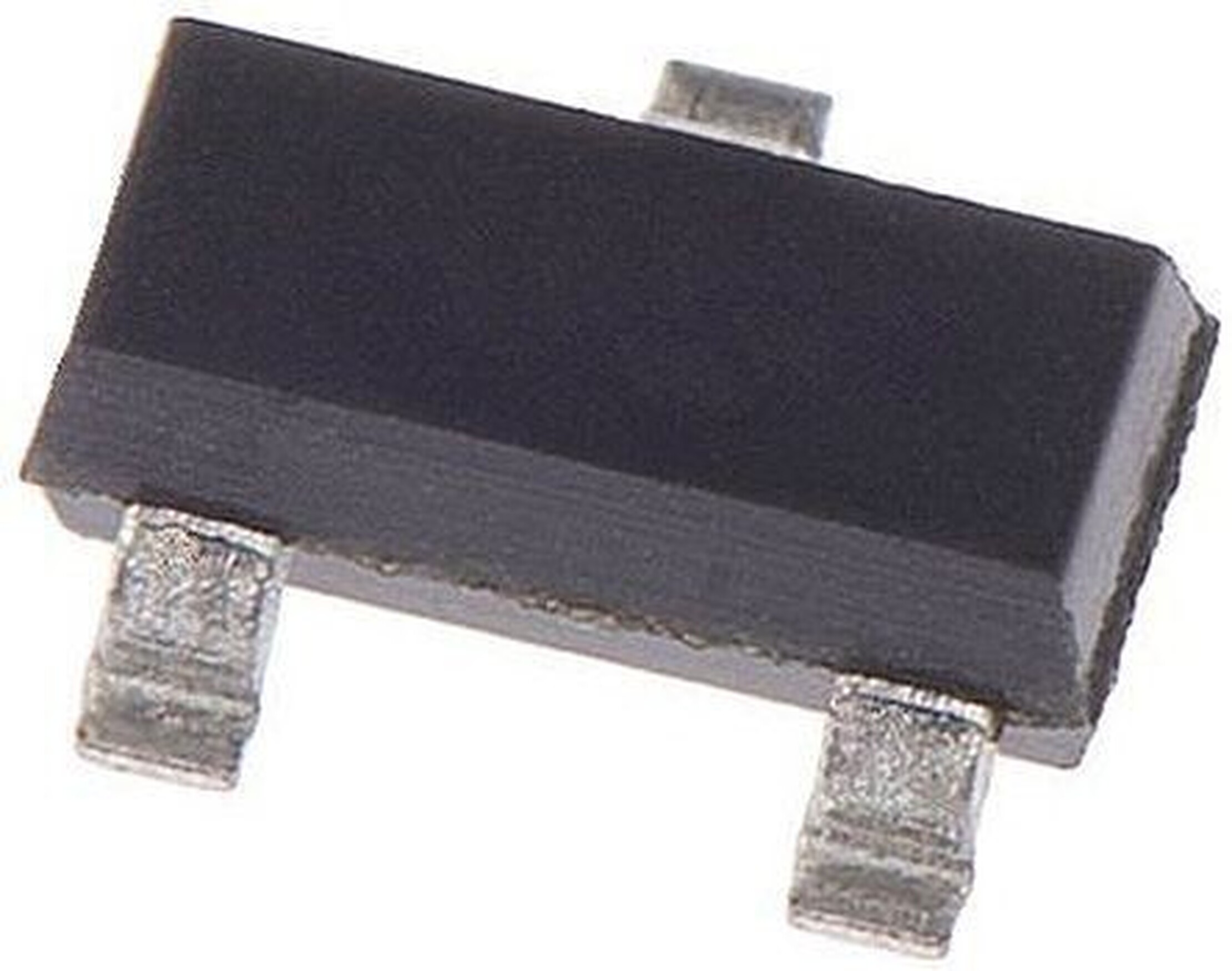

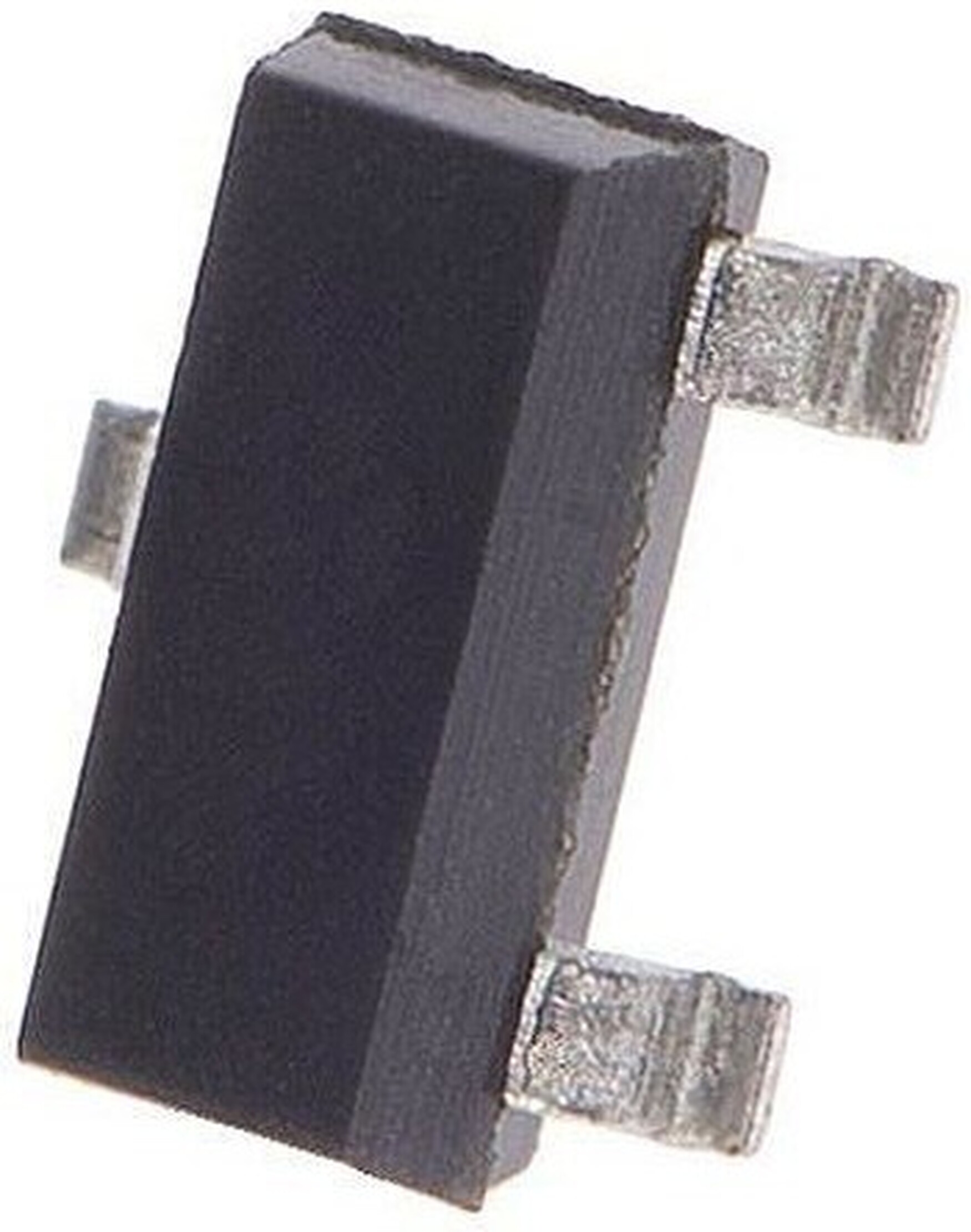

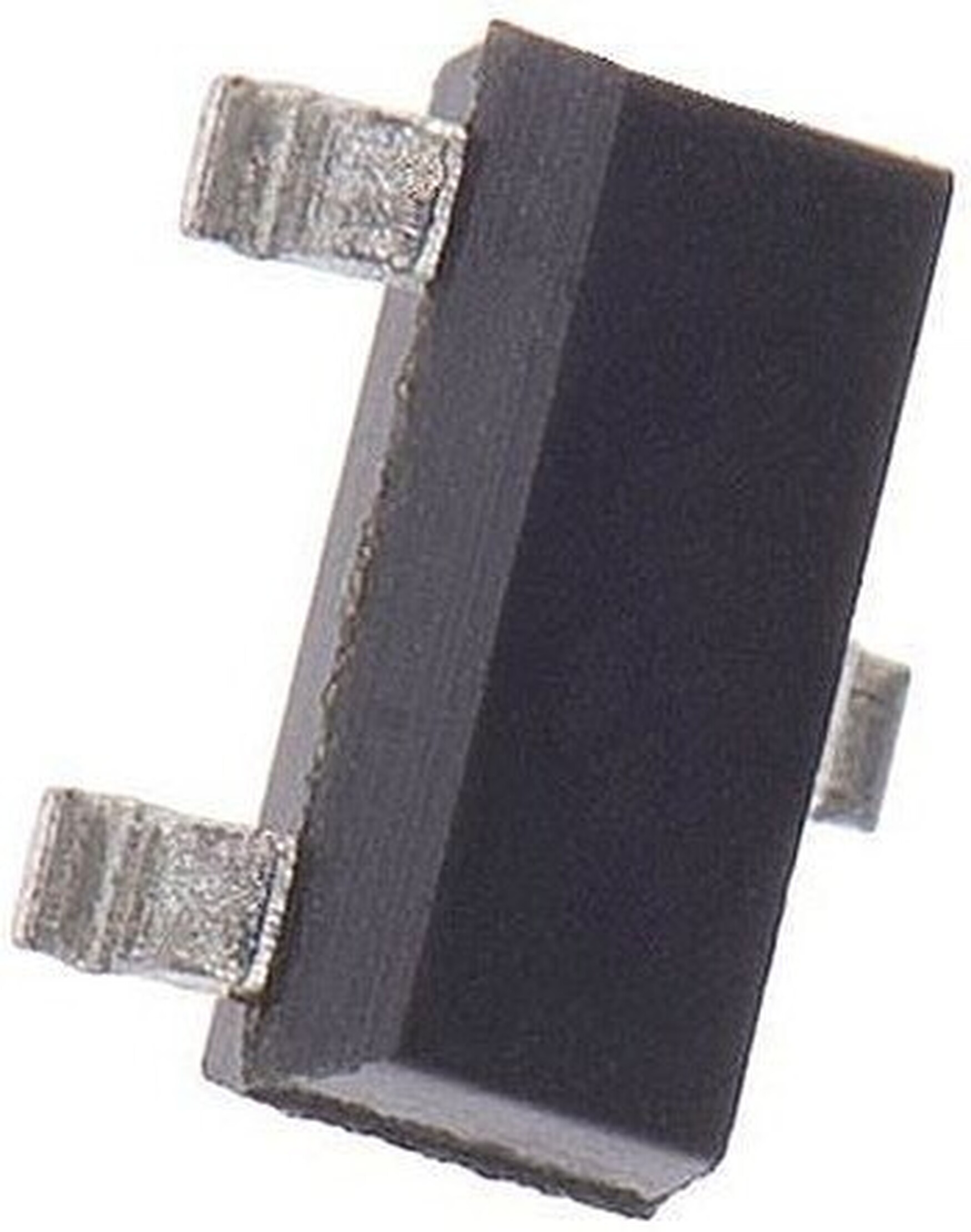

MMBTA55 Transistor Silicon PNP CASE: TO236 MAKE: ON Semiconductor
Product specifications
Type Transistor Silicon PNP
Case TO236
Manufacturer ON Semiconductor
Vbr CBO 60
Vbr CEO 60
Max. PD (W) 225m
Derate (Amb) (W/°C) 1.8m
hfe 50
Ic Max. (A) 500m
Icbo Max. @Vcb Max. (A) 100n
Polarity PNP
Trans. Freq (Hz) Min. 50M
@VCE (test) (V) 1.0
Oper. Temp (°C) Max. 150
@Ic (A) 10m
Pinout Equivalence Number 3-14
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.33 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SMD Transistor Code 2H_K2H
SKU 663286
