MMBTH10M3T5G

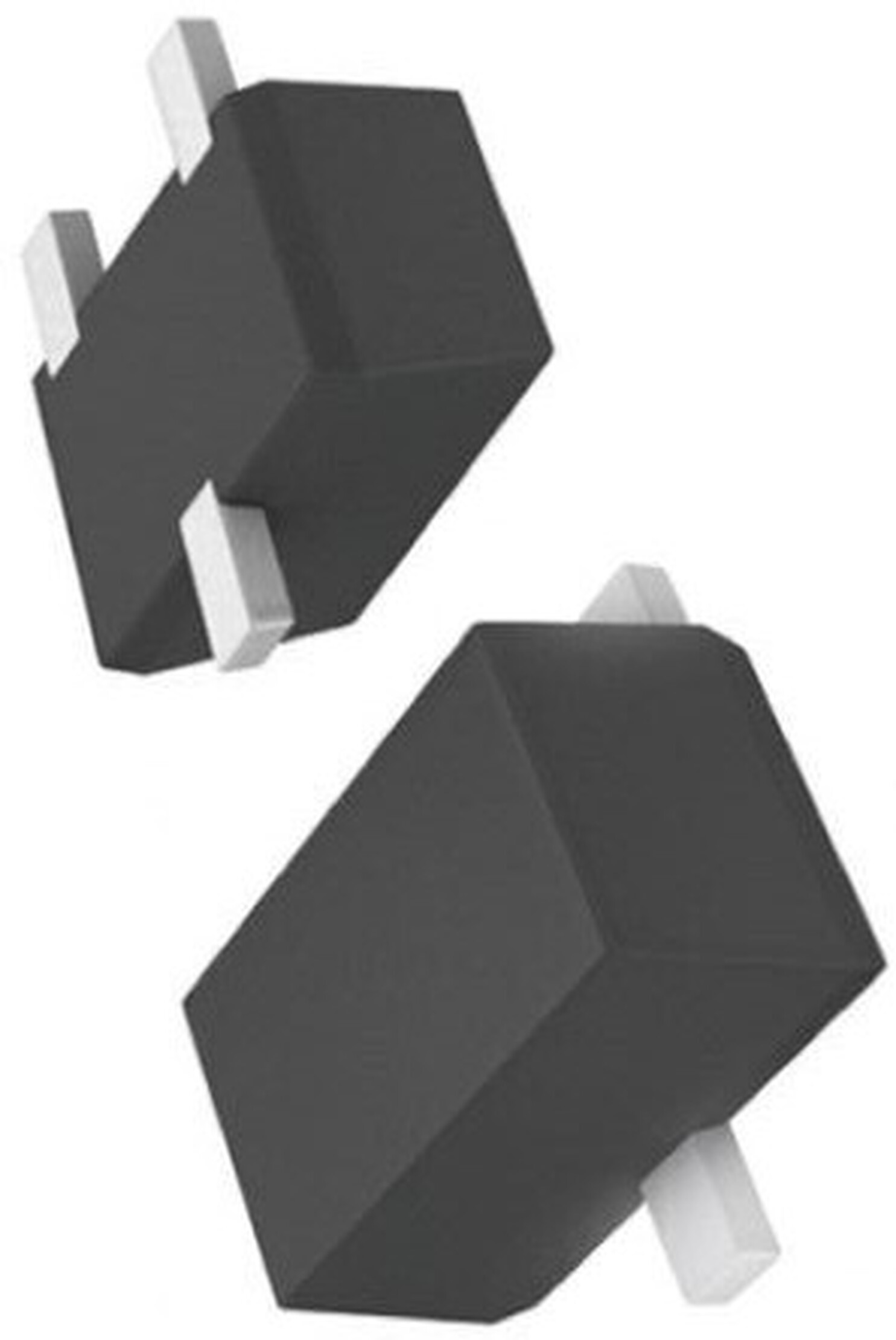

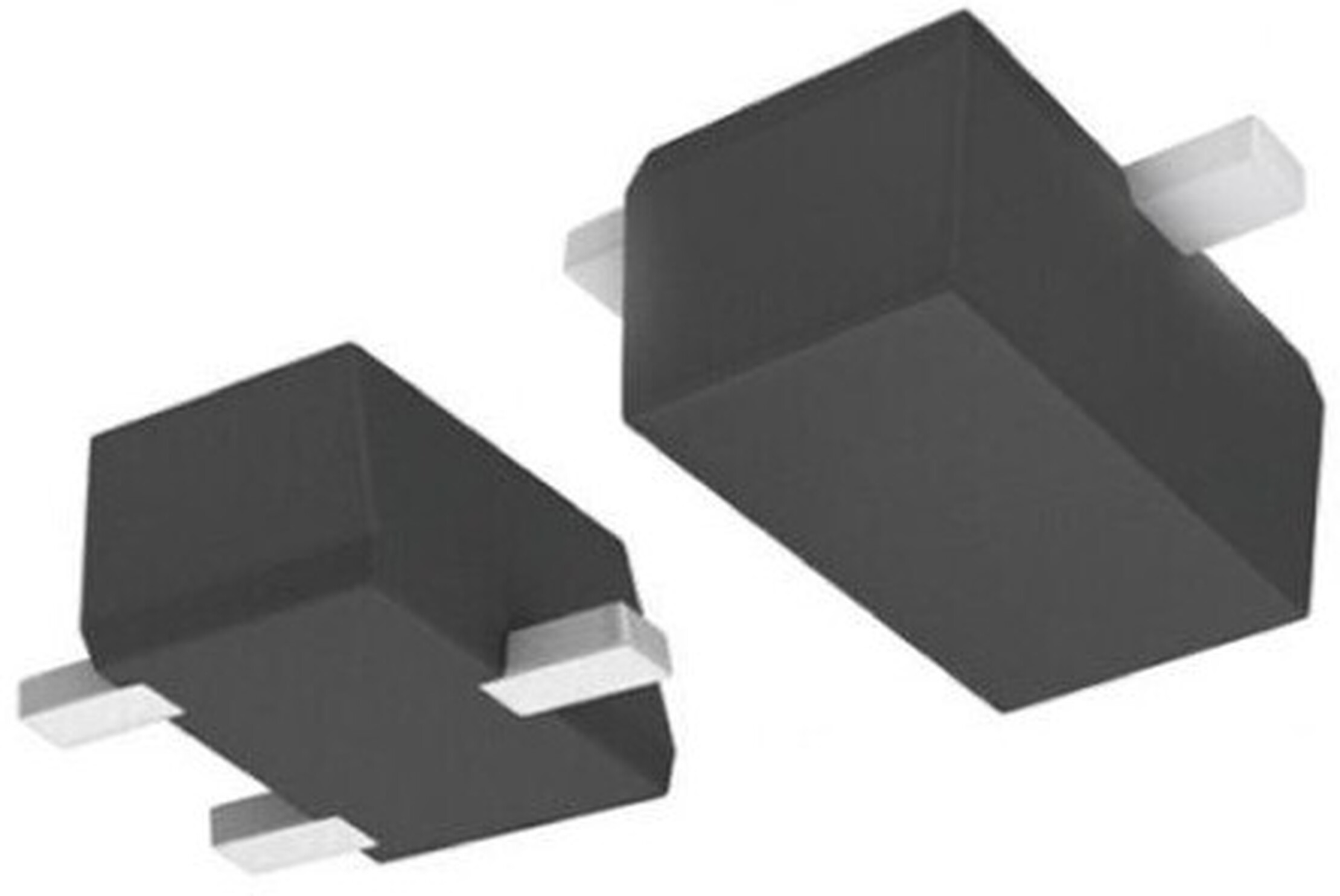

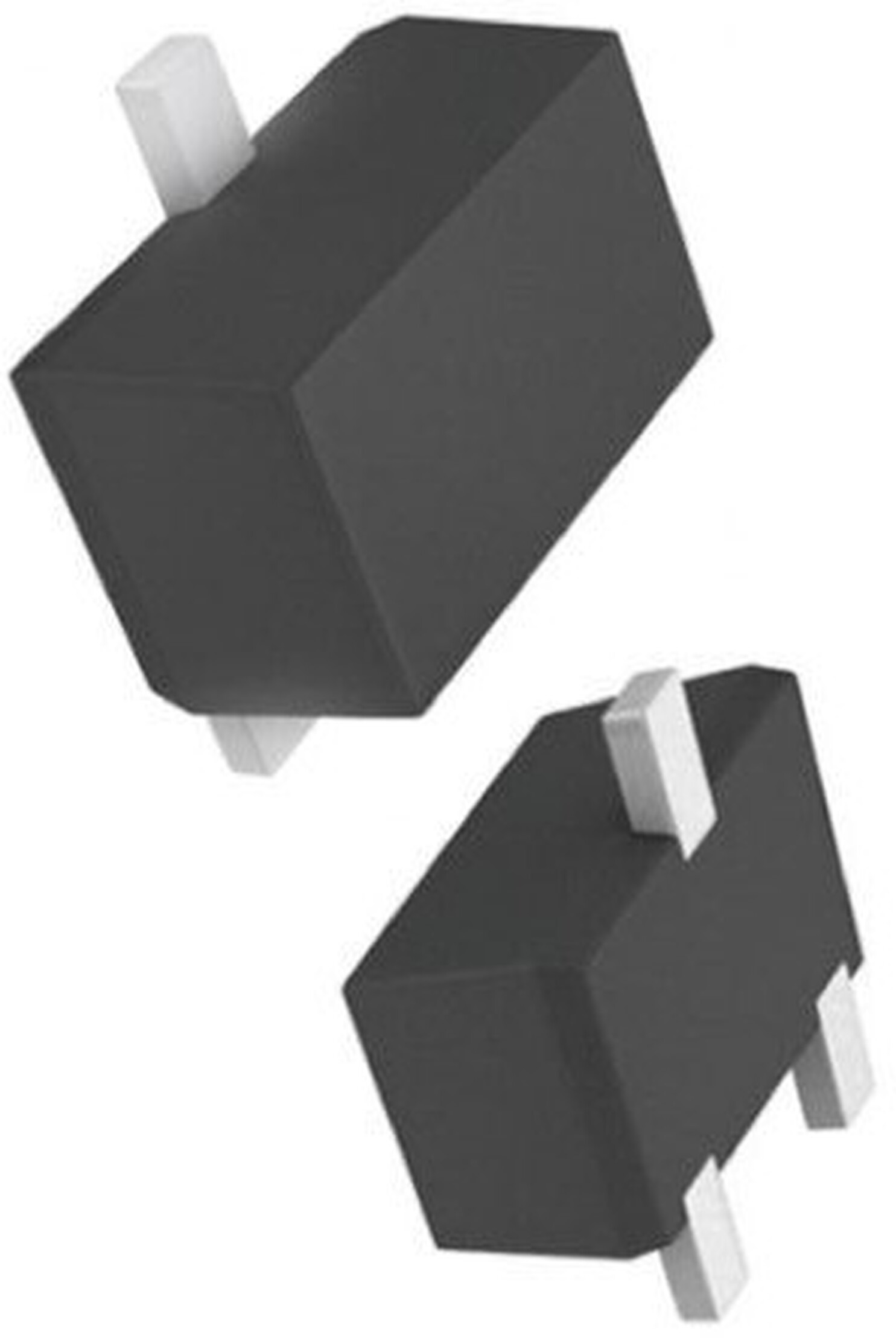

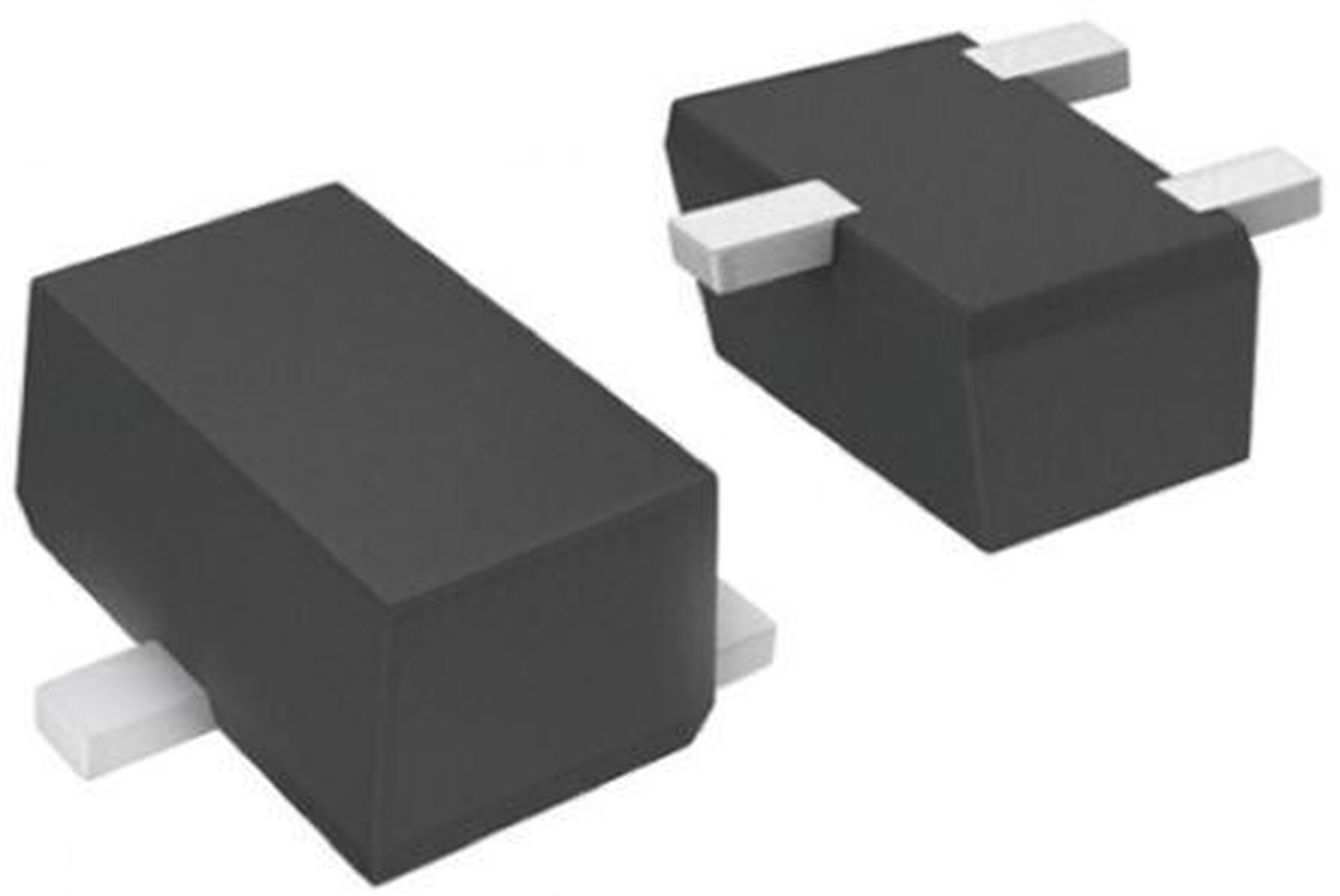

View detailed images (4)

MMBTH10M3T5G

SKU: MMBTH10M3T5G
MMBTH10M3T5G Transistor Silicon NPN CASE: SOT723 MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case SOT723
Manufacturer Generic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.64 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 25 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.04 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 650 MHz
Forward Current Transfer Ratio (hFE), MIN 60
SMD Transistor Code AJ
SKU 1436848
