MMBTH24

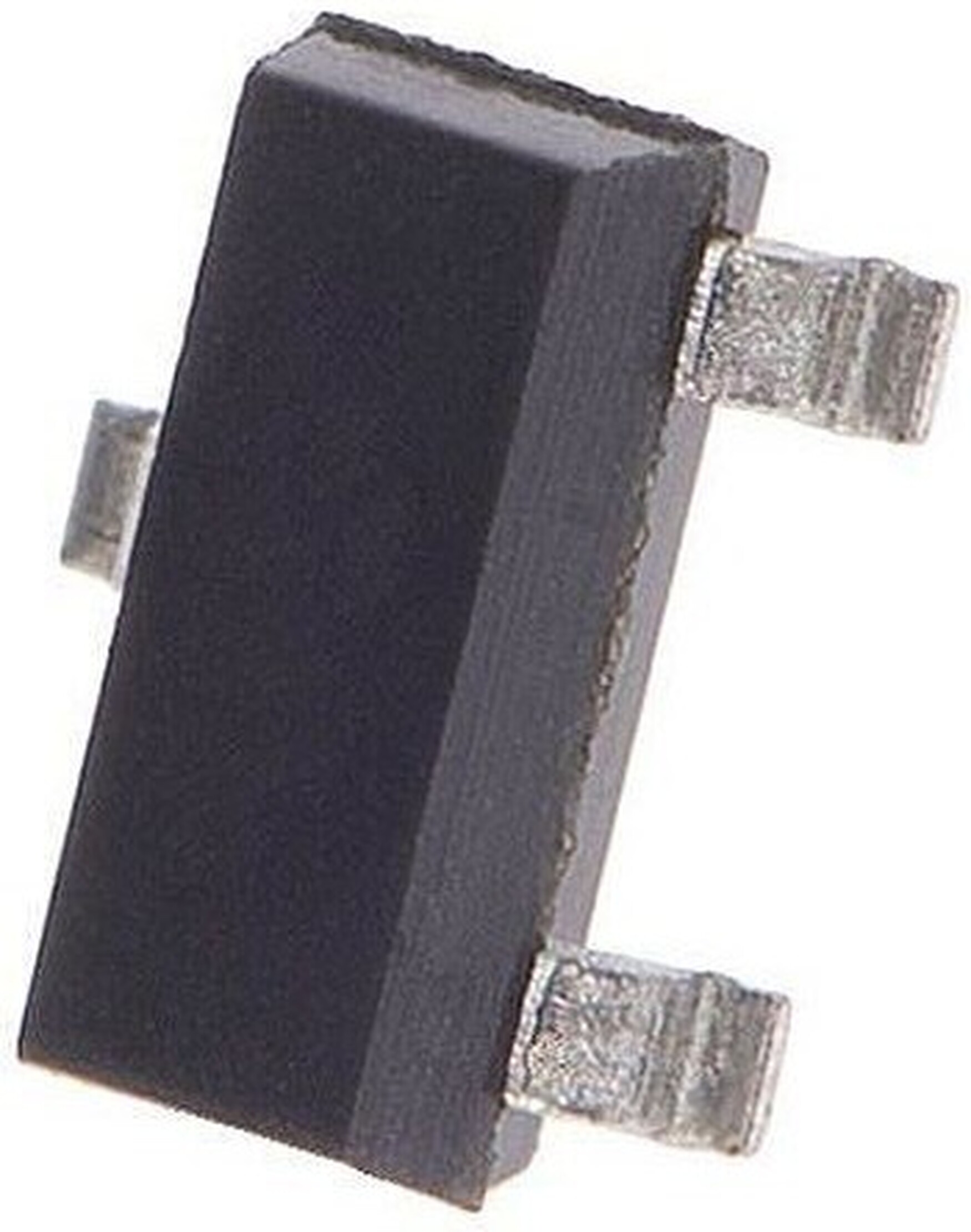

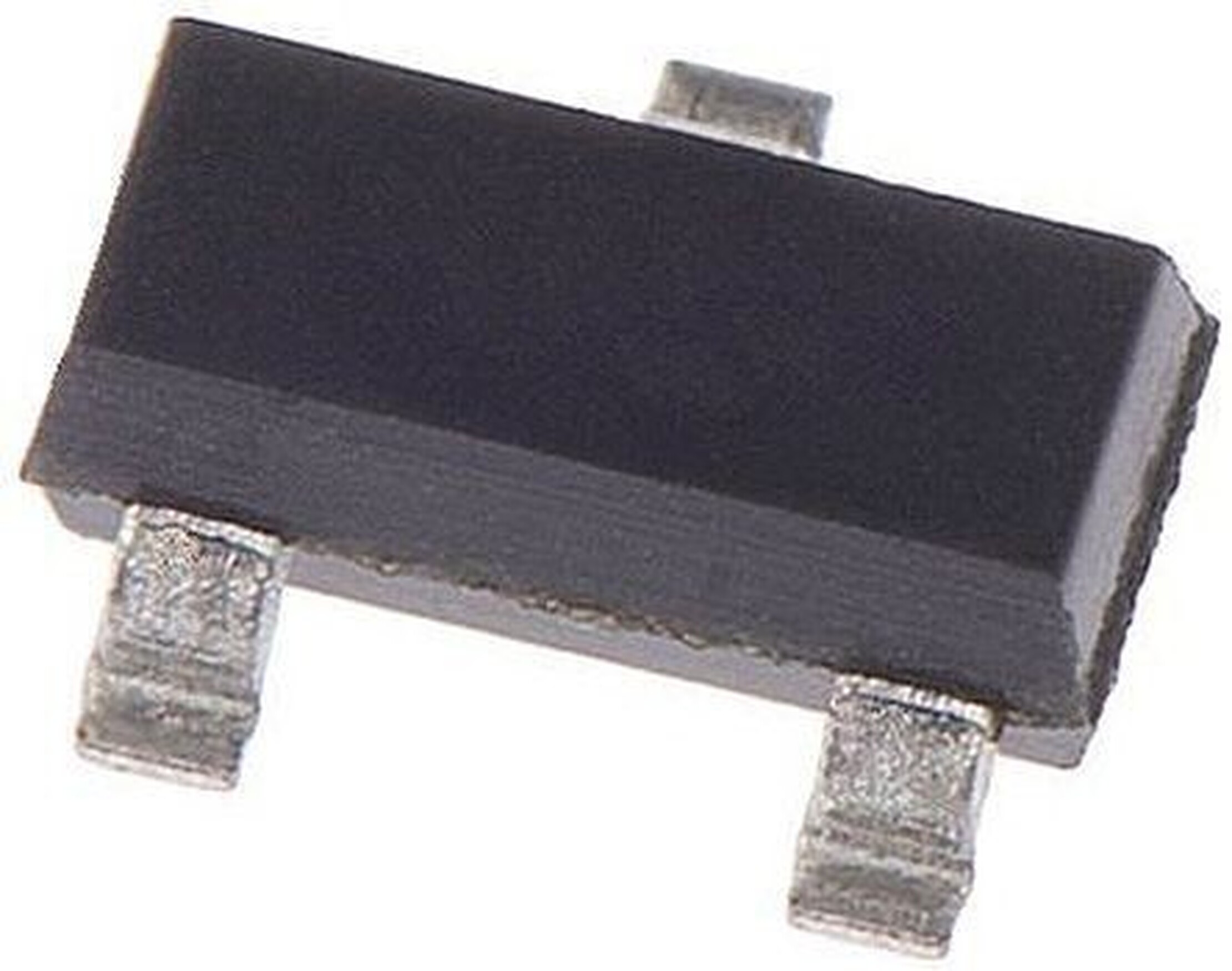

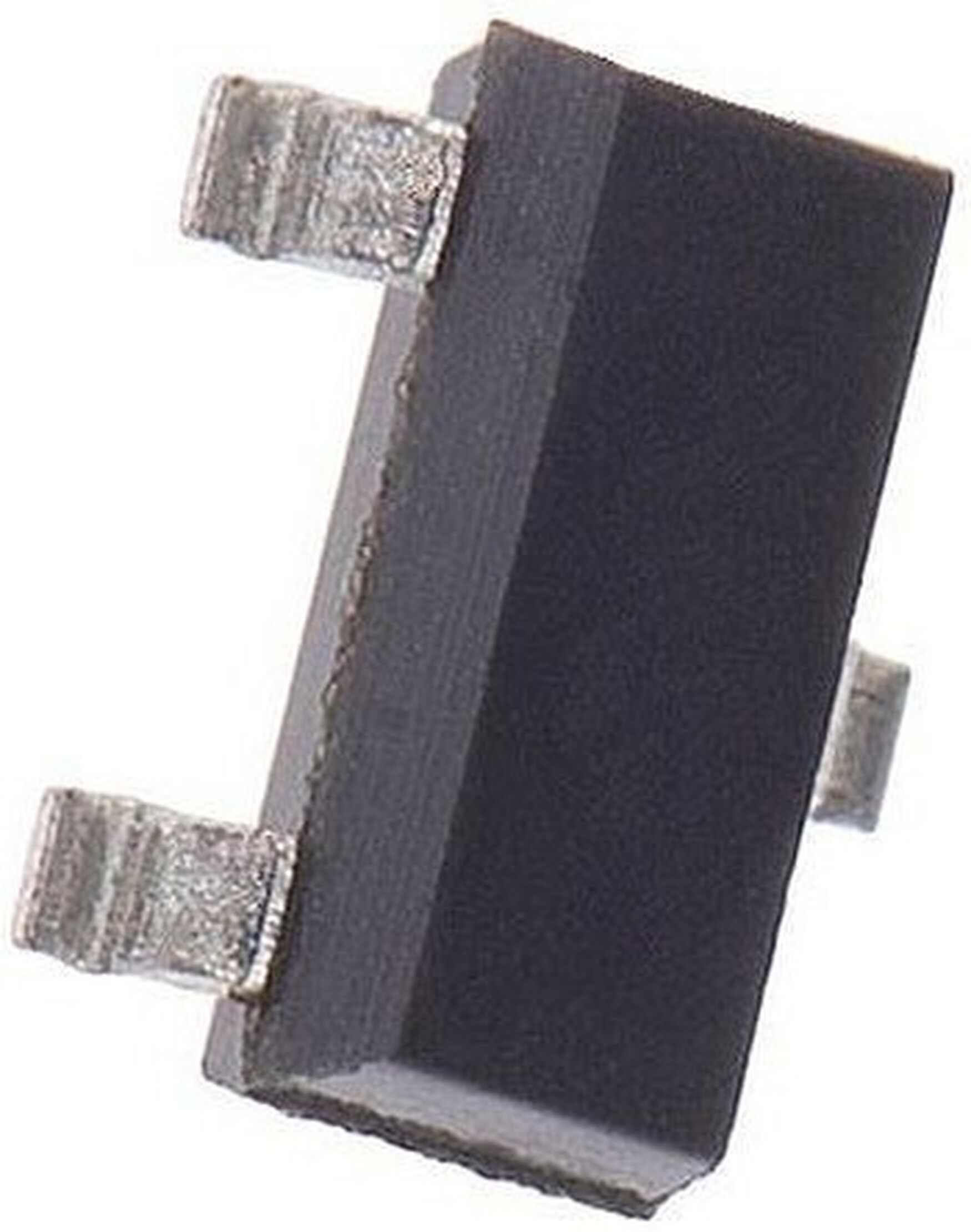

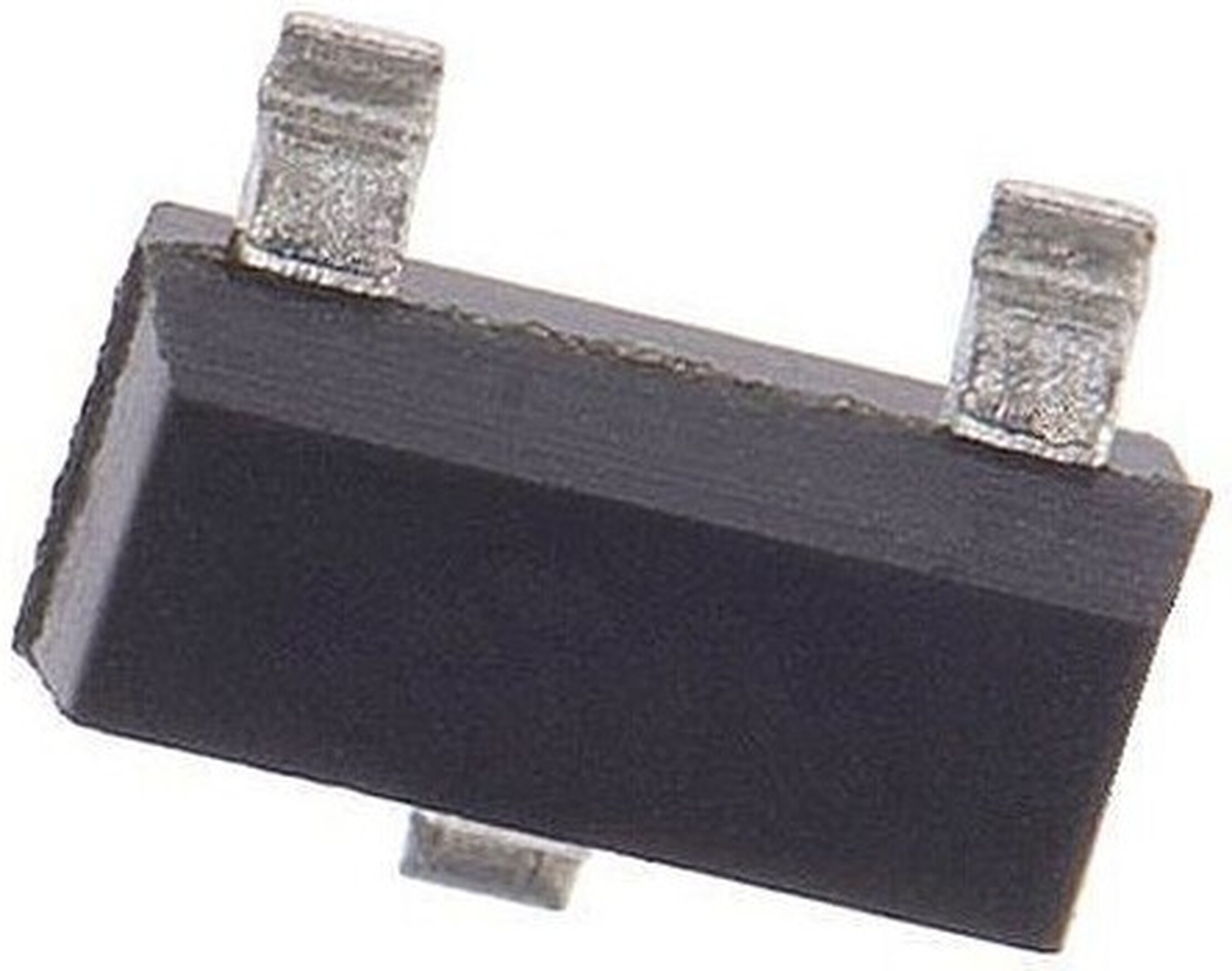

View detailed images (4)

MMBTH24

SKU: MMBTH24
MMBTH24 Transistor Silicon NPN CASE: TO236 MAKE: Motorola Semiconductor
Product specifications
Type Transistor Silicon NPN
Case TO236
Manufacturer Motorola Semiconductor
Vbr CBO 40
Vbr CEO 30
Max. PD (W) 225m
C(ob) (F) 360f
Derate (Amb) (W/°C) 1.8m
hfe 30
Ic Max. (A) 100m
Icbo Max. @Vcb Max. (A) 50n
Polarity NPN
Trans. Freq (Hz) Min. 400M
@VCE (test) (V) 10
Oper. Temp (°C) Max. 150
@Ic (A) 8.0m
Pinout Equivalence Number 3-14
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 0.3 pF
Transition Frequency (ft): 400 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SMD Transistor Code 3A_M3A
SKU 663281
