Home / Semiconductors / MOC8112X
MOC8112X

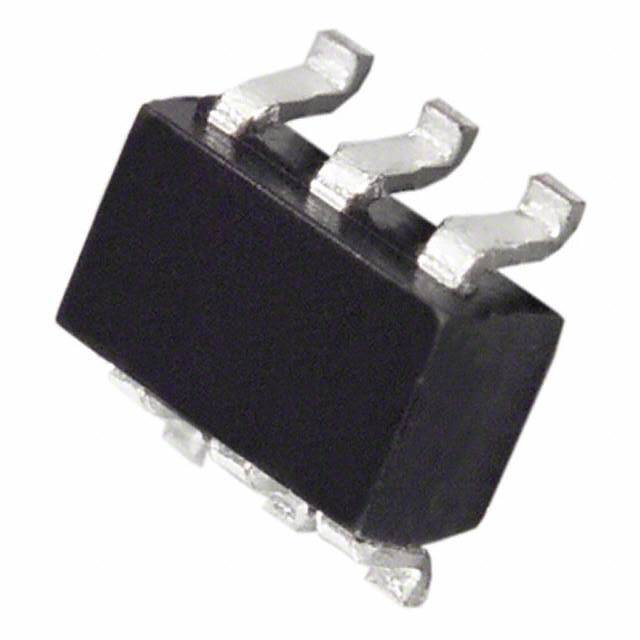

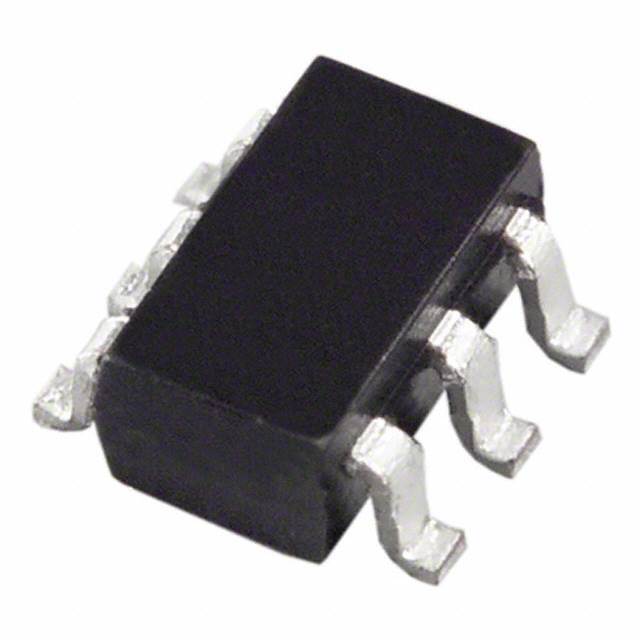

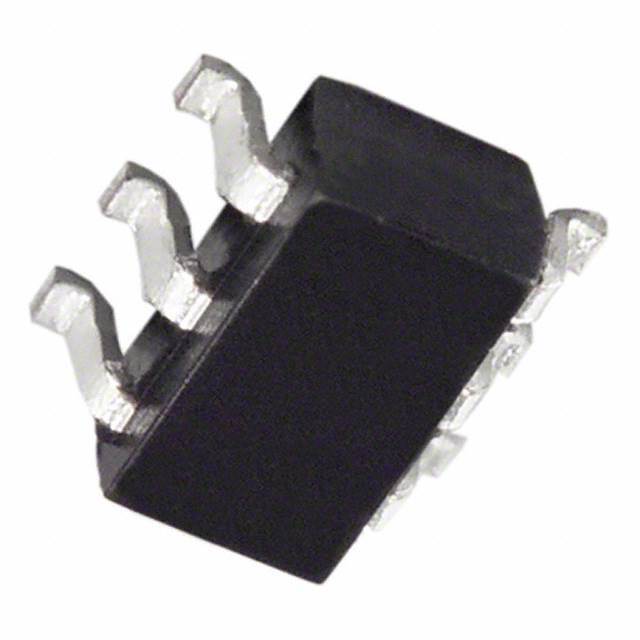

View detailed images (4)

MOC8112X

SKU: MOC8112X
MOC8112X Semiconductor CASE: Standard MAKE: ISO
Product specifications
Type Semiconductor
Case SO6
Manufacturer ISO
CTR (%) 50
V(isol) Max. (V) 5.3k
Ic Max. (A) 50m
If Max. (A) 60m
@If (test) (A) 10m
PD Max. (W) 150m
t(resp) (S) 20u
VCE(sat) Max. 0.4
Vbr CEO 30
Vf Max. 1.5
@Ic (test) 0.5m
@VCE (test) 10
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 100
@If (A) 10m
@If (A) 10m
Number of Chan. 1
Pinout Equivalence Number 6-133
Surface Mounted Yes/No NO
SKU 1087439
