MP103

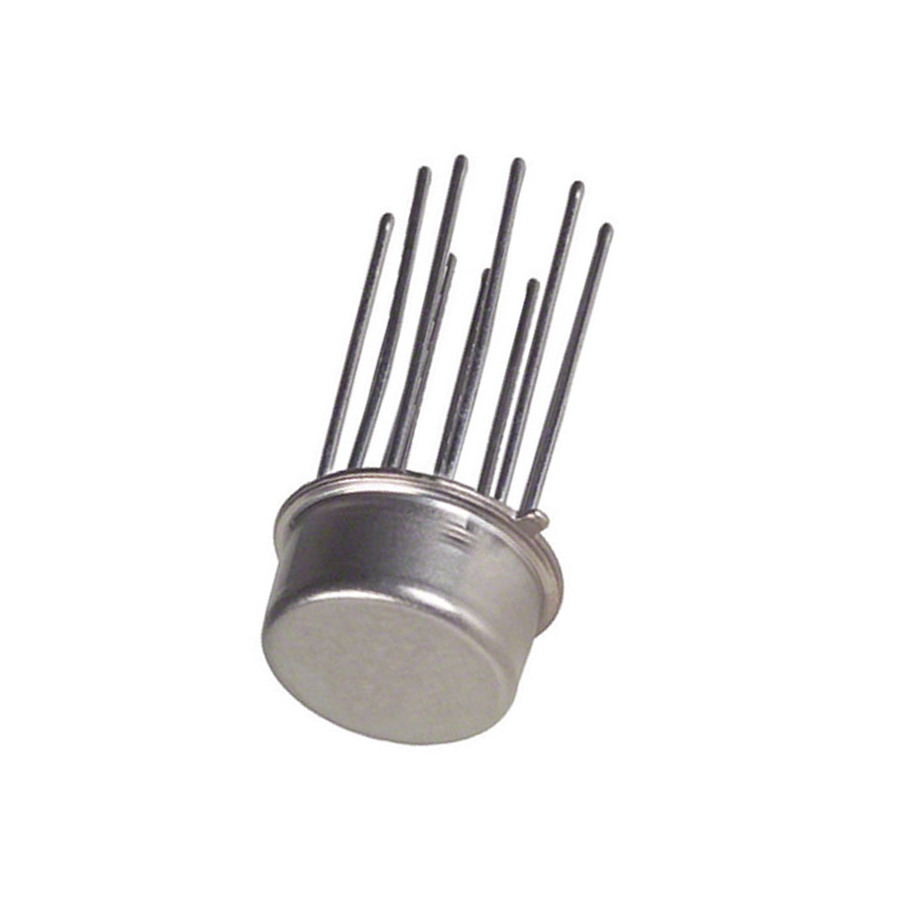

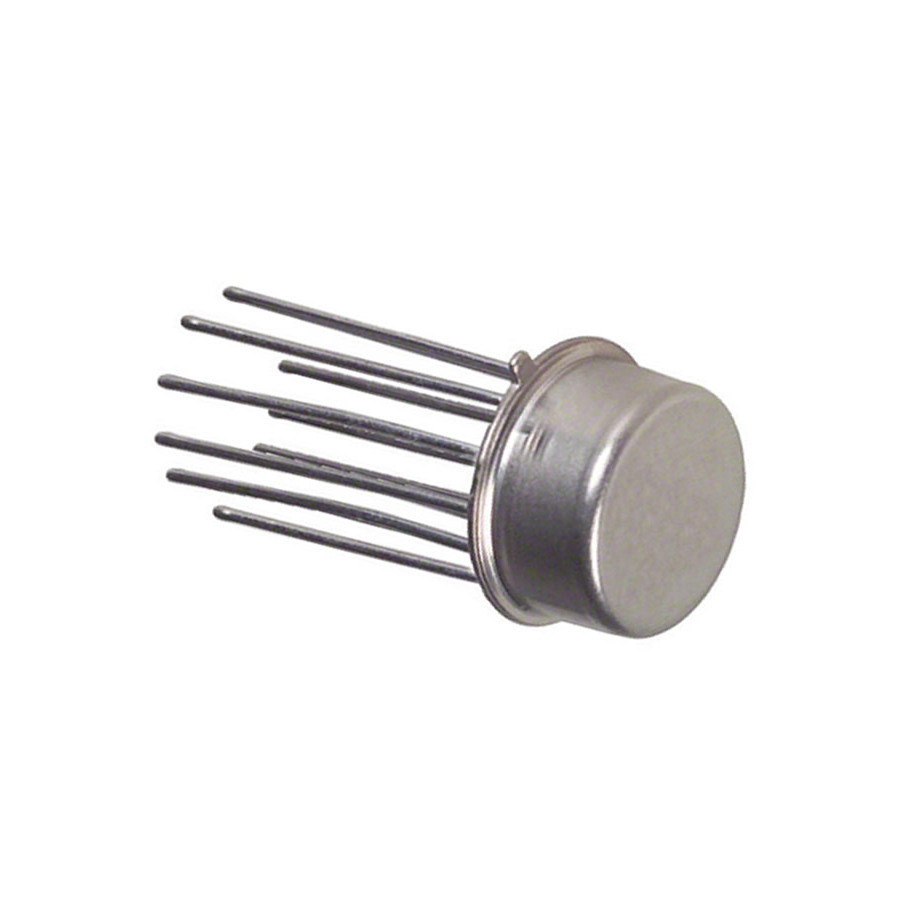

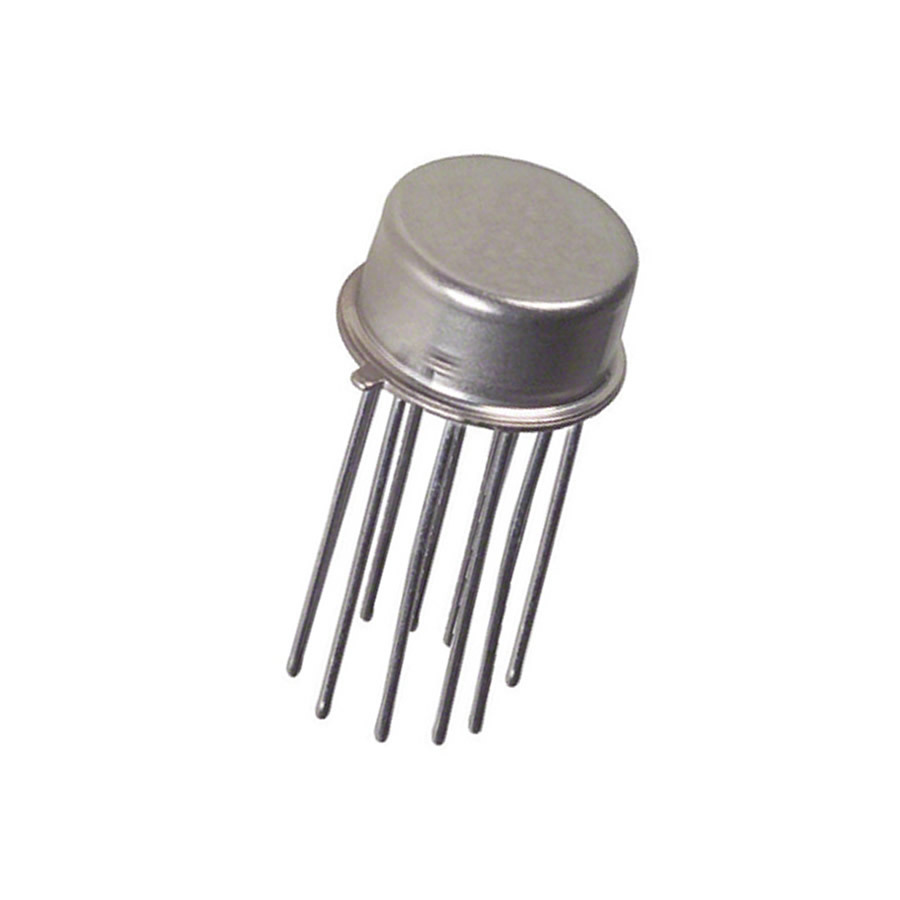

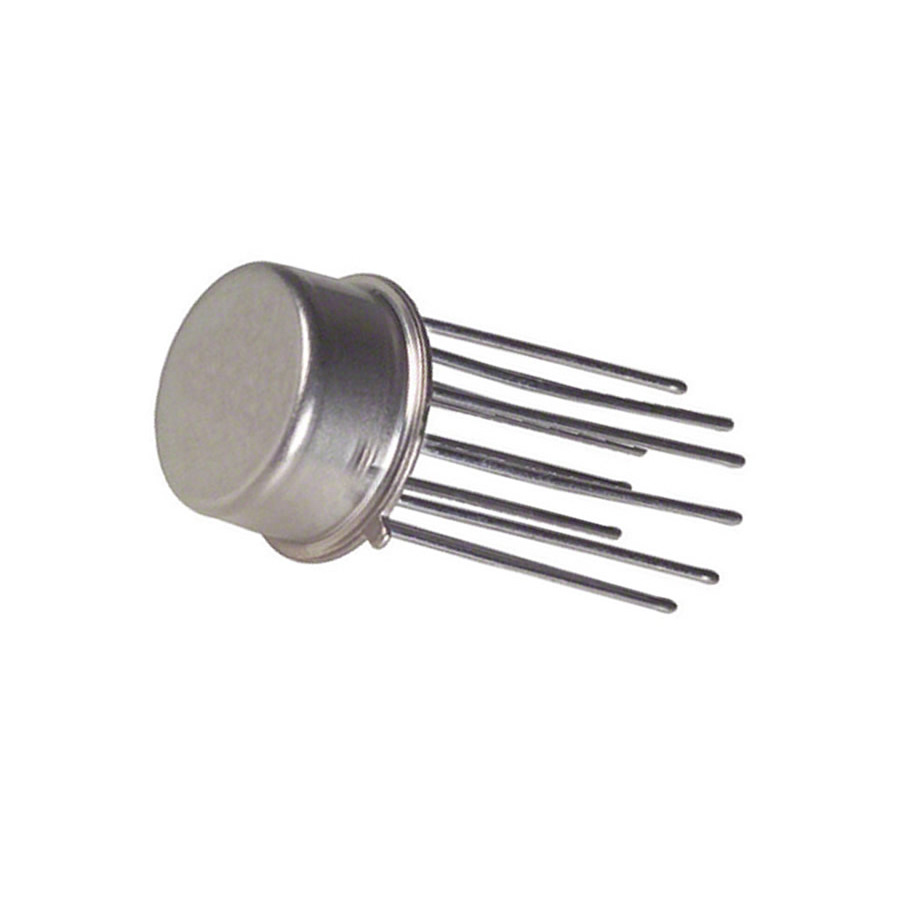

View detailed images (4)

MP103

SKU: MP103
MP103 Transistor Silicon NPN CASE: TO100 MAKE: GEC Plessey Semiconductors
Product specifications
Type Transistor Silicon NPN
Case TO100
Manufacturer GEC Plessey Semiconductors
Ckts Per Dev. 1
Noise Rej. Max. 1.0
Polarity NPN
PD Max. (W) 12m
tPD Max. (S) 500n
Nom. Supp Volt -20
Tech. MOSPEC Semiconductor
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
Pinout Equivalence Number 10-166
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.1 W
Maximum Collector-Base Voltage |Vcb| 10 V
Maximum Collector-Emitter Voltage |Vce| 10 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 100 °C
Collector Capacitance (Cc) 150 pF
Transition Frequency (ft): 1 MHz
Forward Current Transfer Ratio (hFE), MIN 15
SKU 1001185
