MP2142
View detailed images (12)

MP2142

SKU: MP2142

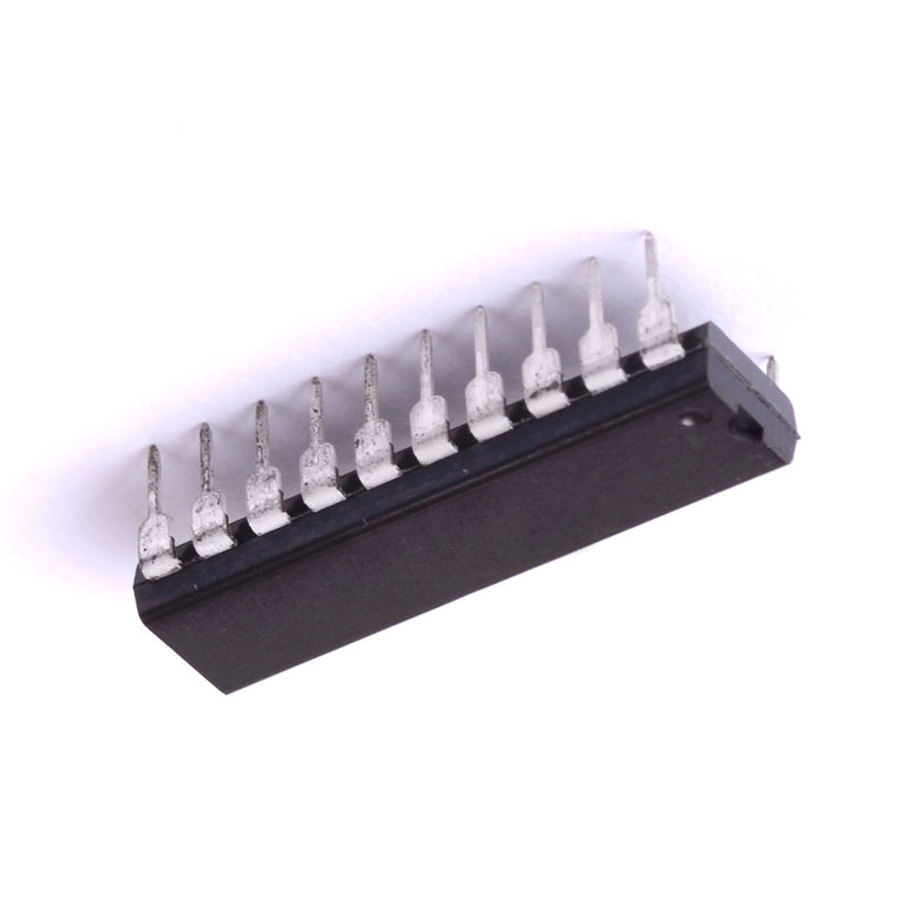

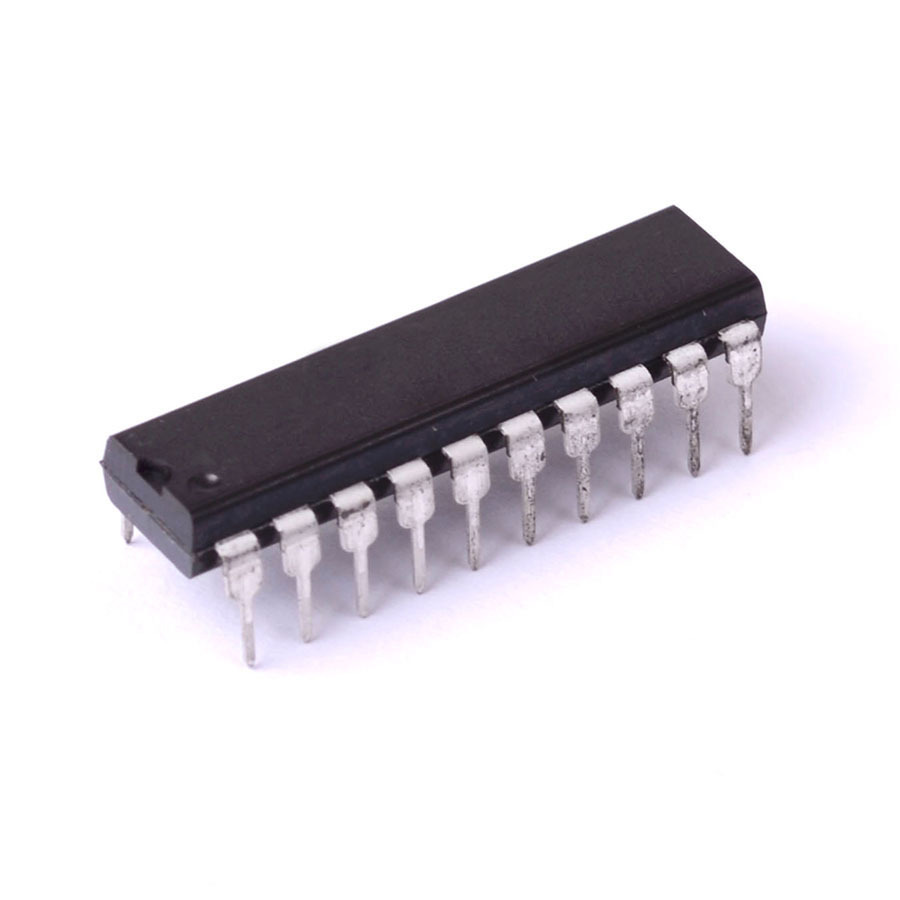

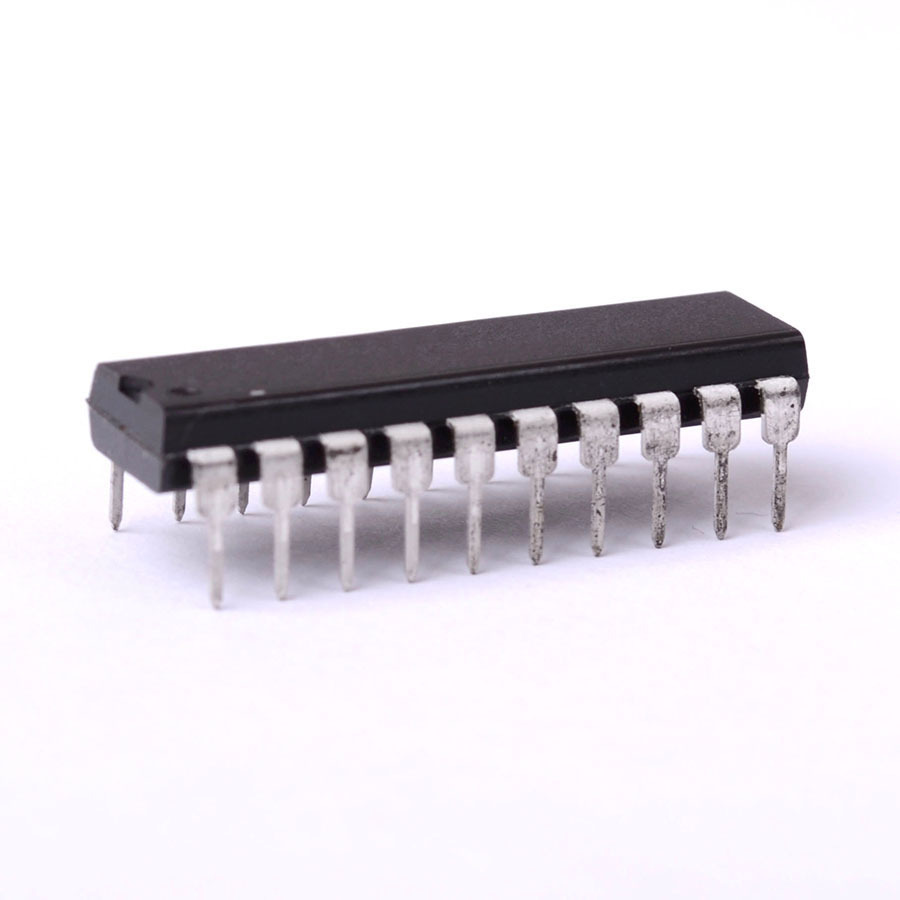

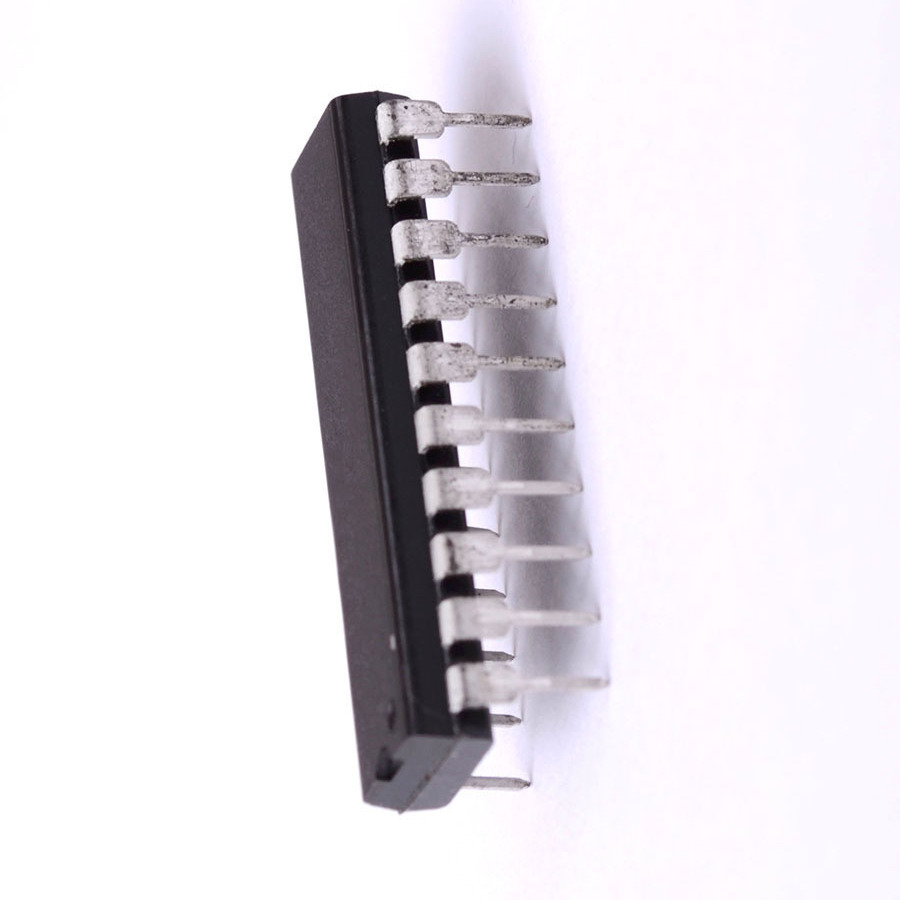

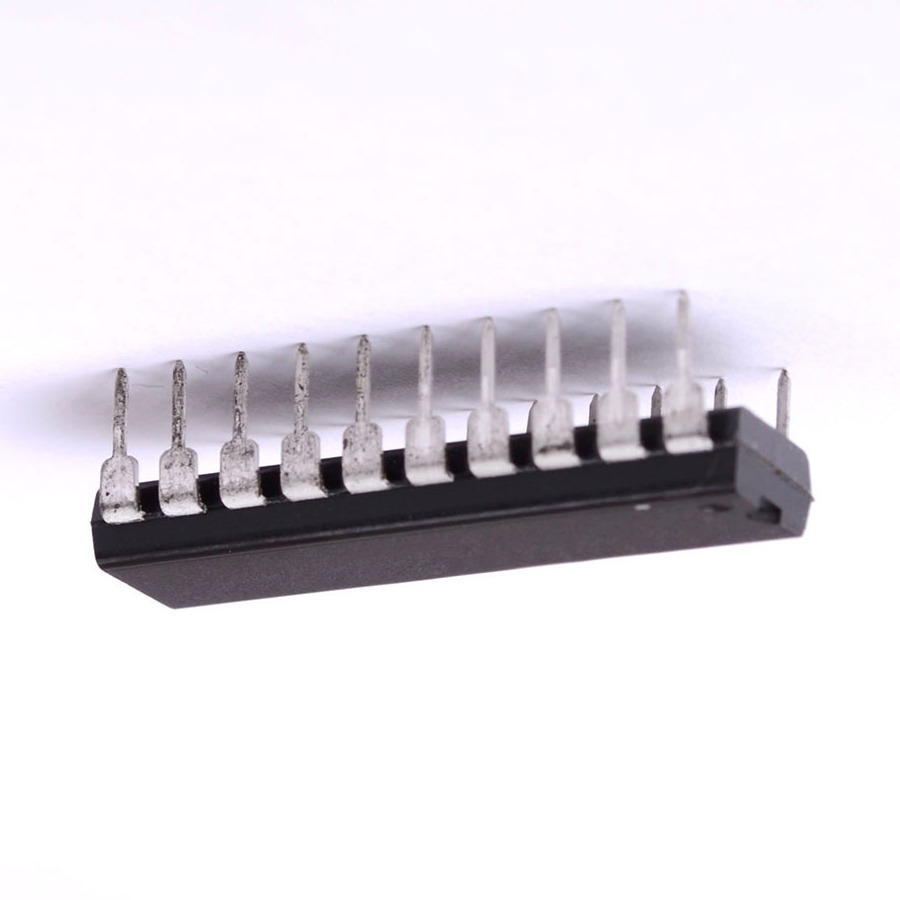

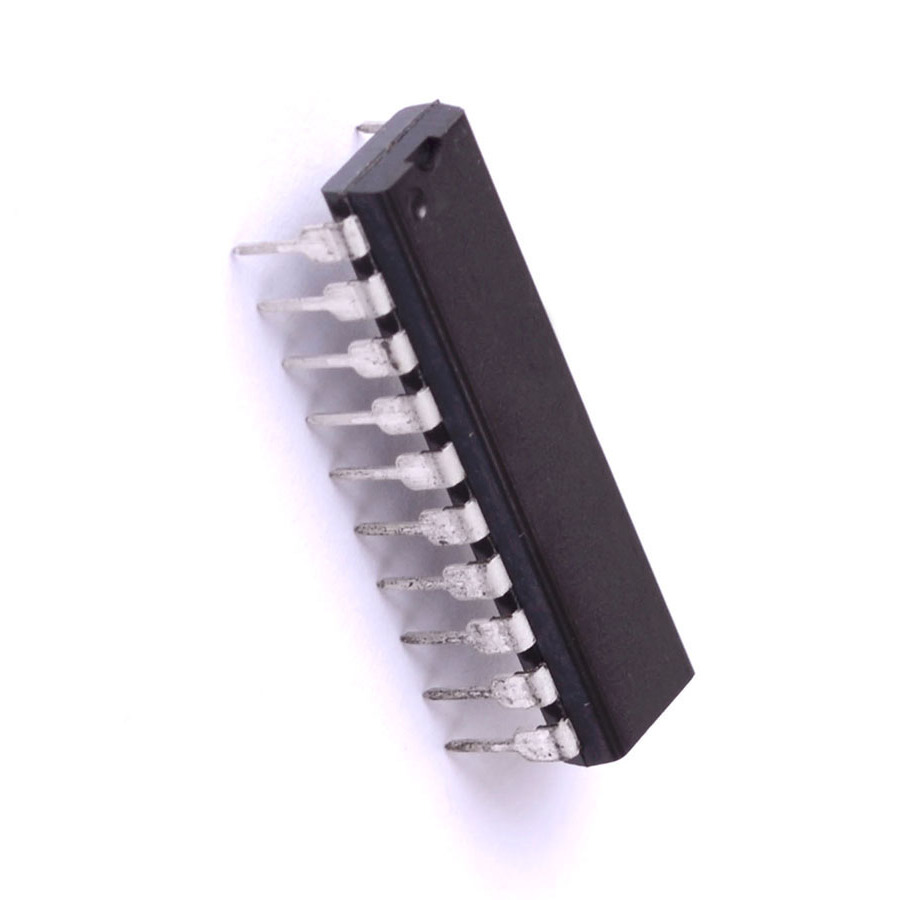

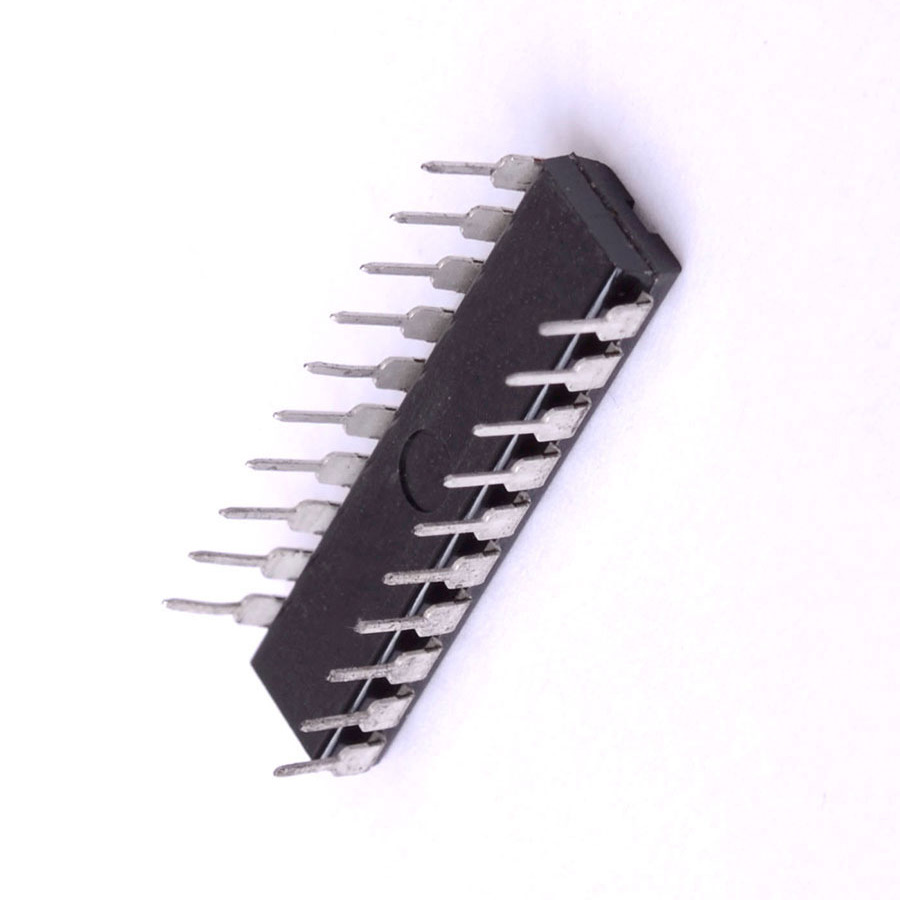

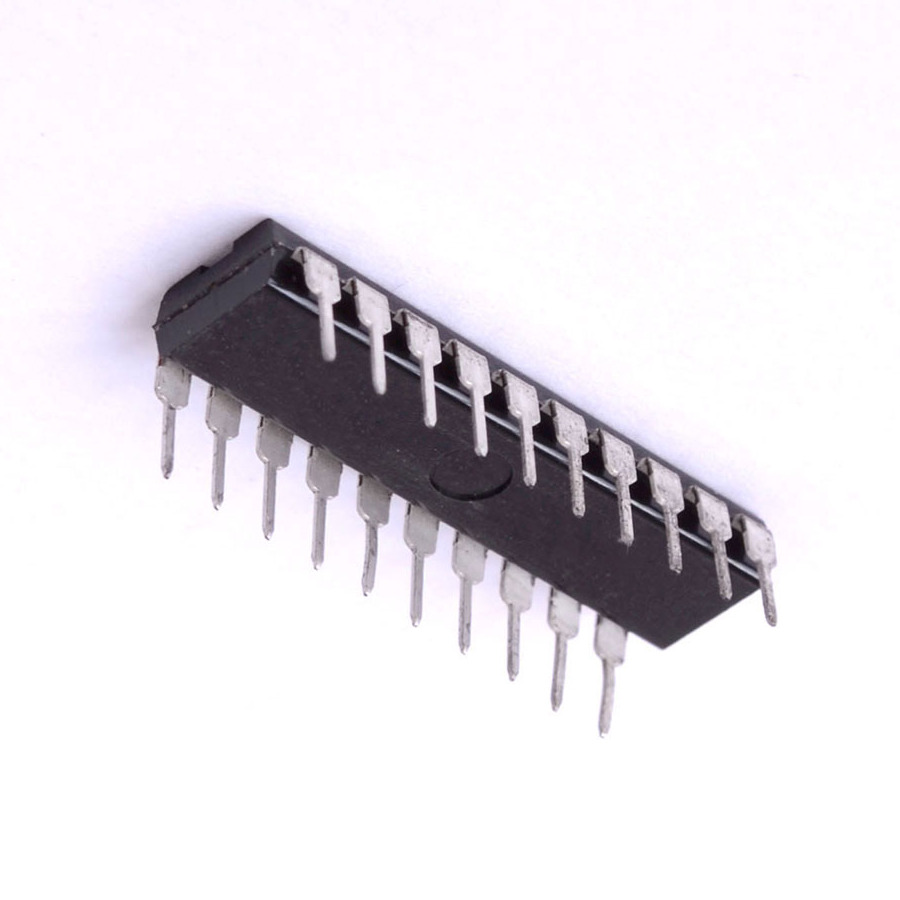

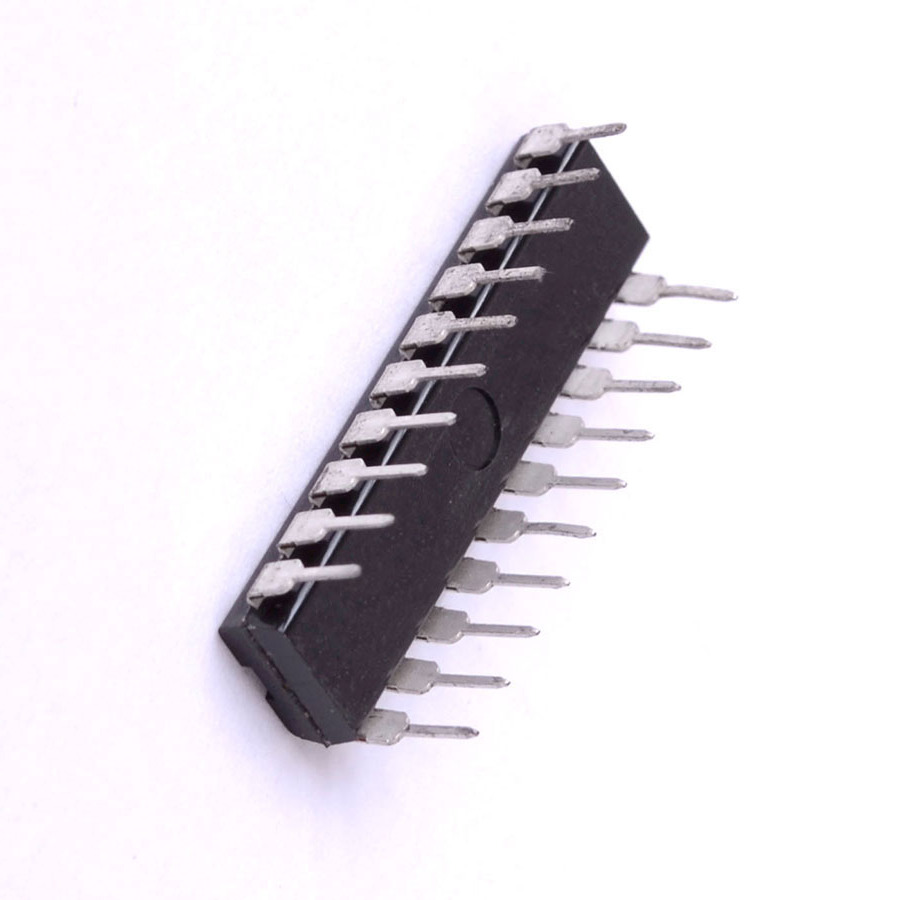

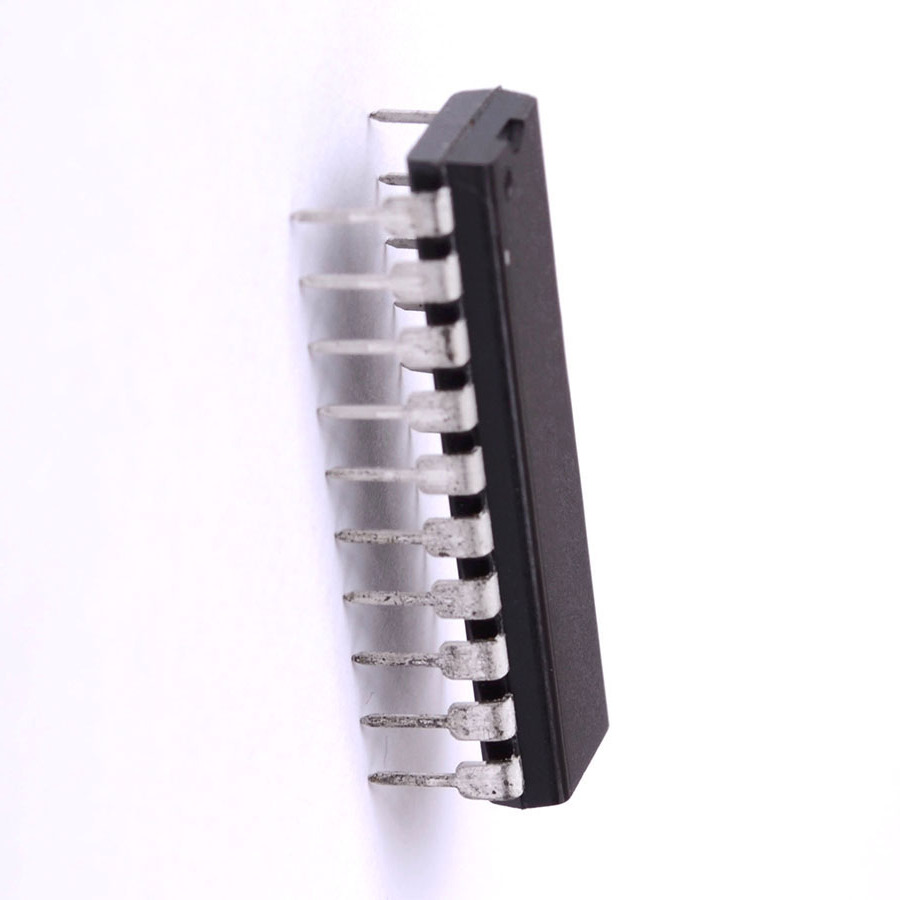

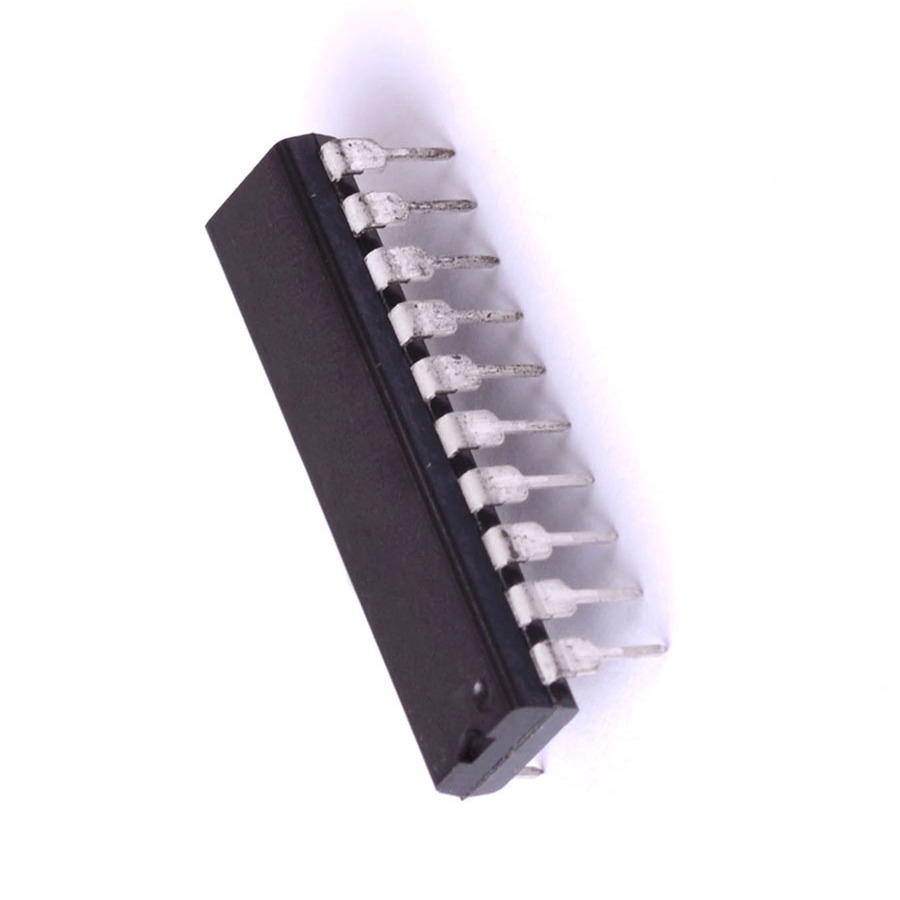

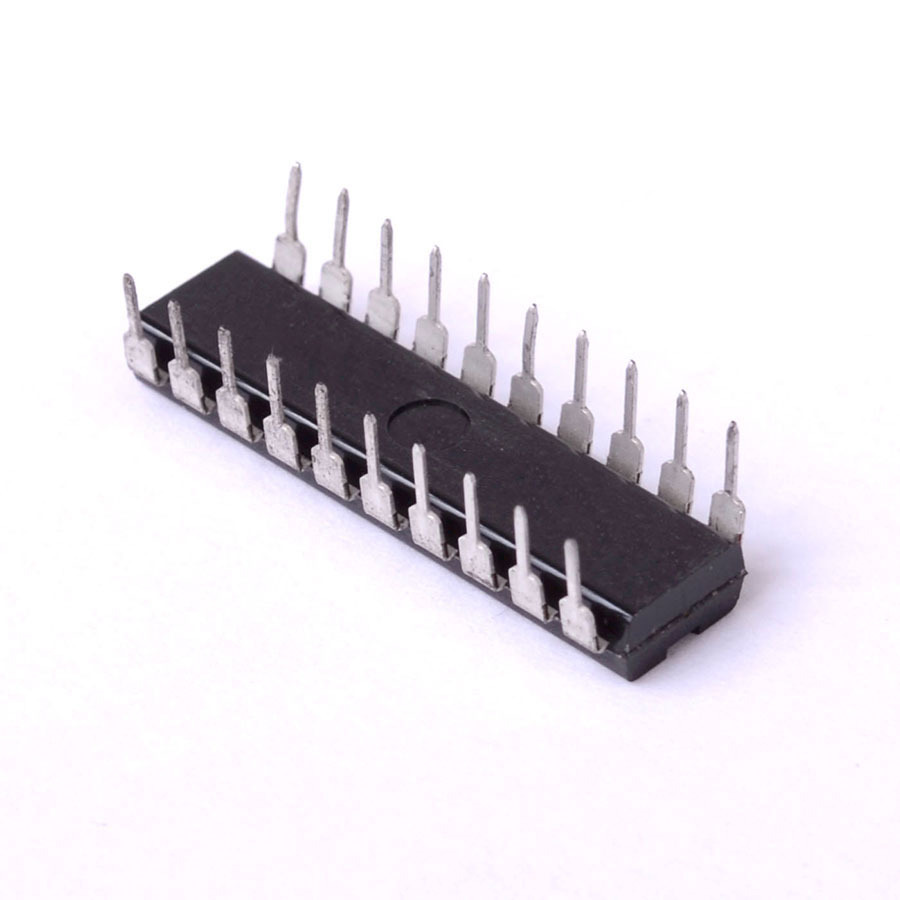

MP2142 Transistor Germanium PNP CASE: DIP20 MAKE: GPD
Product specifications
Type Transistor Germanium PNP
Case DIP20
Manufacturer GPD
Vbr CBO 30
Vbr CEO 20
Max. PD (W) 63
Max. hFE 100
Min hFE 50
Ic Max. (A) 3.0
@Ic (test) (A) 500m
Icbo Max. @Vcb Max. (A) 2.0m
Bits Per Word 4
Output Config 3-State
Polarity PNP
PD Max. (W) 1.0
t(acc) Max. (S) 450n
R(sat) (Û) 250m
Tech. NMOS Integrated Circuit
Derate Above 25°C 833m
tW Min (S) 450n
Trans. Freq (Hz) Min. 12k
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 100
Number of Words 1k
@VCE (V) 2.0
Pinout Equivalence Number 20-66
Descript Multiplexed I/O
No. of Pins 20
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 70 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 20 V
Maximum Emitter-Base Voltage |Veb| 15 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 110 °C
Transition Frequency (ft): 0.12 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SKU 662683
