MP40
View detailed images (4)

MP40

SKU: MP40

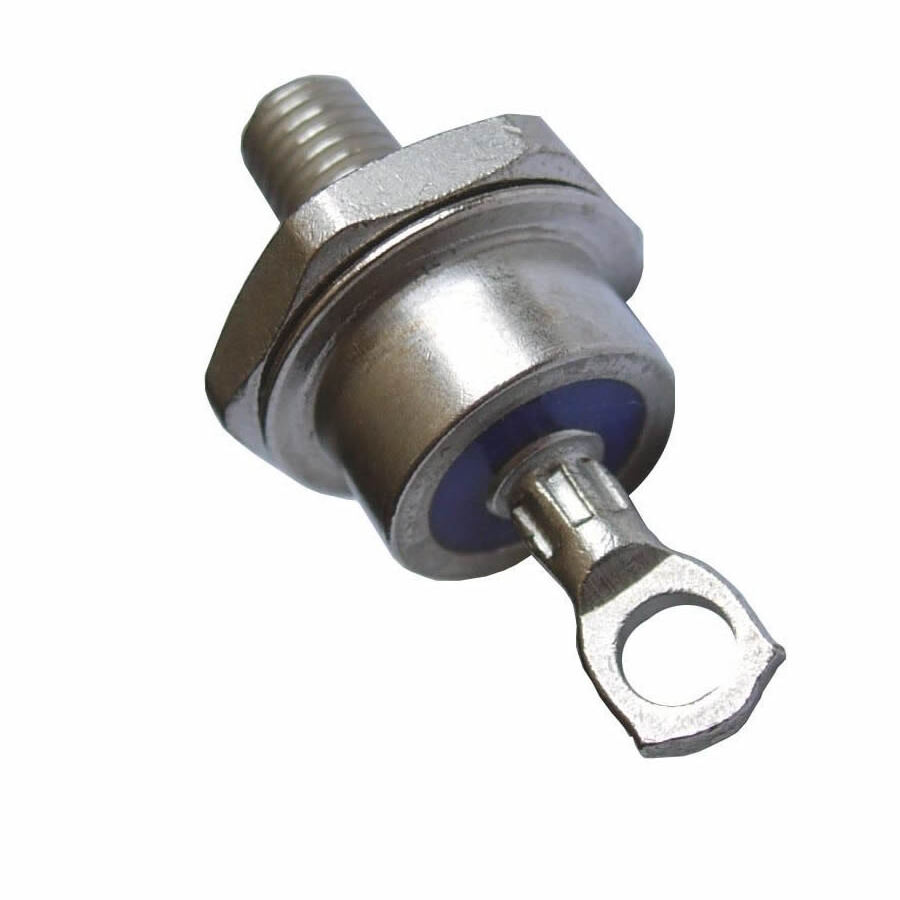

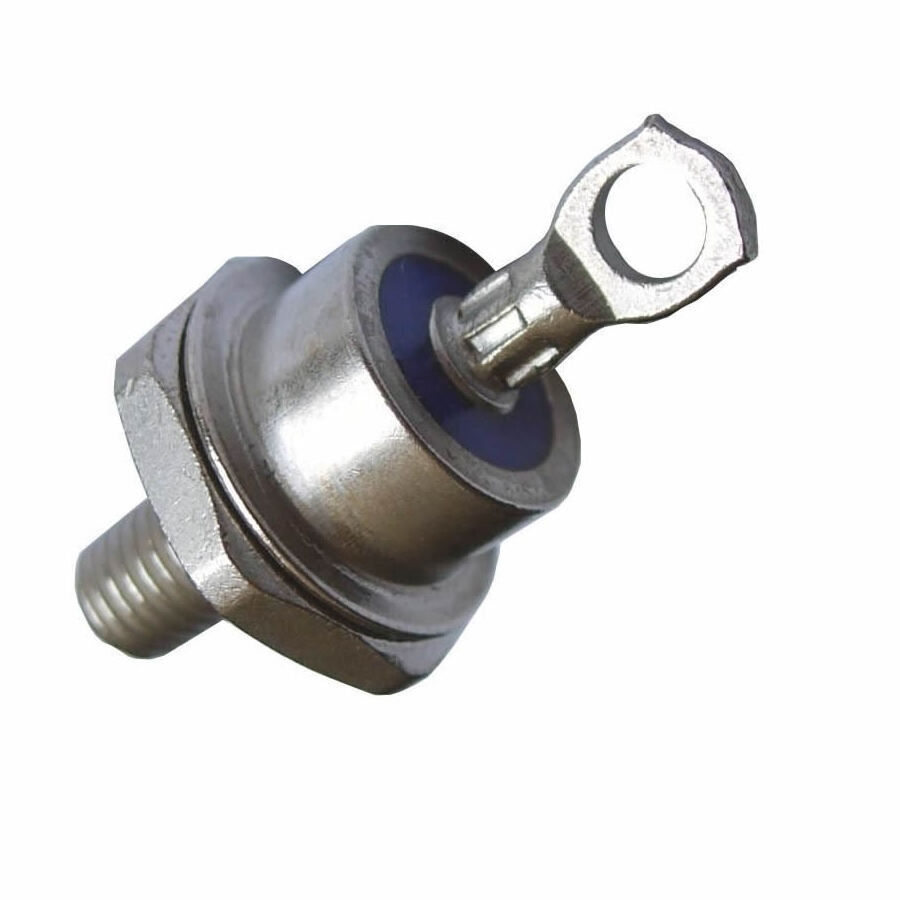

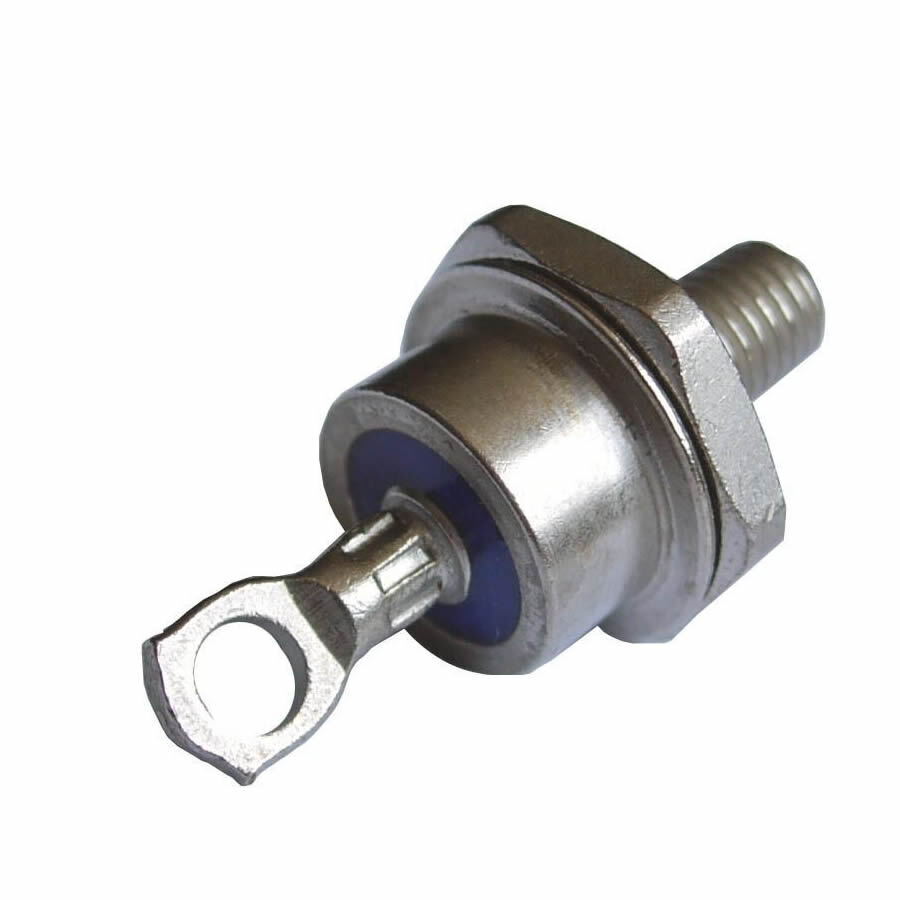

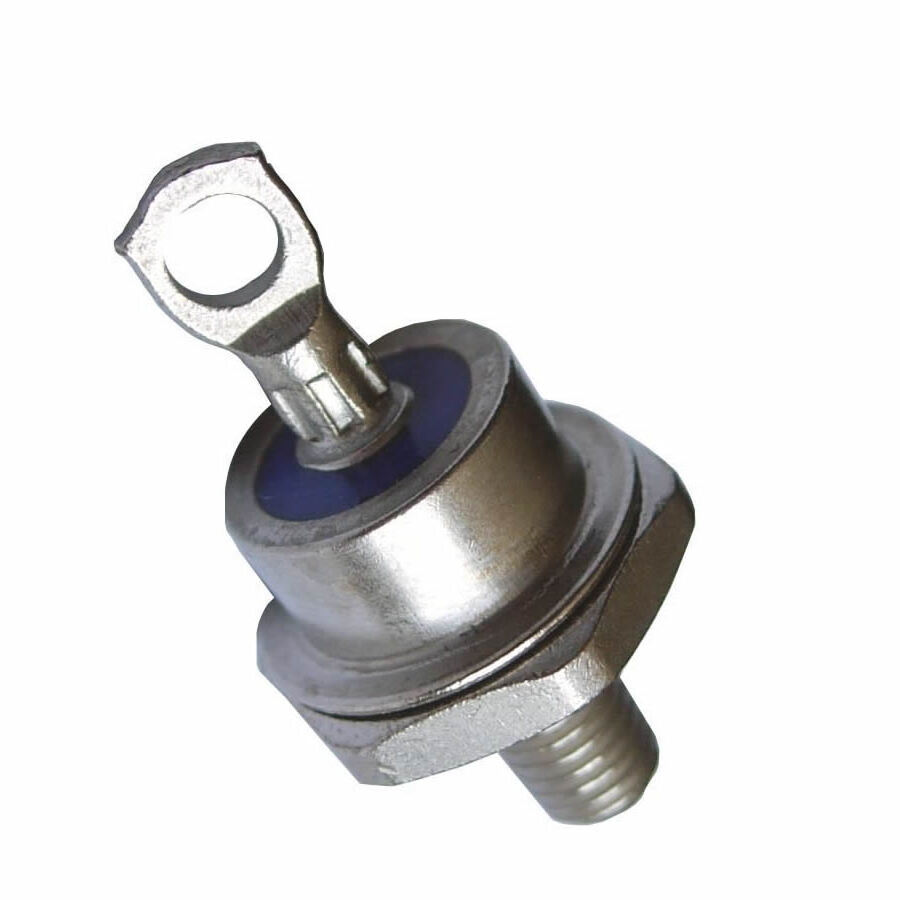

MP40 Transistor Germanium PNP CASE: DO5 MAKE: Toshiba
Product specifications
Type Transistor Germanium PNP
Case DO5
Manufacturer Toshiba
@Temp. (test) (°C) 100#
Ir @ Diff. Temp (A) 5.0m
VRRM 400
Polarity PNP
1-Cycle Surge Current (A) 500
@Temp (test) (°C) 150
@Temp. (test) for Vf) 25#
Vf Max. 1.5
I(out) (If AVG) Max. 40
@Volts (test) (V) 400
@If (test) 100
Oper. Temp (°C) Max. 150
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Base Voltage |Vcb| 15 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.15 A
Max. Operating Junction Temperature (Tj) 85 °C
Transition Frequency (ft): 1 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SKU 868373
