MP4506
View detailed images (13)

MP4506

SKU: MP4506

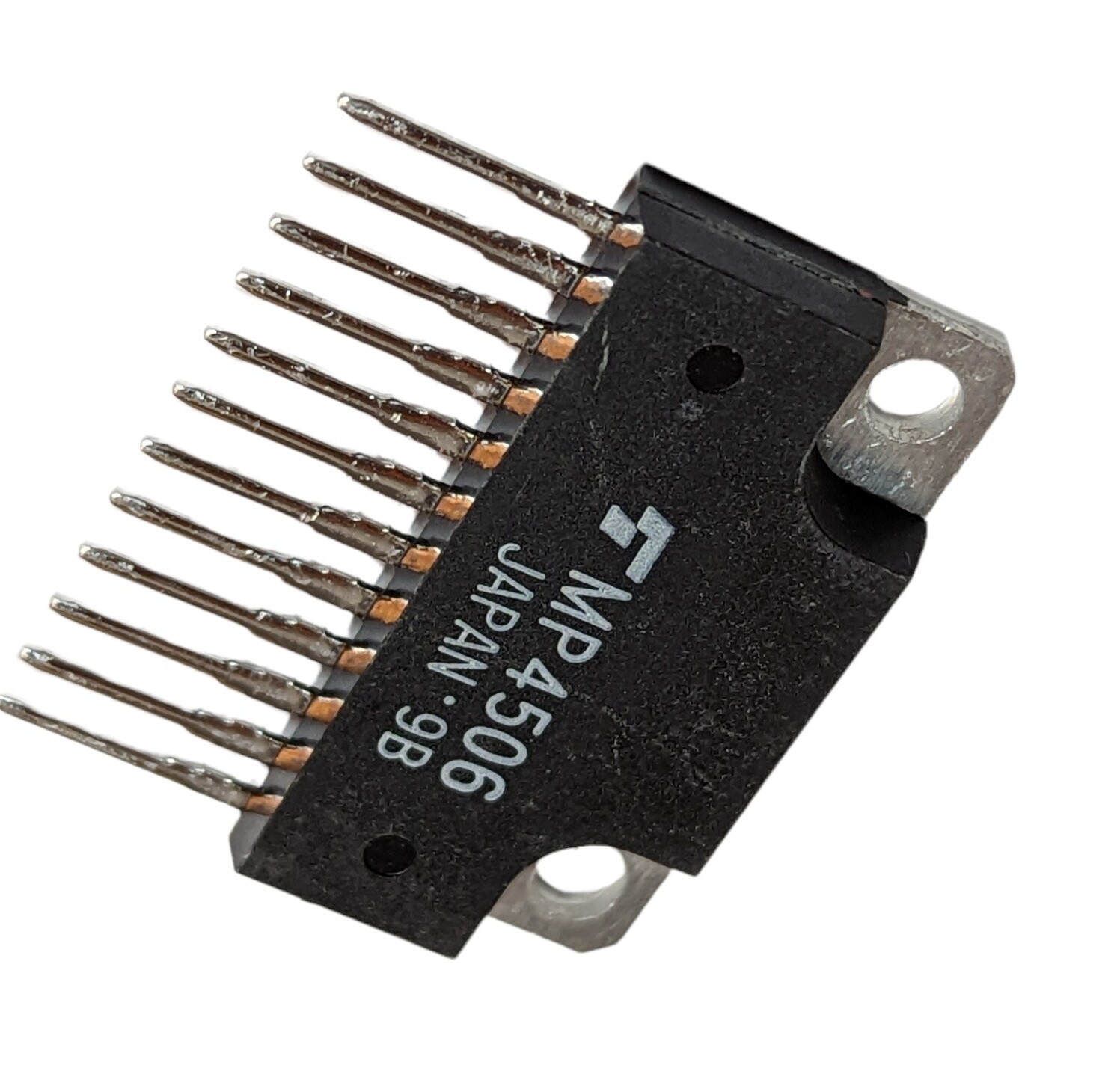

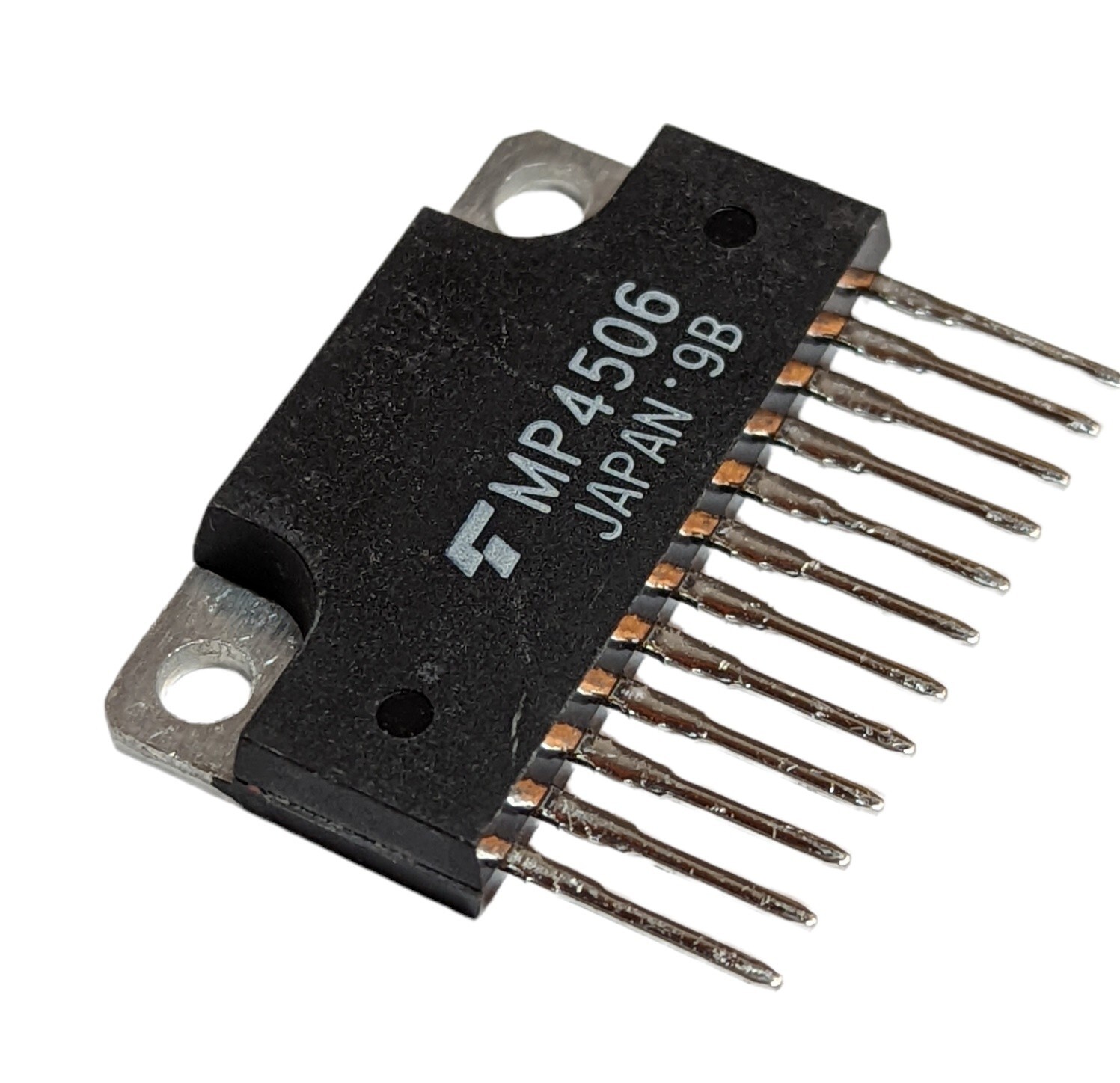

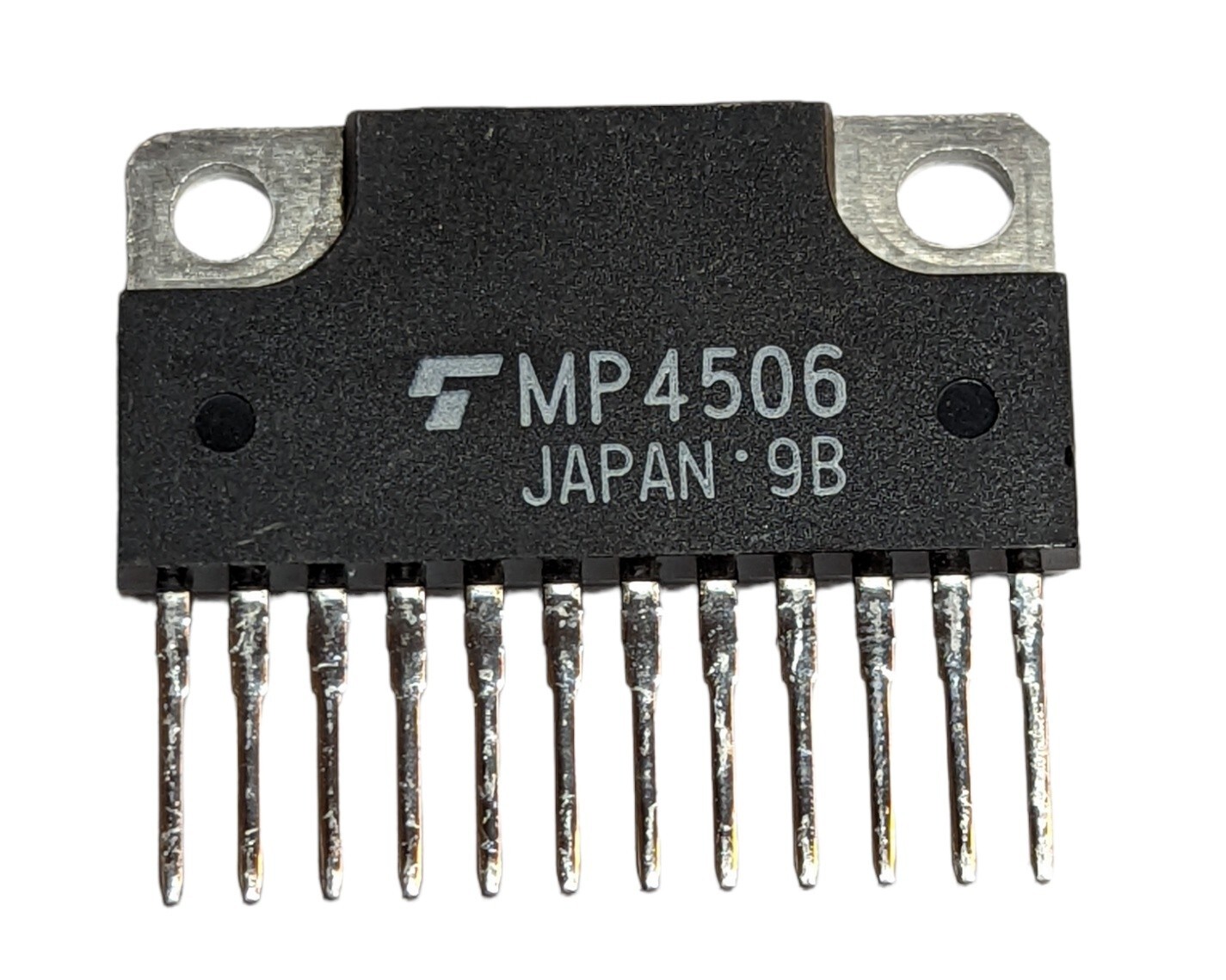

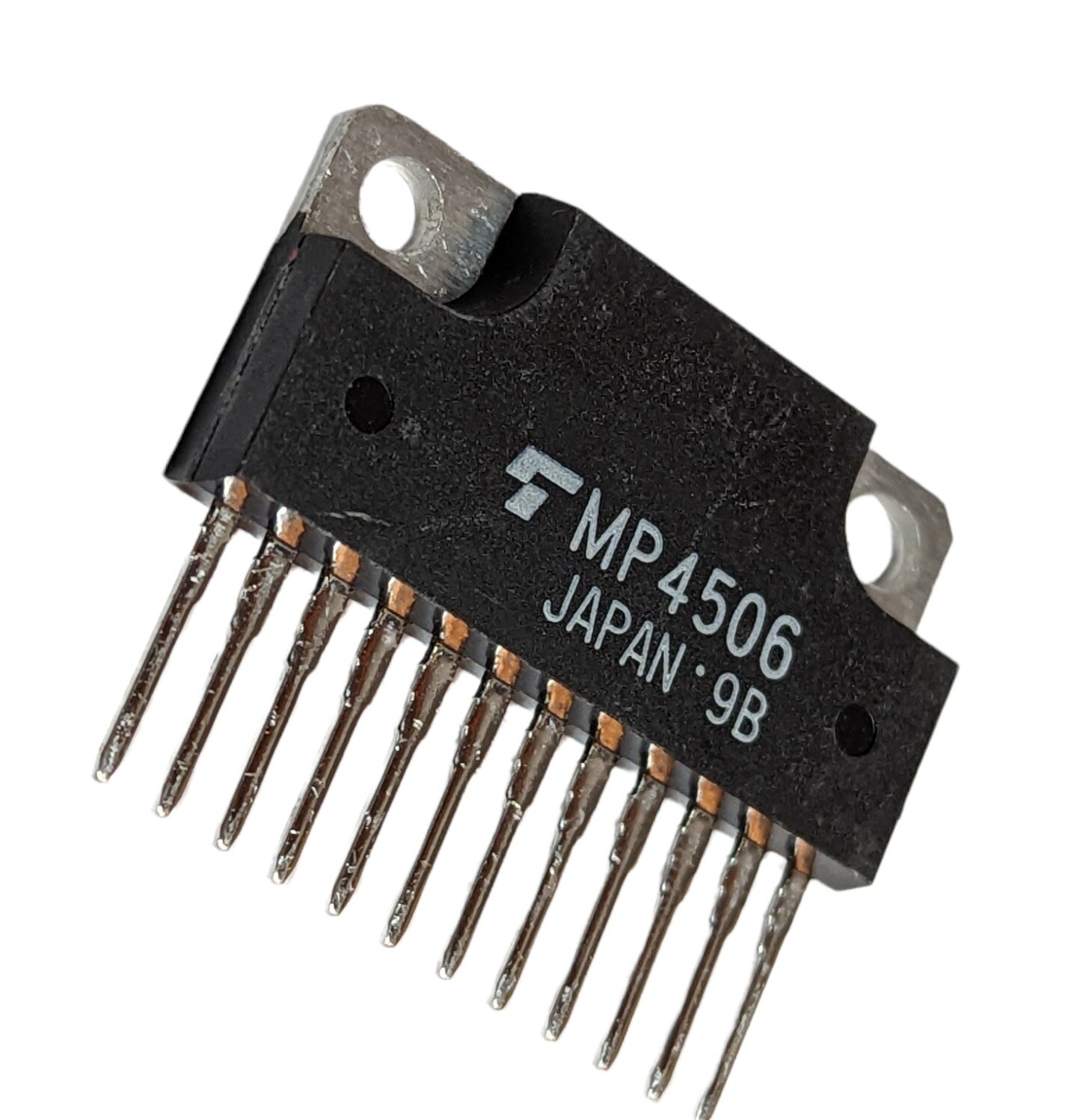

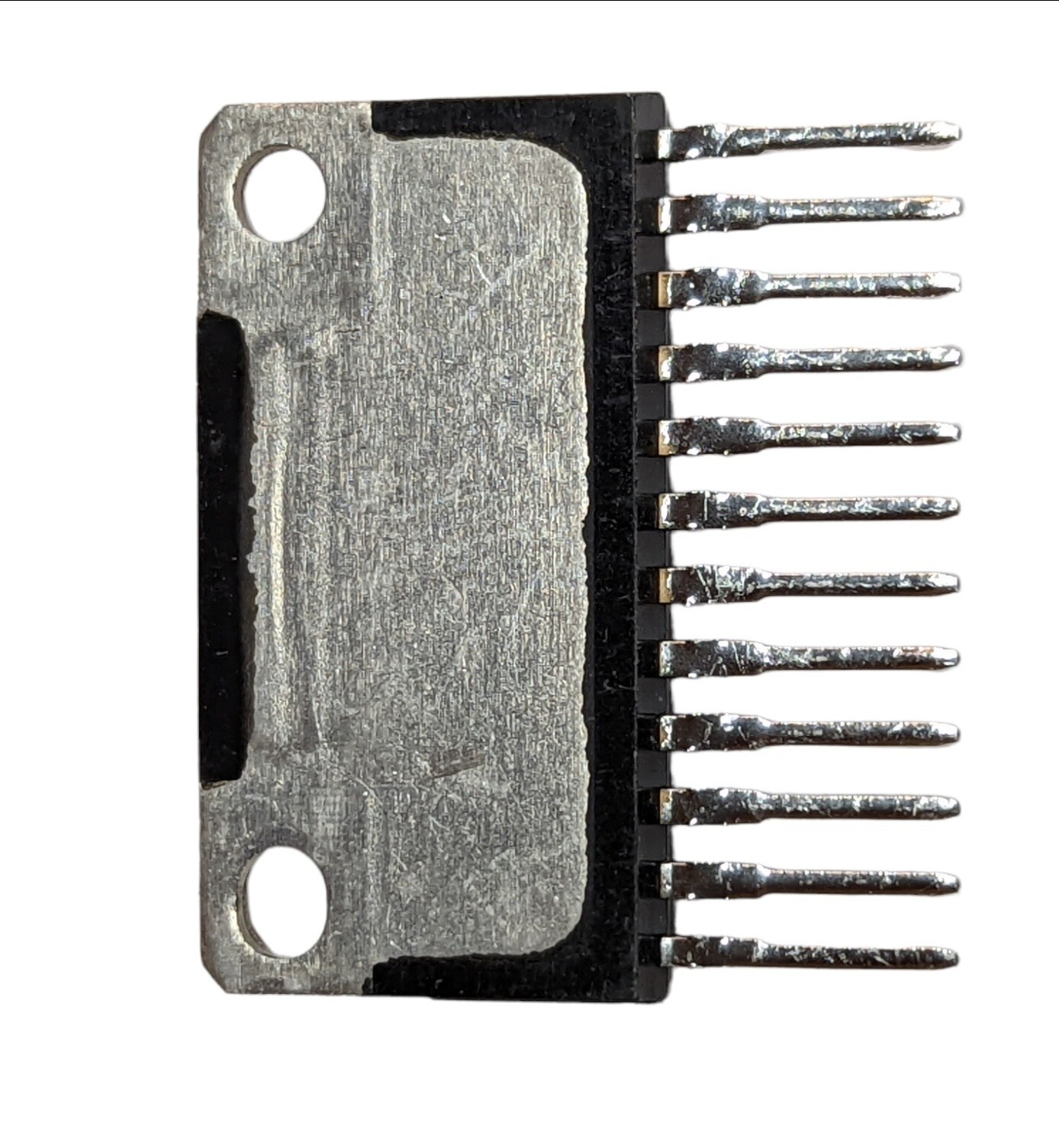

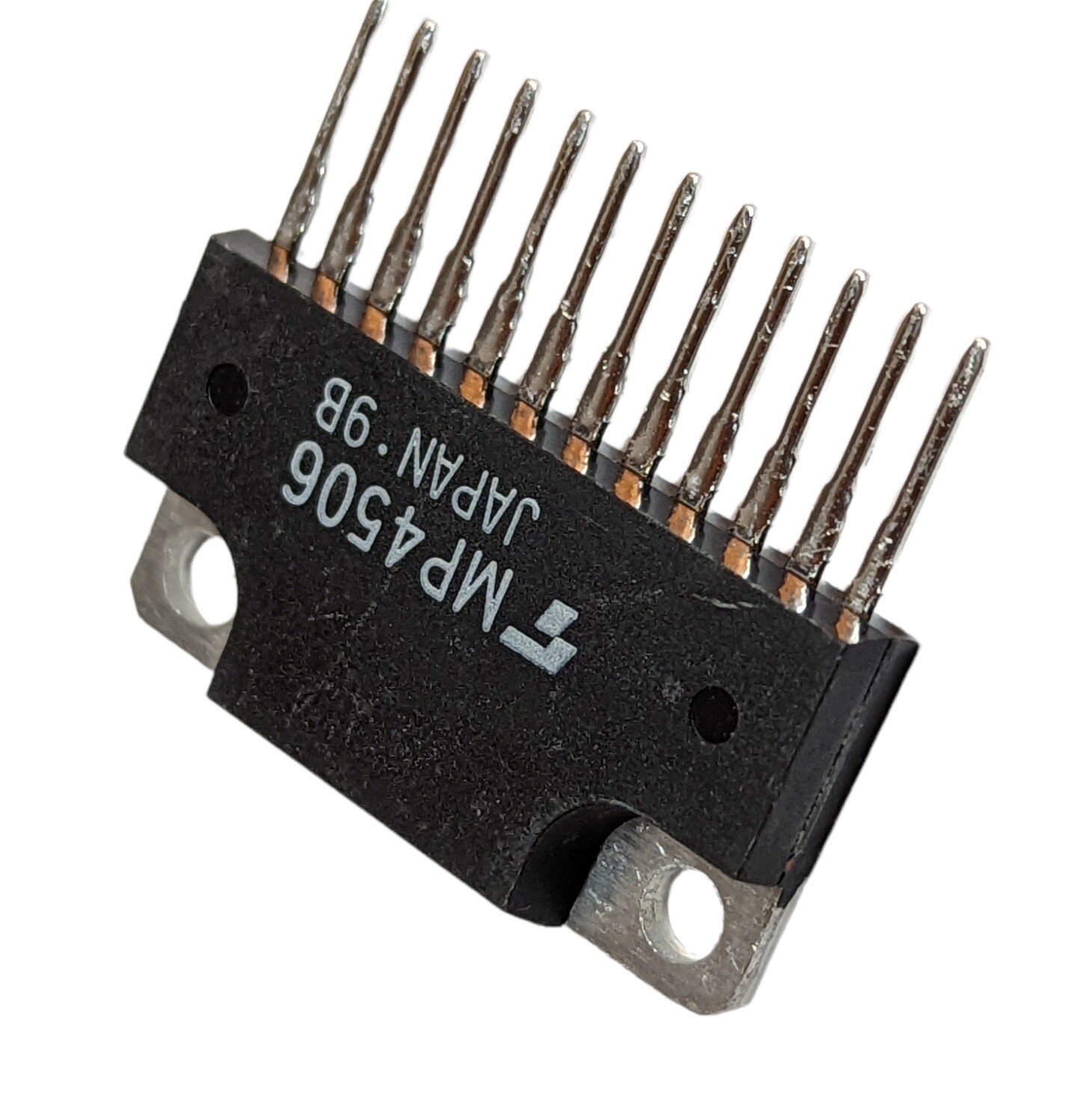

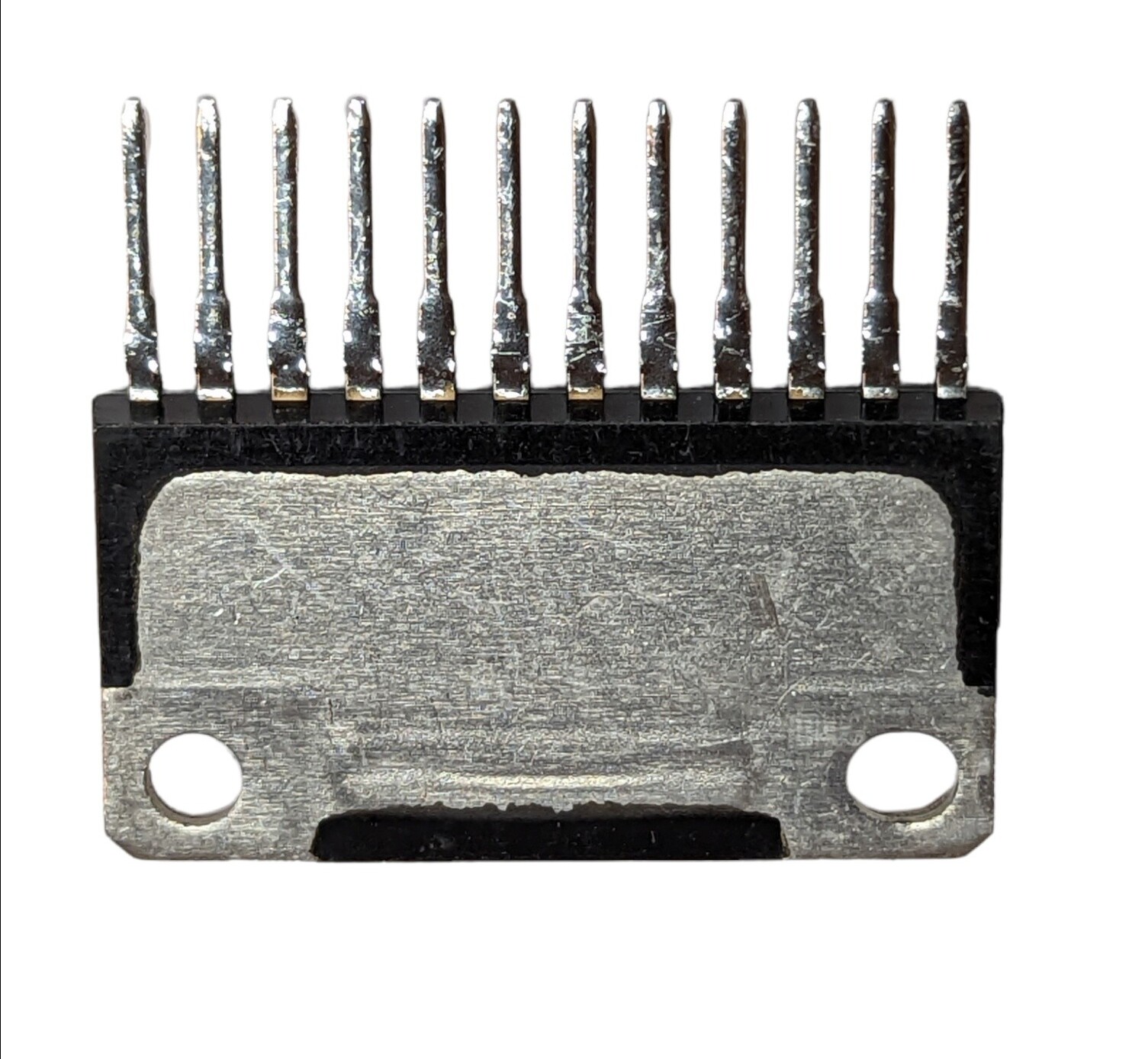

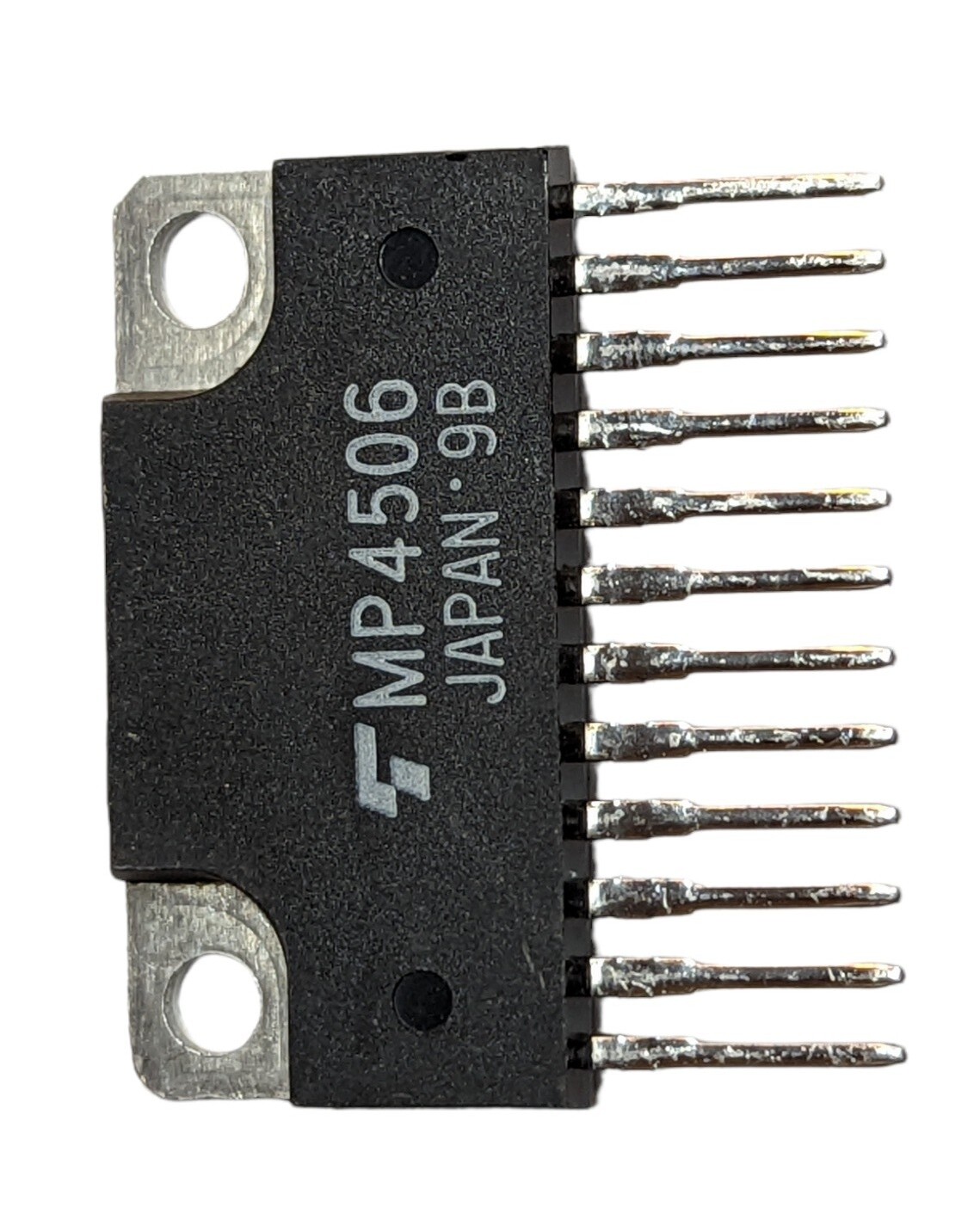

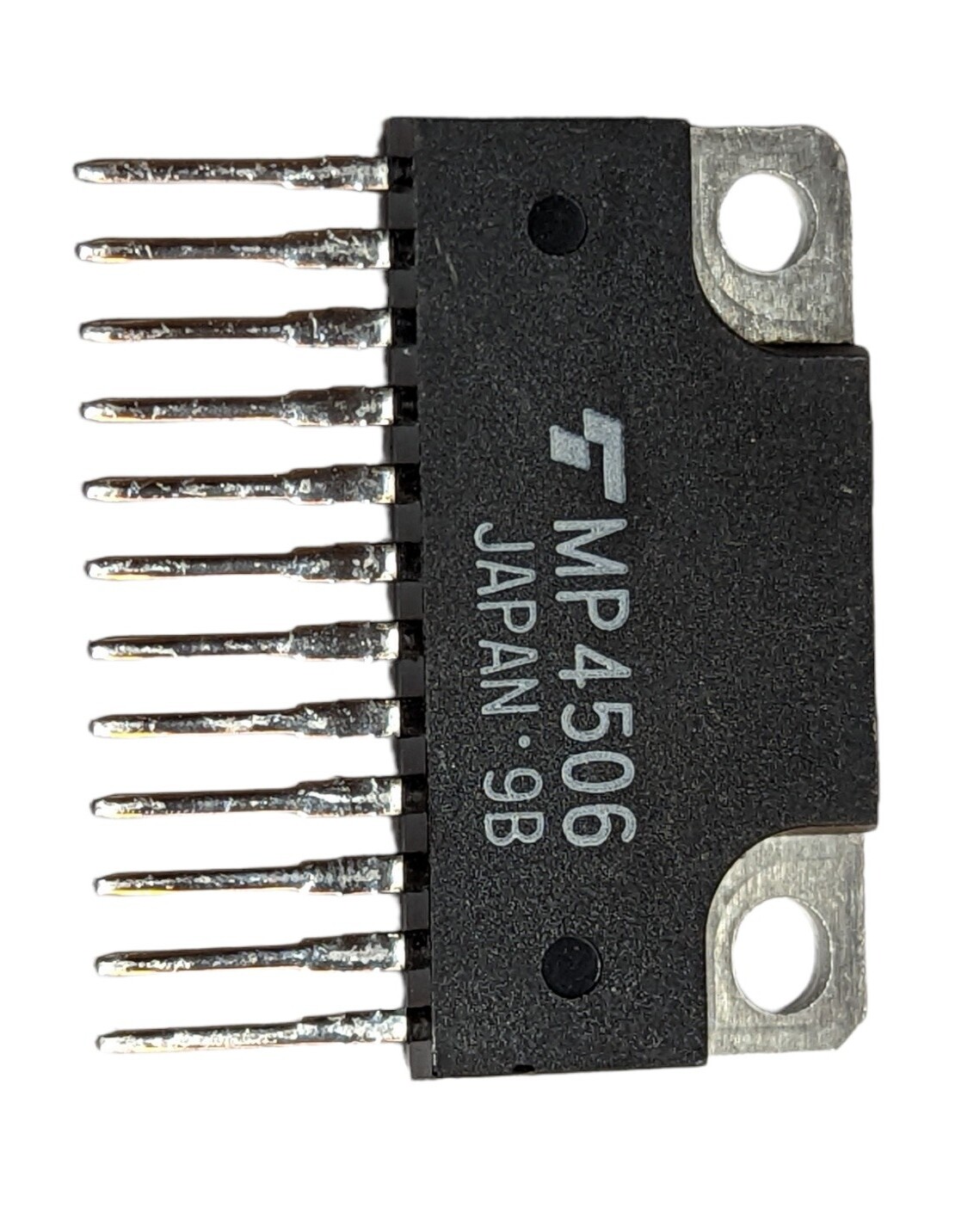

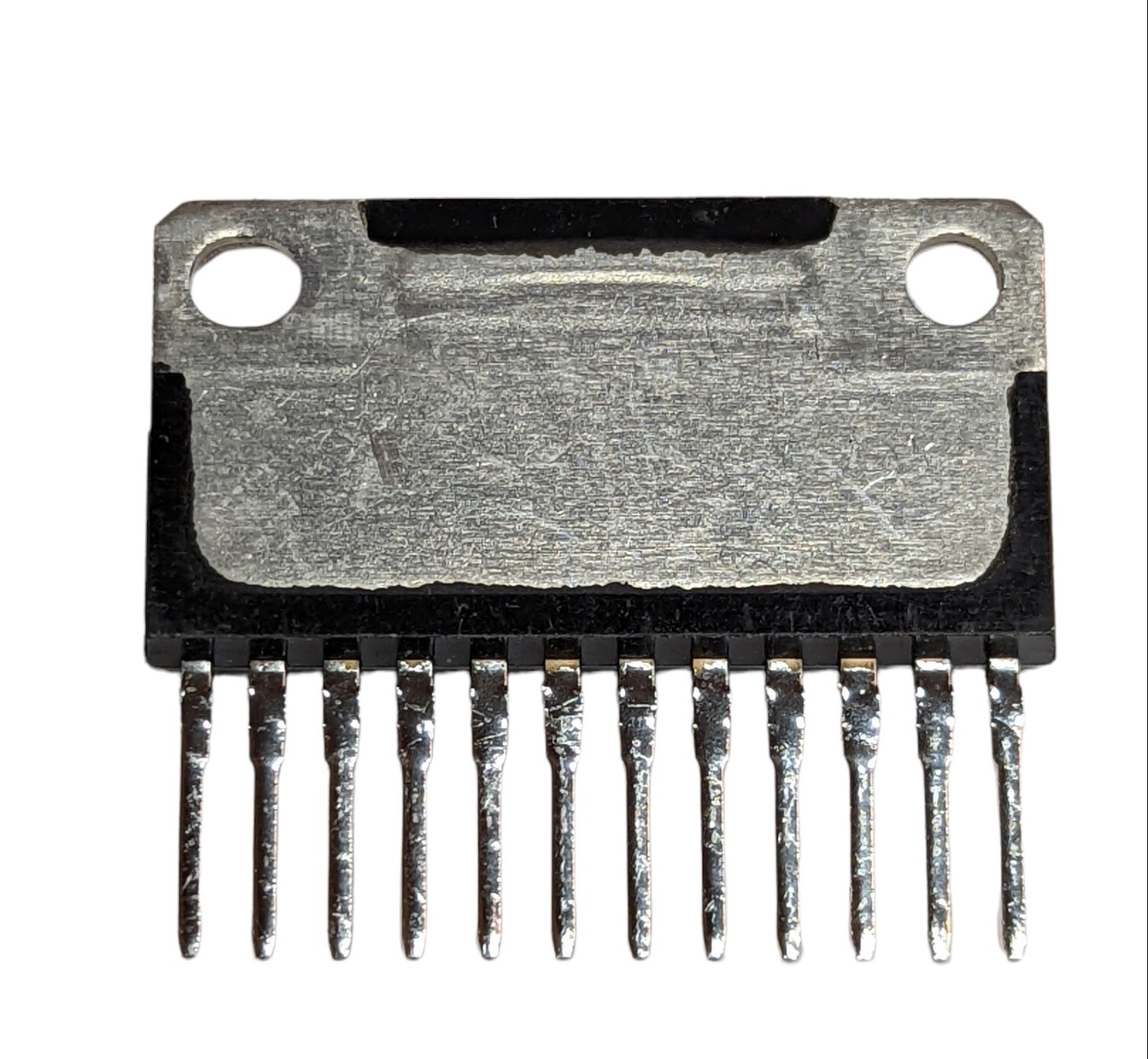

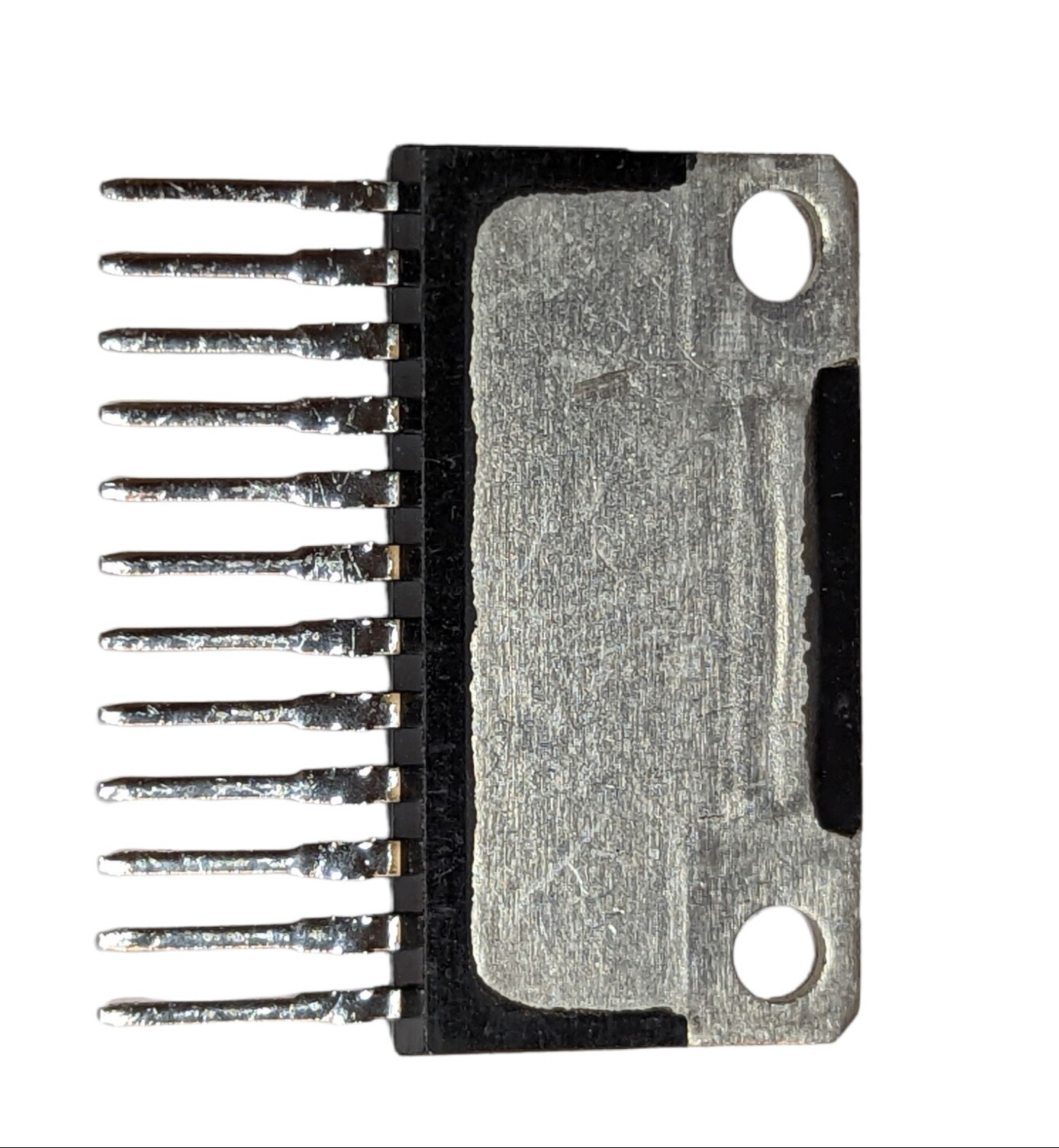

MP4506 Transistor Silicon NPN CASE: SIP12 MAKE: Toshiba
Price:
£9.59 Inc. VAT (£7.99 Ex. VAT)
£9.59 Inc. VAT (£7.99 Ex. VAT)
Qty
  • 326 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
MP4506 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SIP12
Manufacturer Toshiba
Polarity NPN
Maximum Collector Power Dissipation (Pc) 3 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 40 pF
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN 1000
SKU 257301
