MP4507
View detailed images (4)

MP4507

SKU: MP4507

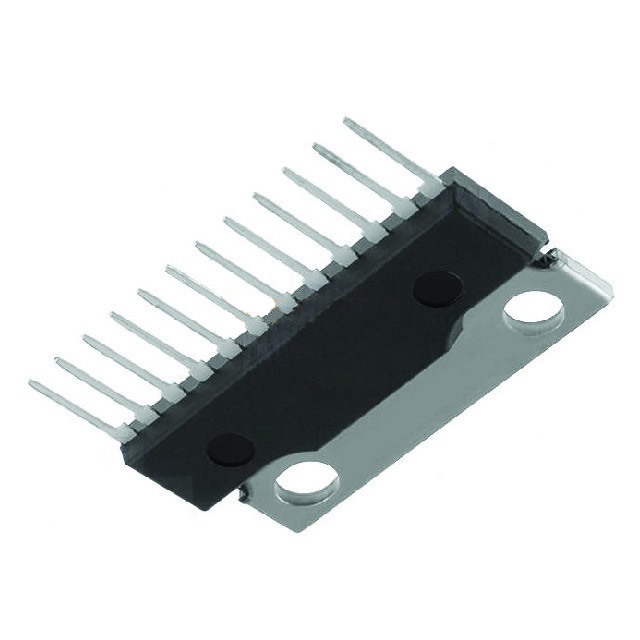

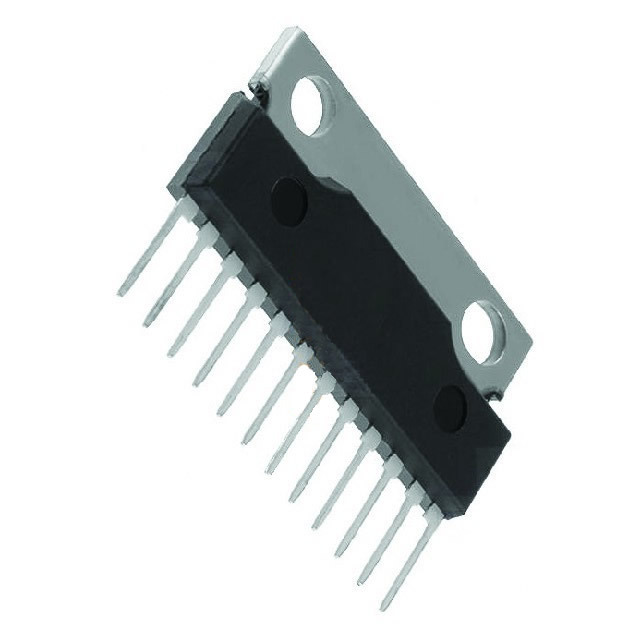

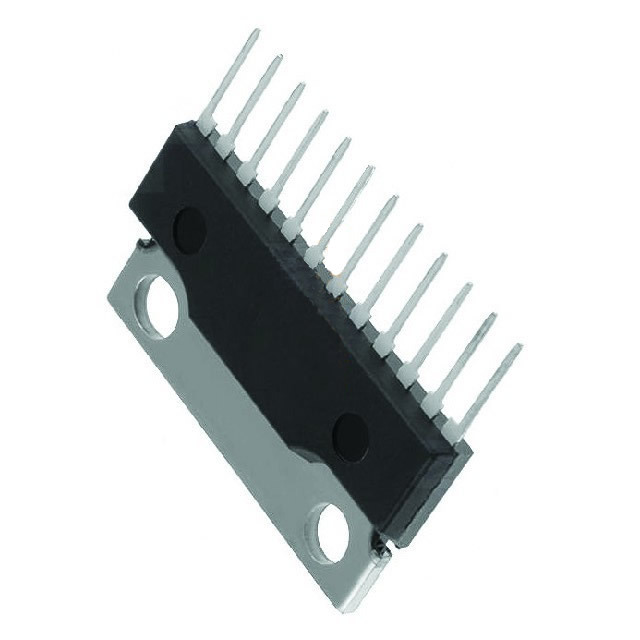

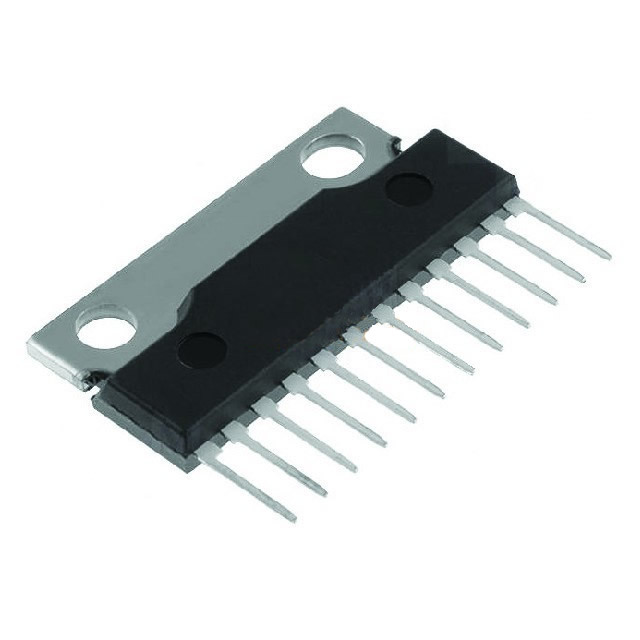

MP4507 Transistor Silicon NPN - PNP CASE: SIP12 MAKE: Toshiba
Price:
£23.99 Inc. VAT (£19.99 Ex. VAT)
£23.99 Inc. VAT (£19.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
MP4507 Datasheet
Product specifications
Type Transistor Silicon NPN - PNP
Case SIP12
Manufacturer Toshiba
Polarity NPN*PNP
Maximum Collector Power Dissipation (Pc) 3 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 40 pF
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN 1000
SKU 257302
