MP7684JS
View detailed images (12)

MP7684JS

SKU: MP7684JS

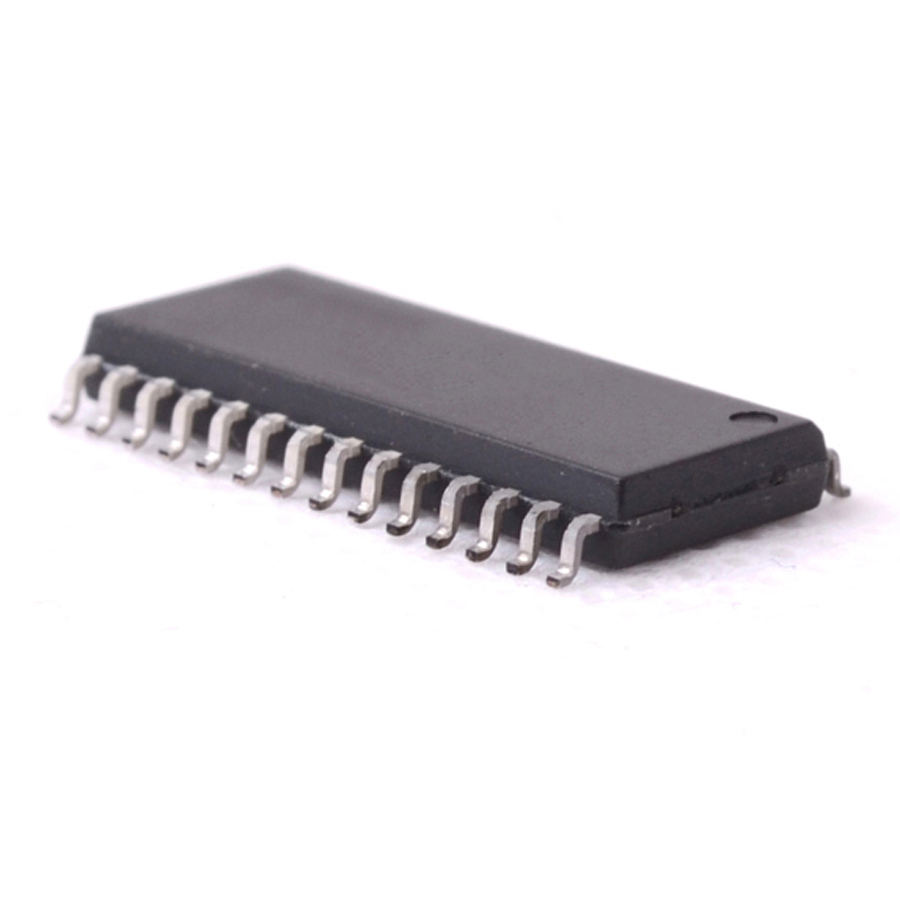

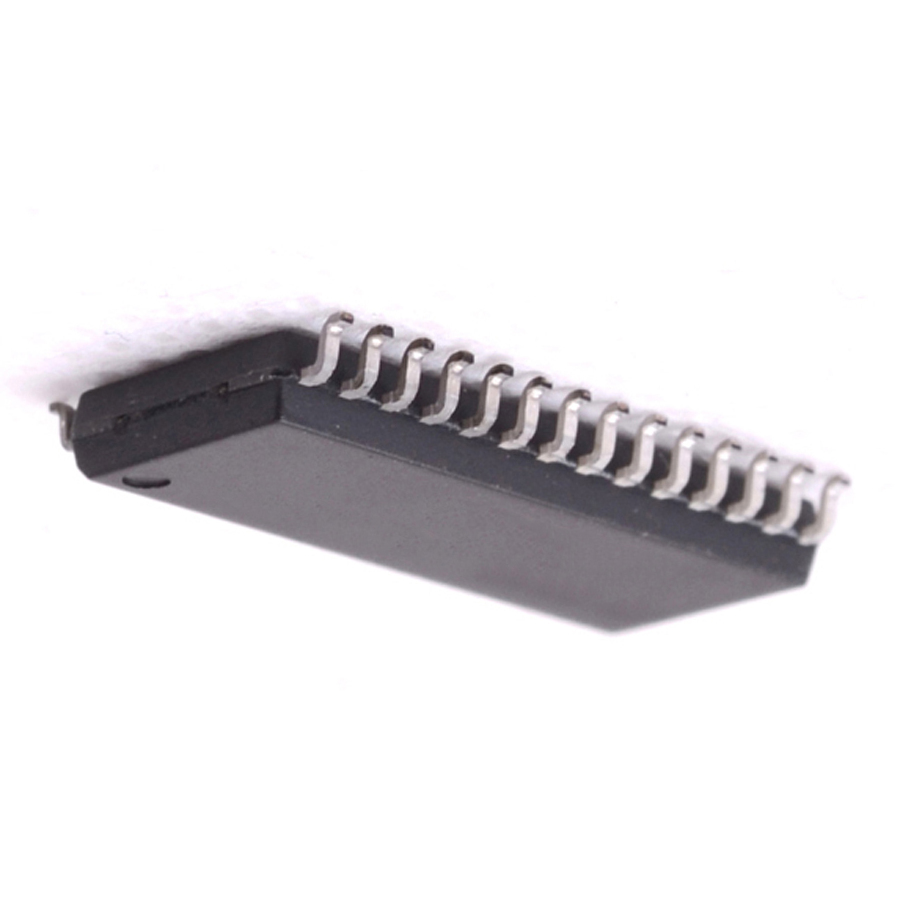

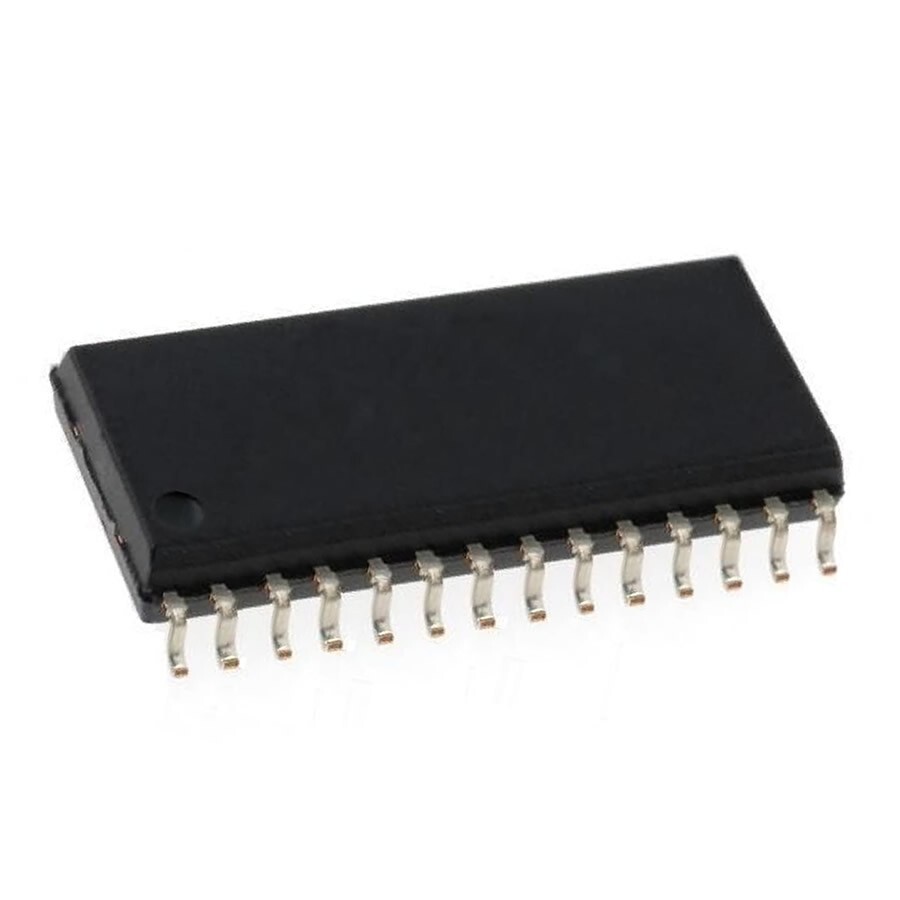

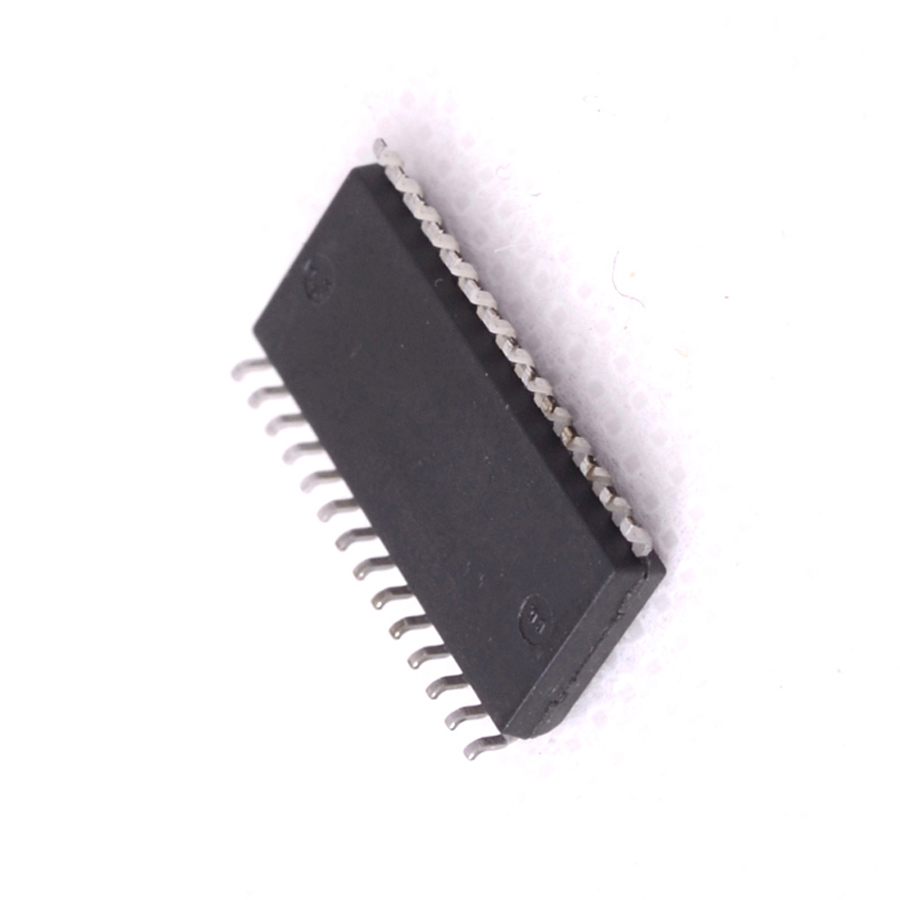

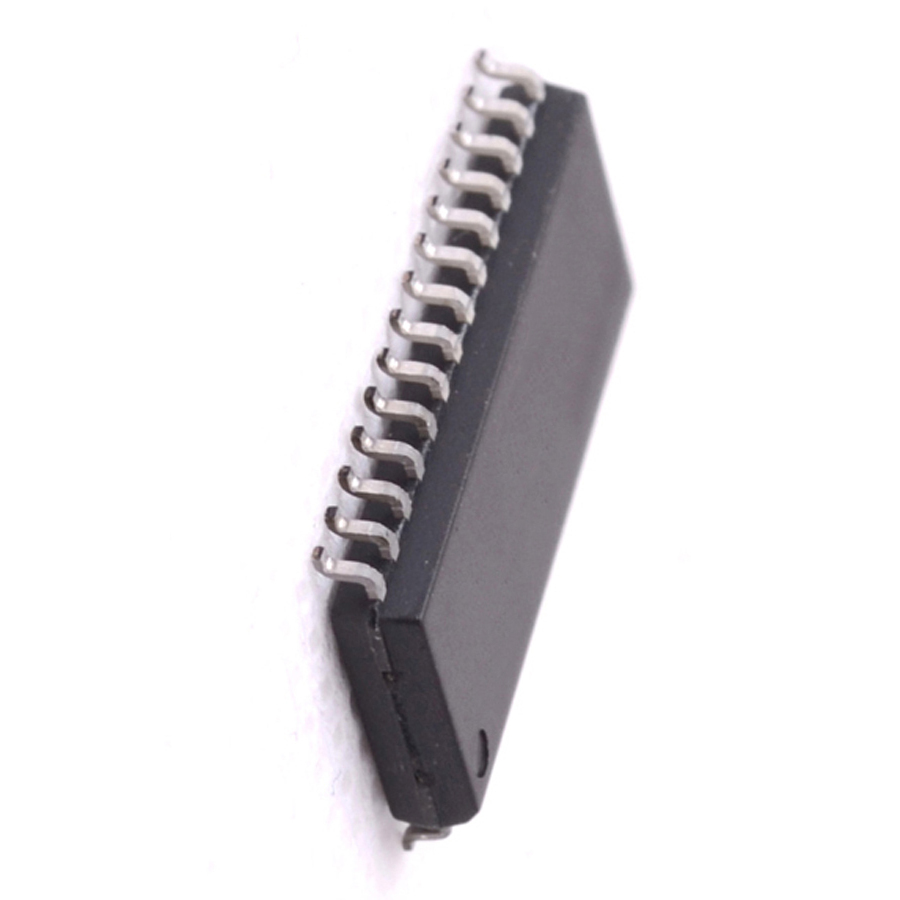

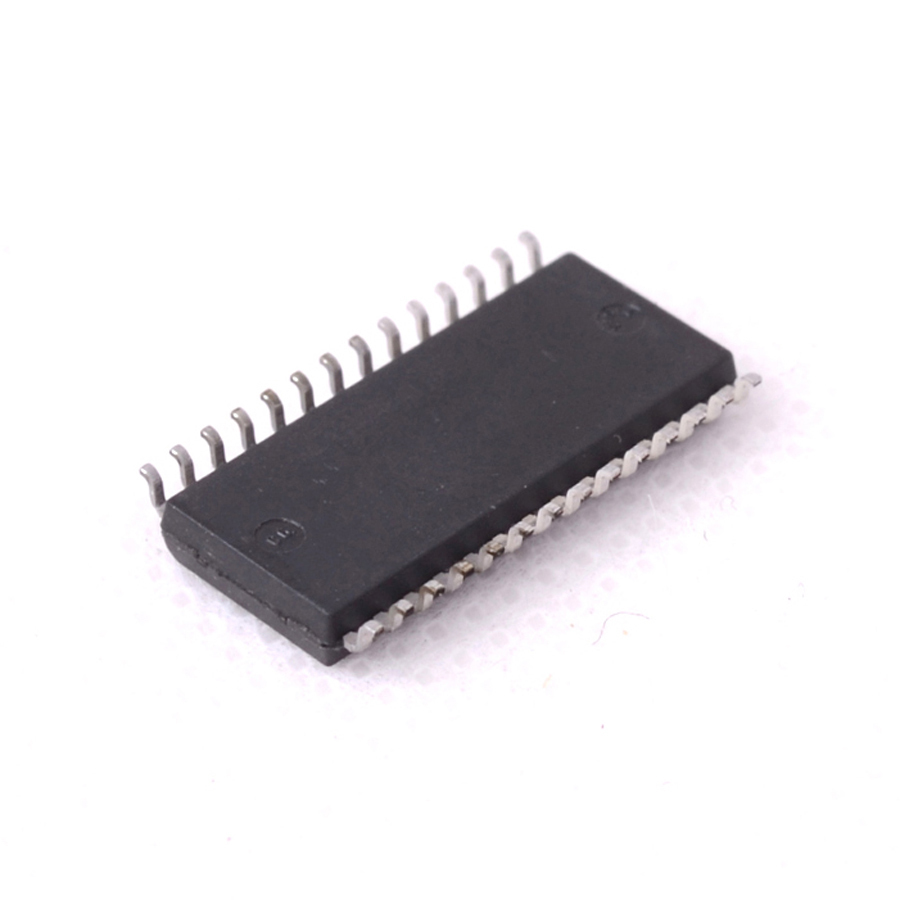

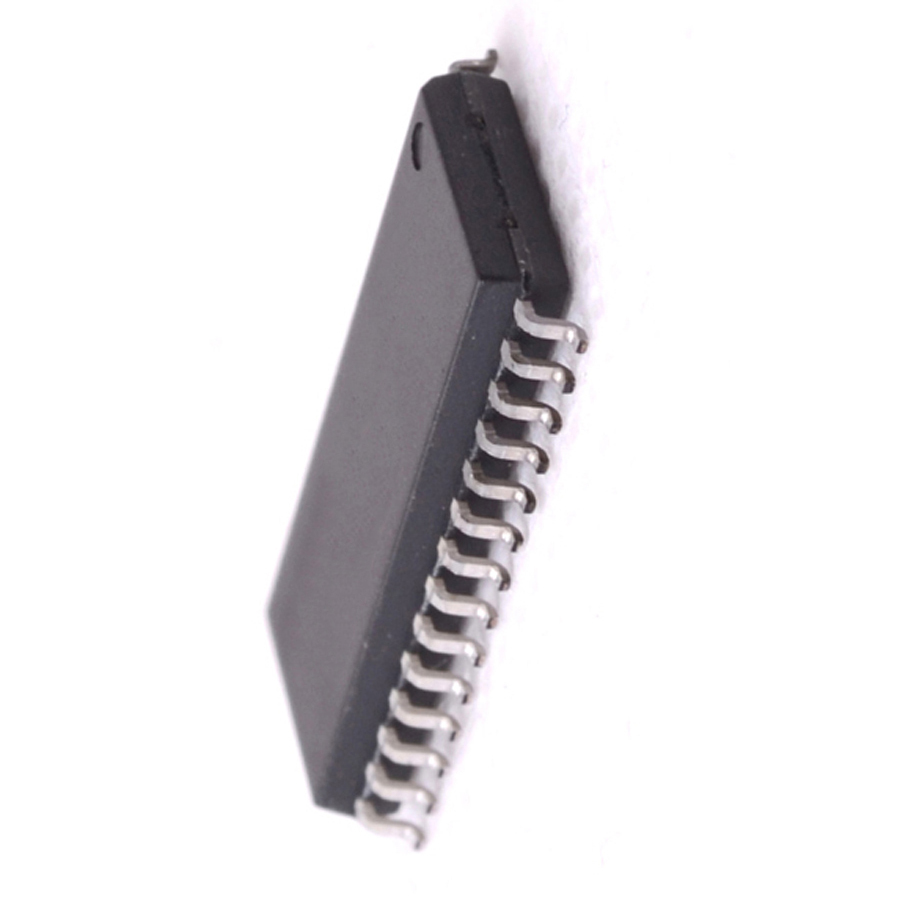

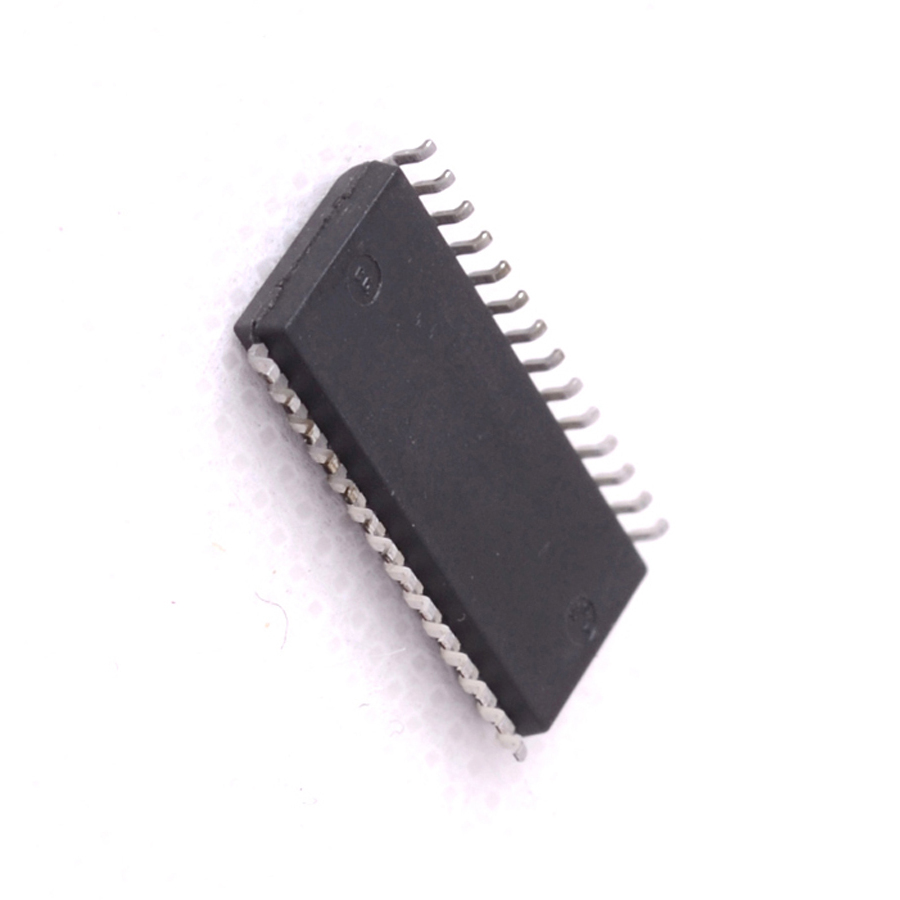

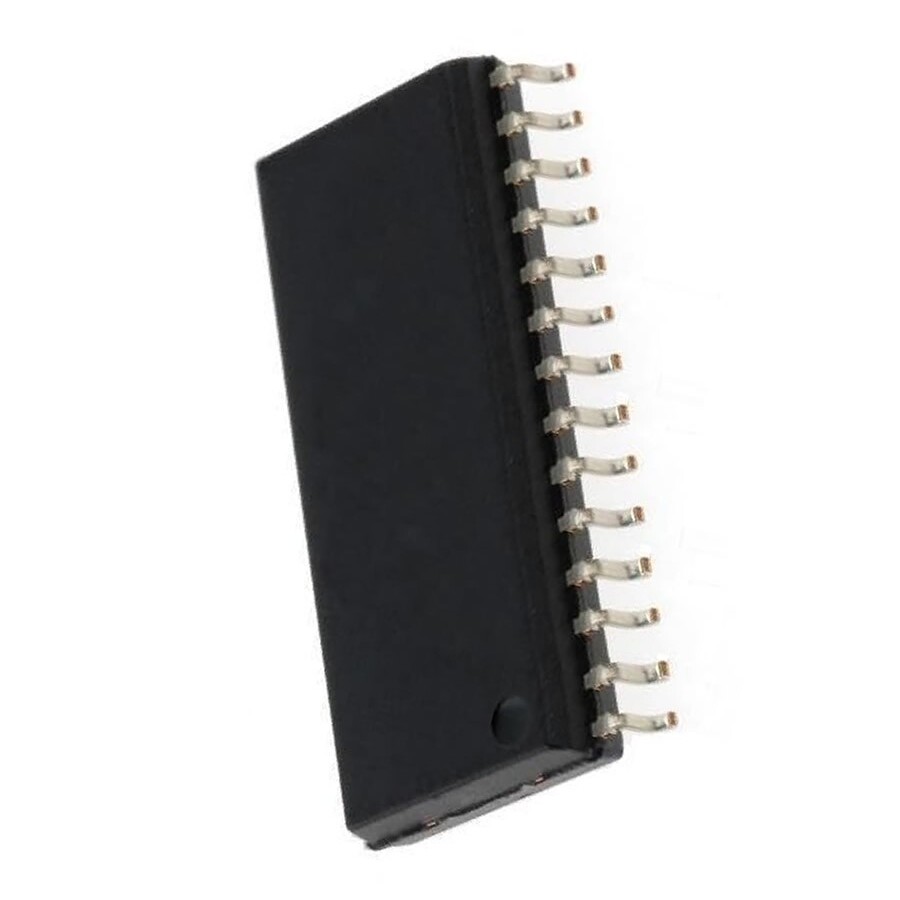

MP7684JS Integrated Circuit - CASE: SO28 MAKE: MPS
+ VAT 20% for UK purchases
Product specifications
Type Integrated Circuit
Case SO28
Manufacturer MPS
t(conv) (S) 100n
Vin Range (Vp-p) 5.0
Outp Arith. Code A
VOH Min. 4.3
VOL Max. 0.6
PD Max. (W) 1.0
Nom. Neg Supp 0.0
Nom. Pos. Supp 5.0
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
Volt or Cur. Mode Voltage
Logic Level Family CMOS
Pinout Equivalence Number 28-137
Descript 0.001 15 MHz Sampling
No. of Pins 28
Surface Mounted Yes/No YES
SKU 257523
