MPQ2369
View detailed images (1)

MPQ2369

SKU: MPQ2369
MPQ2369 Transistor Silicon NPN CASE: TO116 MAKE: Motorola Semiconductor
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 1 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
MPQ2369 Datasheet
Product specifications
Type Transistor Silicon NPN

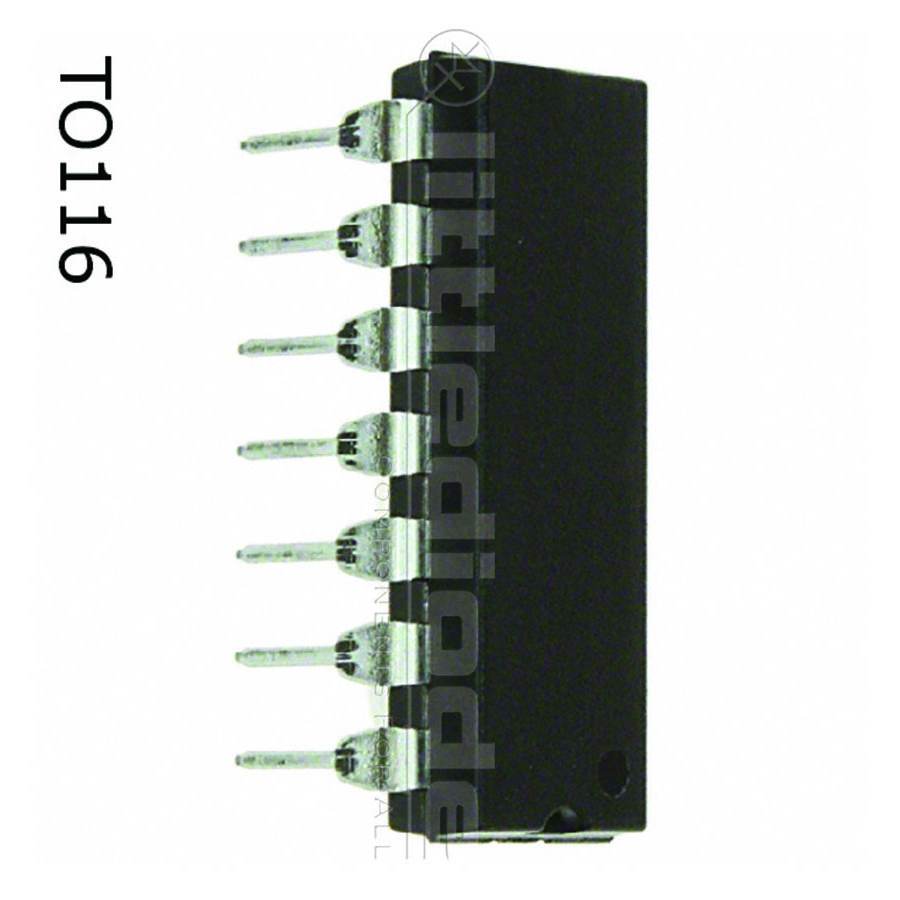

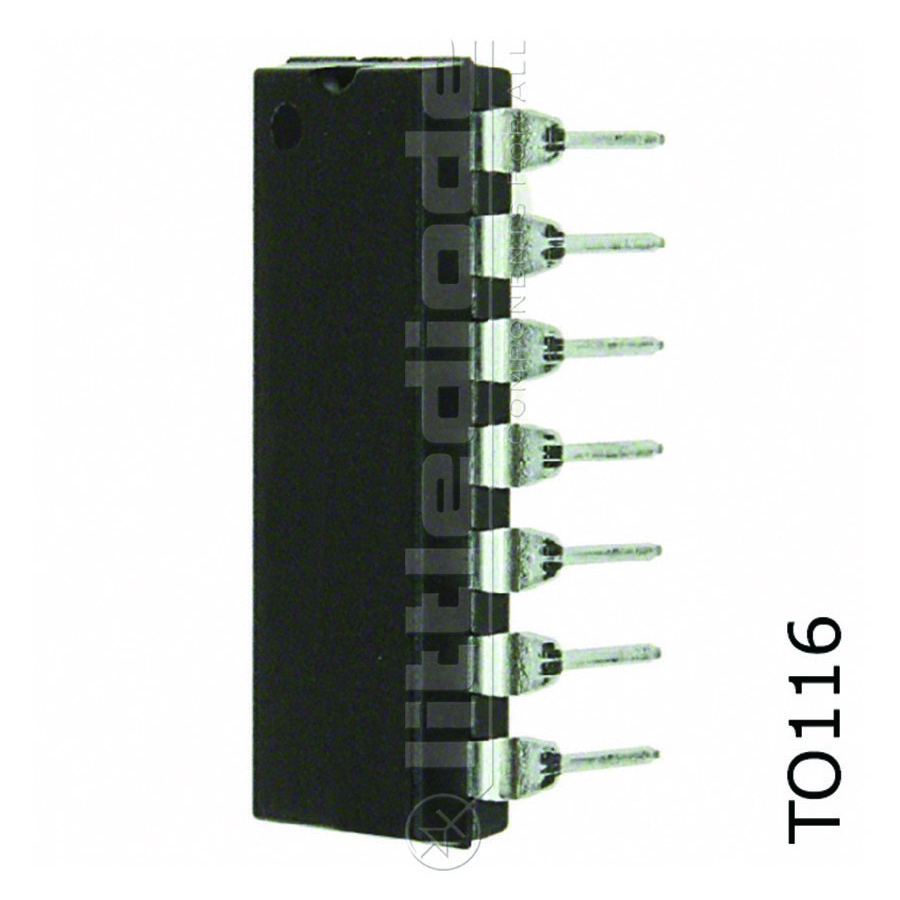

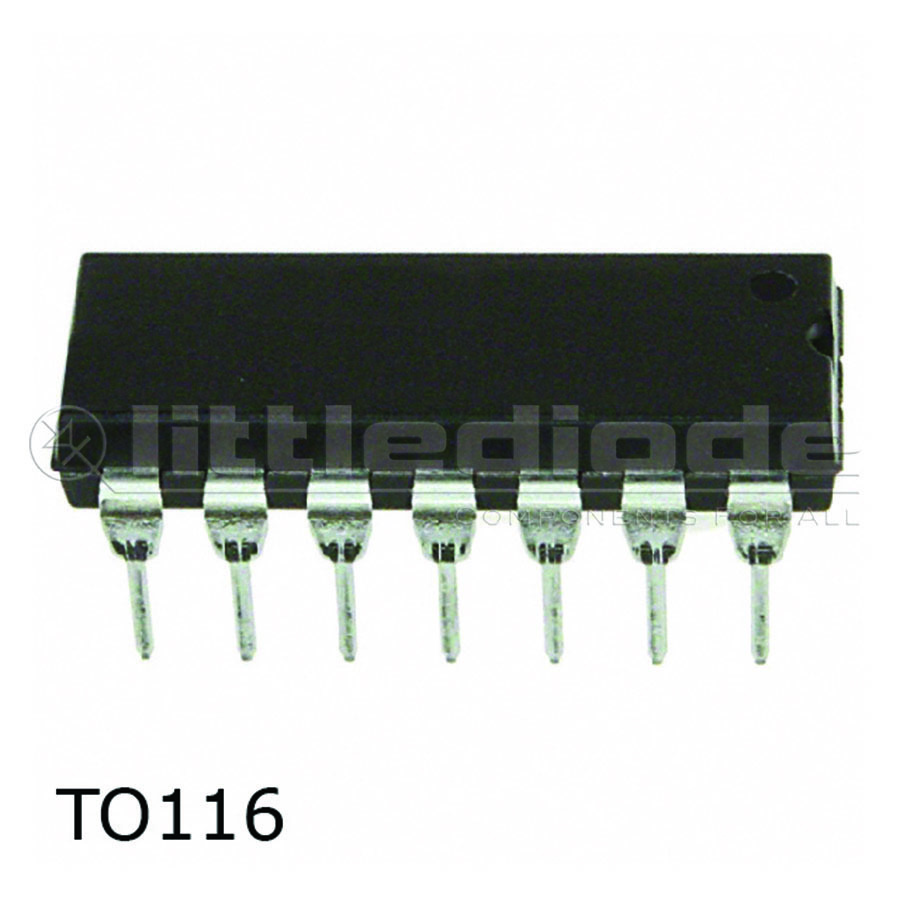

Case TO116
Manufacturer Motorola Semiconductor
fT Min (Hz) 450M
Min hFE 40
Mat. Silicon Logic
Polarity NPN
PD Max. (W) 1.5
@VCE (test) (V) 1.0
@Ic (test) 10m
Ic Max. 500m
Vceo Max. 15
Pinout Equivalence Number 14-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.36 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 4 pF
Transition Frequency (ft): 500 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 106629
