MR2004
View detailed images (5)

MR2004

SKU: MR2004

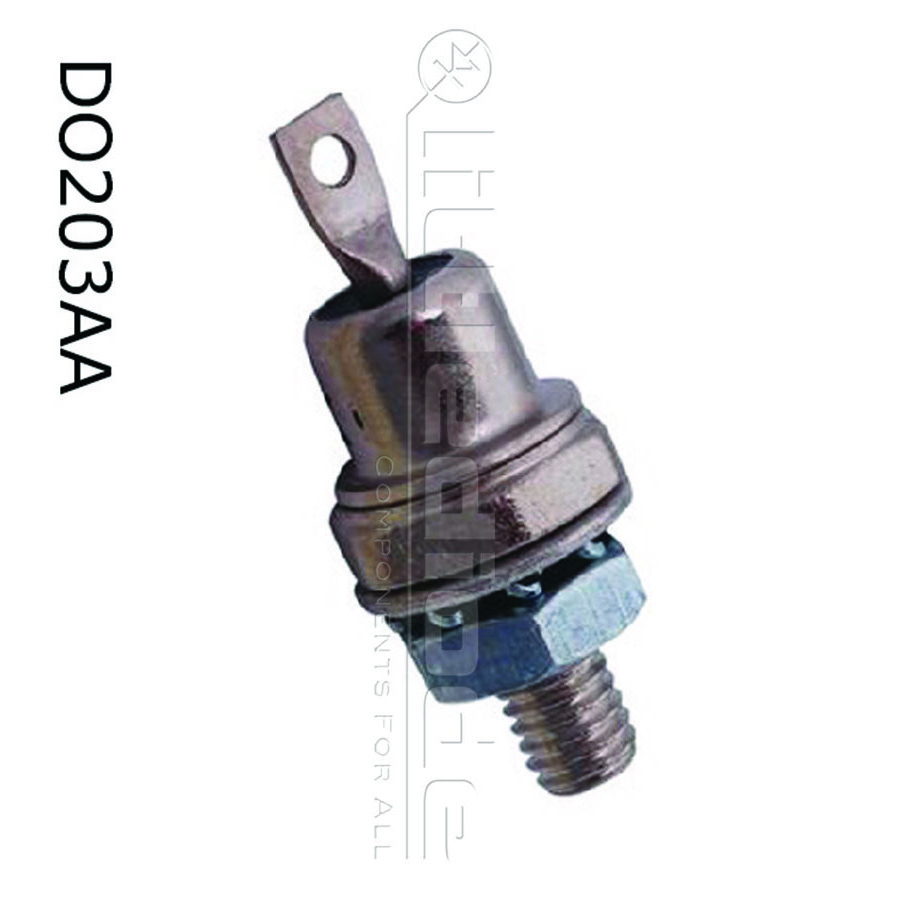

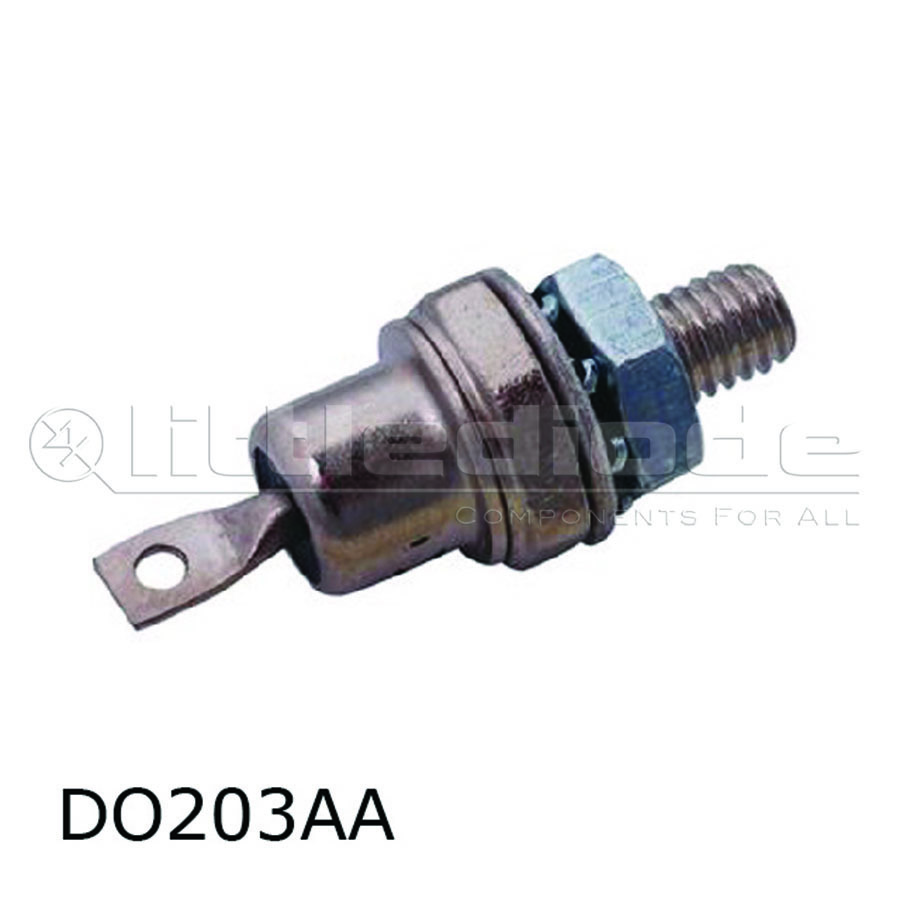

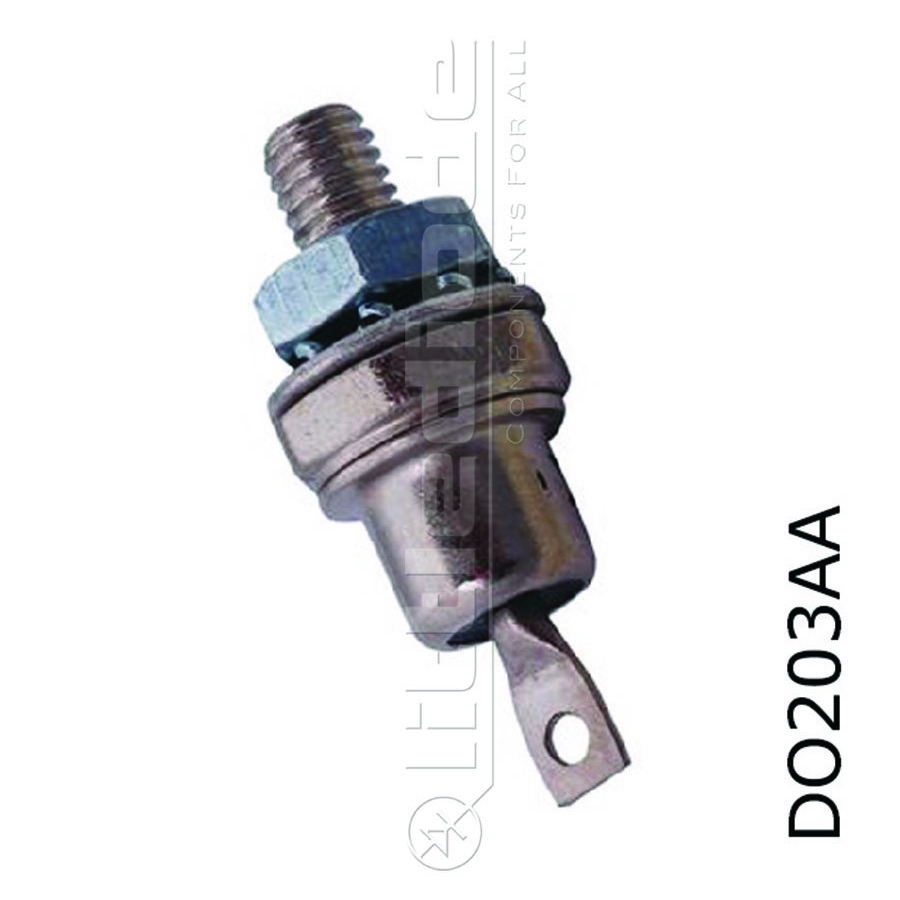

MR2004 Integrated Circuit CASE: DO203AA MAKE: Intersil
Product specifications
Type Integrated Circuit
Case DO203AA
Manufacturer Intersil
@Temp. (test) (°C) 150#
Ir @ Diff. Temp (A) 500u
Bits Per Word 8
Output Config 3-State
VRRM 400
PD Max. (W) 600m
Nom. Supp (V) 5.0
t(acc) Max. (S) 250n
1-Cycle Surge Current (A) 400
Tech. NMOS Integrated Circuit
@Temp (test) (°C) 100#
@Temp. (test) for Vf) 25#
Vf Max. 1.1
Ir @25°C 100u
I(out) (If AVG) Max. 20
@Volts (test) (V) 400
@If (test) 63
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
Number of Words 512
Pinout Equivalence Number 32-88
No. of Pins 32
Surface Mounted Yes/No NO
SKU 866927
