MRF1015MA
View detailed images (12)

MRF1015MA

SKU: MRF1015MA

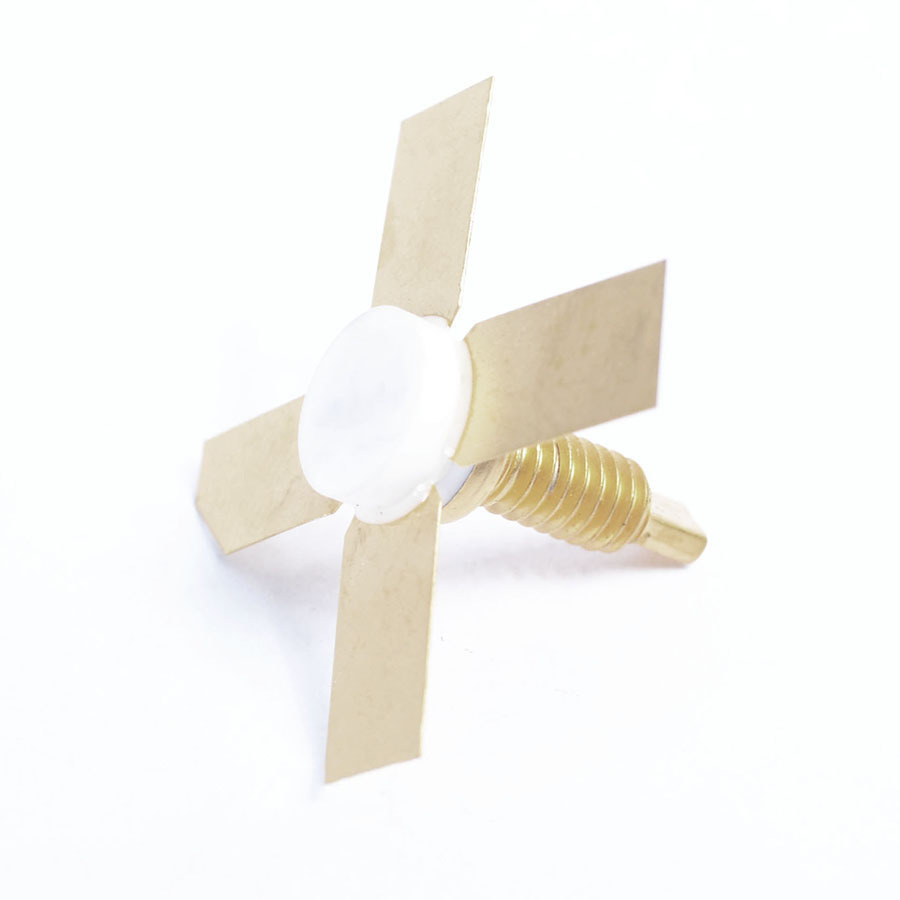

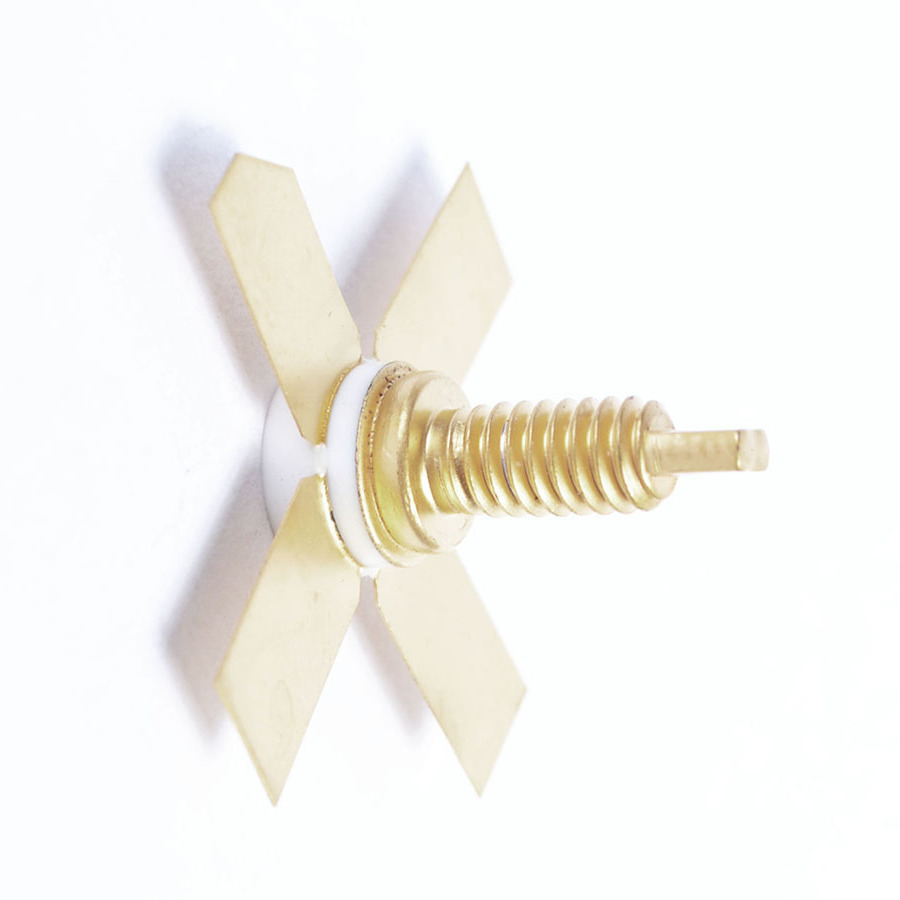

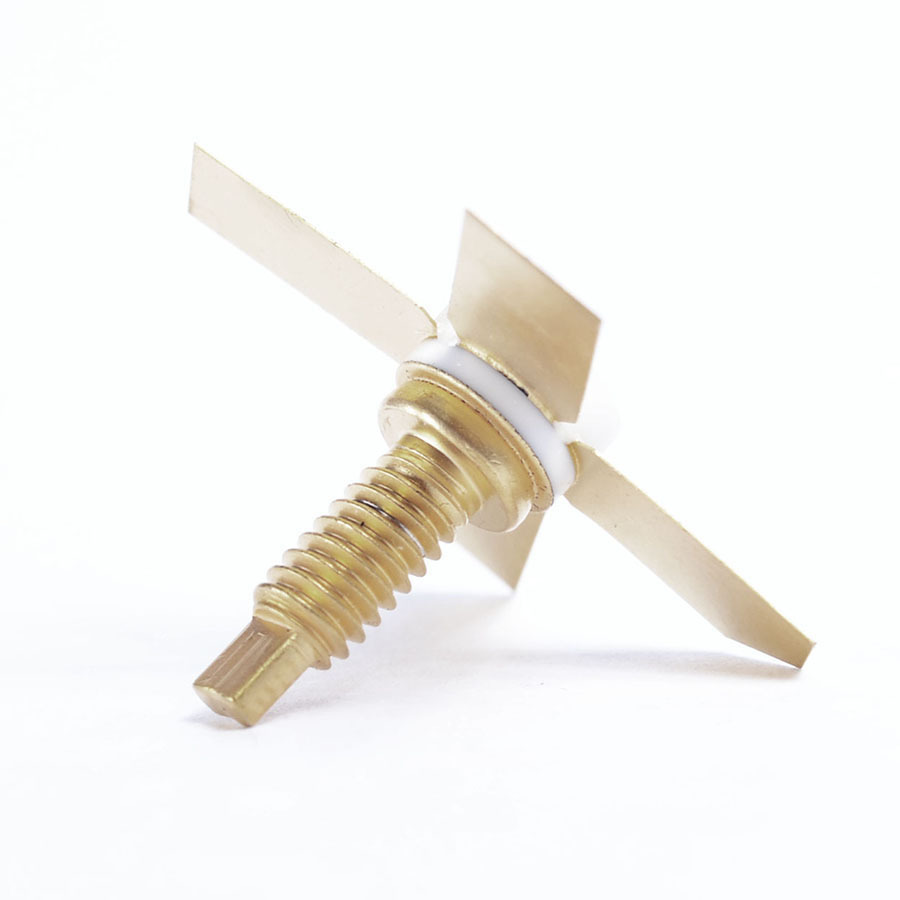

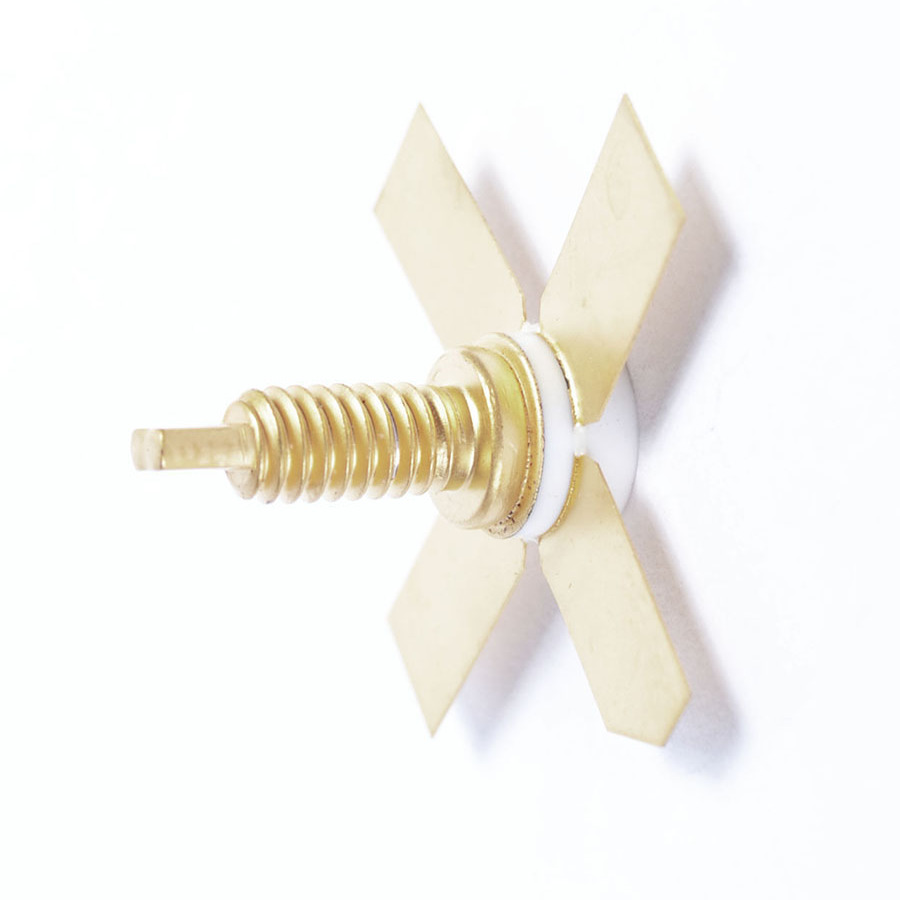

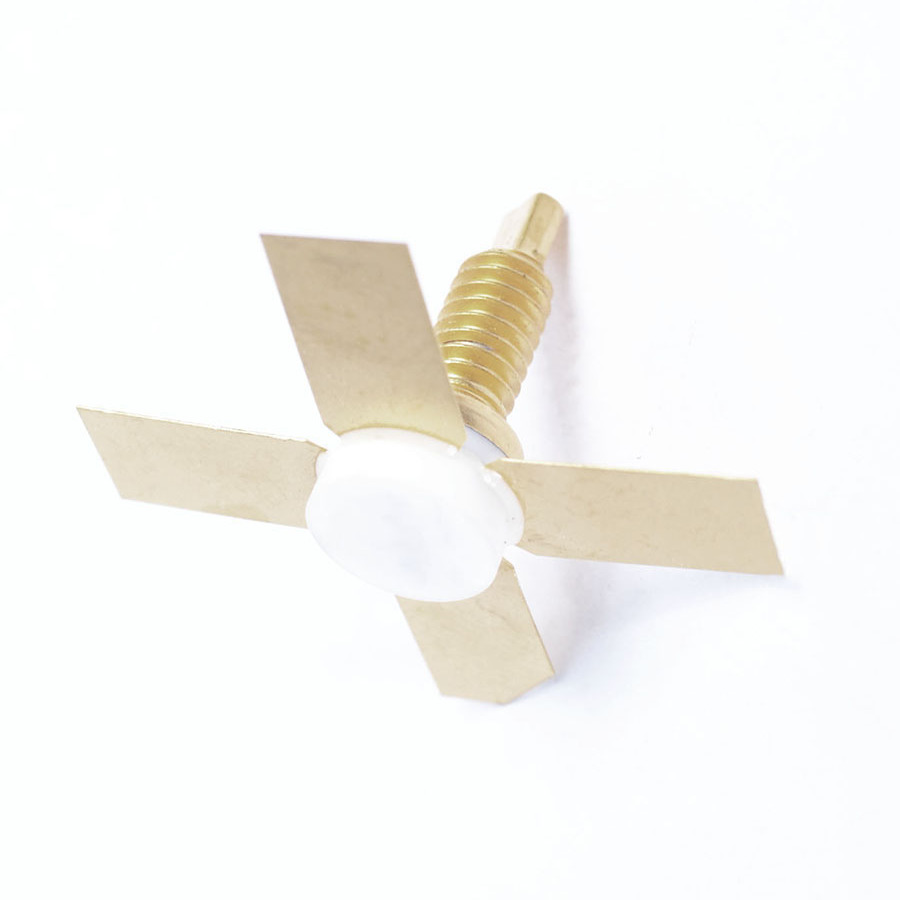

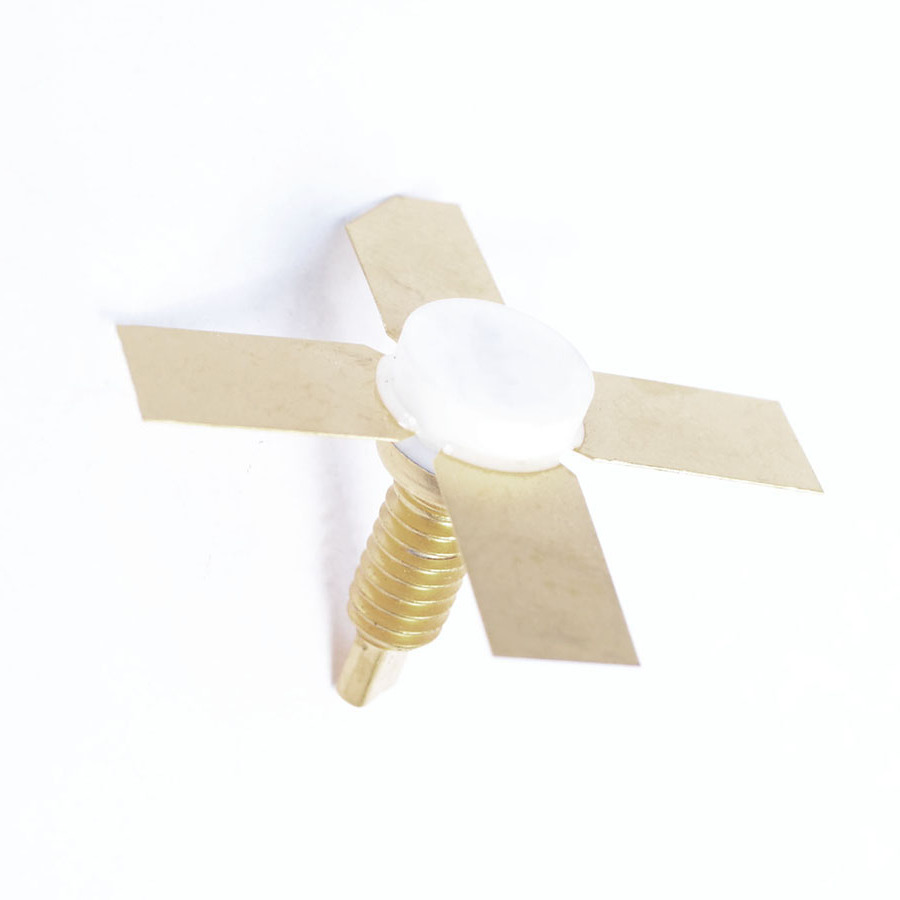

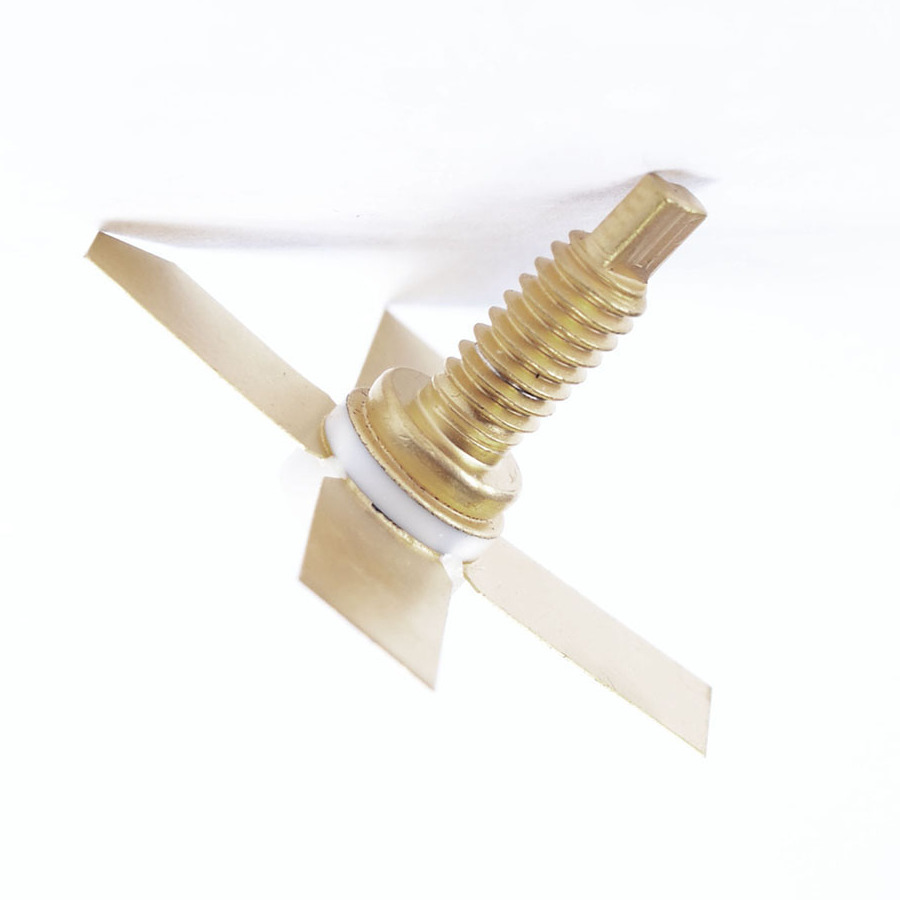

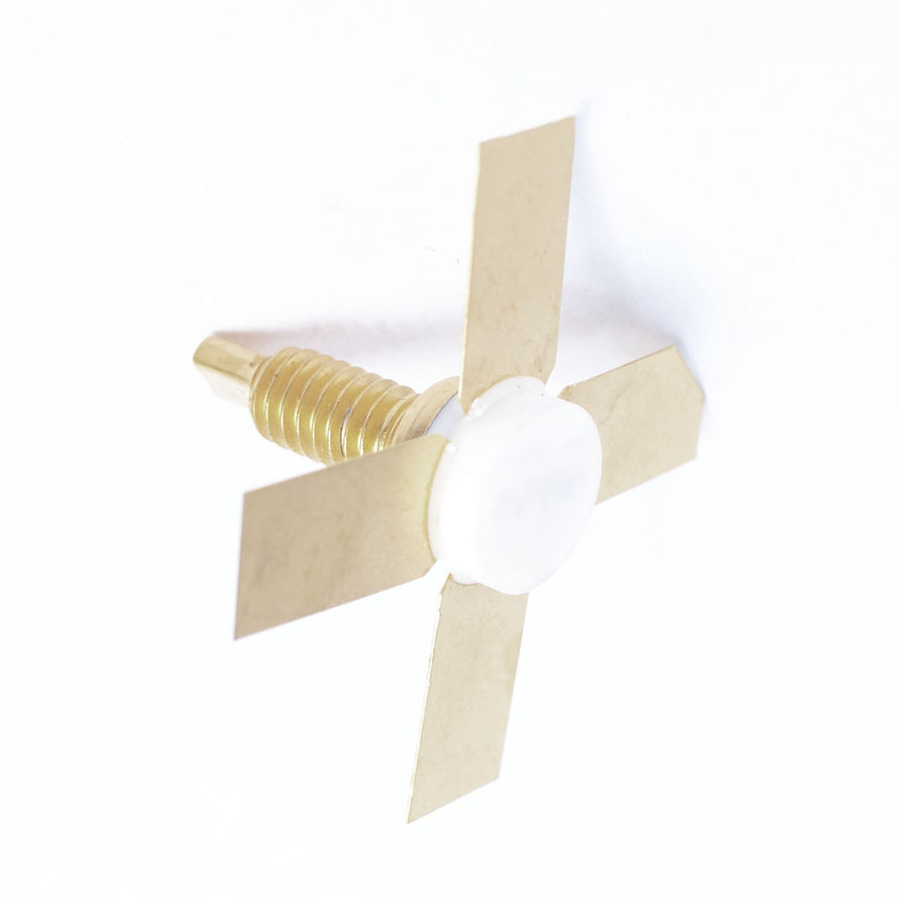

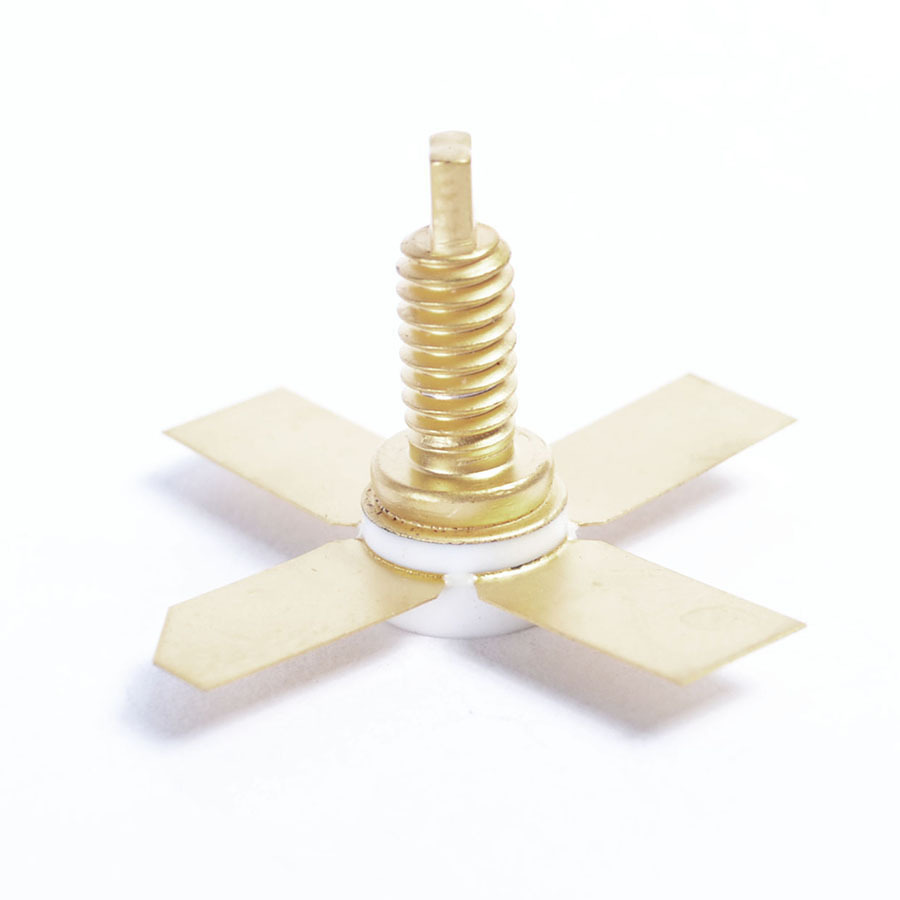

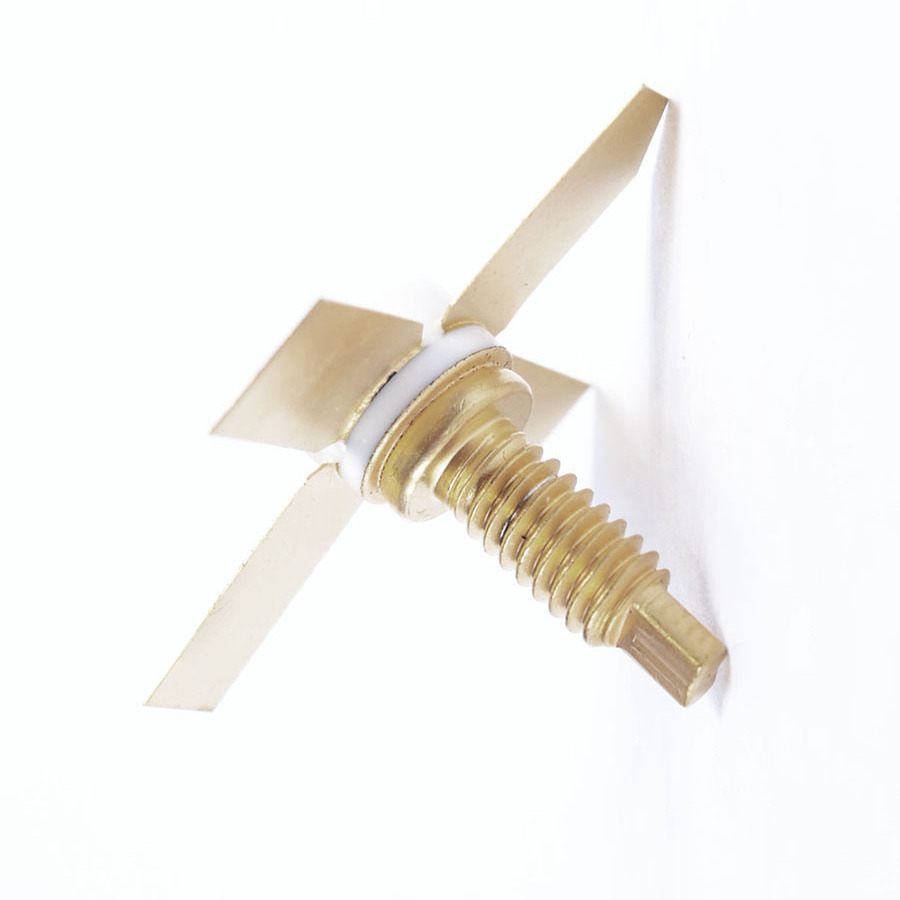

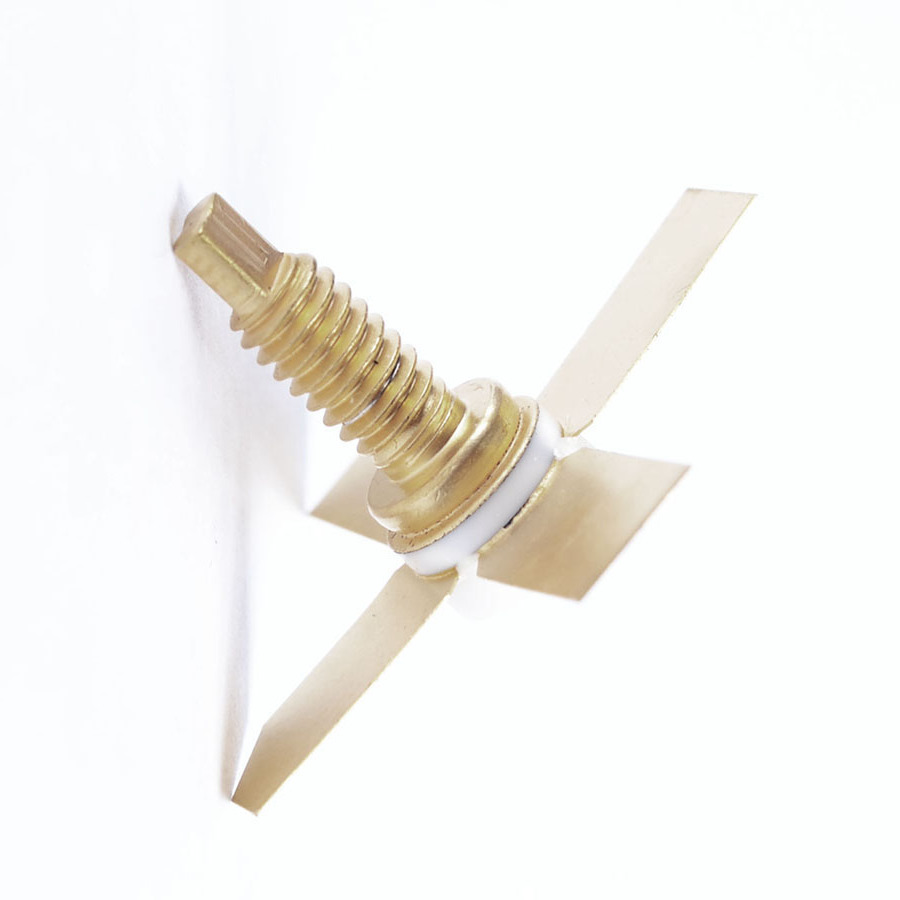

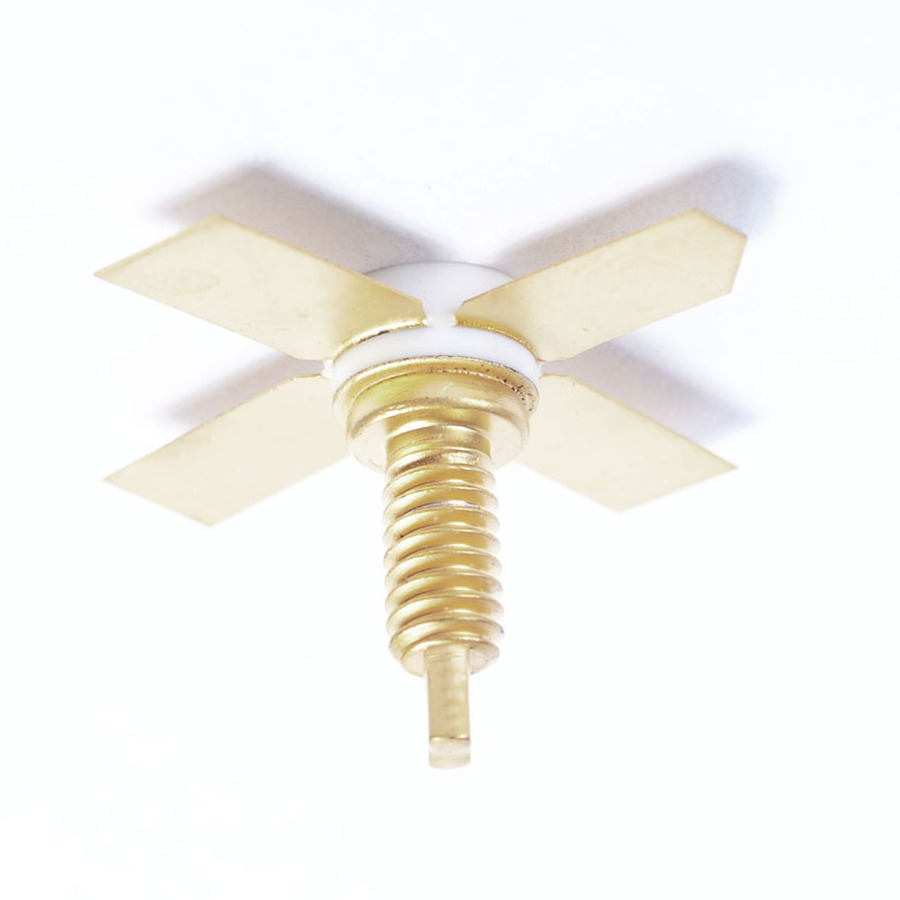

MRF1015MA Transistor Silicon NPN CASE: SOT122 MAKE: Motorola Semiconductor
Product specifications
Type Transistor Silicon NPN
Case SOT122
Manufacturer Motorola Semiconductor
Vbr CBO 60
@Freq. (test) 1.0G
@Ic (A) 15
Mat. Silicon Logic
Oper. Gain Typ (S21) 13
Oper. Pwr Out Typ. 15
f(osc) Max. (Hz) 1.1G
Polarity NPN
PD Max. (W) 18
S11 Deg. (Typ) 11.5
S11 Mag Typ. 5.5
S22 Deg. Typ. -12
S22 Mag Typ. 12.4
@VDS (VCE) (test) (V) 50
Coll. (or drain) Current Max. 1.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 4-181
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 17.5 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 5 pF
Transition Frequency (ft): 1215 MHz
Forward Current Transfer Ratio (hFE), MIN 10
SKU 258215
