MRF1090MA

SKU: MRF1090MA

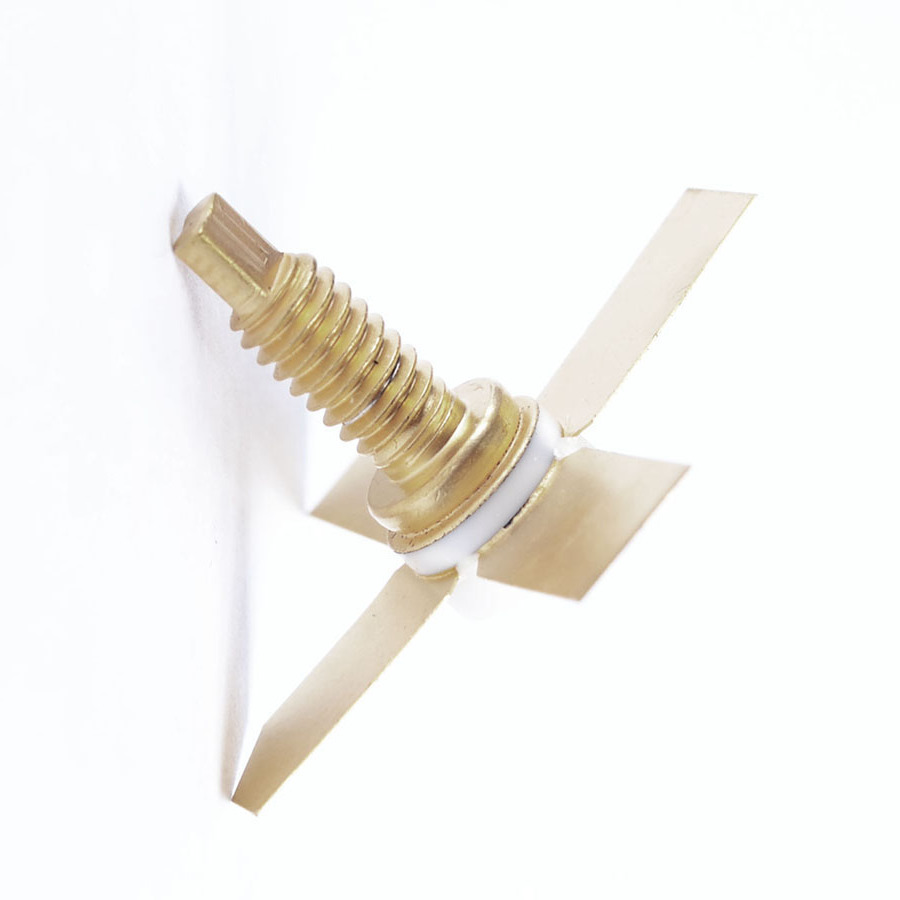

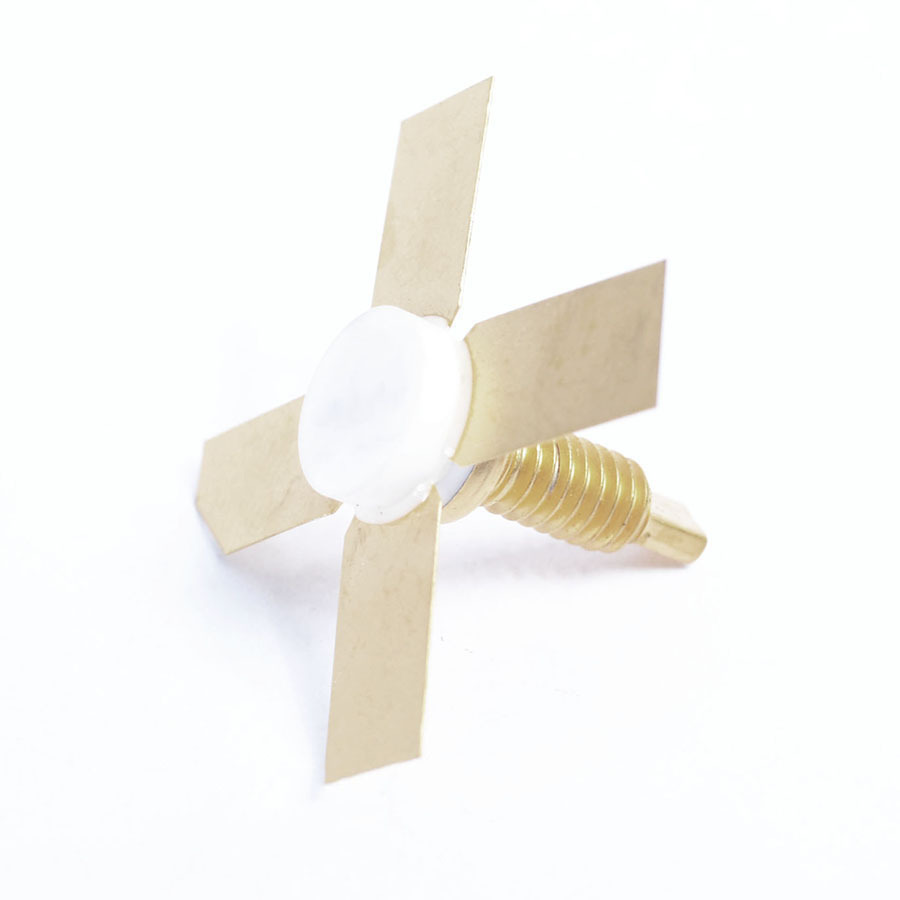

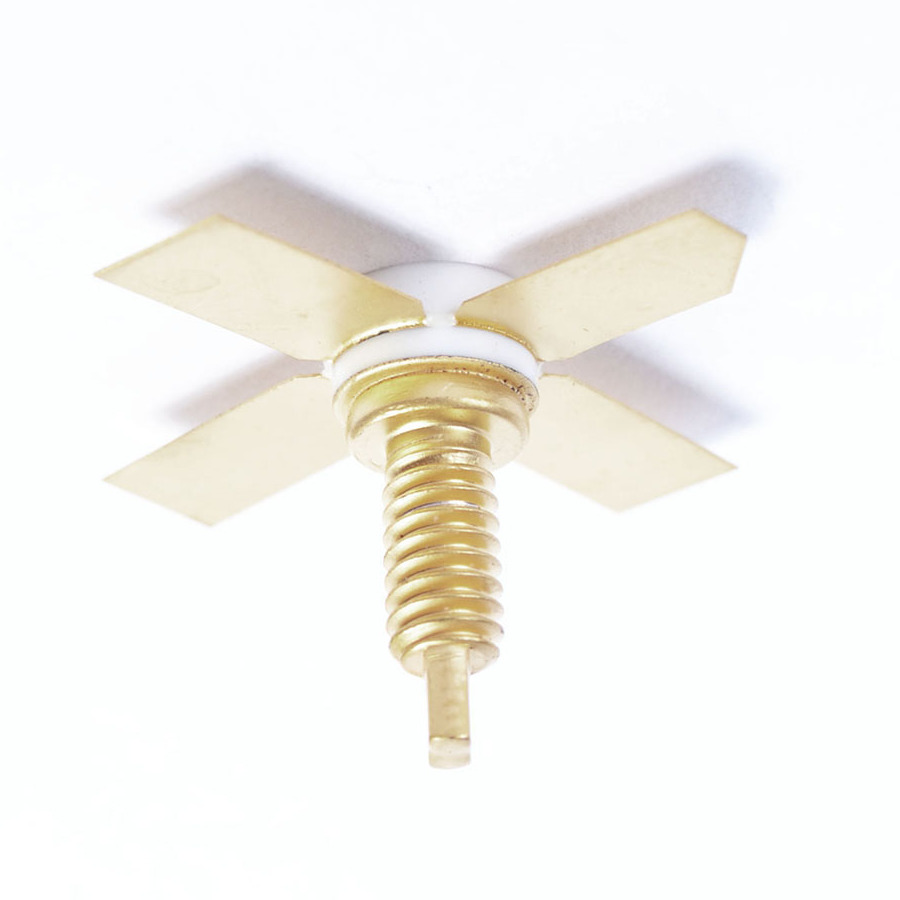

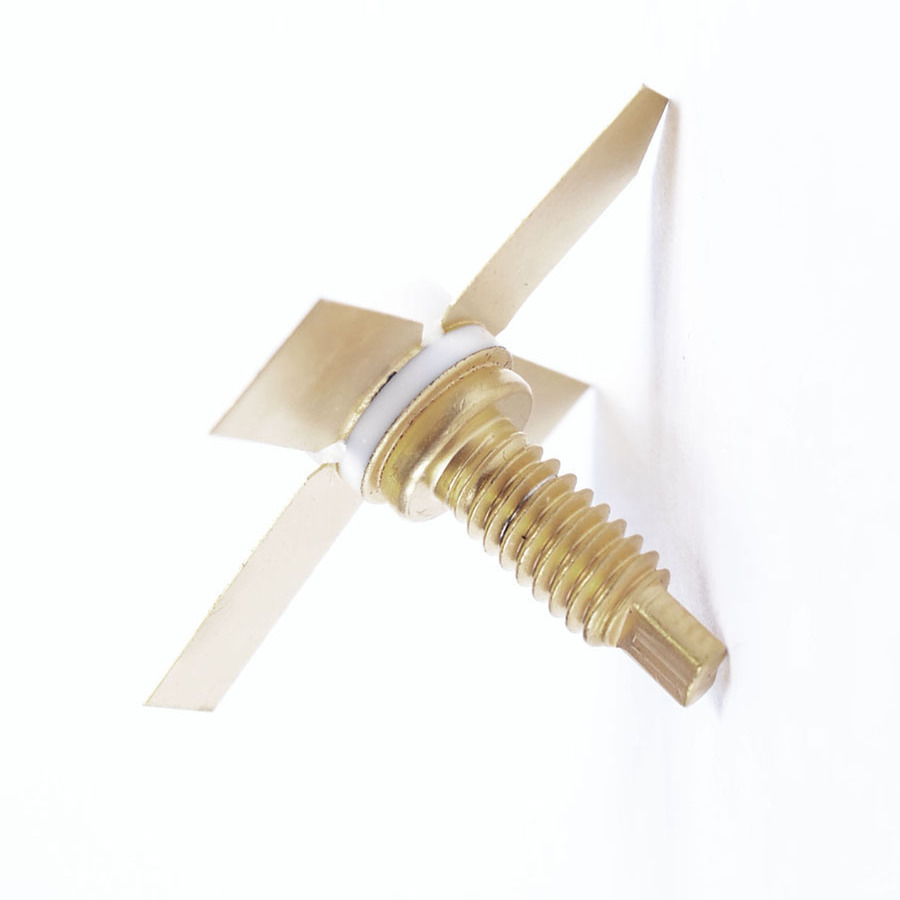

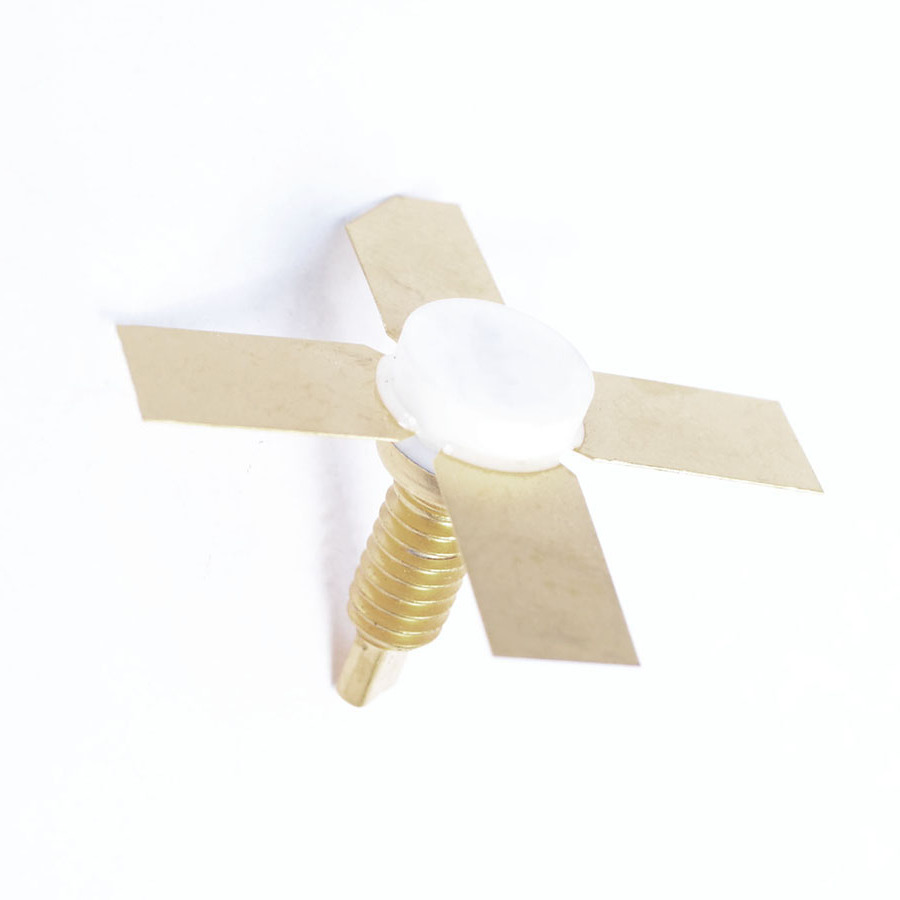

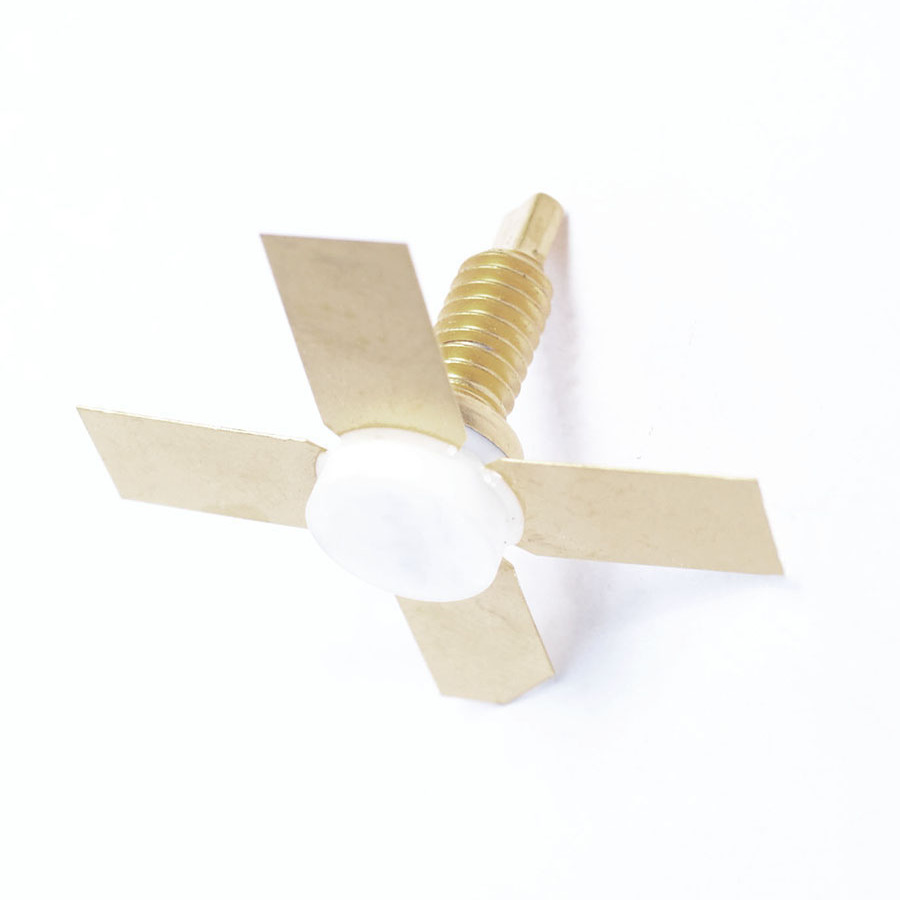

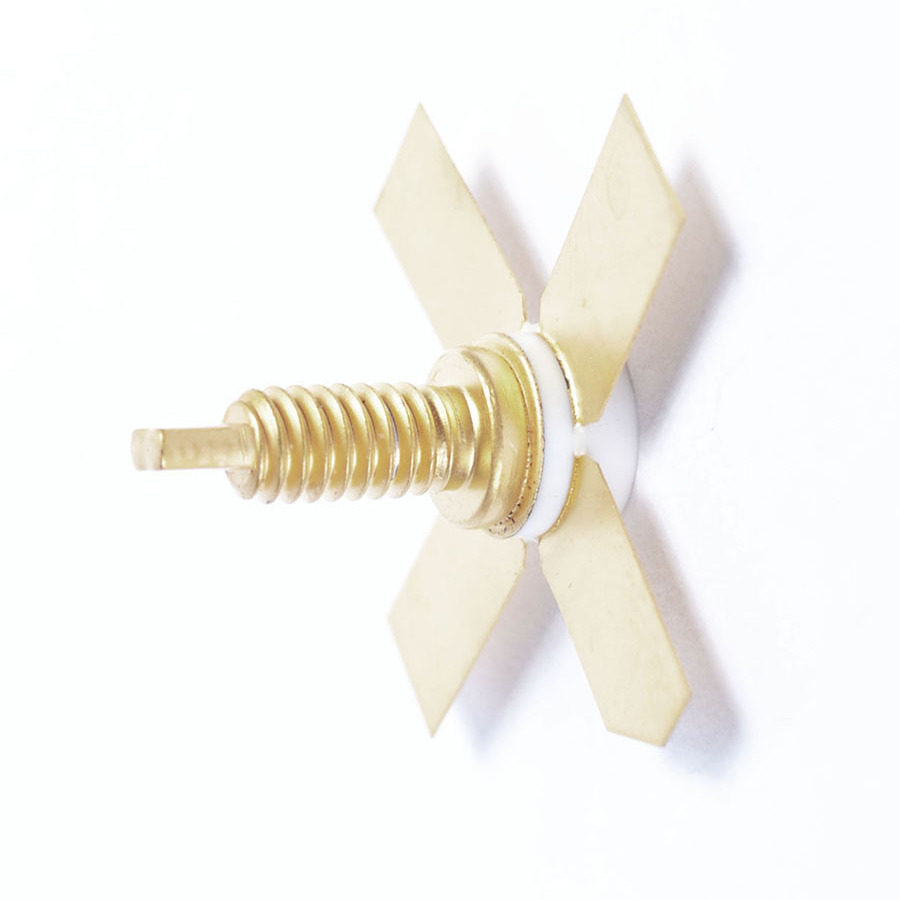

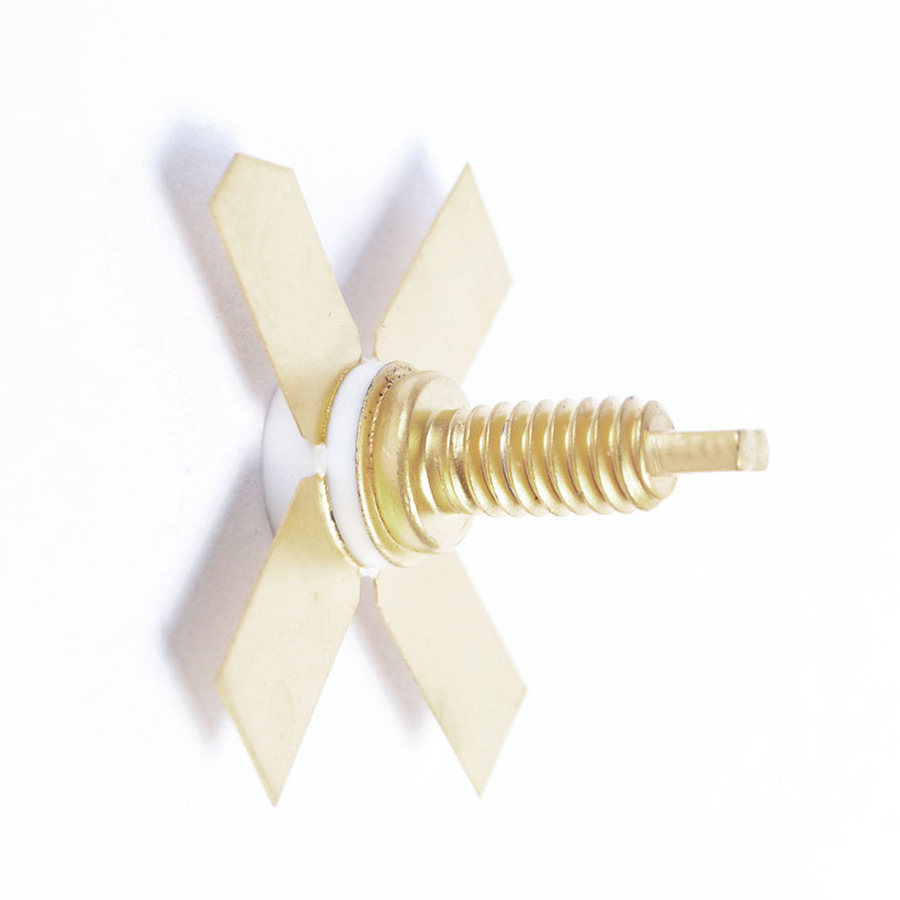

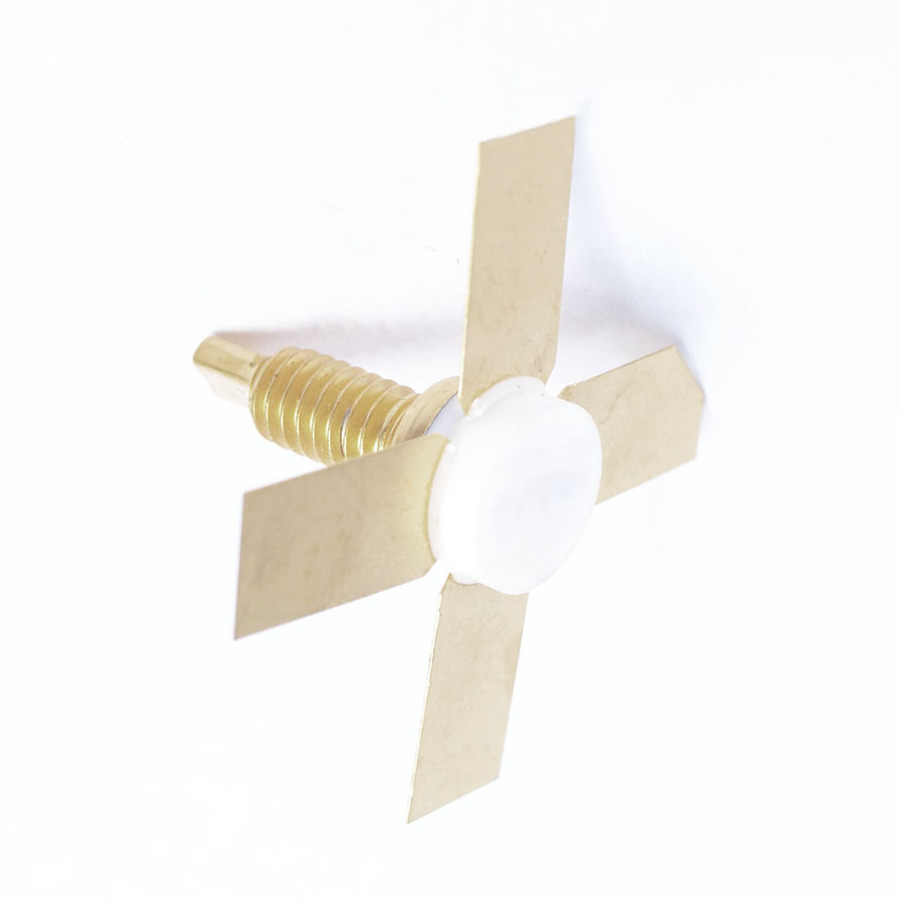

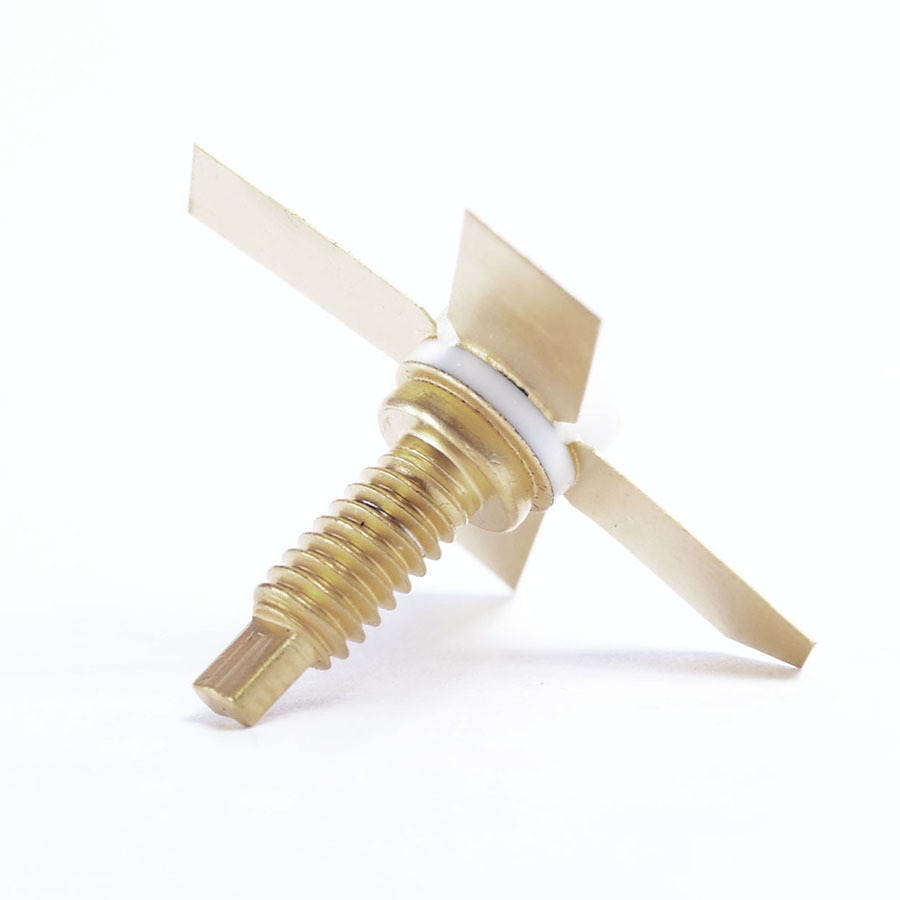

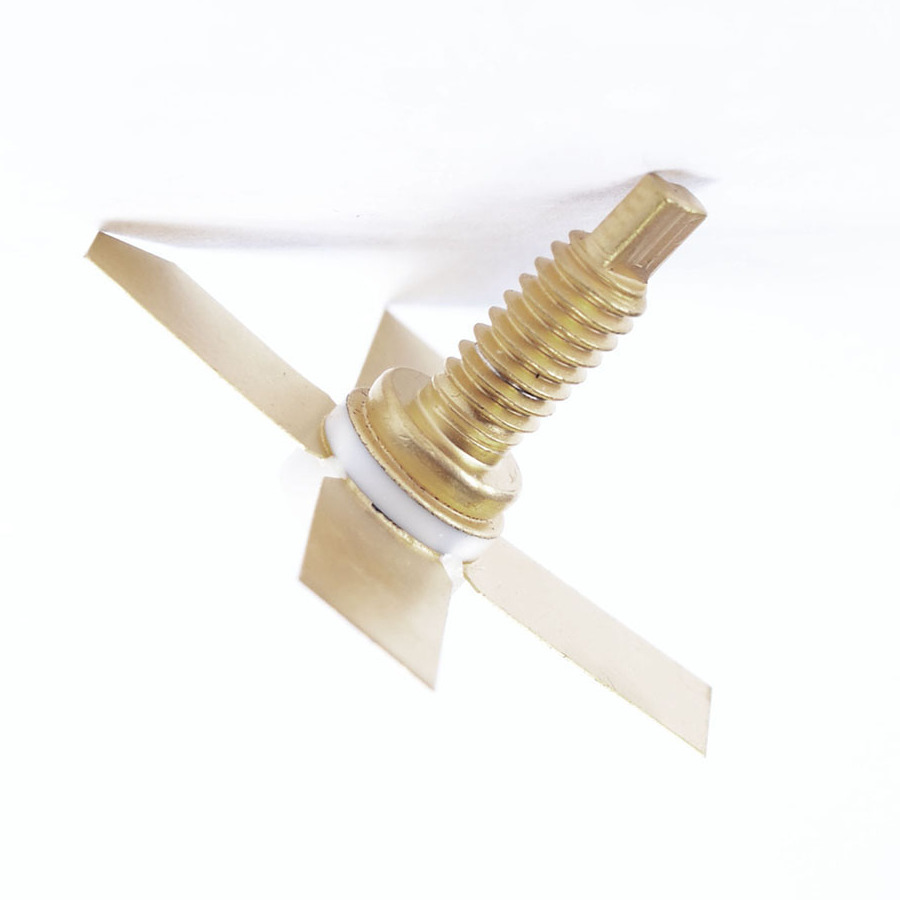

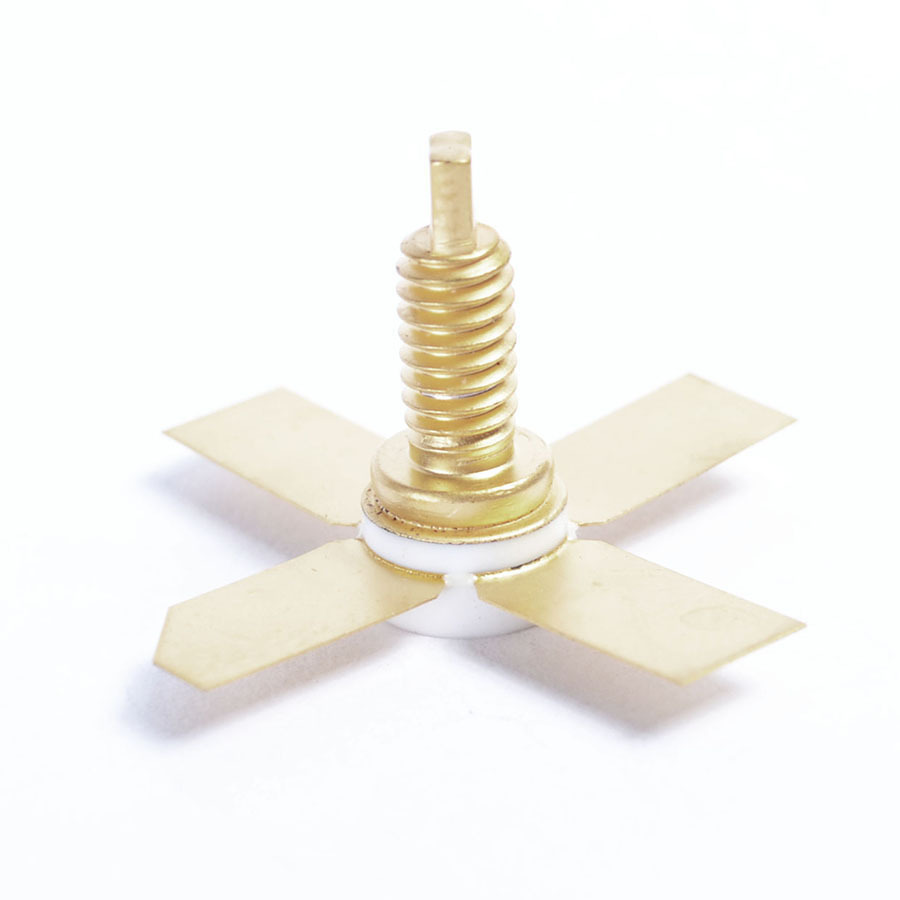

MRF1090MA Transistor Silicon NPN CASE: SOT122 MAKE: Motorola Semiconductor
Product specifications
Type Transistor Silicon NPN
Case SOT122
Manufacturer Motorola Semiconductor
Vbr CBO 70
@Freq. (test) 1.0G
@Ic (A) 90
Mat. Silicon Logic
Oper. Gain Typ (S21) 11
Oper. Pwr Out Typ. 90
f(osc) Max. (Hz) 1.1G
Polarity NPN
PD Max. (W) 290
S11 Deg. (Typ) 11.4
S11 Mag Typ. 7.4
S22 Deg. Typ. 4.0
S22 Mag Typ. 7.6
@VDS (VCE) (test) (V) 50
Coll. (or drain) Current Max. 6.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 4-181
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 290 W
Maximum Collector-Base Voltage |Vcb| 70 V
Maximum Collector-Emitter Voltage |Vce| 70 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 6 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 12 pF
Transition Frequency (ft): 1100 MHz
Forward Current Transfer Ratio (hFE), MIN 10
SKU 258224
