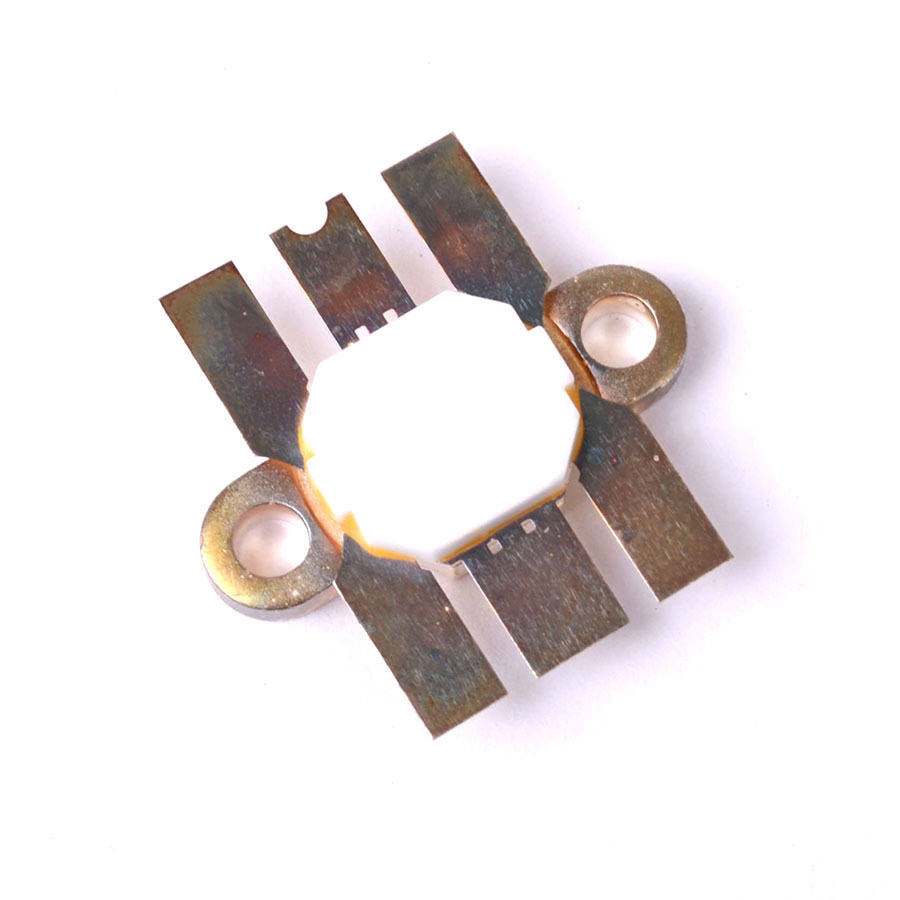

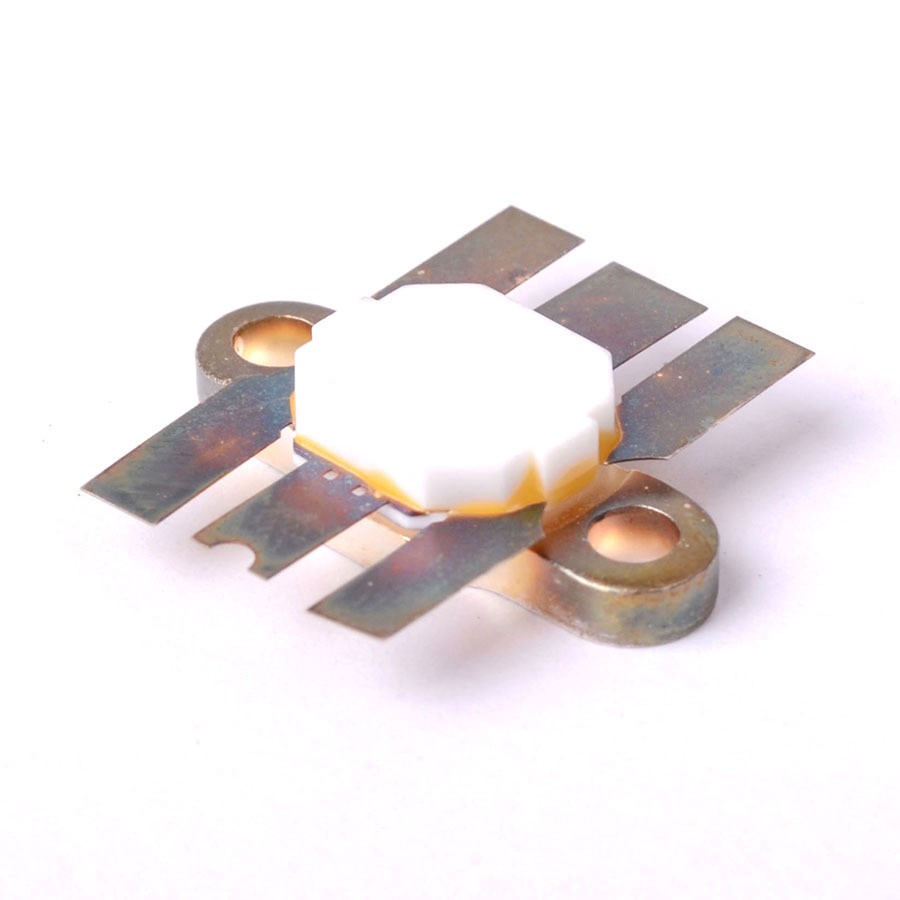

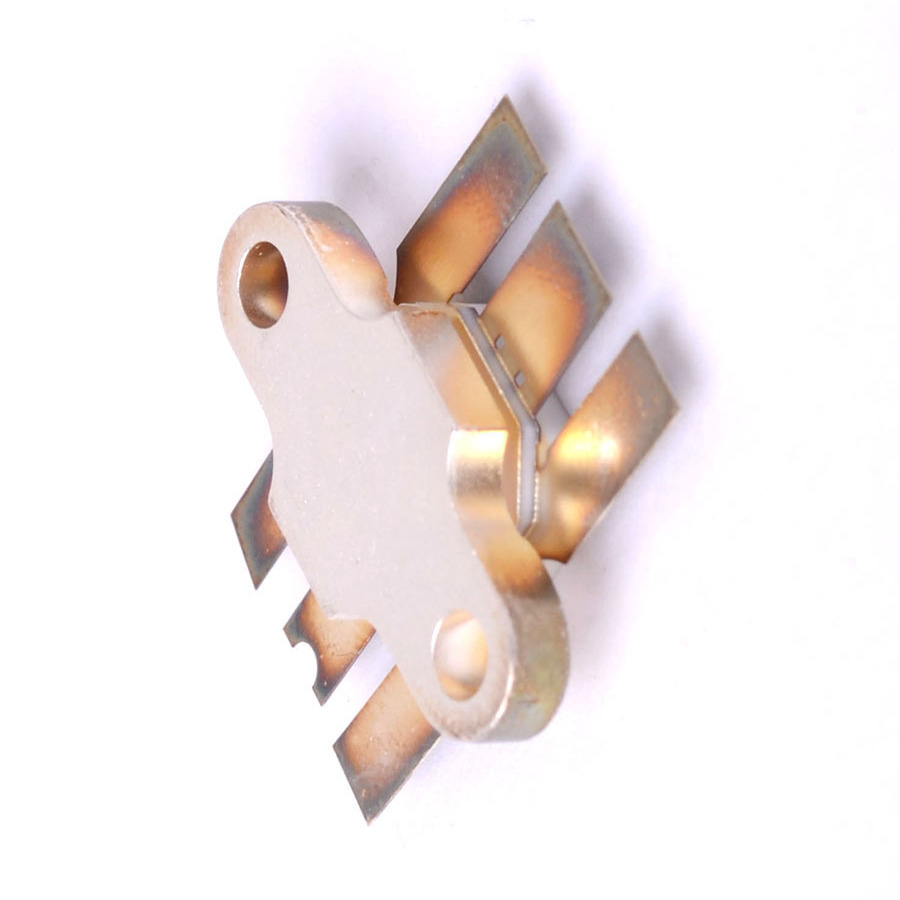

MRF309 Transistor Silicon NPN CASE: SOT119 MAKE: Motorola Semiconductor
Product specifications
Type Transistor Silicon NPN
Case SOT119
Manufacturer Motorola Semiconductor
Vbr CBO 60
@Freq. (test) 450M
@Ic (A) 50
@Ic (A) 50
Mat. Silicon Logic
Oper. Gain Typ (S21) 8.0
Oper. Pwr Out Typ. 50
f(osc) Max. (Hz) 450M
Polarity NPN
PD Max. (W) 146
S11 Deg. (Typ) 1.6
S11 Mag Typ. .70
S22 Deg. Typ. .90
S22 Mag Typ. 1.9
@VDS (VCE) (test) (V) 28
@Freq. (test) 450M
@VCE (test) 28
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 4-29
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 146 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 33 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 200 °C
