MRF485
View detailed images (9)

MRF485

SKU: MRF485

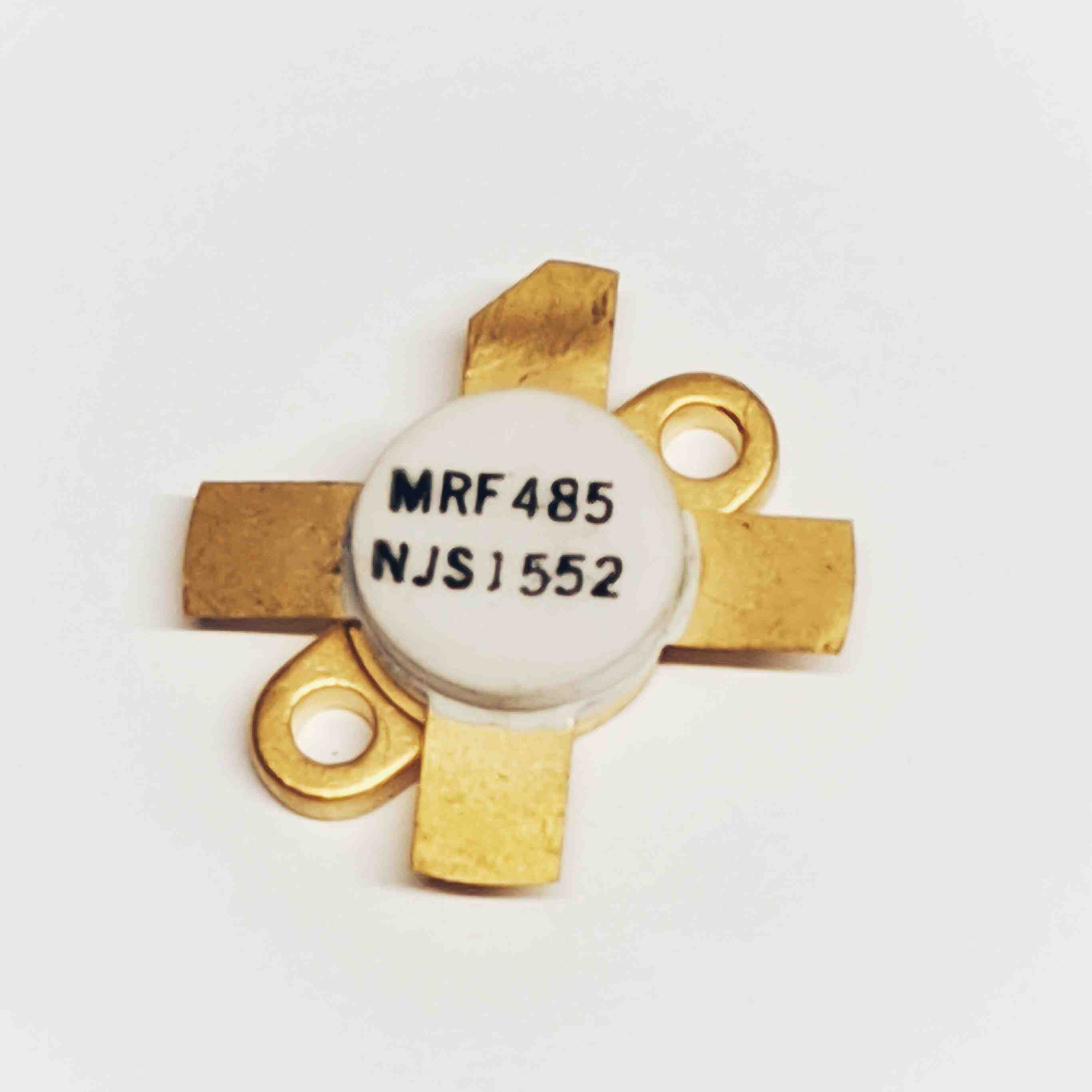

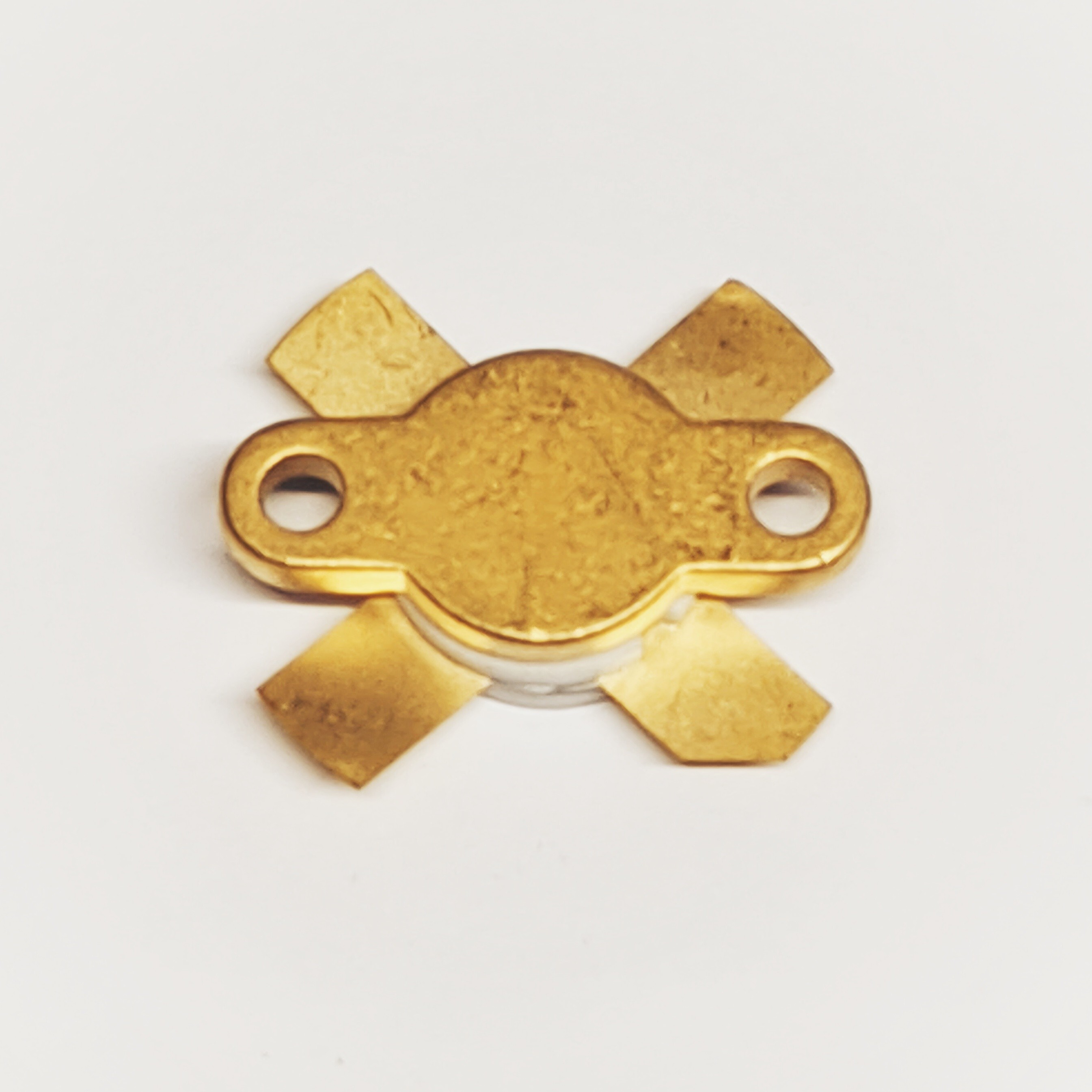

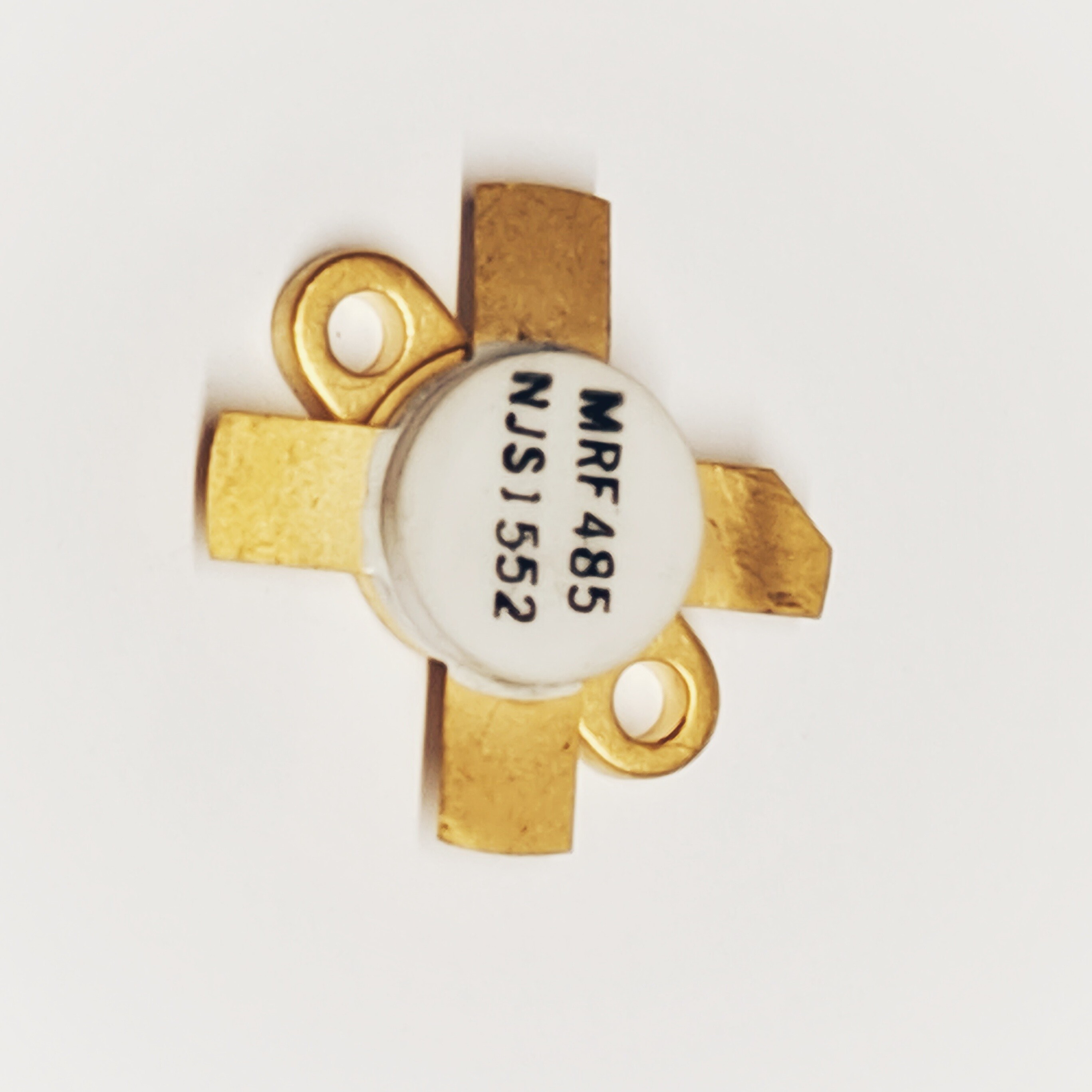

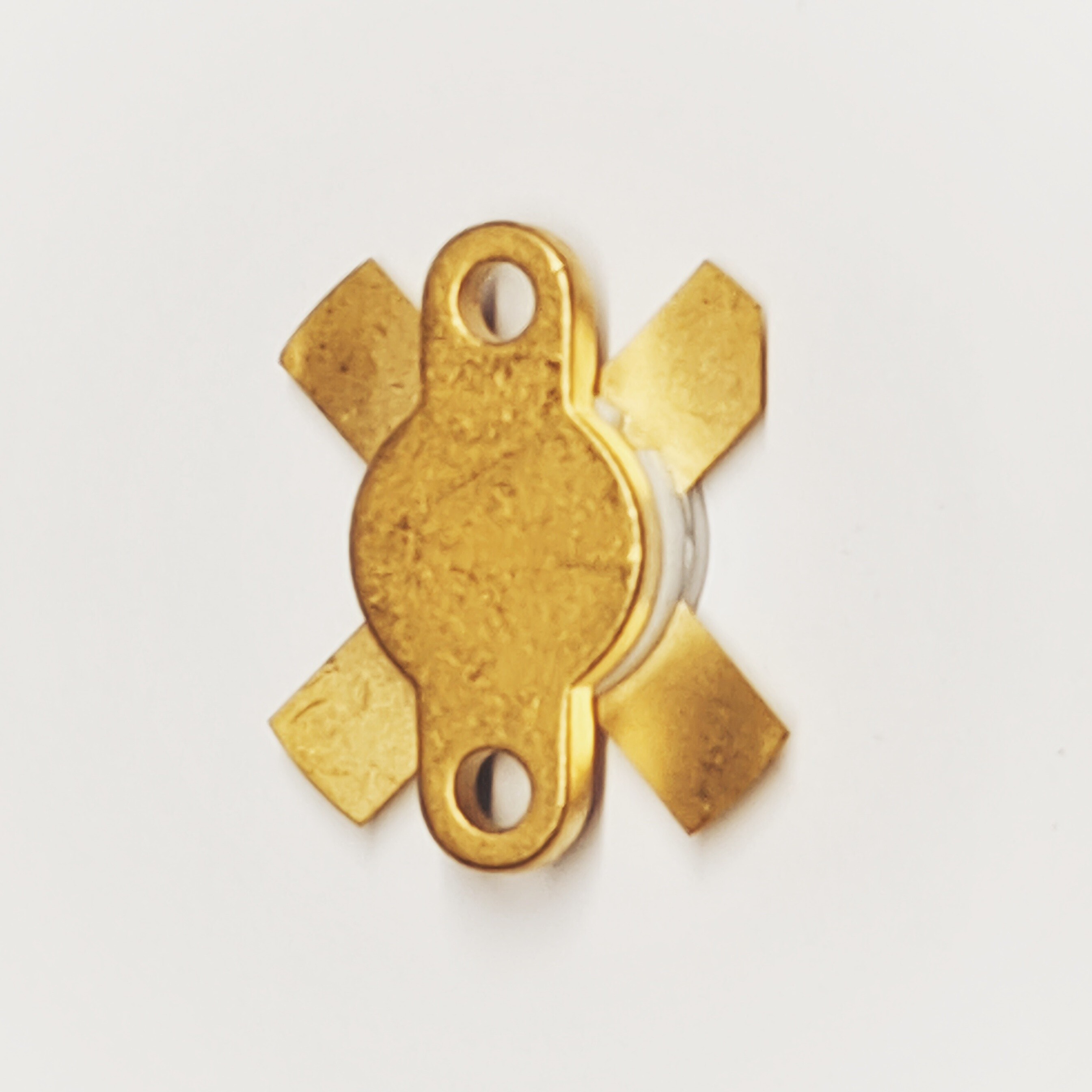

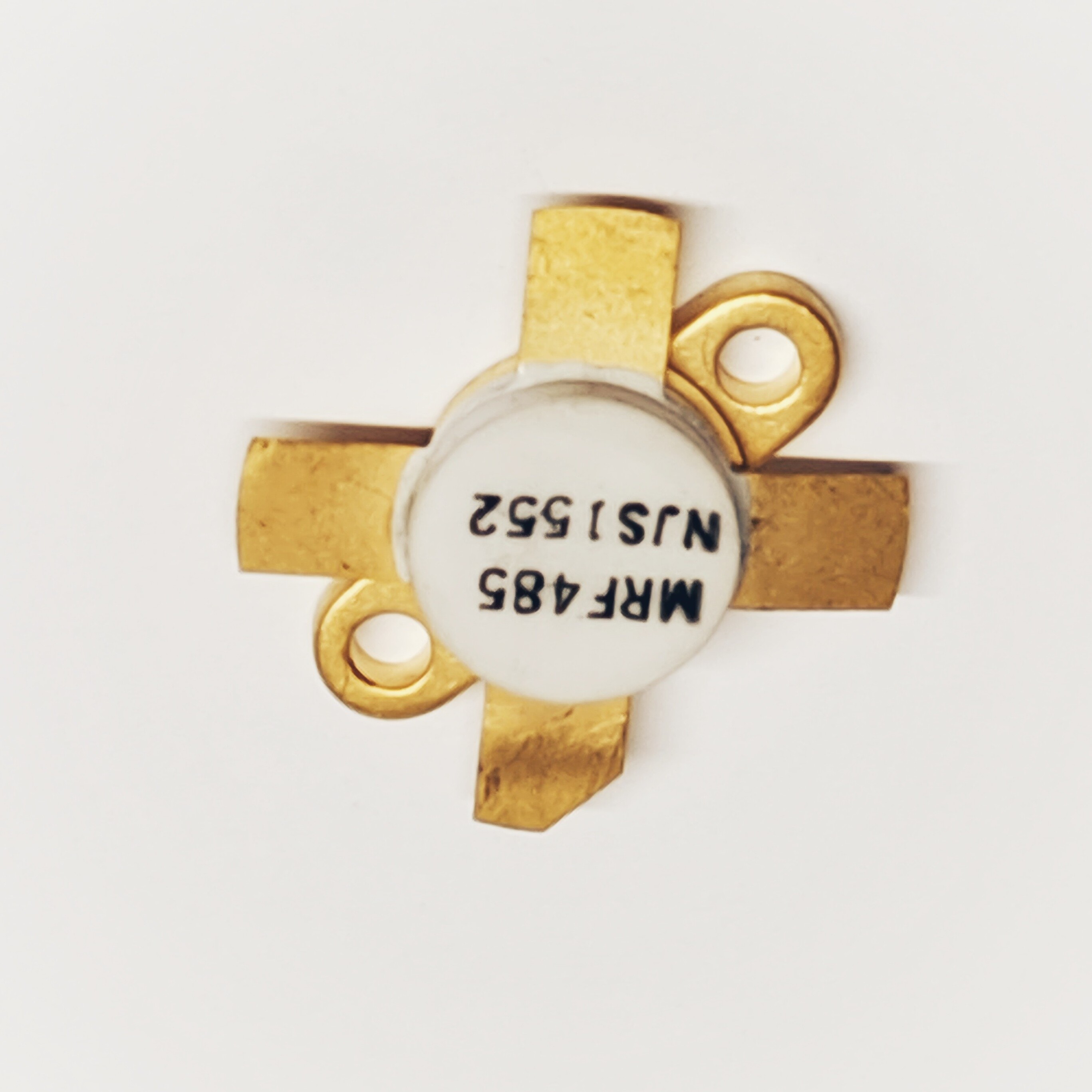

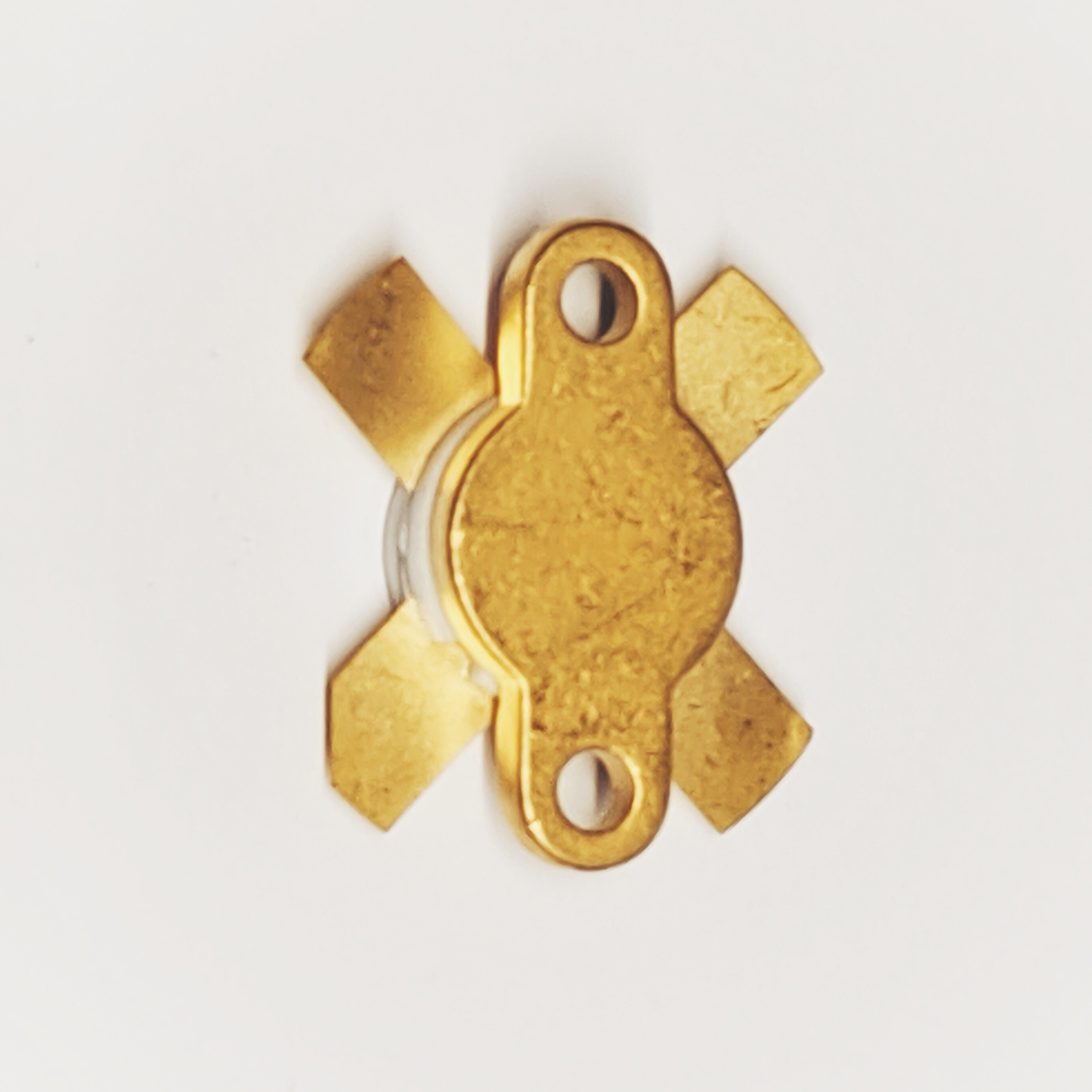

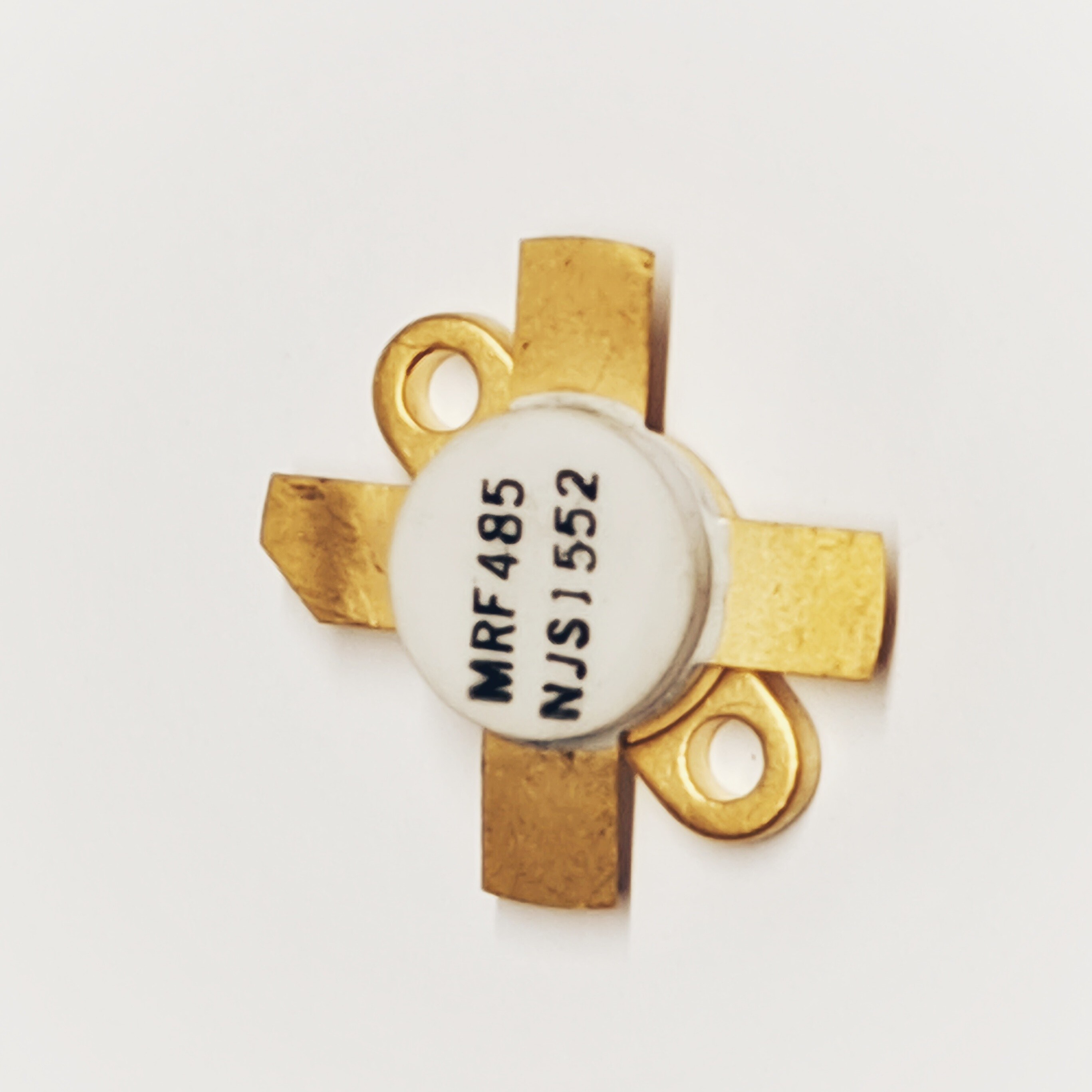

MRF485 Transistor - Case: SOT78 Make: Motorola Semiconductor
Price: £37.99
+ VAT 20% for UK purchases
£37.99
Qty
+ VAT 20% for UK purchases
  • 8 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
MRF485 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT78
Manufacturer Motorola Semiconductor
Vbr CBO 65
Vbr CEO 35
Max. PD (W) 30
Max. hFE 30-
Min hFE 10
Ic Max. (A) 1.0
@Ic (test) (A) 500m
Icbo Max. @Vcb Max. (A) 1.0m
Polarity NPN
Derate Above 25°C 300m
Oper. Temp (°C) Max. 150
@VCE (V) 5.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 30 W
Maximum Collector-Base Voltage |Vcb| 35 V
Maximum Collector-Emitter Voltage |Vce| 35 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 175 °C
SKU 359436
