MRF559
View detailed images (13)

MRF559

SKU: MRF559

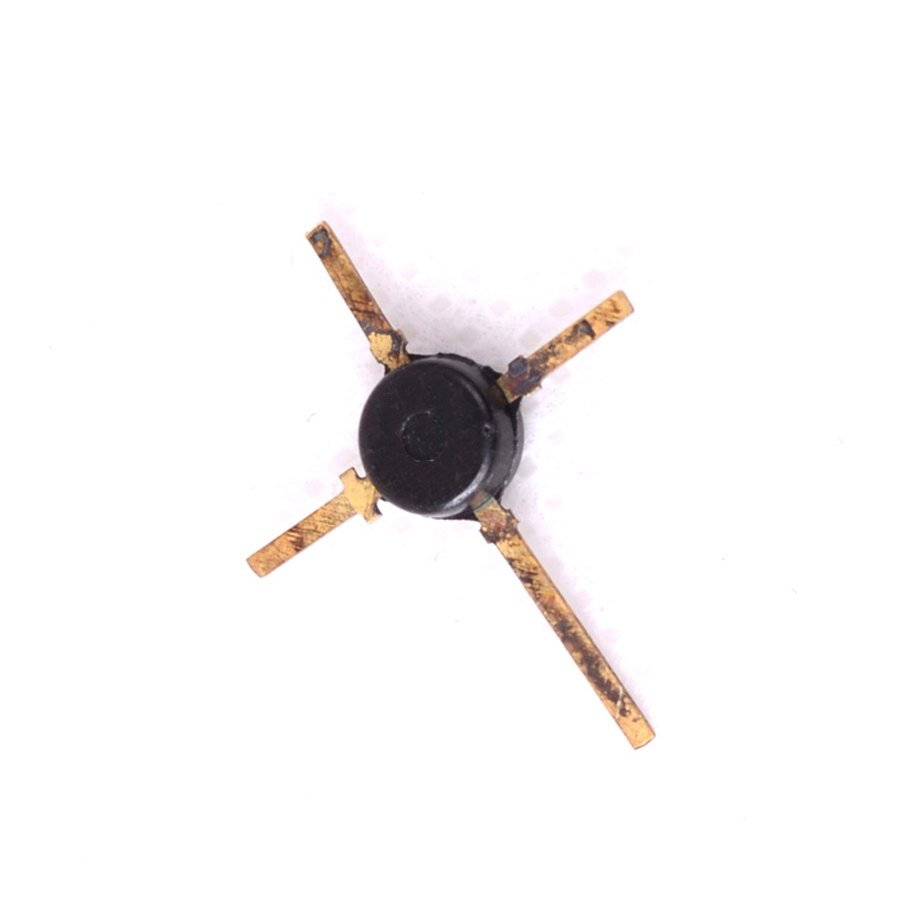

MRF559 Transistor Silicon NPN CASE: SOT103 MAKE: Discrete Semiconductor Industries - DSI
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 5 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case SOT103
Manufacturer Discrete Semiconductor Industries - DSI
Vbr CBO 36
@Freq. (test) 1.5G
@Ic (A) 150m
Mat. Silicon Logic
Oper. Gain Typ (S21) 9.5
Oper. Pwr Out Typ. 500m
PD Max. (W) 2.0
S11 Deg. (Typ) 137
S11 Mag Typ. 0.83
S22 Deg. Typ. -129
S22 Mag Typ. 0.34
@VDS (VCE) (test) (V) 10
Coll. (or drain) Current Max. 150m
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 4-32
Surface Mounted Yes/No YES
SKU 84160
