MRF571
View detailed images (13)

MRF571

SKU: MRF571

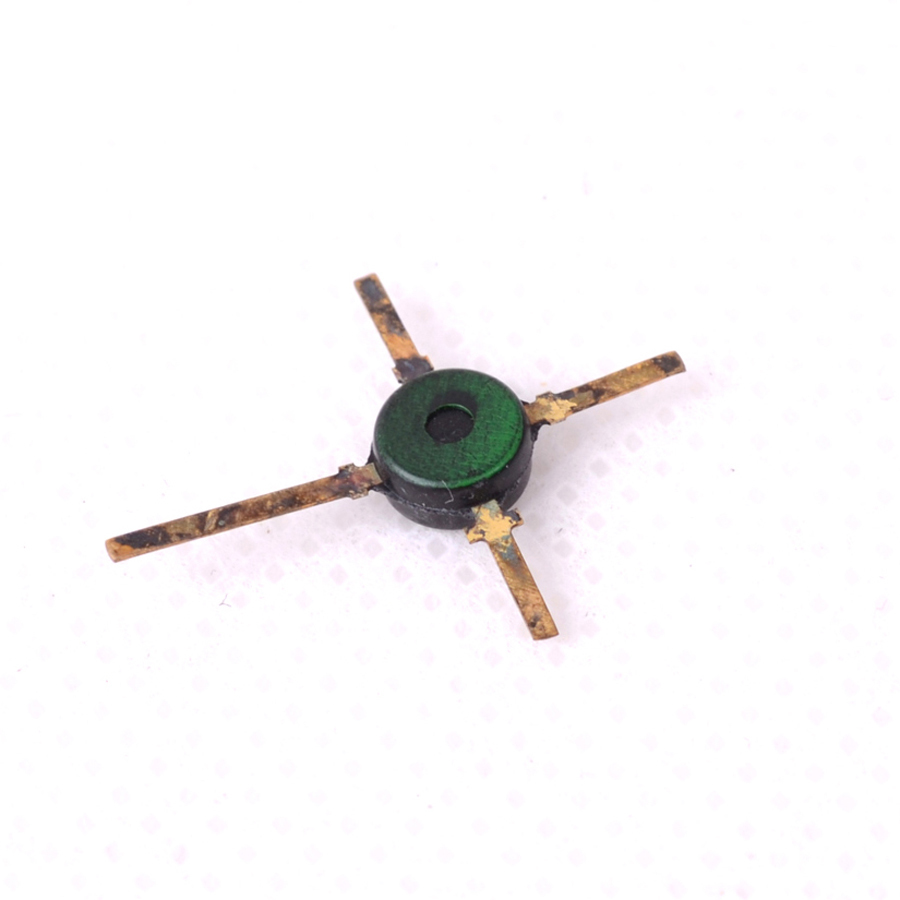

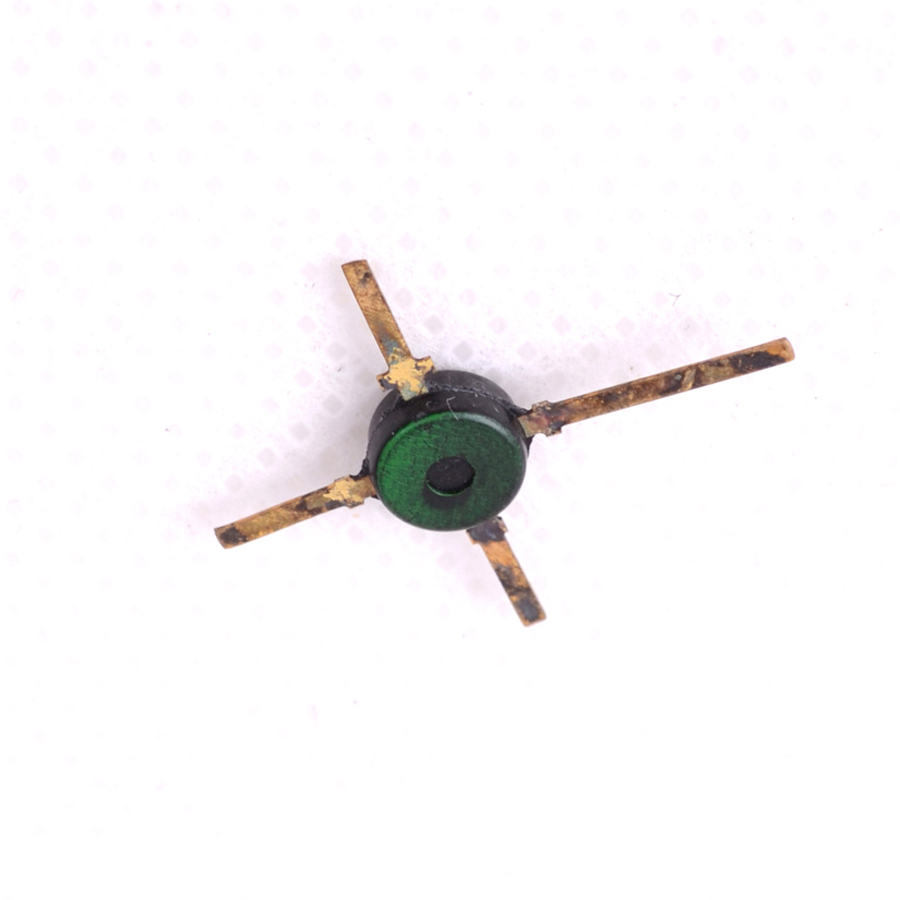

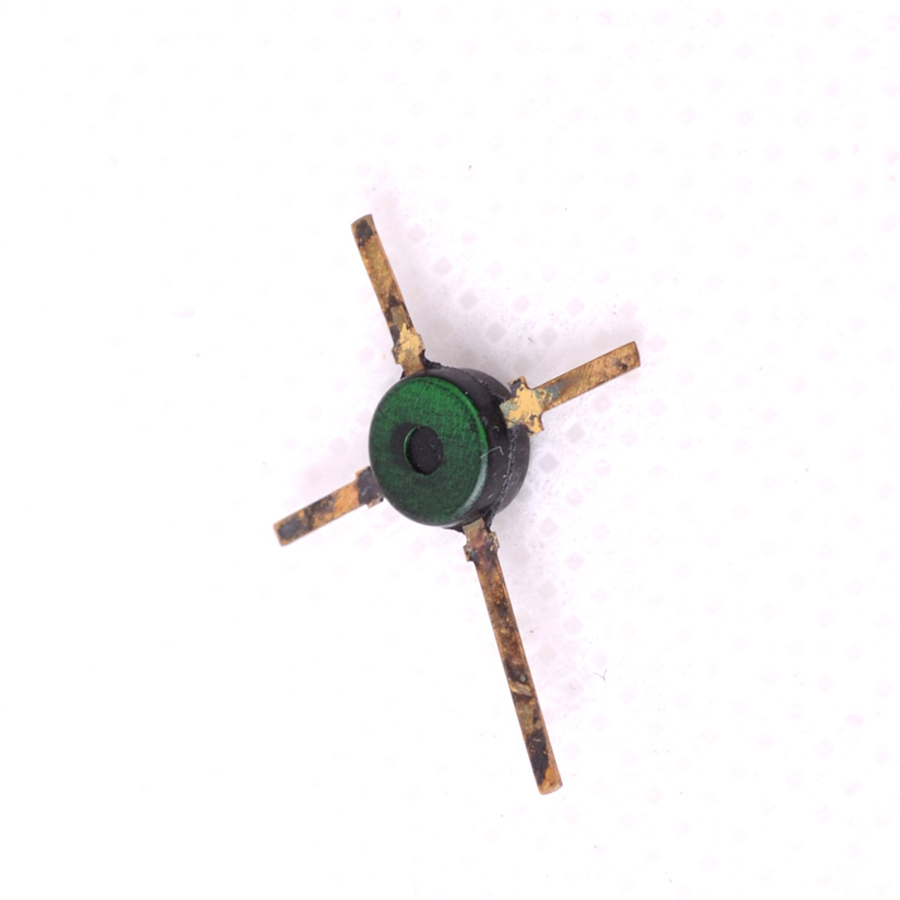

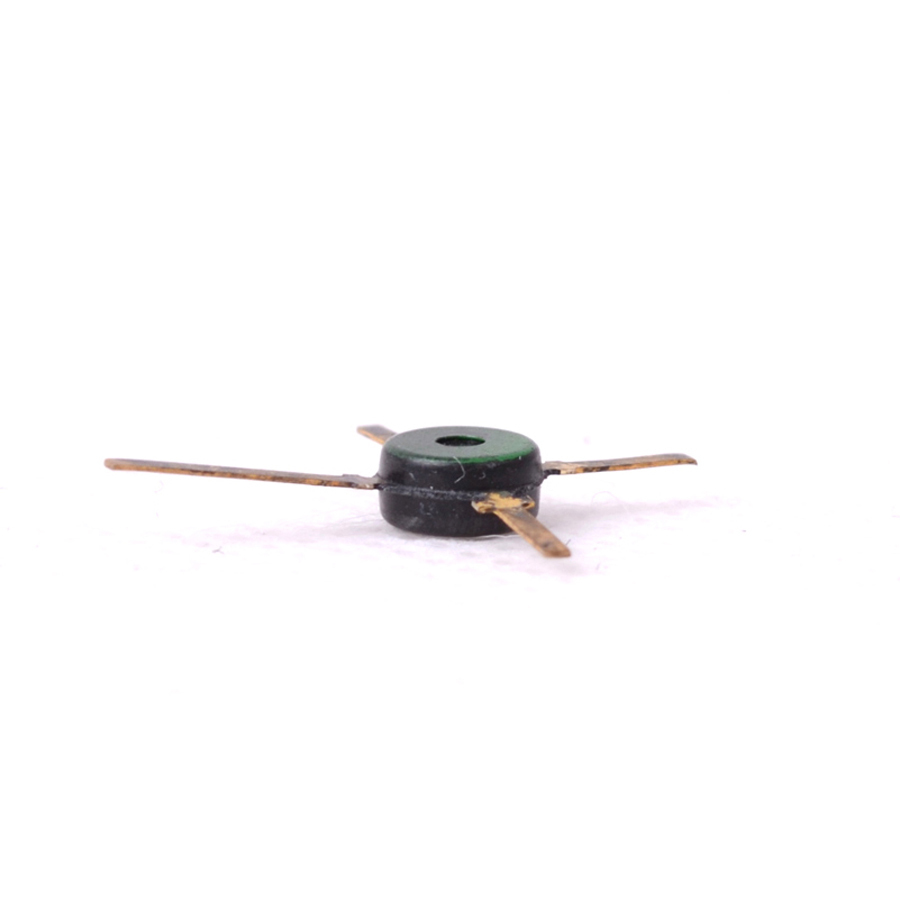

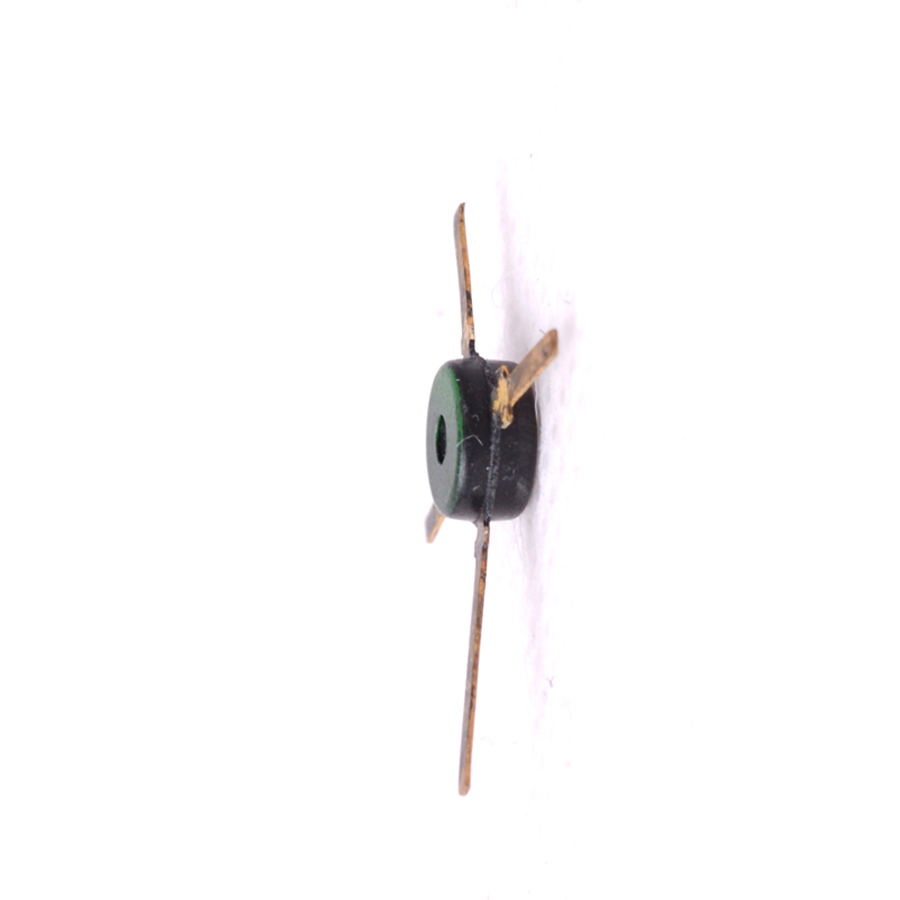

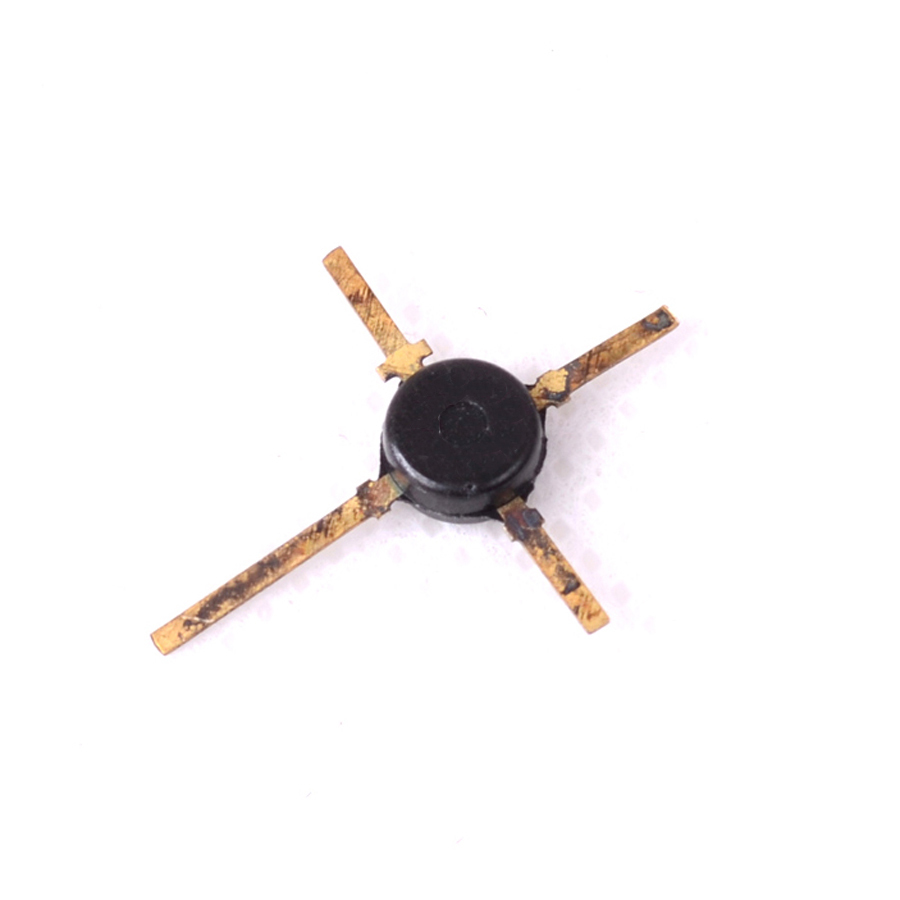

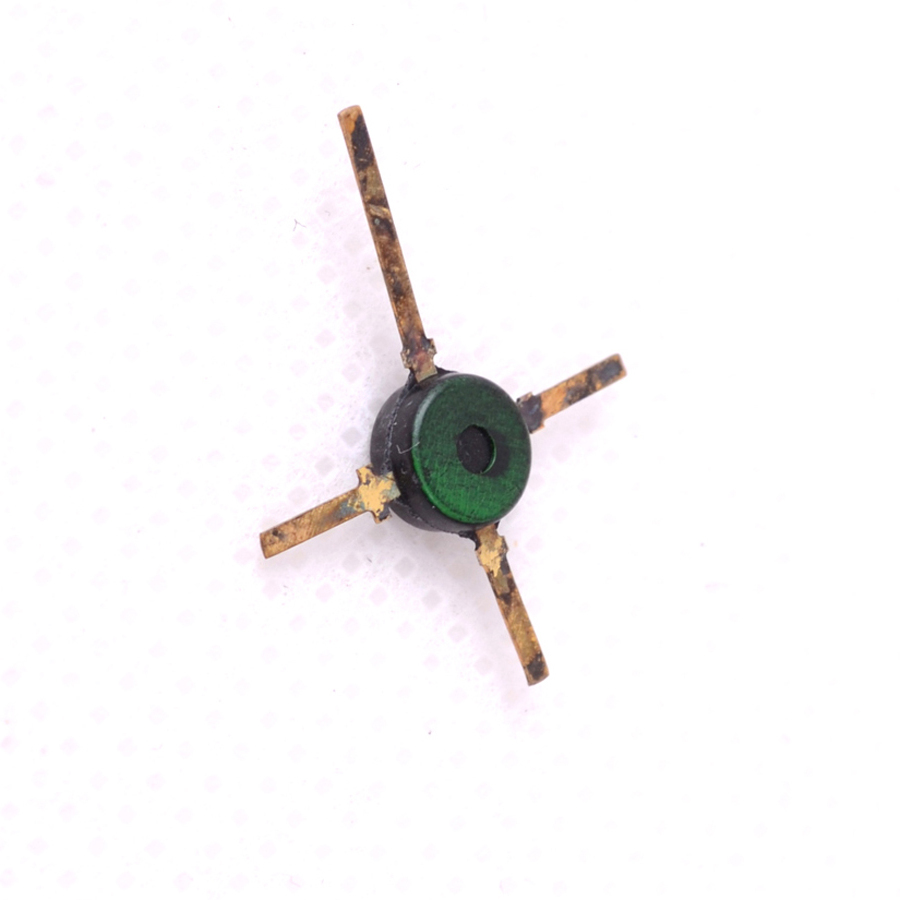

MRF571 Transistor Silicon NPN - Case: SOT103 Make: Motorola Semiconductor
Price: £19.99
+ VAT 20% for UK purchases
£19.99
Qty
+ VAT 20% for UK purchases
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case SOT103
Manufacturer Motorola Semiconductor
Vbr CBO 20
@Freq. (test) 2.0G
@Ic (A) 10m
@Ic (A) 5.0m
Mat. Silicon Logic
Noise Fig. 1.5
Oper. Gain Typ (S21) 12
Polarity NPN
PD Max. (W) 1.0
S11 Deg. (Typ) 141
S11 Mag Typ. .69
S22 Deg. Typ. -91
S22 Mag Typ. .29
@VDS (VCE) (test) (V) 8.0
Coll. (or drain) Current Max. 70m
@Freq. (test) 1.0G
@VCE (test) 6.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 4-32
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.333 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 10 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.08 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 0.4 pF
Transition Frequency (ft): 6000 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SMD Transistor Code N1
SKU 82770
