MRF5812
View detailed images (13)

MRF5812

SKU: MRF5812

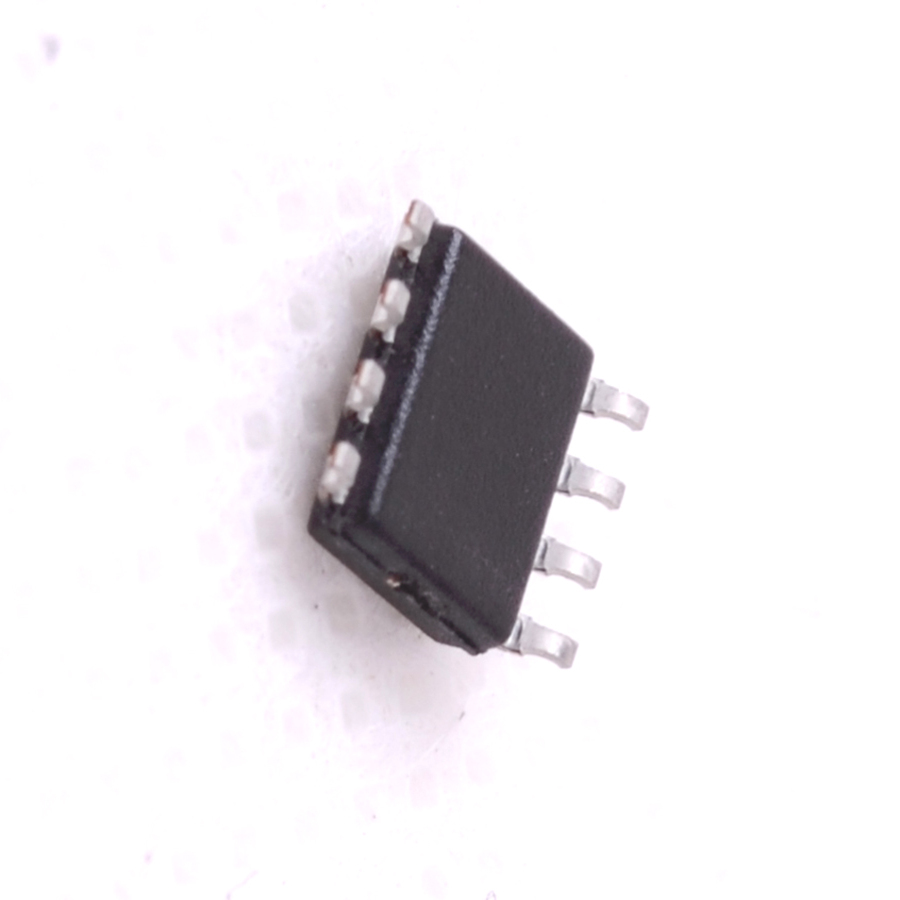

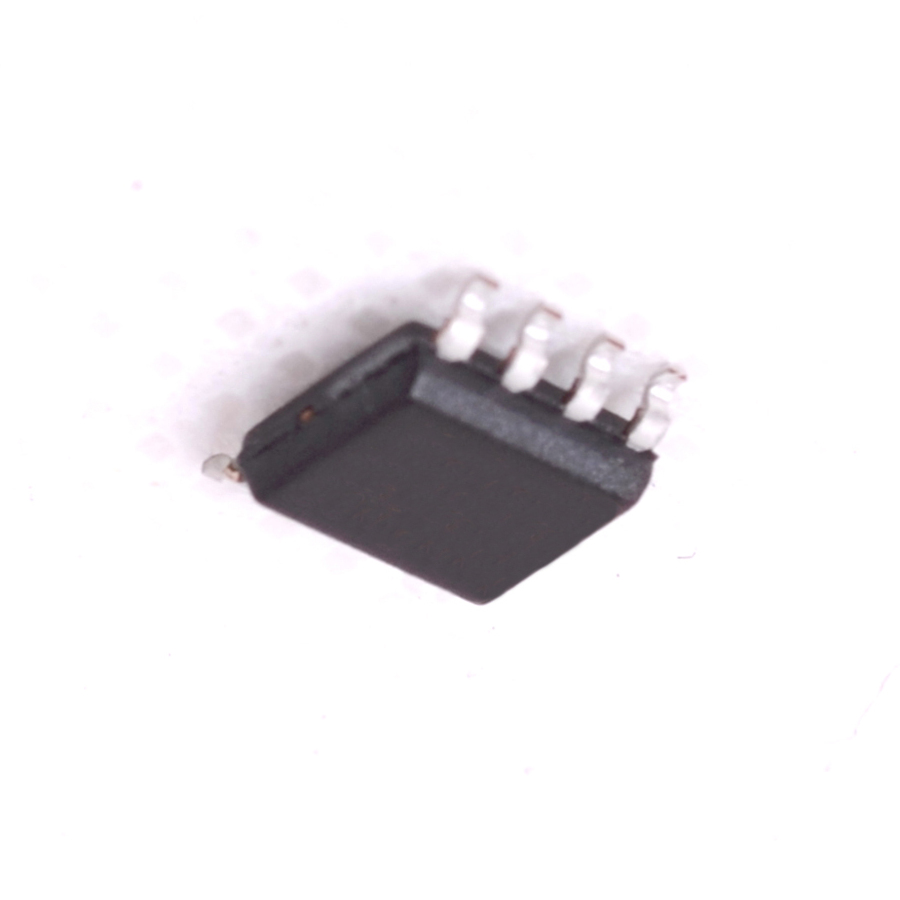

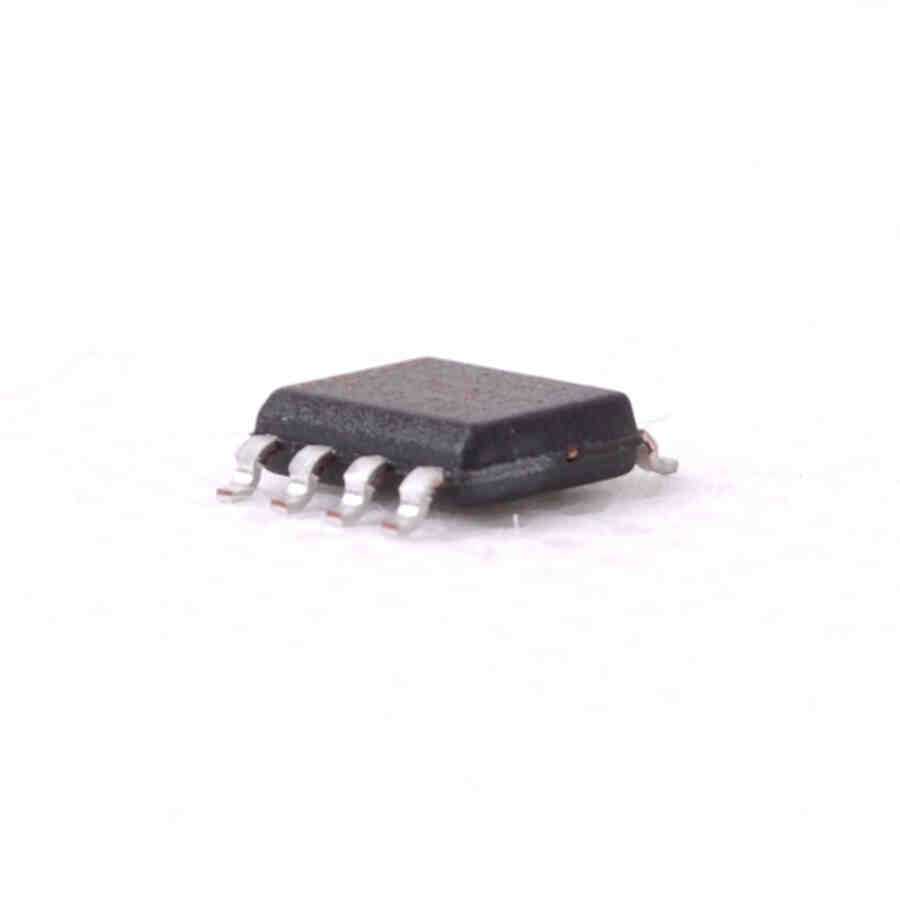

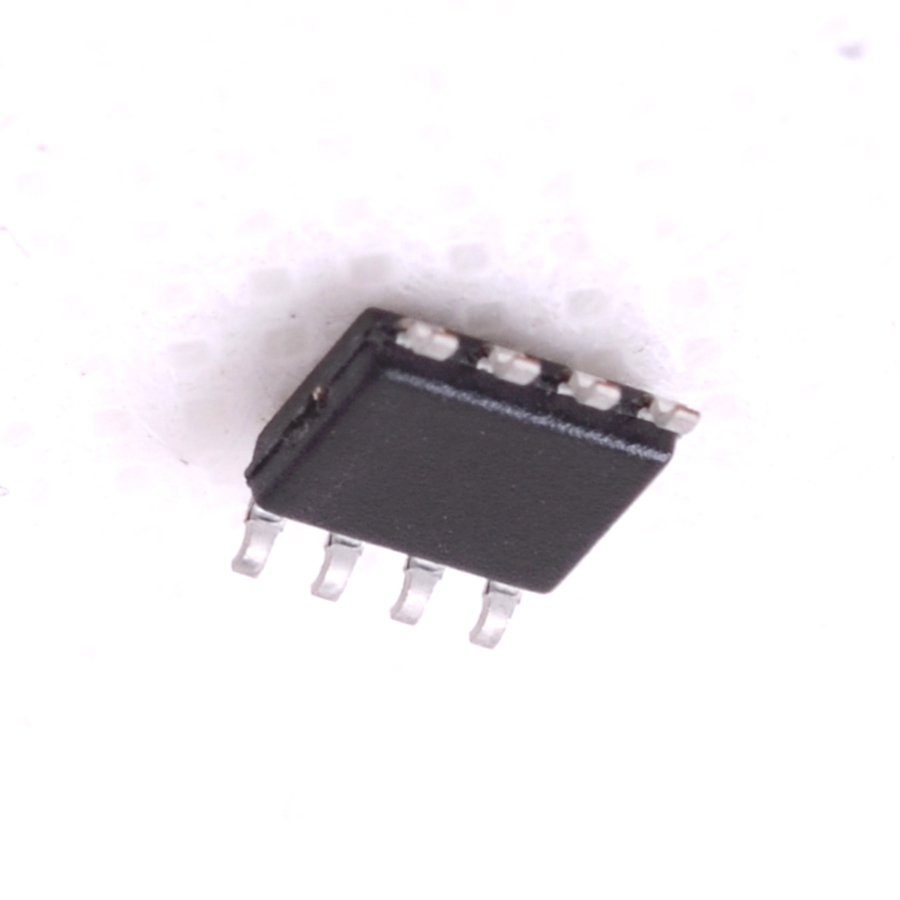

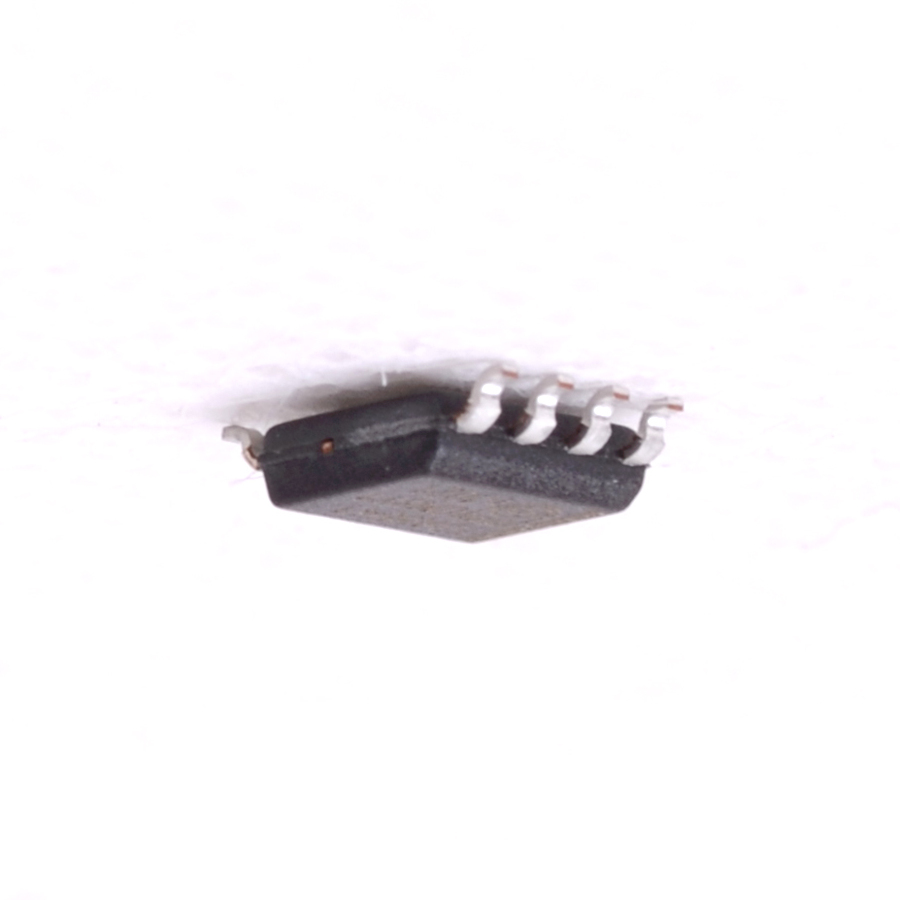

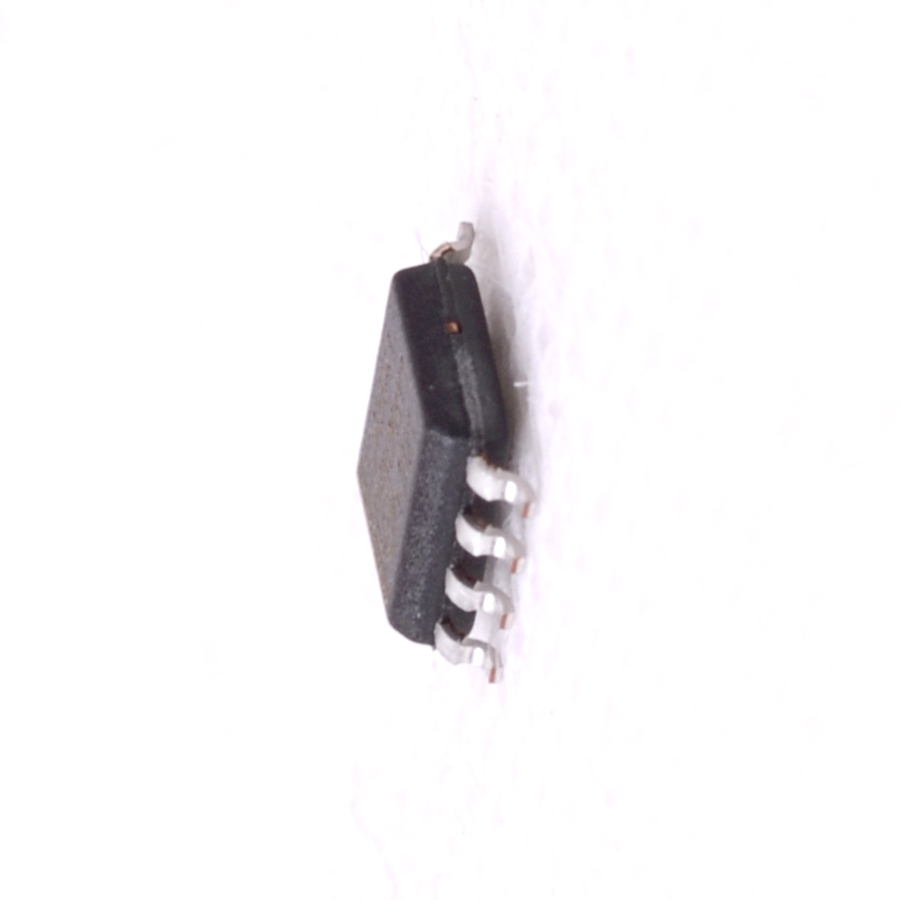

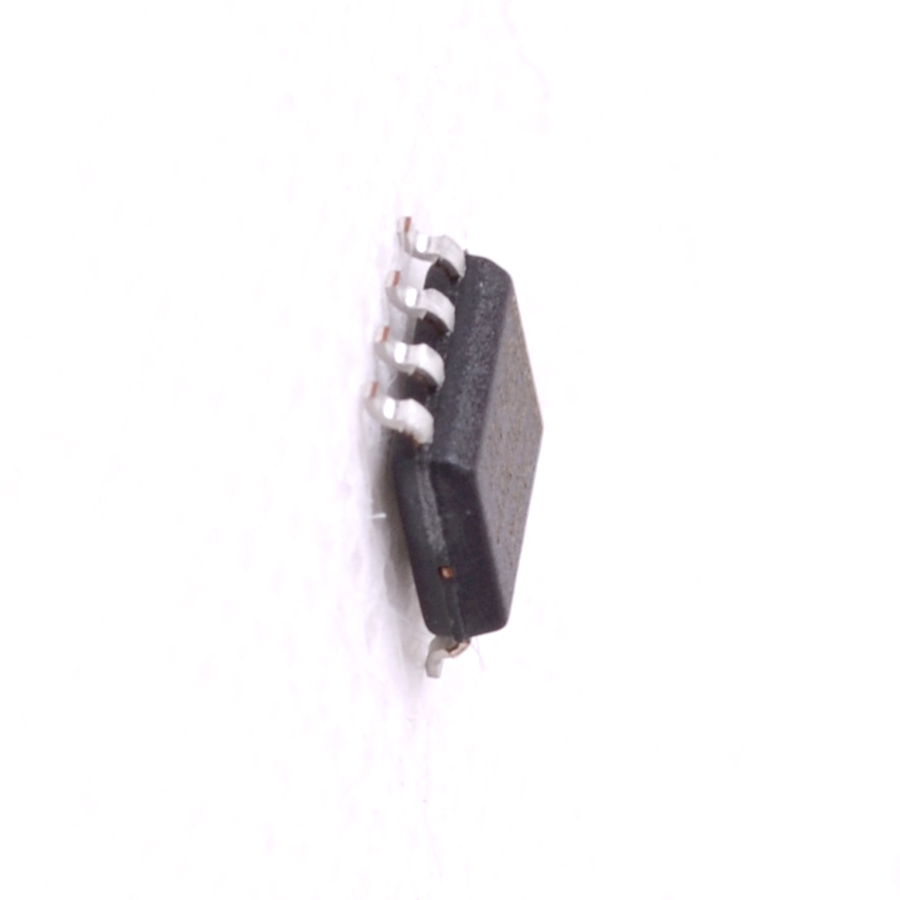

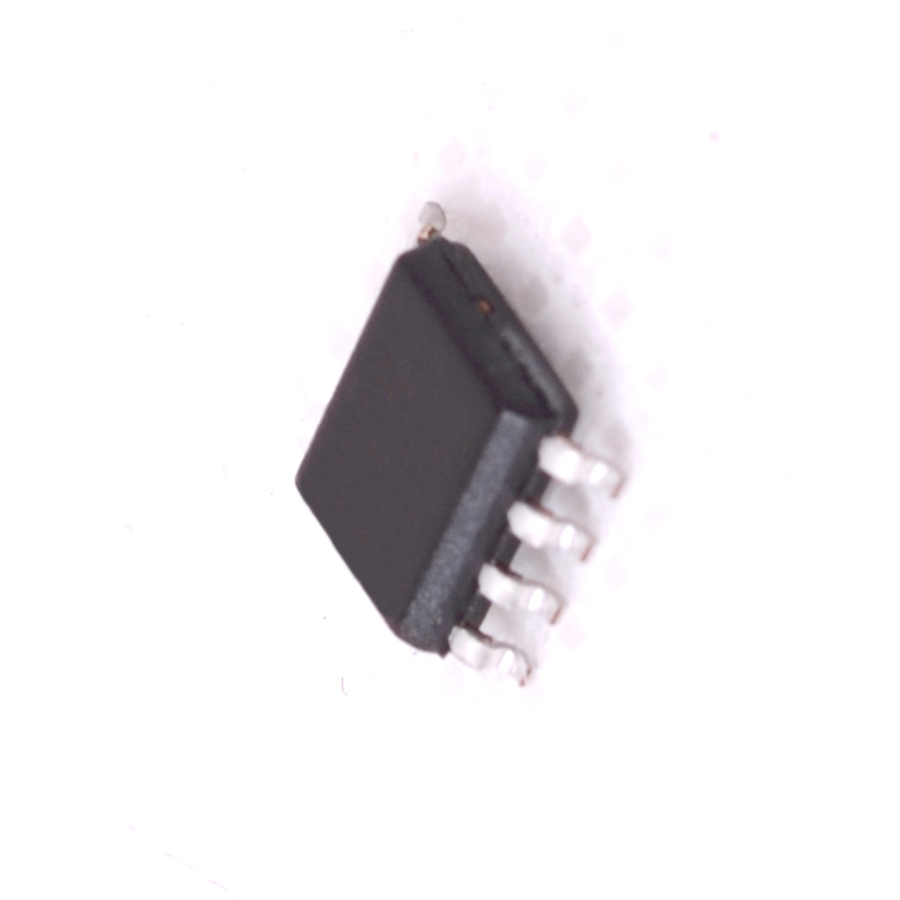

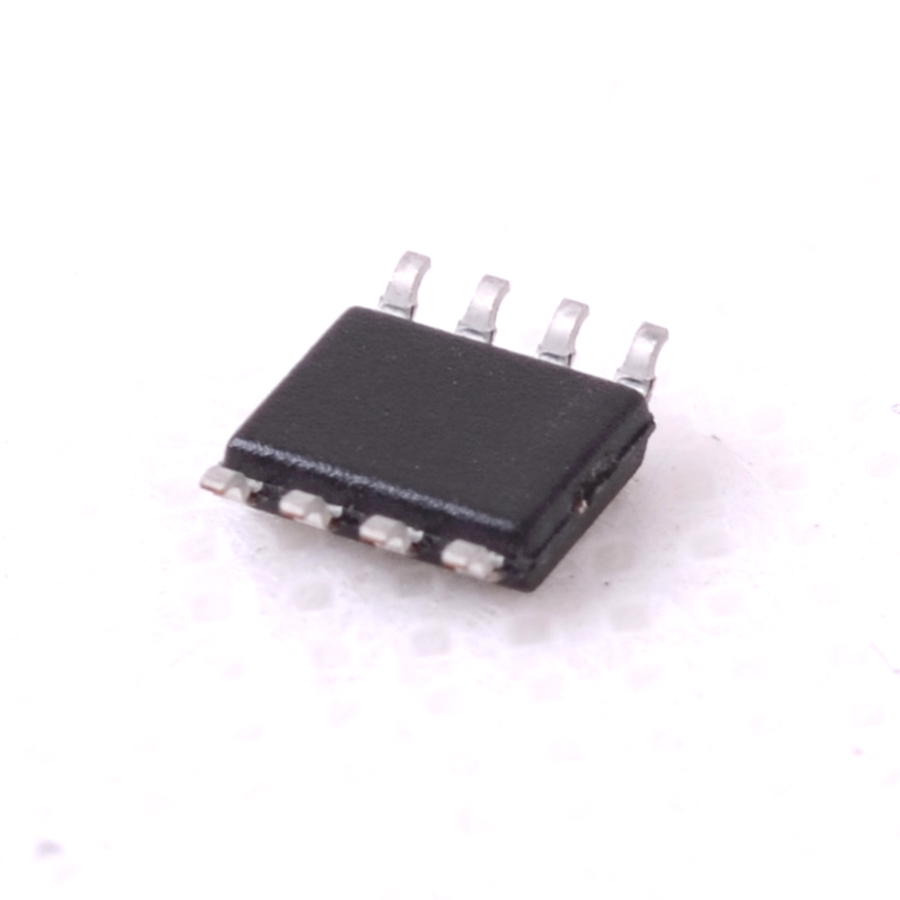

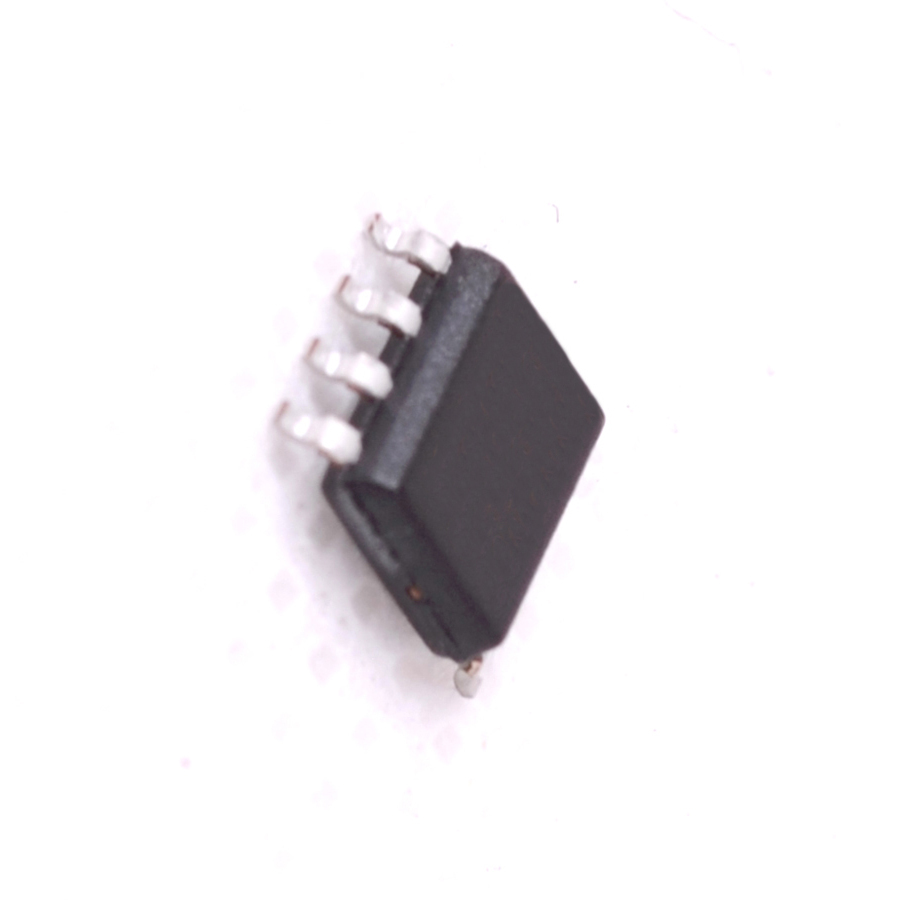

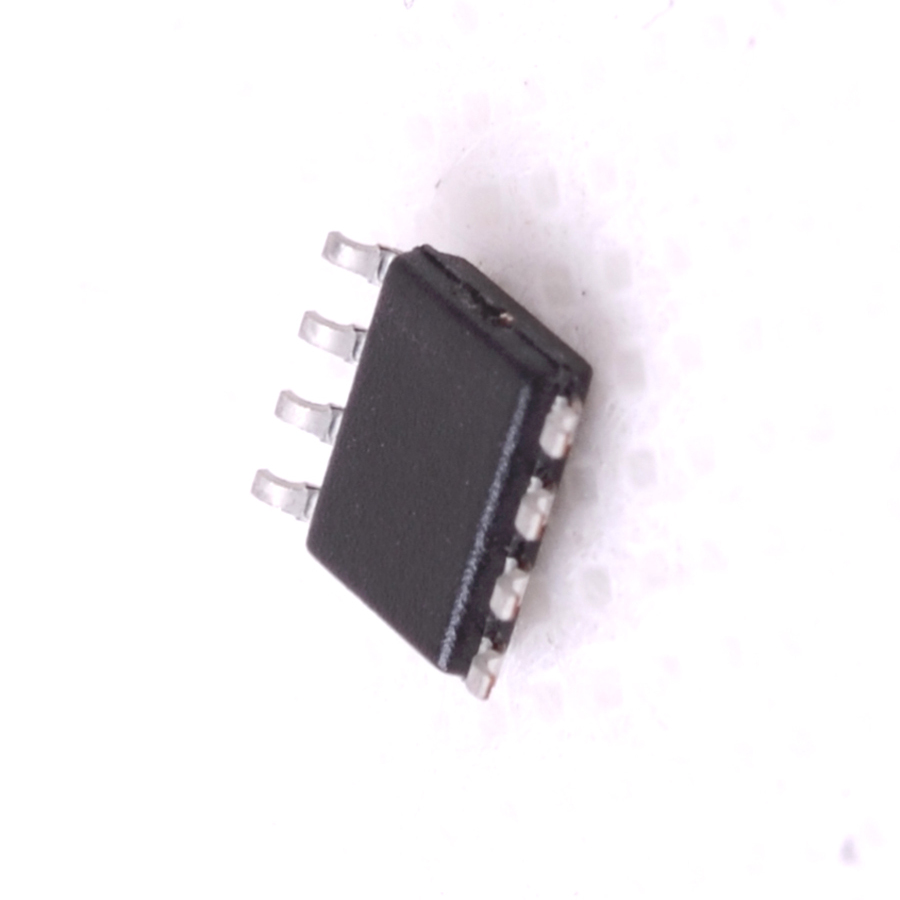

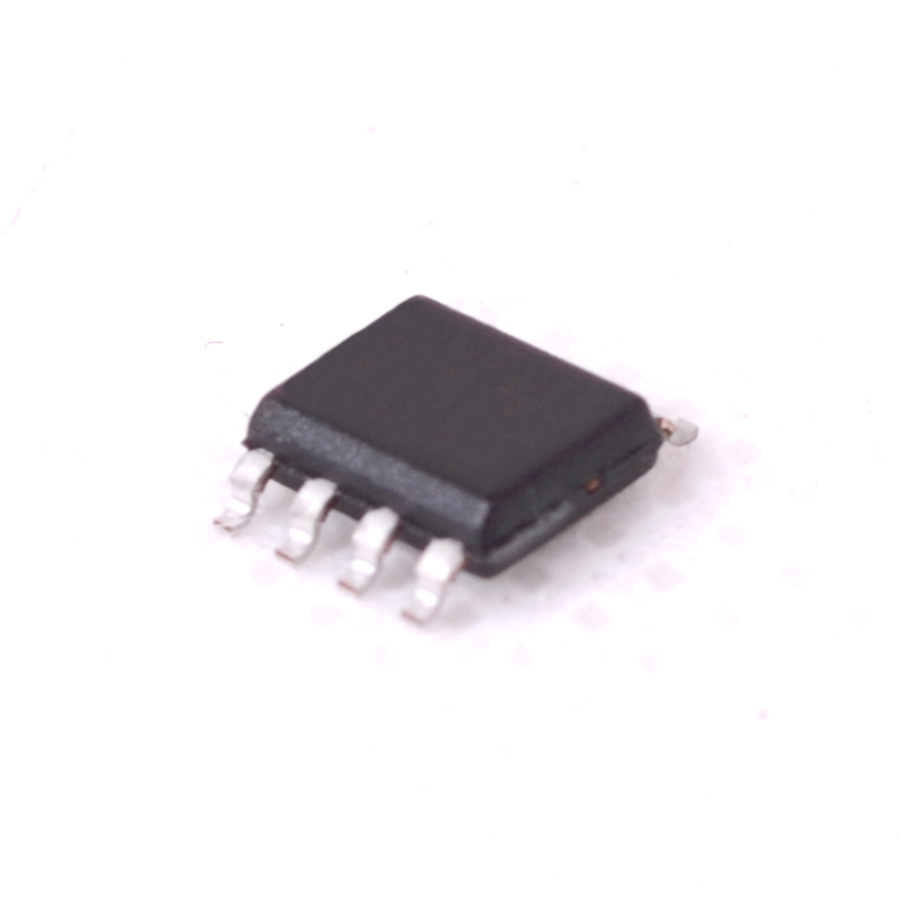

MRF5812 Transistor Silicon NPN CASE: SOP8 MAKE: Motorola Semiconductor
Product specifications
Type Transistor Silicon NPN
Case SOP8
Manufacturer Motorola Semiconductor
Vbr CBO 30
@Freq. (test) 500M
@Ic (A) 50m
@Ic (A) 50m
Mat. Silicon Logic
Noise Fig. 2.0
Oper. Gain Typ (S21) 16
PD Max. (W) 1.0
S11 Deg. (Typ) 178
S11 Mag Typ. 0.6
S22 Deg. Typ. -122
S22 Mag Typ. .24
@VDS (VCE) (test) (V) 10
Coll. (or drain) Current Max. 200m
@Freq. (test) 500m
@VCE (test) 10
Oper. Temp (°C) Max. 150
Pinout Equivalence Number N/A
Surface Mounted Yes/No YES
SKU 1294479
