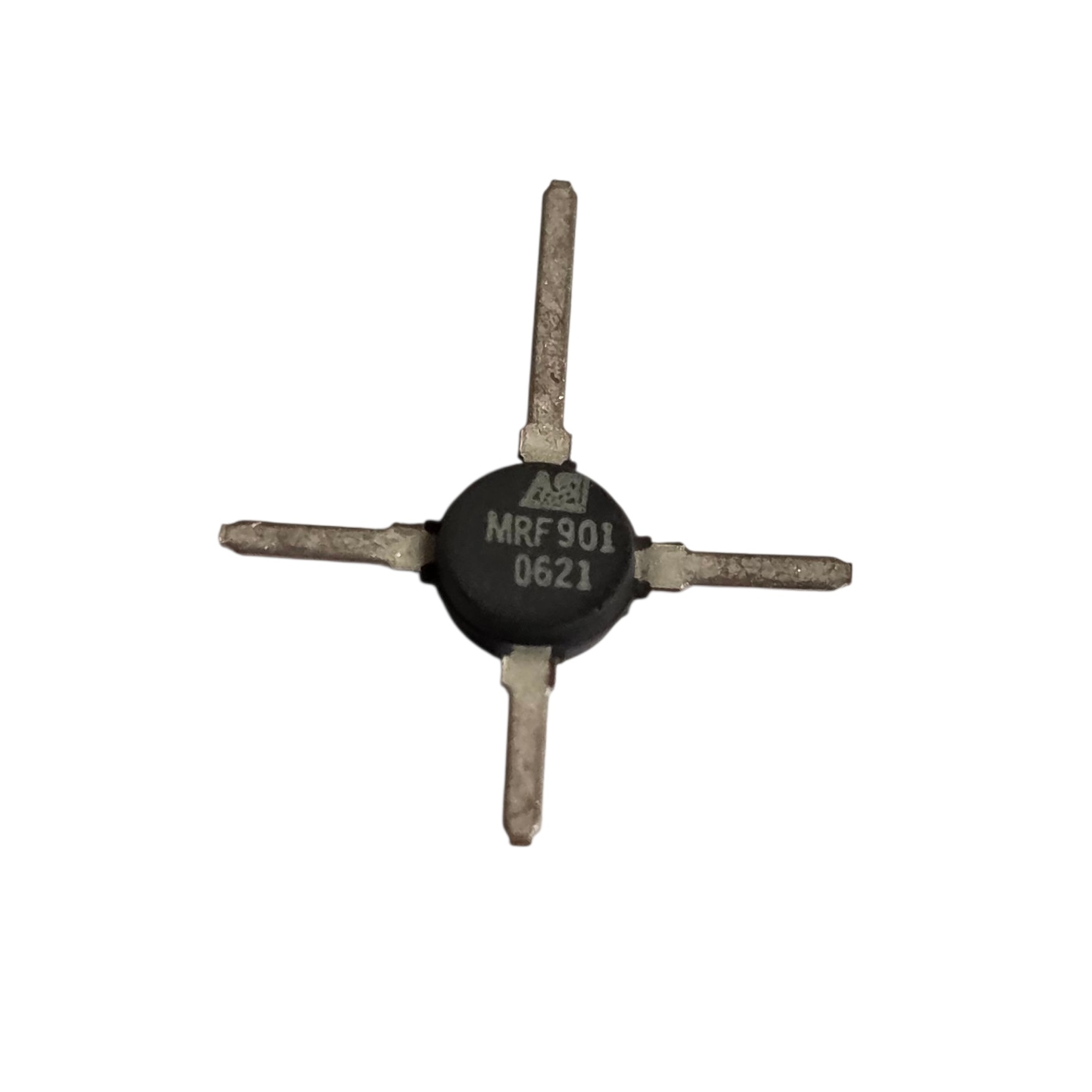

MRF901

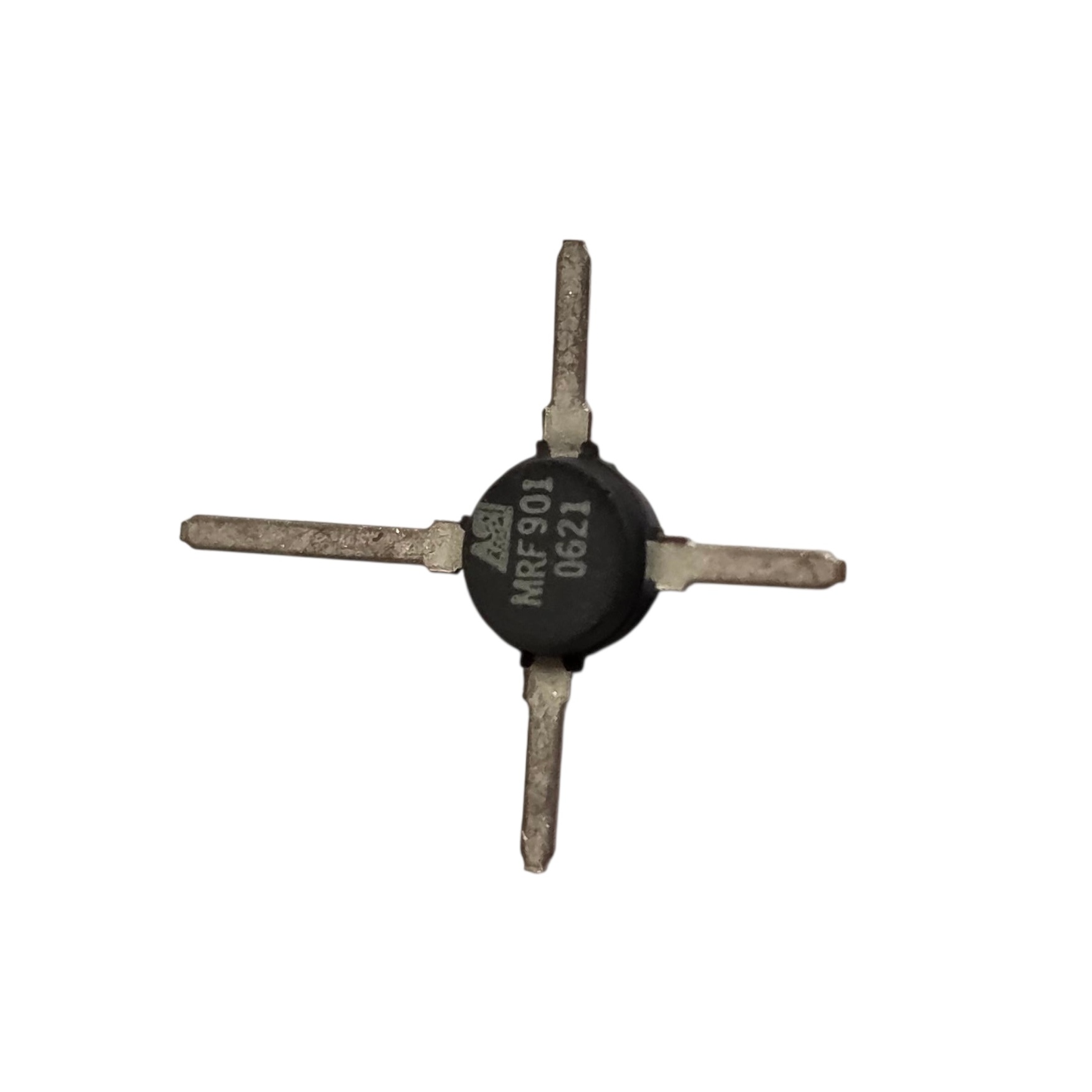

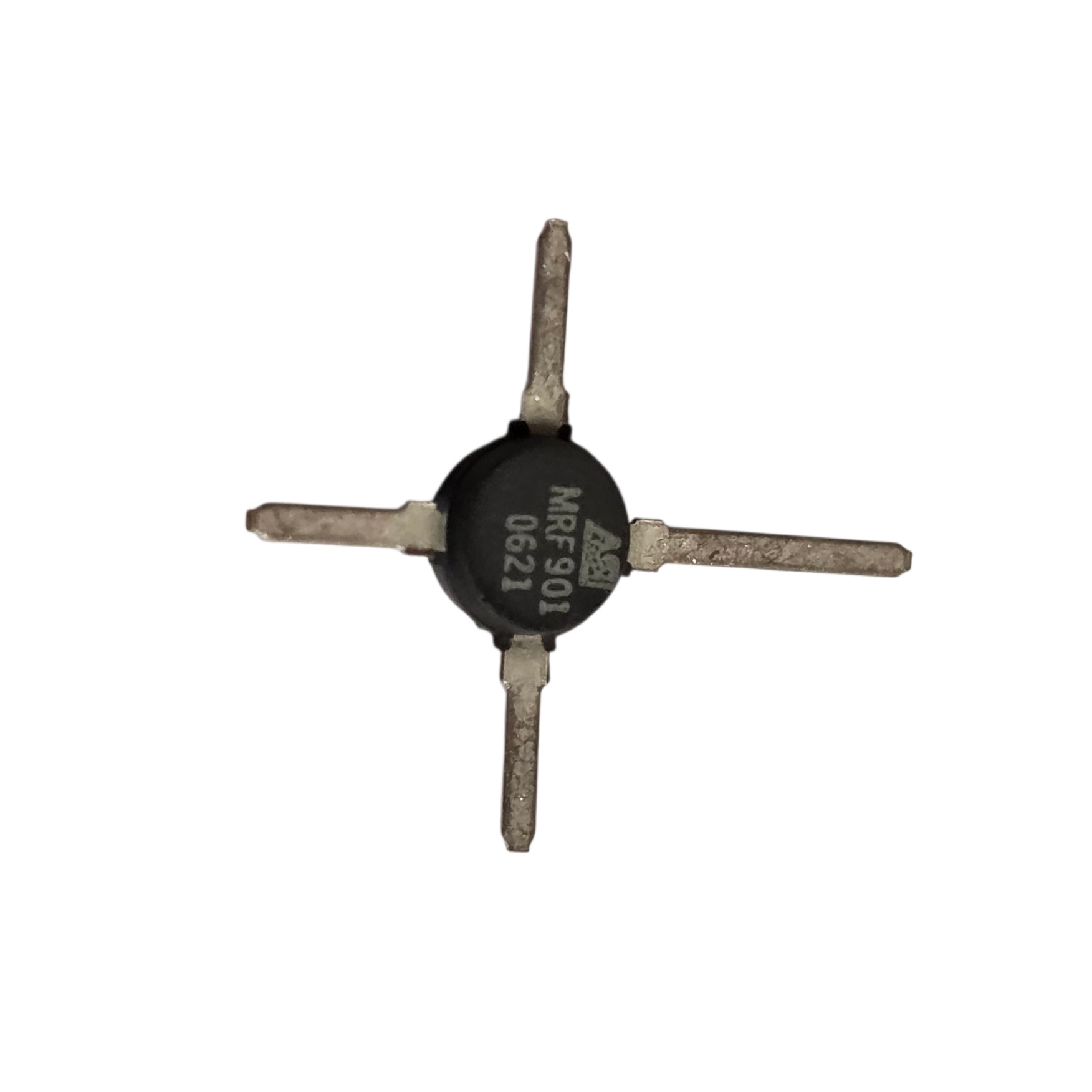

View detailed images (4)

MRF901

SKU: MRF901
MRF901 Transistor Silicon NPN - Case: TO131 Make: Motorola Semiconductor
Price: £3.99
+ VAT 20% for UK purchases
£3.99
Qty
+ VAT 20% for UK purchases
  • 10 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case TO131
Manufacturer Motorola Semiconductor
Vbr CBO 25
@Freq. (test) 2.0G
@Ic (A) 5.0m
@Ic (A) 30m
Mat. Silicon Logic
Noise Fig. 1.8
Oper. Gain Typ (S21) 12
Polarity NPN
PD Max. (W) 375m
S11 Deg. (Typ) 122
S11 Mag Typ. 0.62
S22 Deg. Typ. -68
S22 Mag Typ. 0.39
@VDS (VCE) (test) (V) 10
Coll. (or drain) Current Max. 30m
@Freq. (test) 1.0G
@VCE (test) 6.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 4-32
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 25 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 2 V
Maximum Collector Current |Ic max| 0.03 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 1 pF
Transition Frequency (ft): 4500 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SKU 85119
