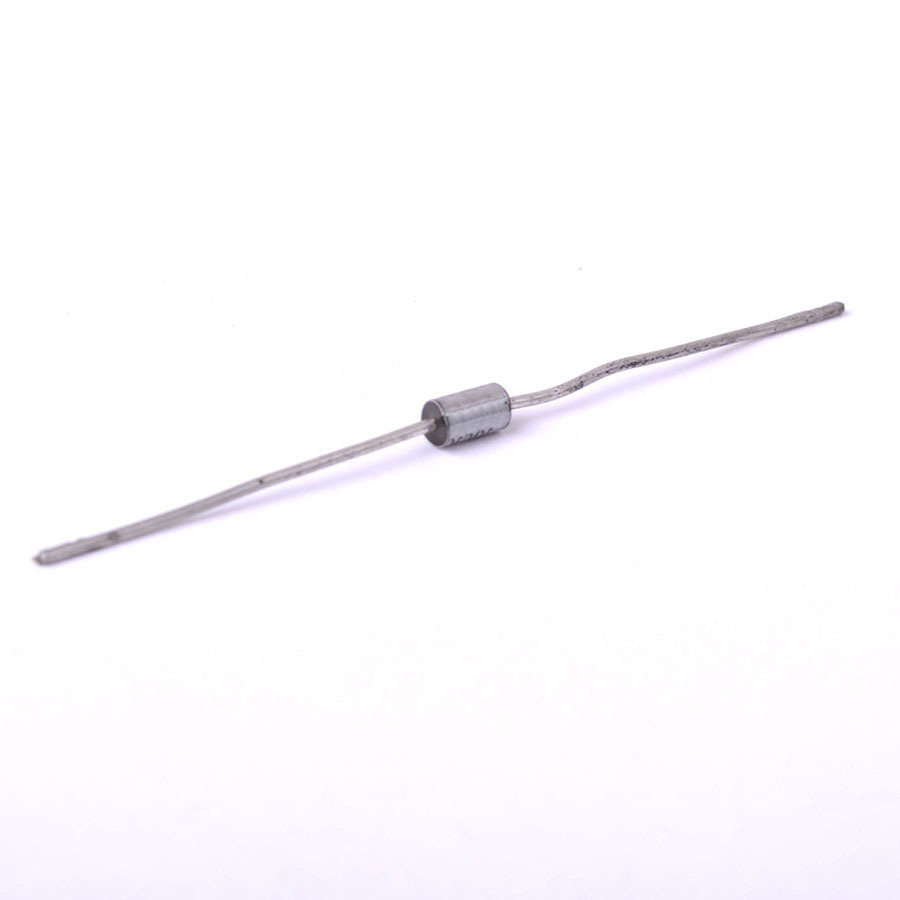

MS109

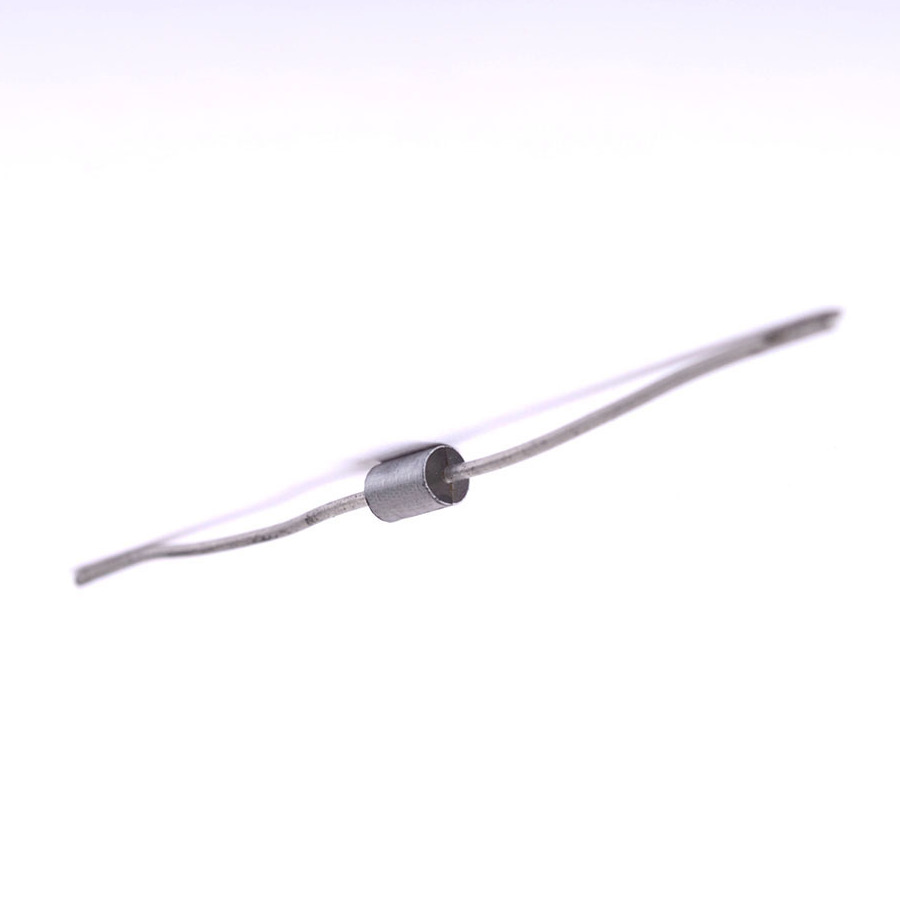

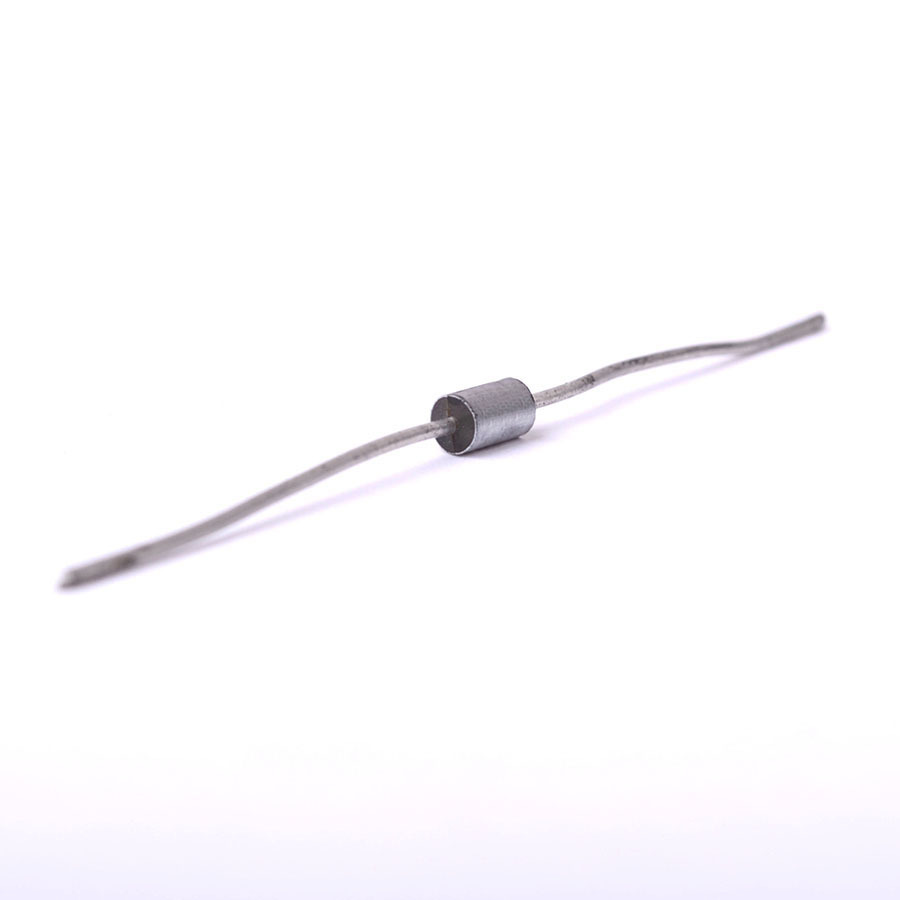

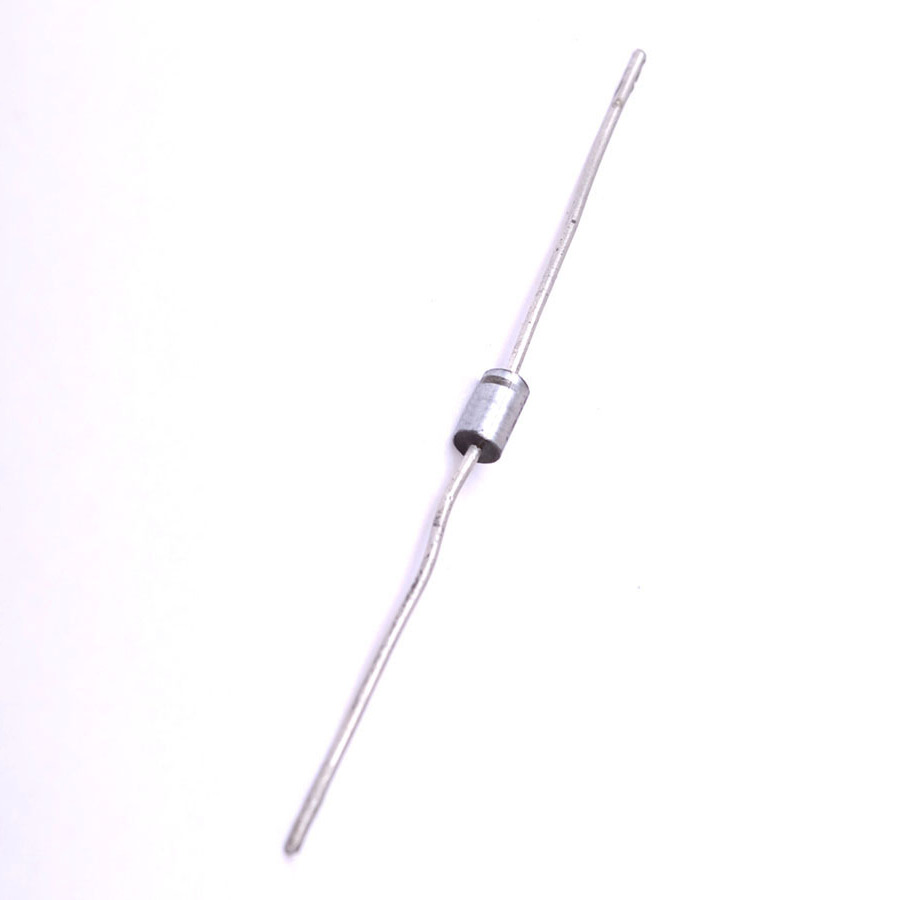

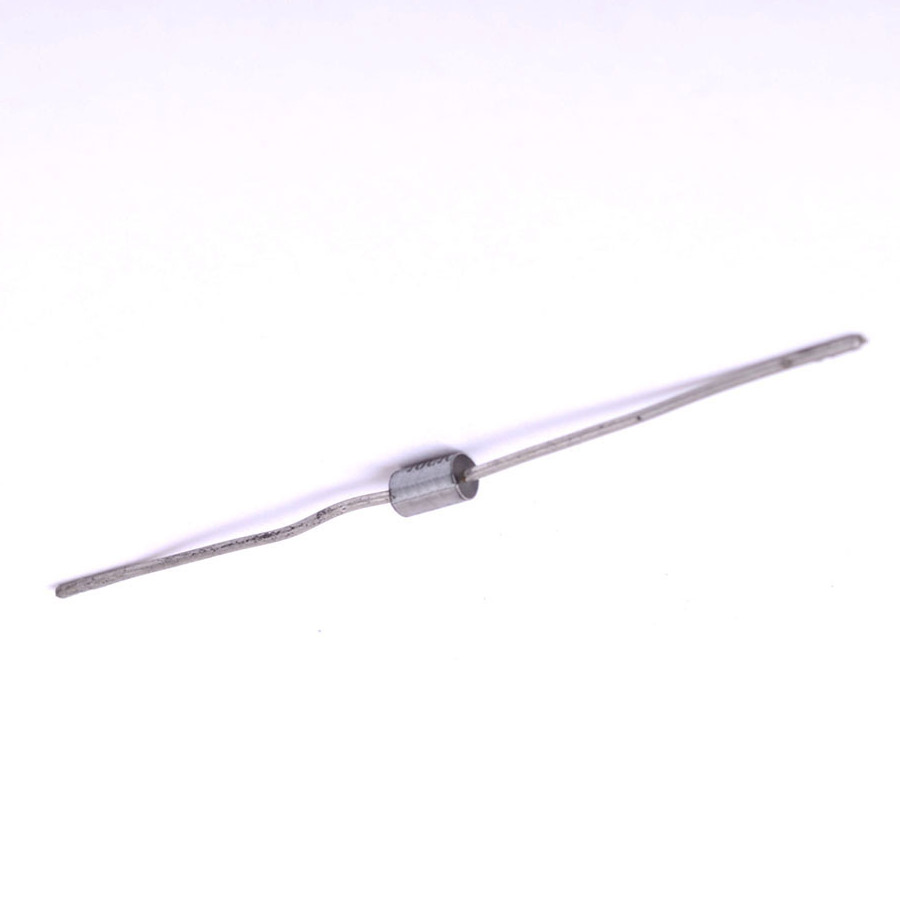

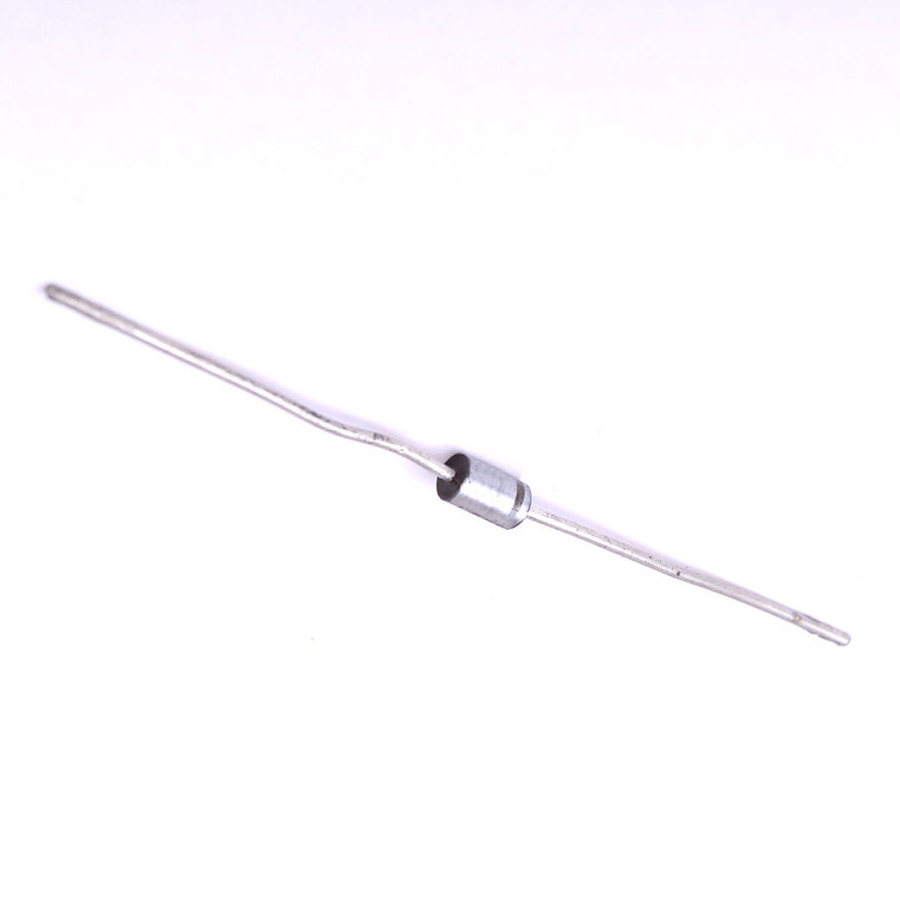

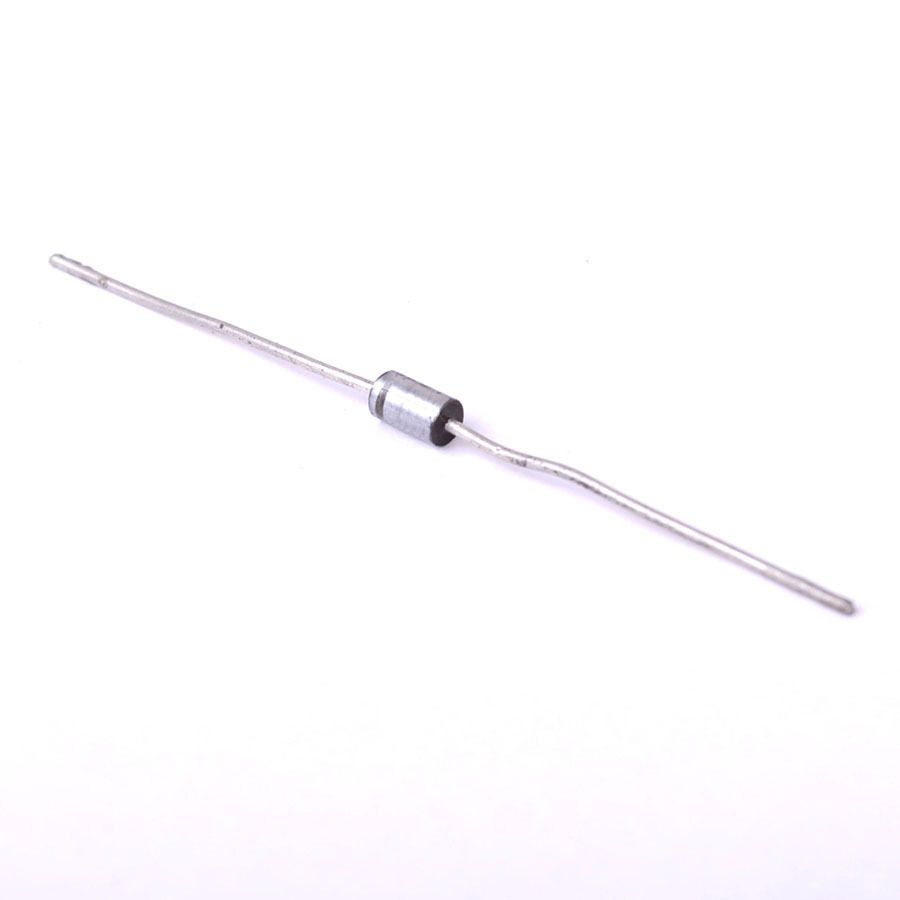

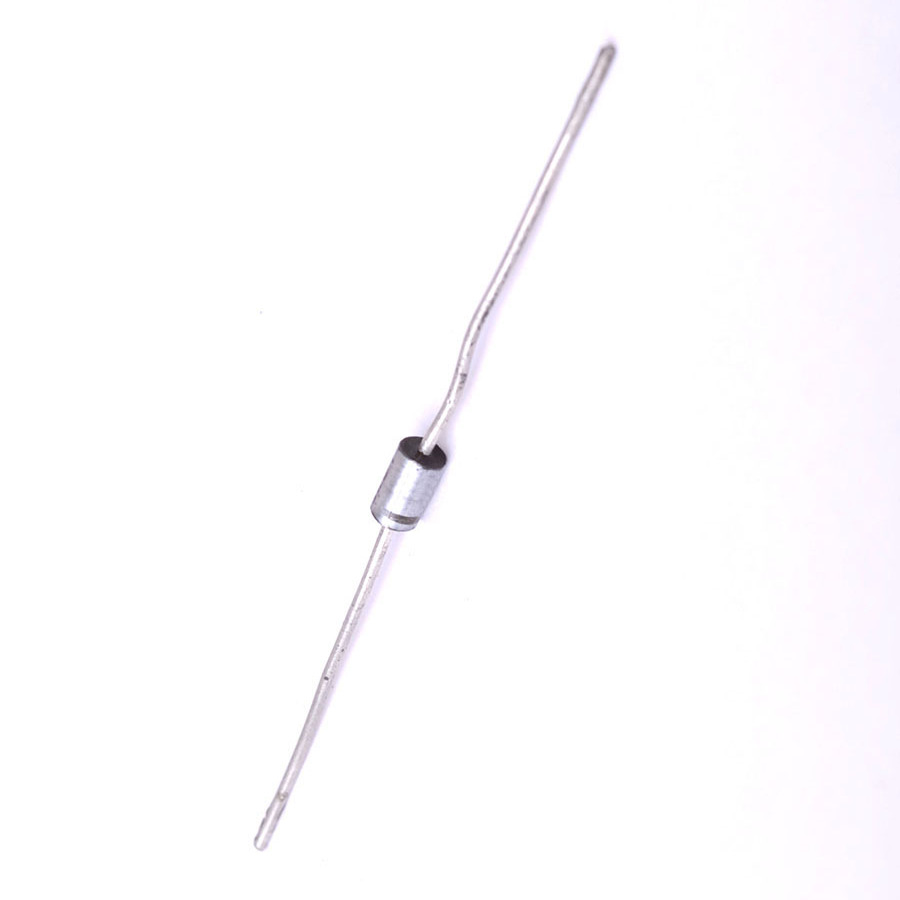

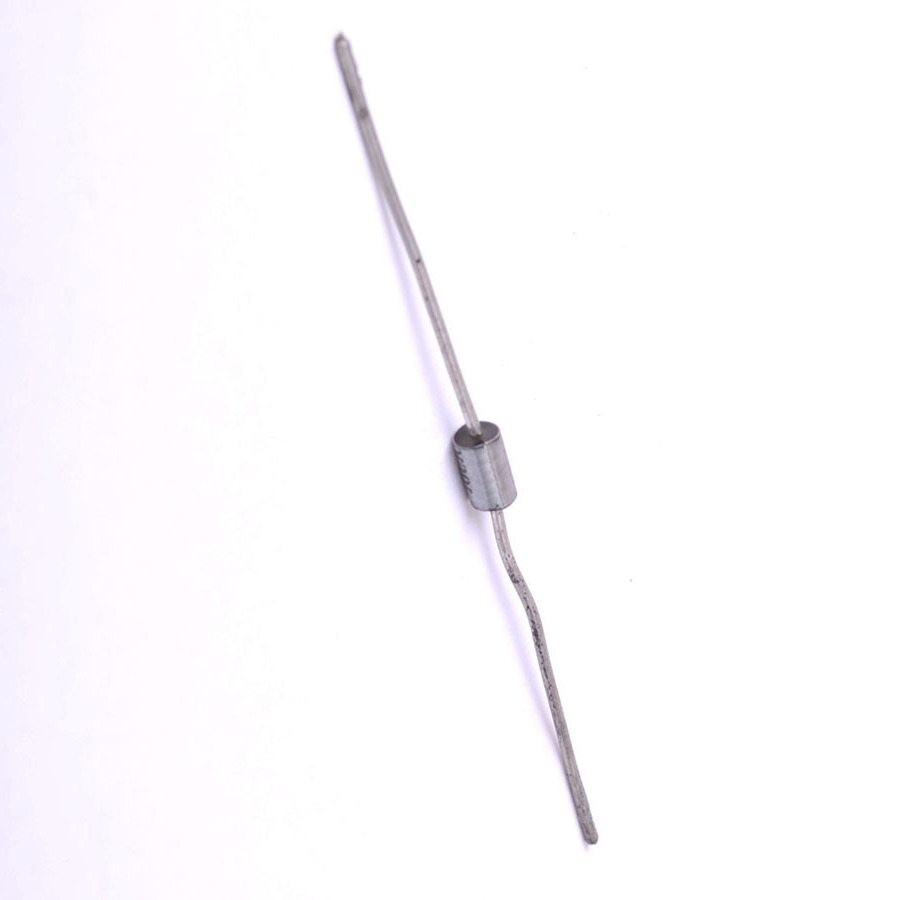

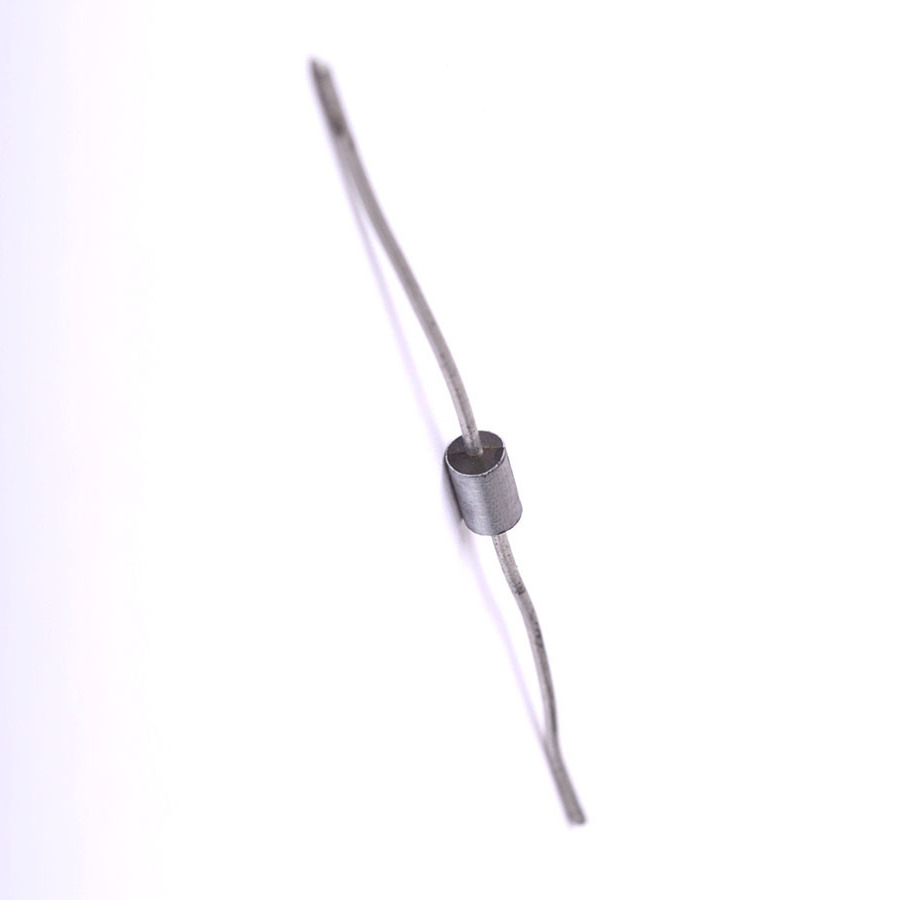

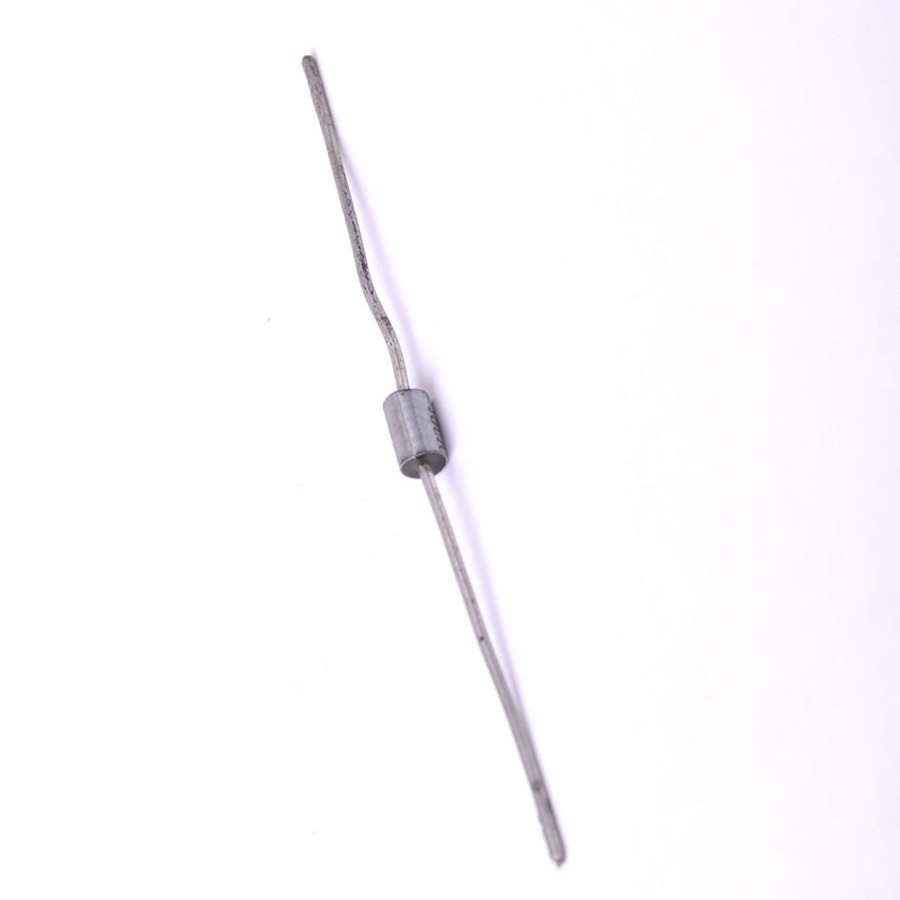

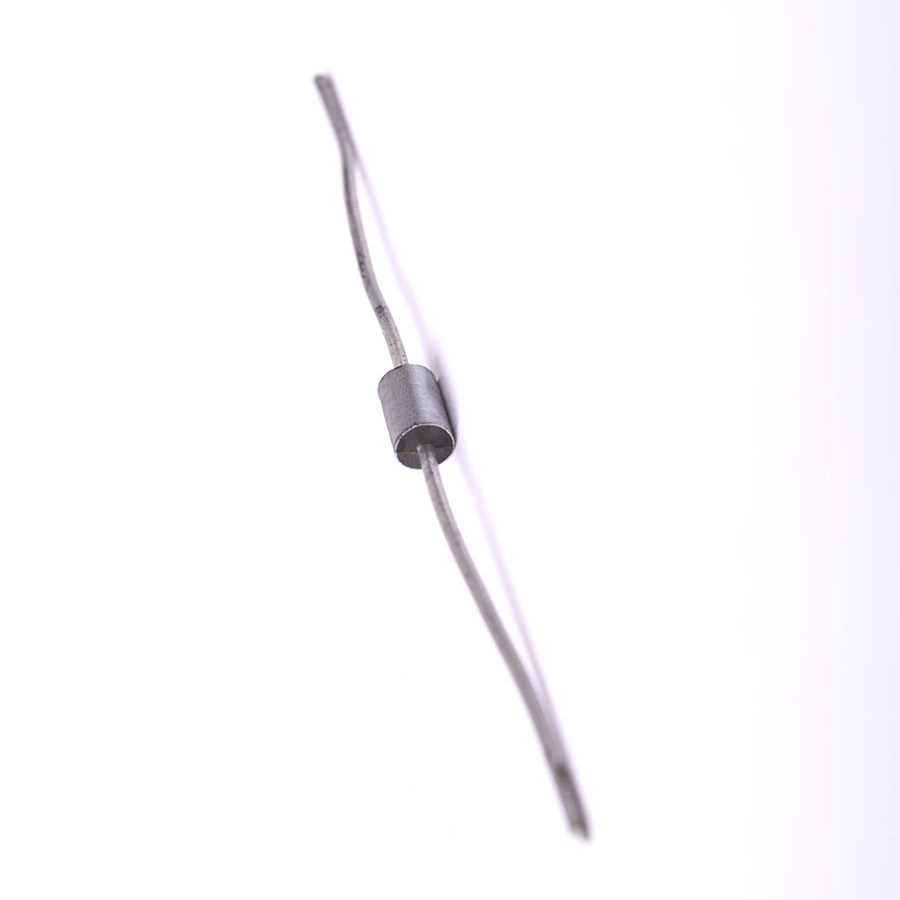

View detailed images (12)

MS109

SKU: MS109
MS109 Integrated Circuit CASE: DO41 MAKE: Siemens Semiconductors
Product specifications
Type Integrated Circuit
Case DO41
Manufacturer Siemens Semiconductors
t(Acc) Max. (S) 70n
@Temp. (test) (°C) 135
Bits Per Word 9
VRRM 90
1-Cycle Surge Current (A) 75
Tech. TTL Integrated Circuit
@Temp. (test) for Vf) 25
Vf Max. 810m
Ir @25°C 100u
I(out) (If AVG) Max. 1.0
@Volts (test) (V) 90
@If (test) 1.0
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 175
Number of Words 1
Pinout Equivalence Number N/A
No. of Pins N/A
Surface Mounted Yes/No NO
SKU 577339
