MT709

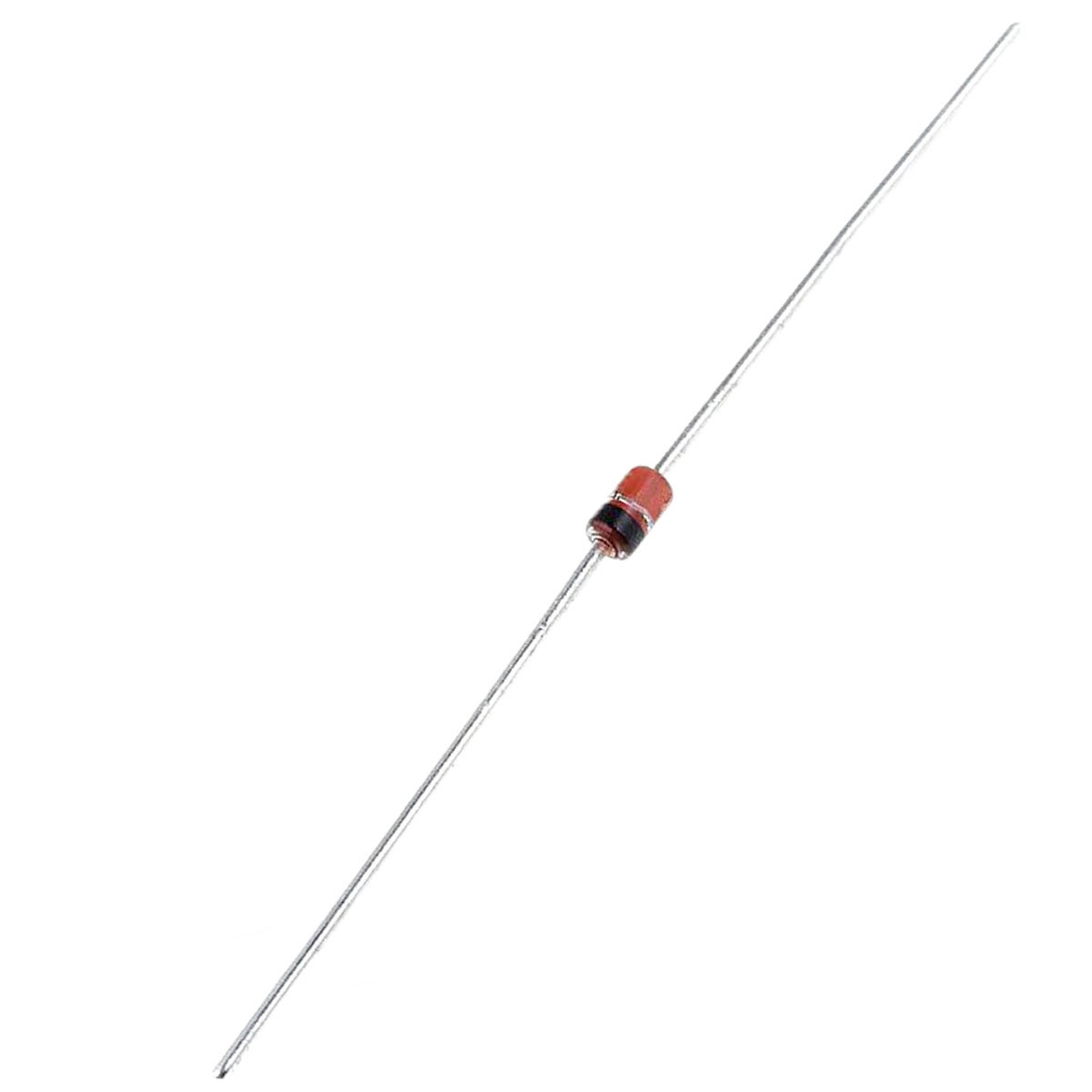

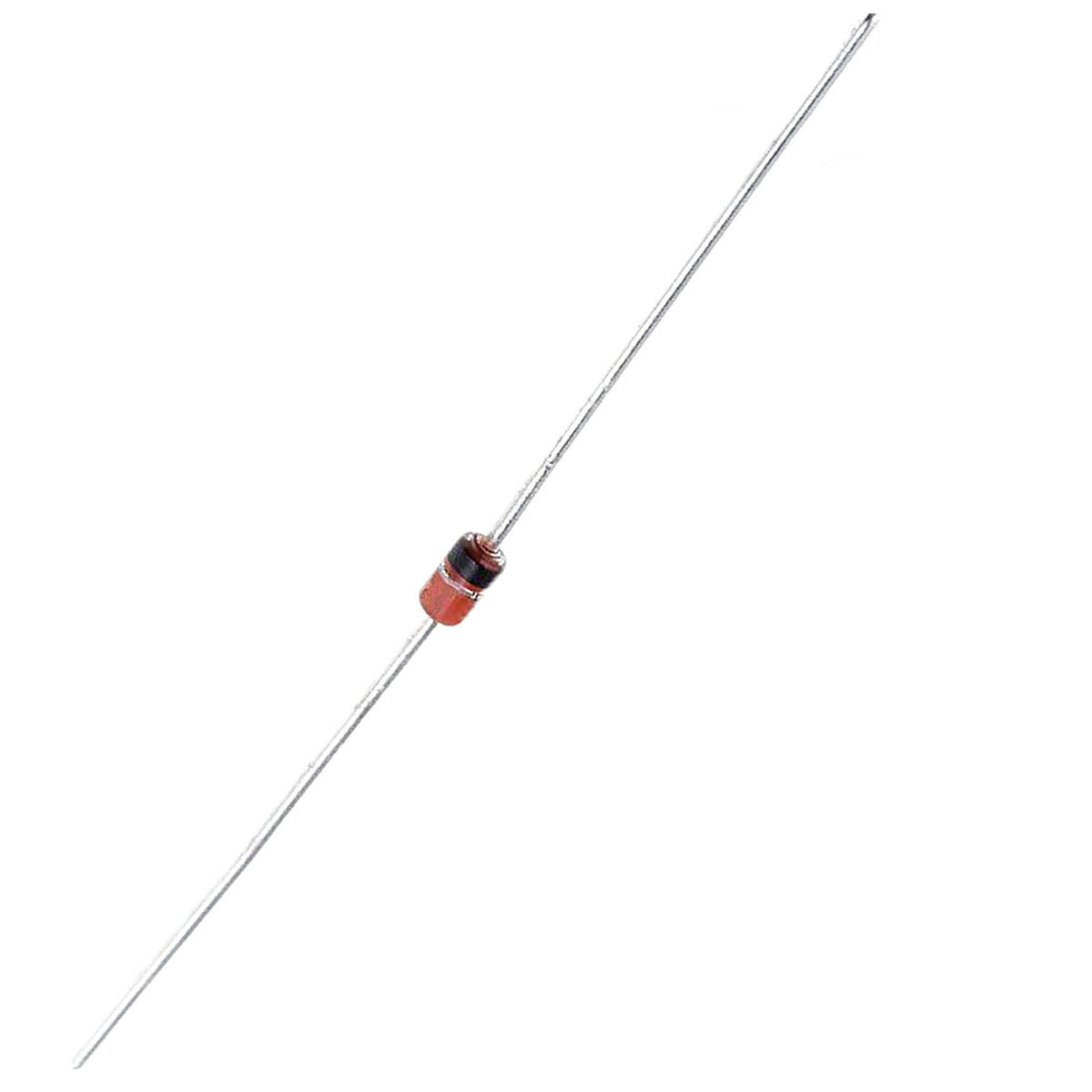

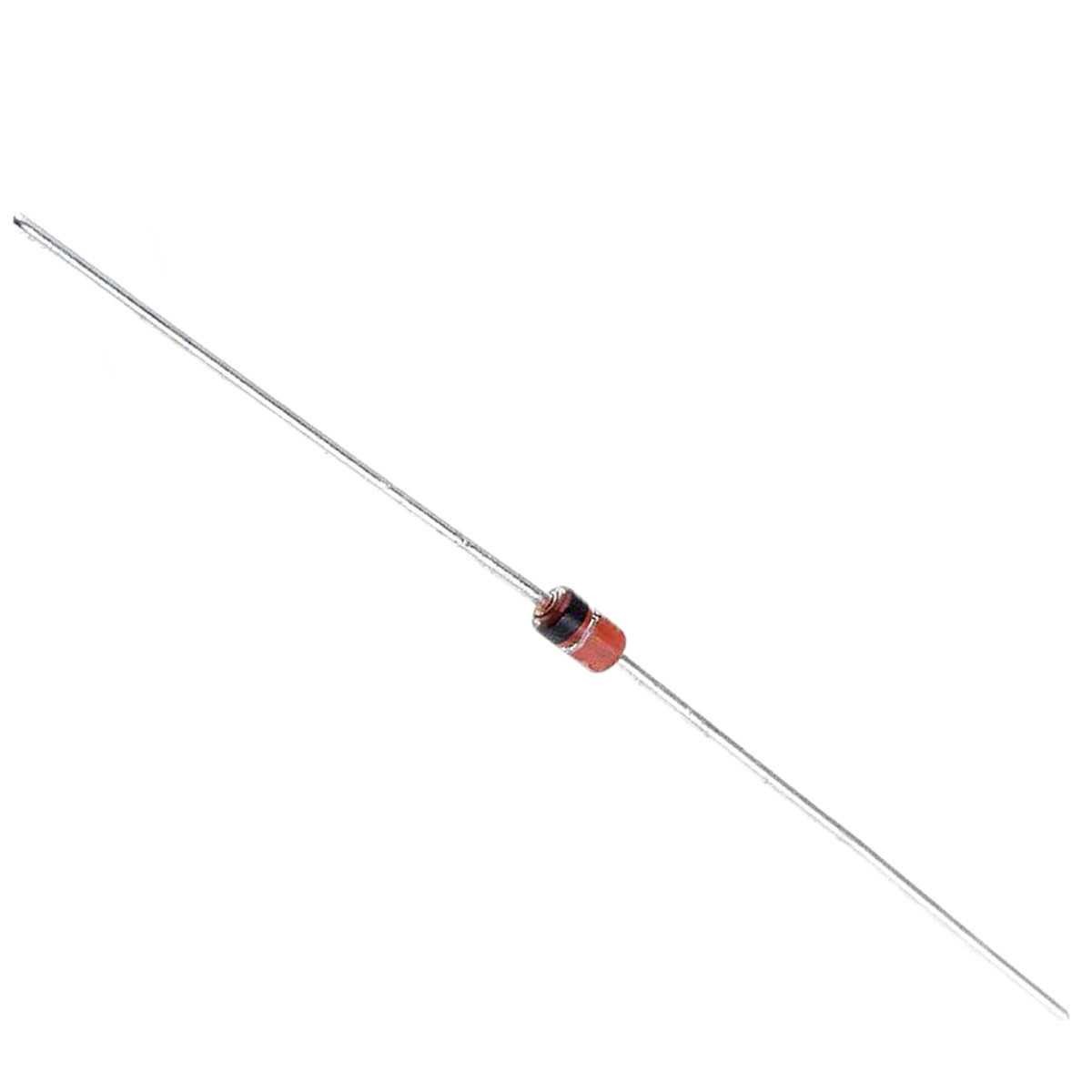

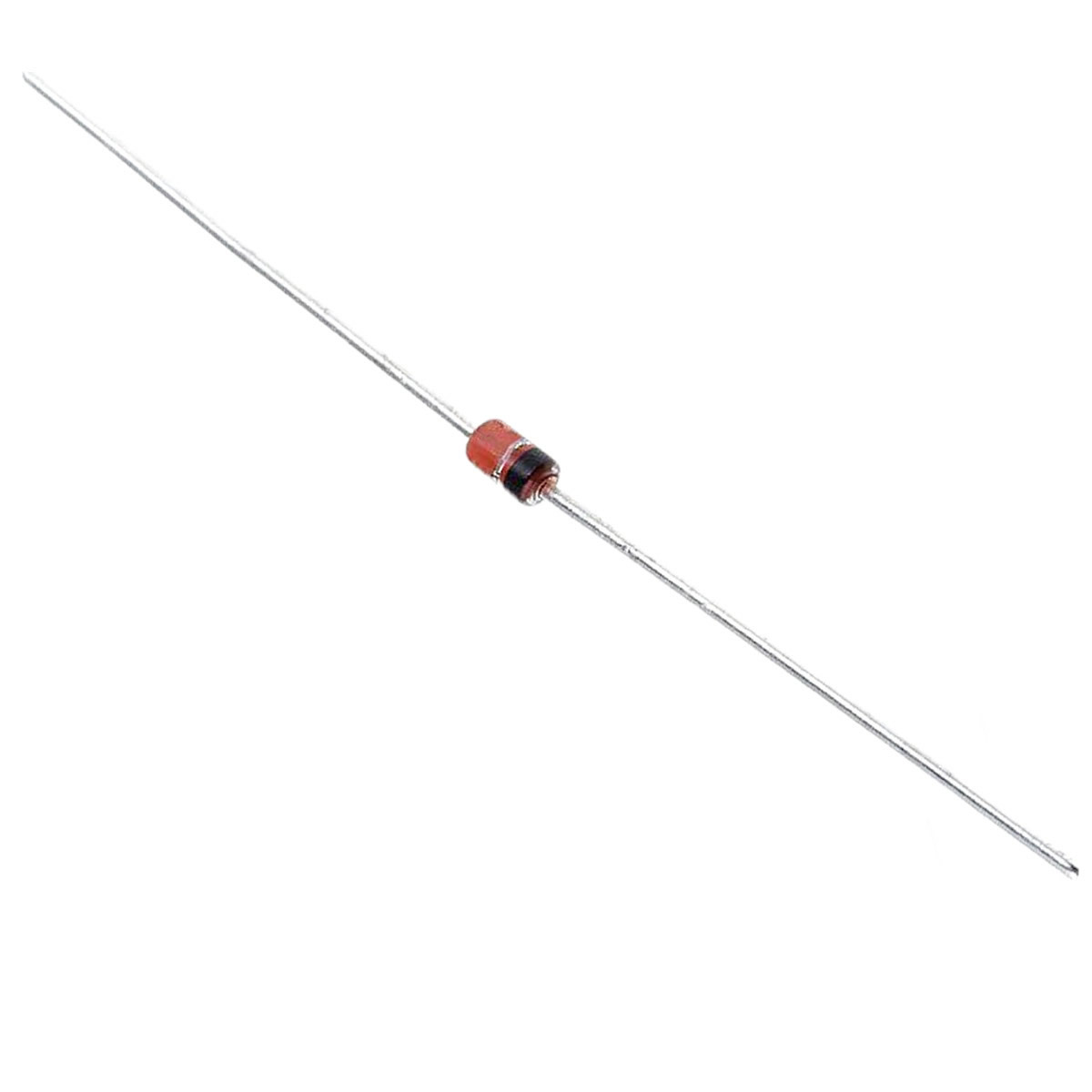

View detailed images (4)

MT709

SKU: MT709
MT709 Semiconductor CASE: DO34 MAKE: Microsemi Corporation
Product specifications
Type Semiconductor
Case DO34
Manufacturer Microsemi Corporation
R(in) (Û) 150k
Ir @ Diff. Temp (A) 25u
Mat. Silicon Logic
I(io) Max. (A) 500n
V(io) Max. (V) 6.0m
VRRM 50
PD Max. (W) 165m
t(rr) (S) 15n
@Temp (test) (°C) 100
Vf Max. 1.2
Ir @25°C 100n
I(out) (If AVG) Max. 200m
Inp Bias Curr. Max. (A) 1.5u
Com Mode Inp Range (VICR) 16
Temp Coef. of VIO 3.0u
@Volts (test) (V) 30
@If (test) 10m
@If (test) 300m
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
@Ir (A) 10m
Pinout Equivalence Number 8-359
No. of Pins 8
Surface Mounted Yes/No NO
SKU 838841
