MUN2111T1G

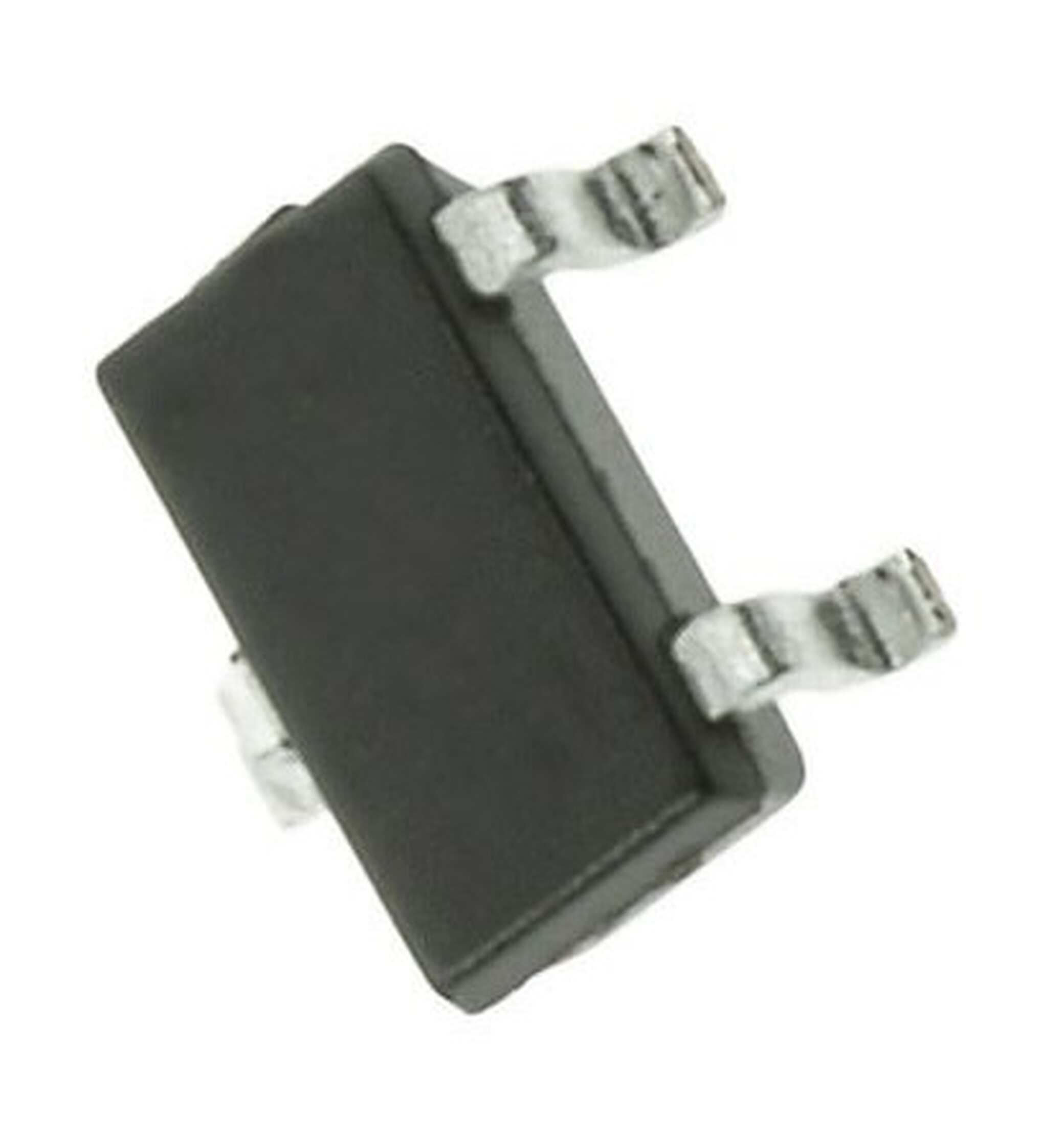

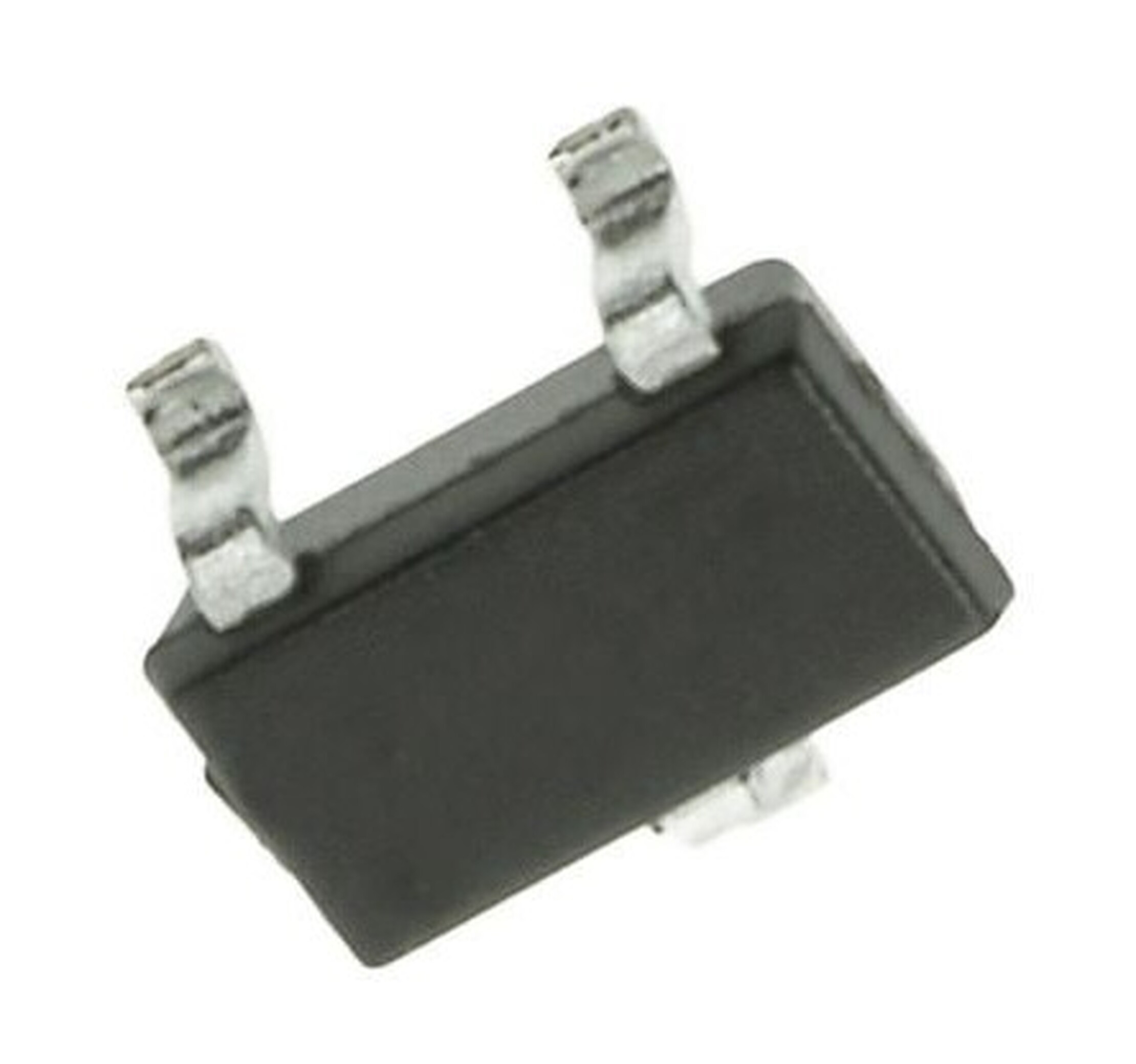

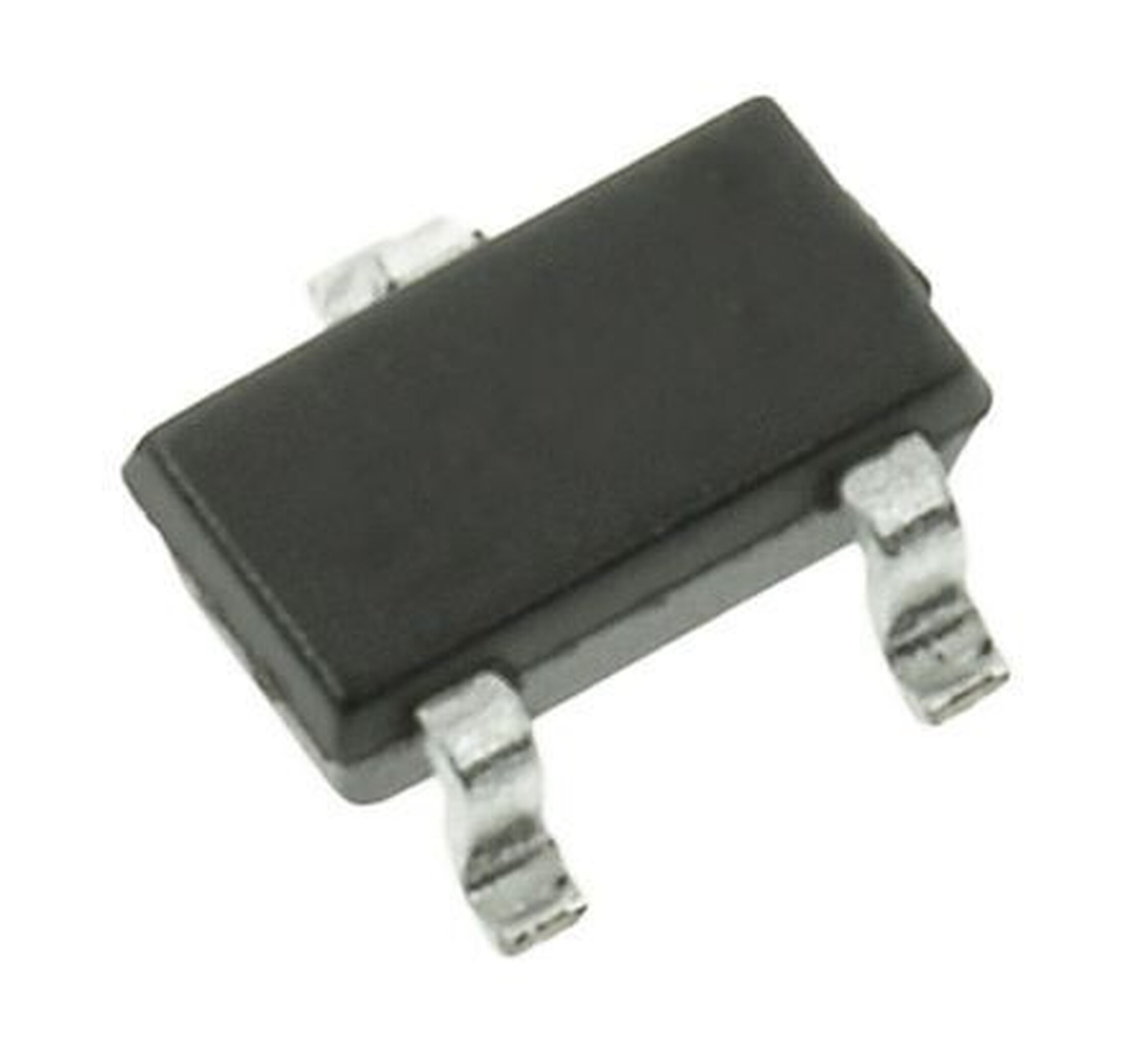

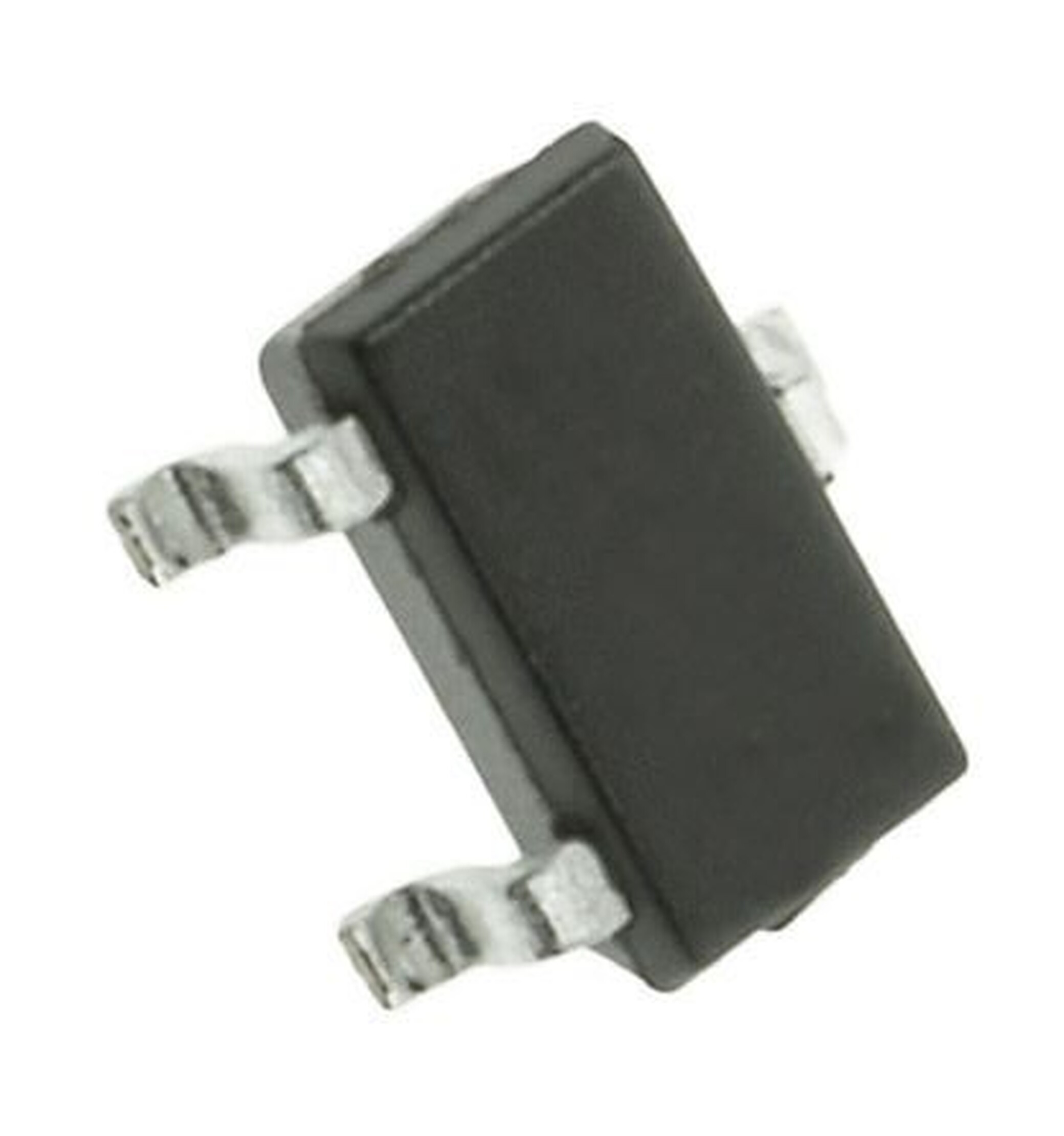

View detailed images (4)

MUN2111T1G

SKU: MUN2111T1G
MUN2111T1G Transistor Silicon PNP CASE: SC59 MAKE: ON Semiconductor
Product specifications
Type Transistor Silicon PNP
Case SC59
Manufacturer ON Semiconductor
Polarity Pre-Biased-PNP
Maximum Collector Power Dissipation (Pc) 0.23 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 35
SMD Transistor Code 6A
Built in Bias Resistor R1 10 kOhm
Built in Bias Resistor R2 10 kOhm
Typical Resistor Ratio R1/R2 1
SKU 514097
