N80C194

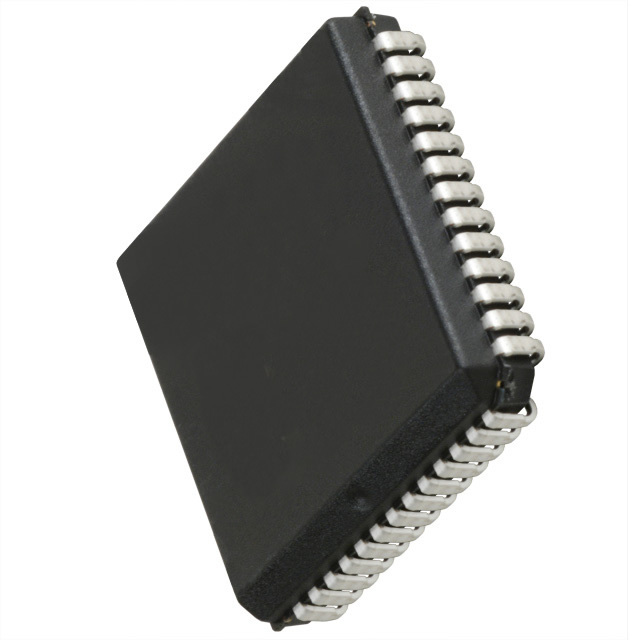

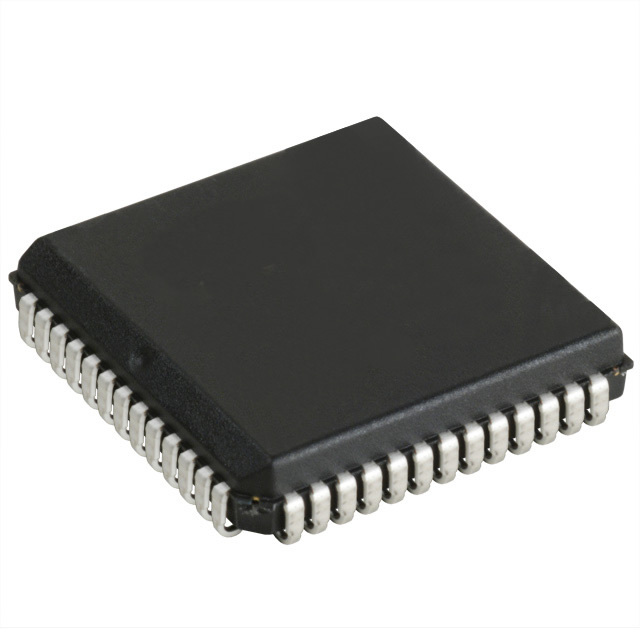

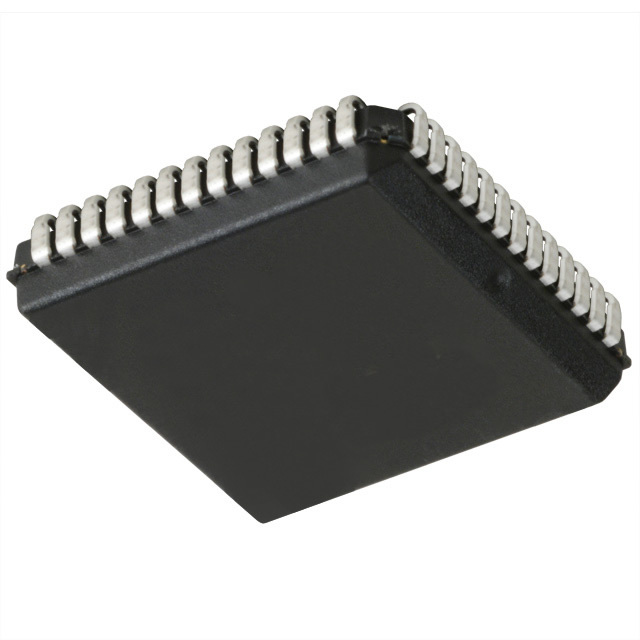

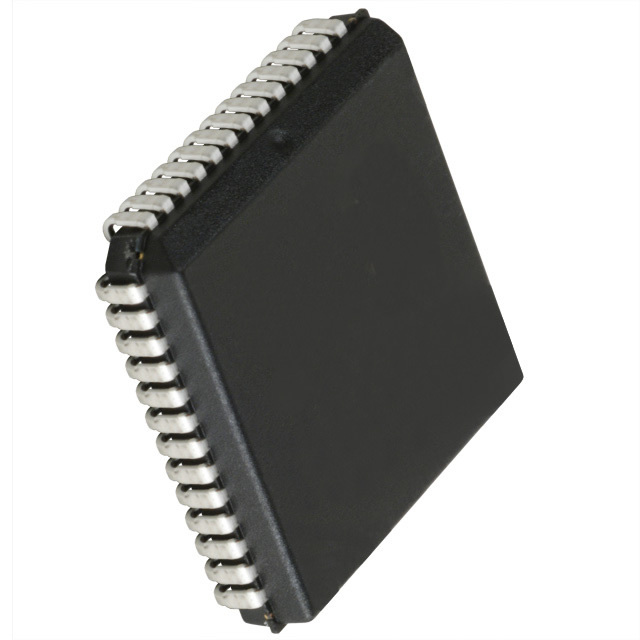

View detailed images (4)

N80C194

SKU: N80C194
N80C194 Integrated Circuit CASE: PLCC52 MAKE: Intel
Product specifications
Type Integrated Circuit
Case PLCC52
Manufacturer Intel
Mem. Addr Rnge 64k
No.of Addr. Modes 6
No. of I/O Lines 26
I/O Line Types ByteSerial
Max. Inst. Len (bits) 32
Min Inst. Len (bits) 8
No. of Intrpt Lines 1
No. of Intrpt (NMI) 0
Intrpt Types Prty/Ext V
No. of Intrpt (mask) 28
fClk Max. (Hz) 12M
fClk Min (Hz) 3.5M
No. of I/O Ports 4
On-Chip ROM (bytes) 0
Nom. Supp Volt 5
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 232
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 52-126
No. of Pins 52
Surface Mounted Yes/No YES
SKU 262467
