N87C196MC
View detailed images (5)

N87C196MC

SKU: N87C196MC

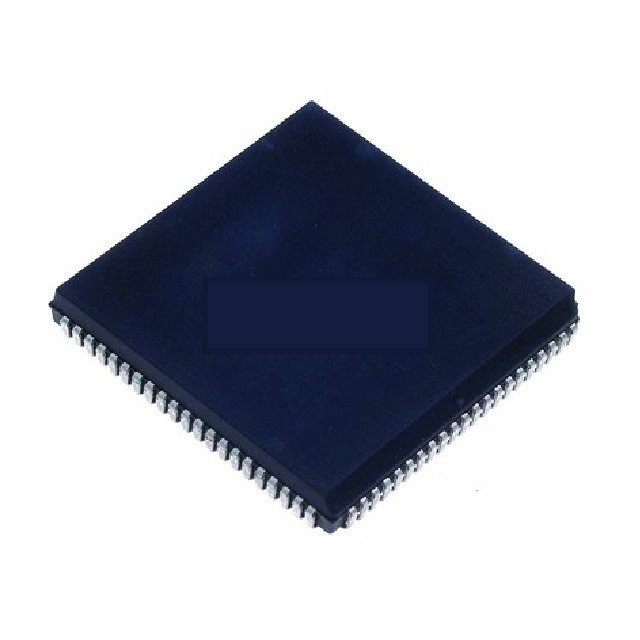

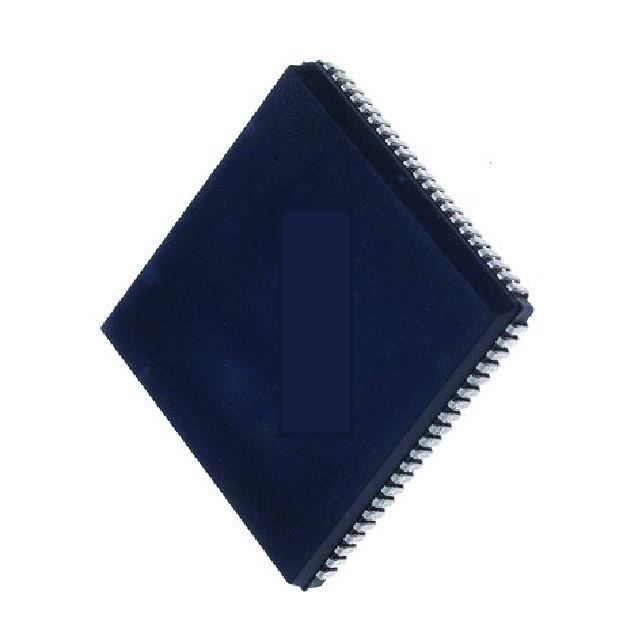

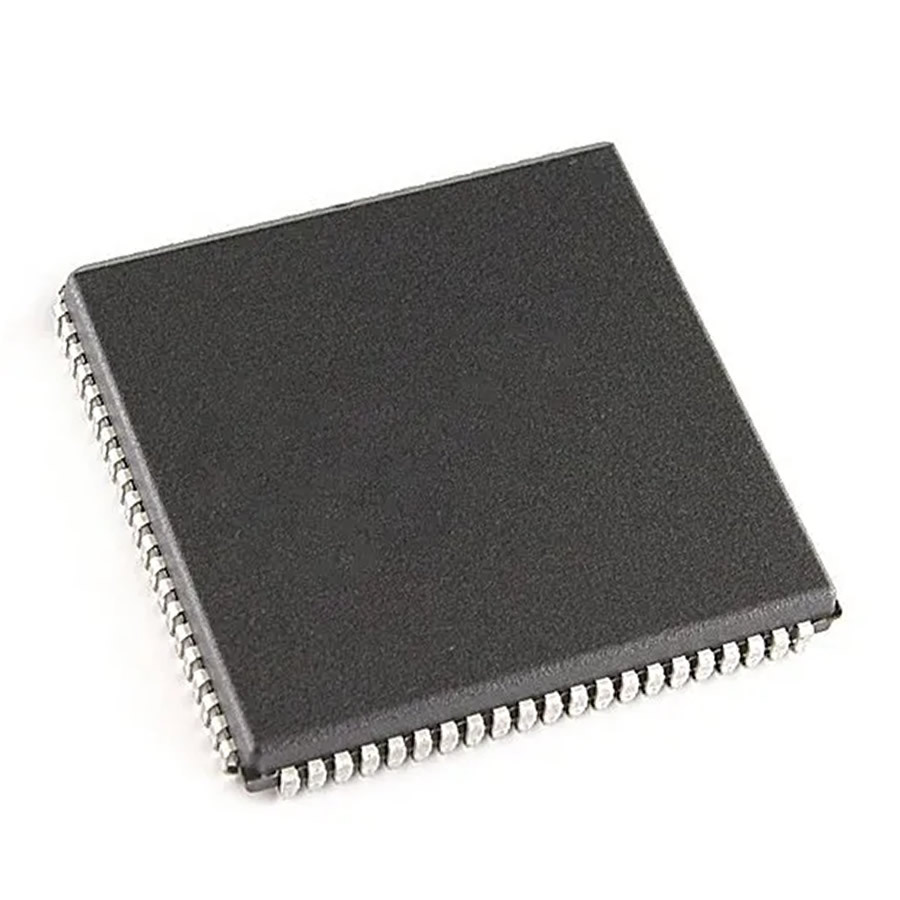

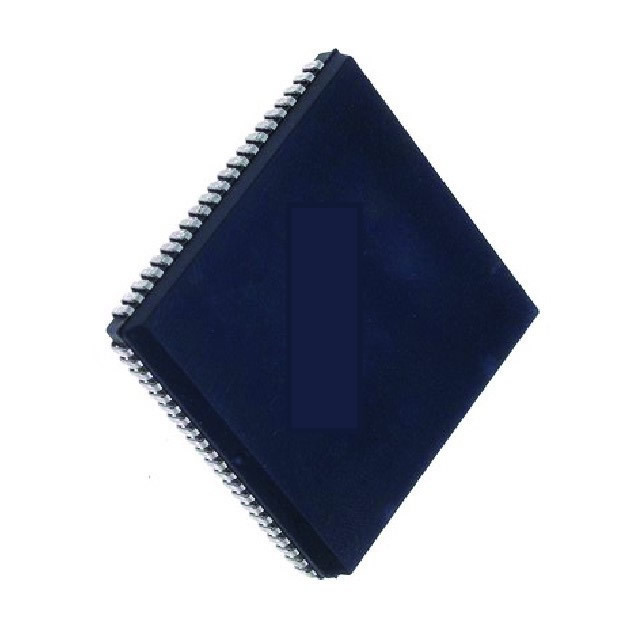

N87C196MC Integrated Circuit CASE: PLCC84 MAKE: Intel
+ VAT 20% for UK purchases
Product specifications
Type Integrated Circuit
Case PLCC84
Manufacturer Intel
Mem. Addr Rnge 64k
No.of Addr. Modes 6
No. of I/O Lines 53
I/O Line Types ByteSerial
Max. Inst. Len (bits) 32
Min Inst. Len (bits) 8
No. of Intrpt Lines 2
No. of Intrpt (NMI) 1
Intrpt Types Prty/Int V
No. of Intrpt (mask) 13
fClk Max. (Hz) 16M
fClk Min (Hz) 8M
No. of I/O Ports 7
On-Chip ROM (bytes) 16k
Nom. Supp Volt 5
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 488
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
Pinout Equivalence Number 84-153
Descript Motor controller
No. of Pins 84
Surface Mounted Yes/No YES
SKU 262714
