NE5534JG

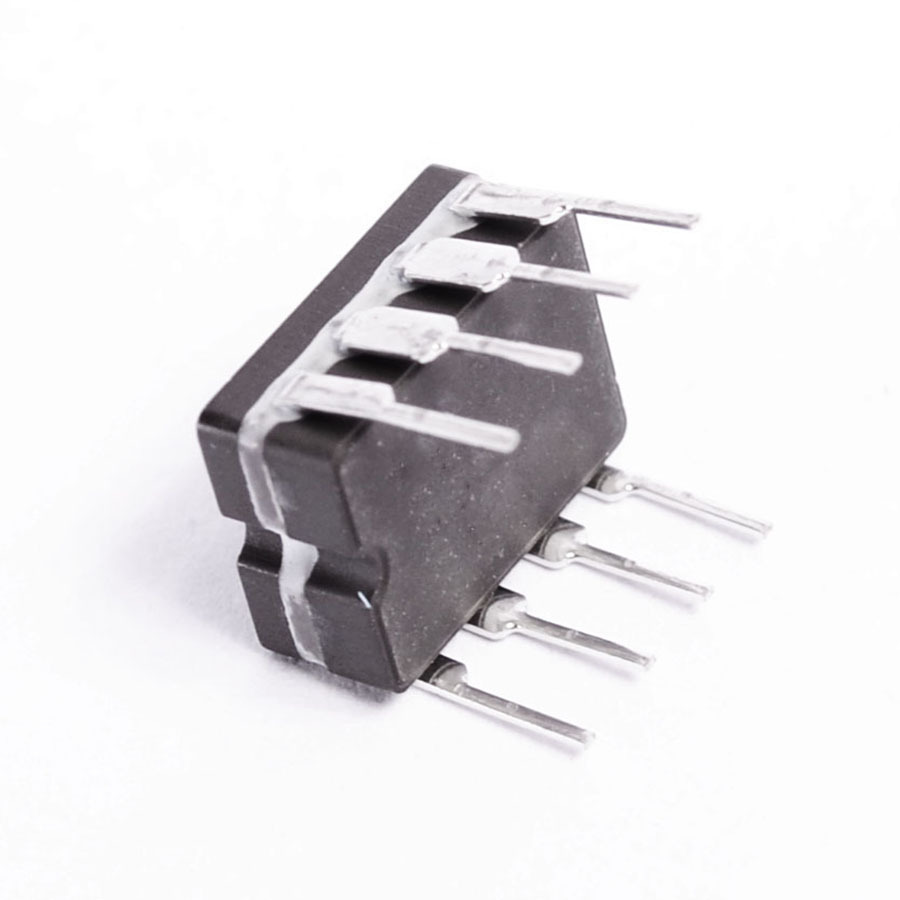

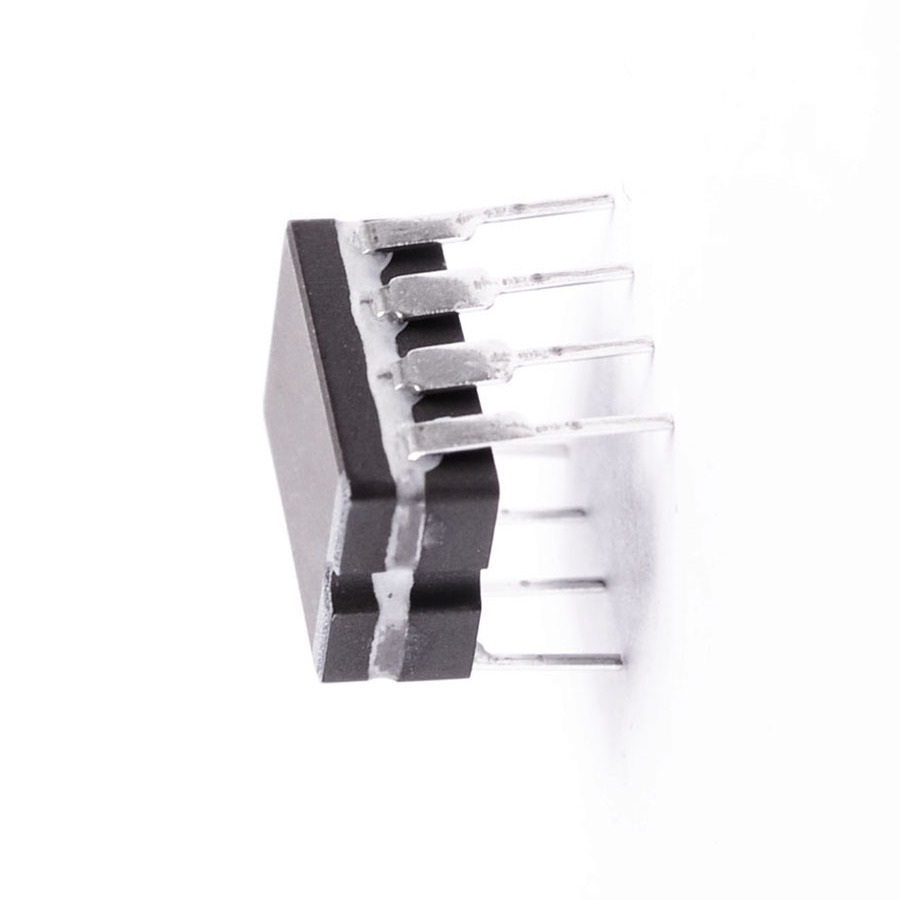

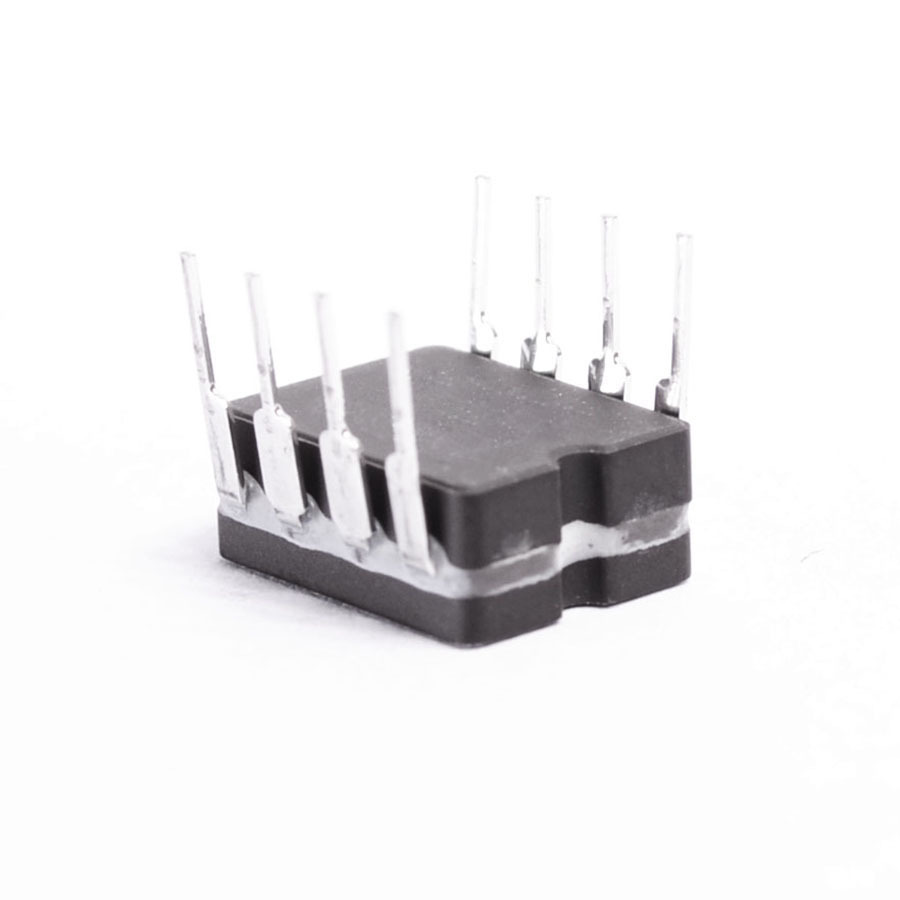

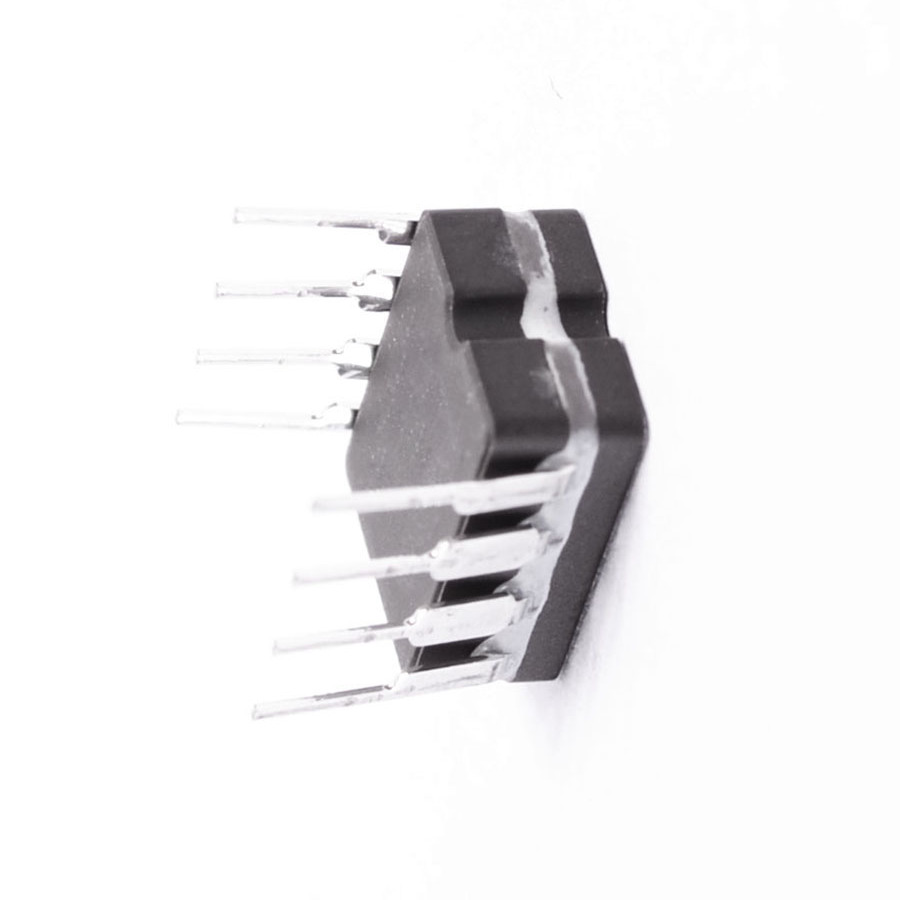

View detailed images (12)

NE5534JG

SKU: NE5534JG

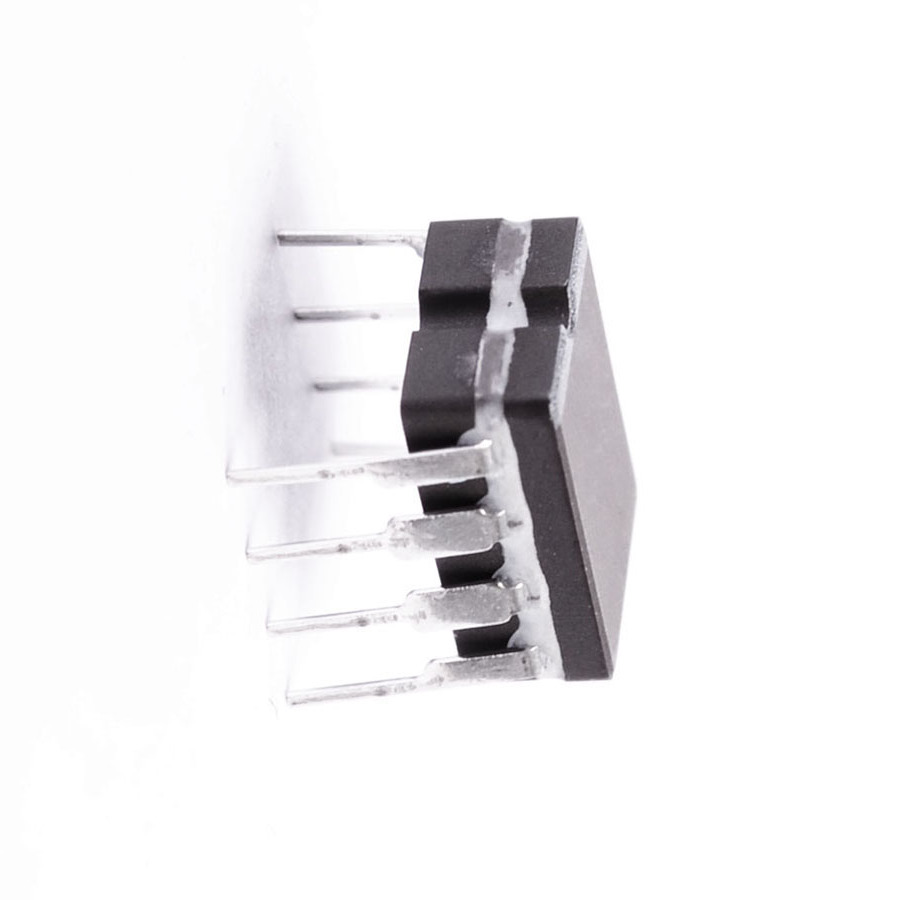

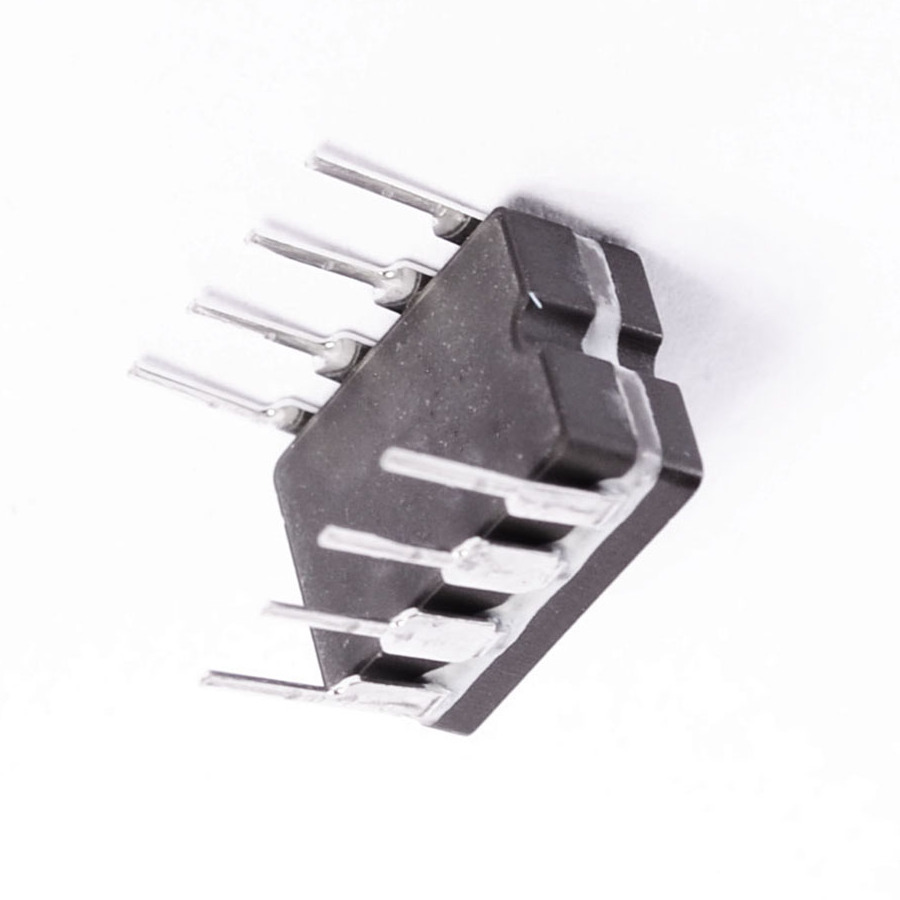

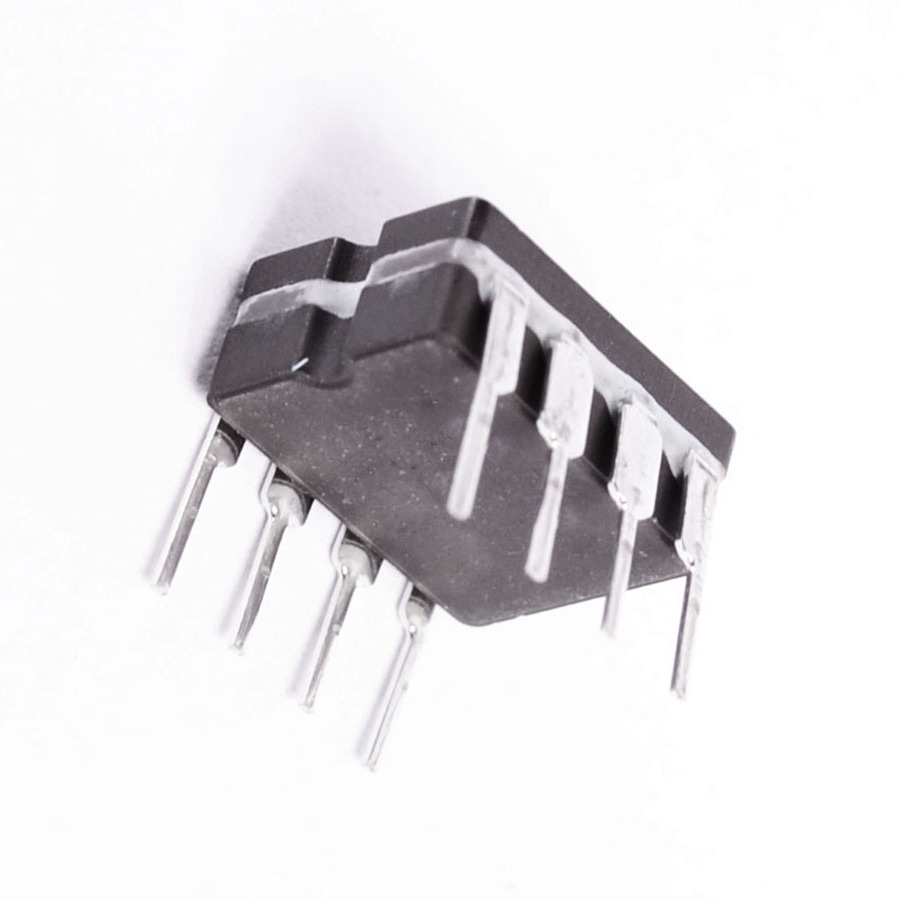

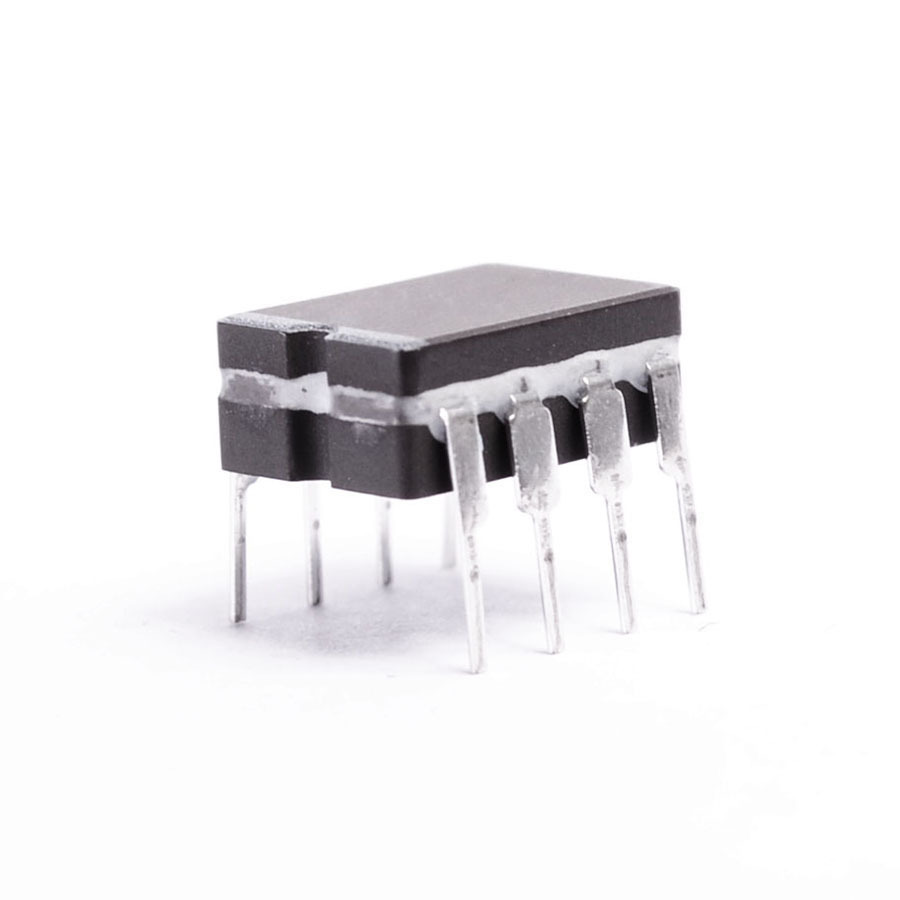

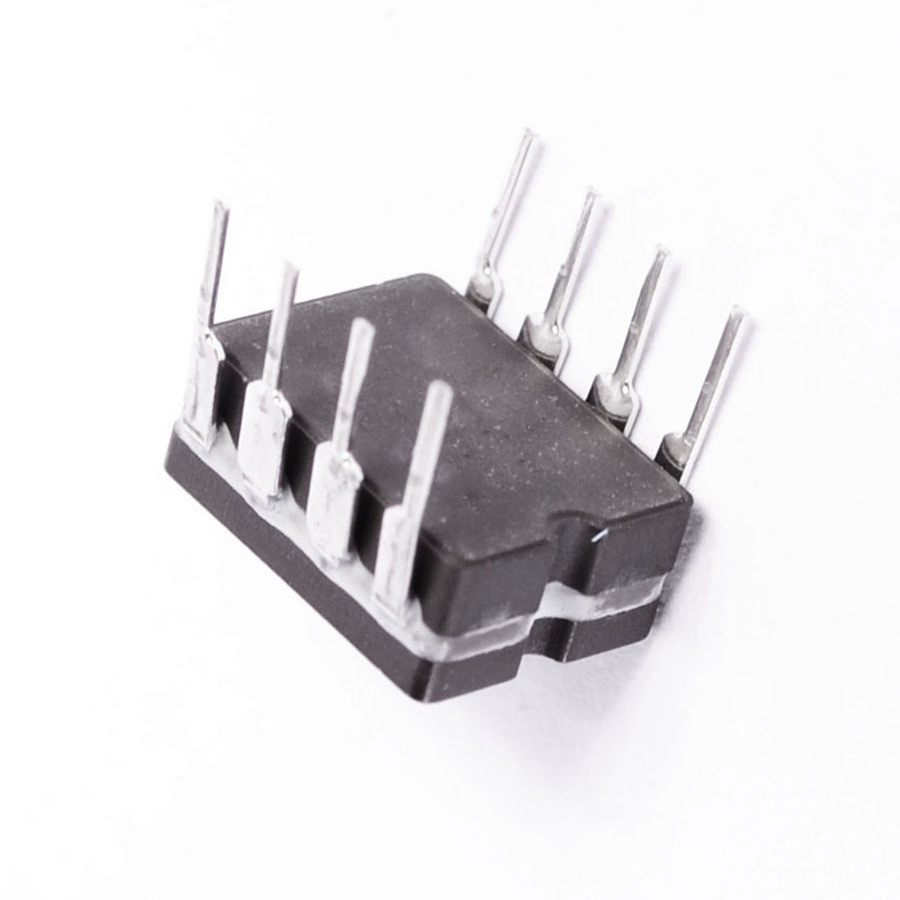

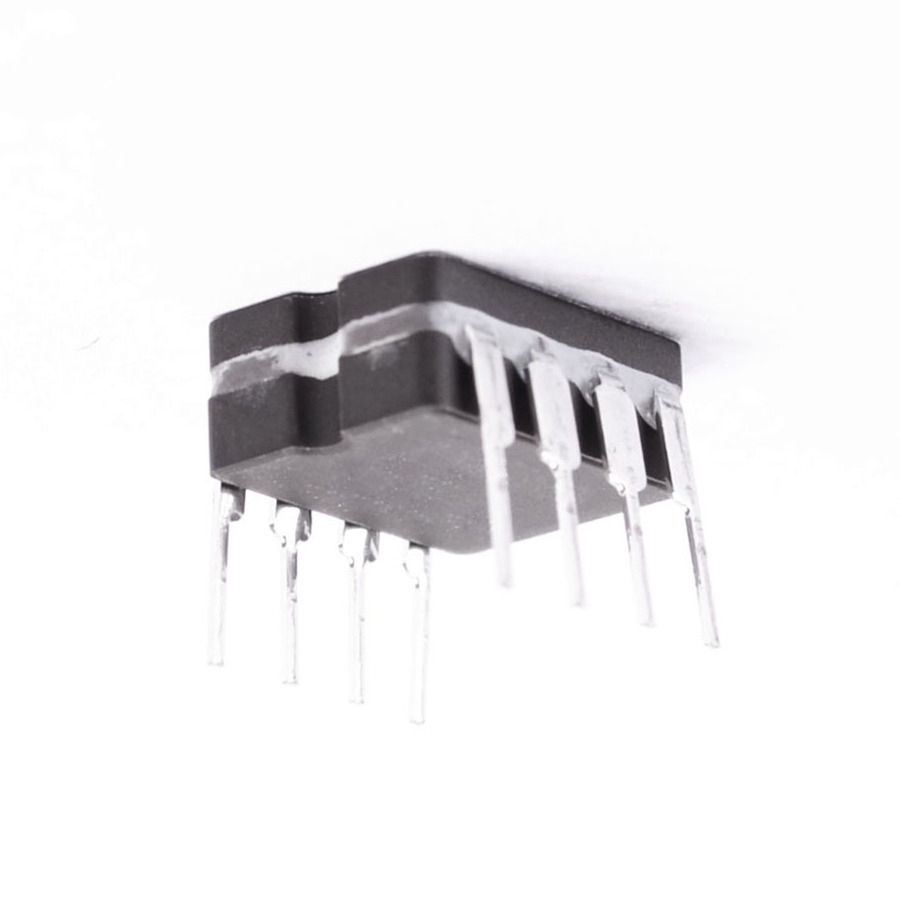

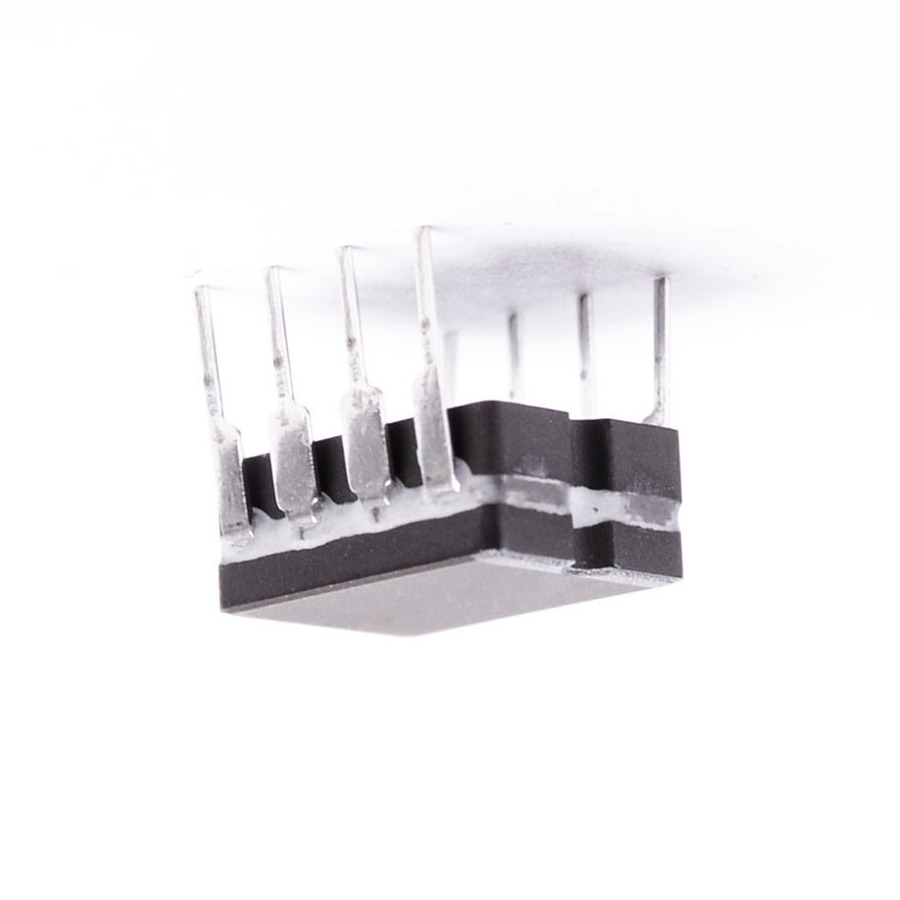

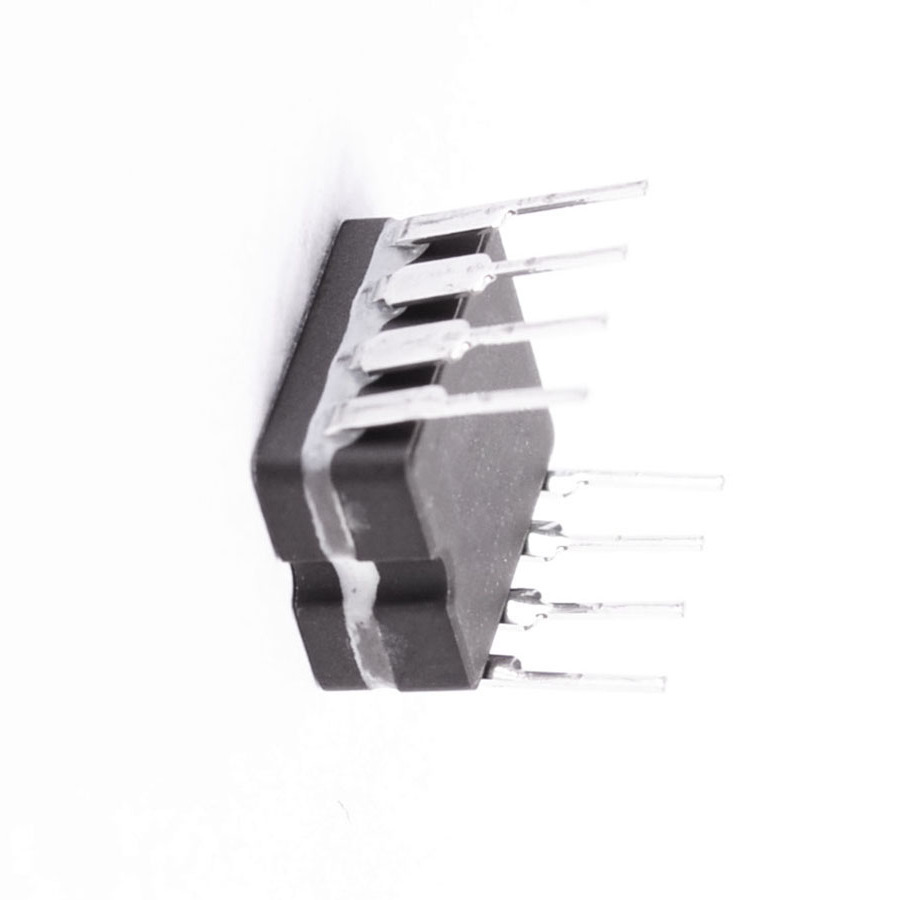

NE5534JG Integrated Circuit CASE: DIC8 MAKE: Signetics
Product specifications
Type Integrated Circuit
Case DIC8
Manufacturer Signetics
R(in) (Û) 100k-
I(io) Max. (A) 400n
V(io) Max. (V) 5.0m
PD Max. (W) 170m-
Inp Bias Curr. Max. (A) 2.0u
Unity Gain BW (Hz) 10M-
Com Mode Inp Range (VICR) 26
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 8-167
Descript 13V/
No. of Pins 8
Surface Mounted Yes/No NO
SKU 110089
