Home / Integrated Circuit / NG80386SXLP20
NG80386SXLP20
View detailed images (8)

NG80386SXLP20

SKU: NG80386SXLP20

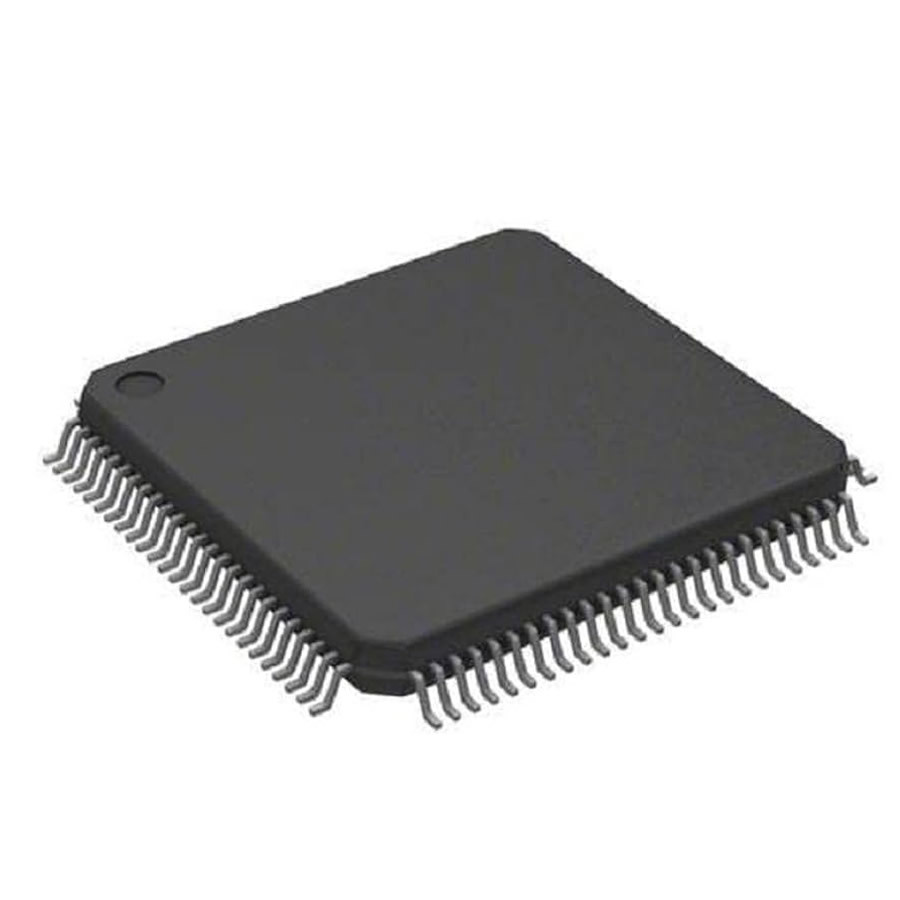

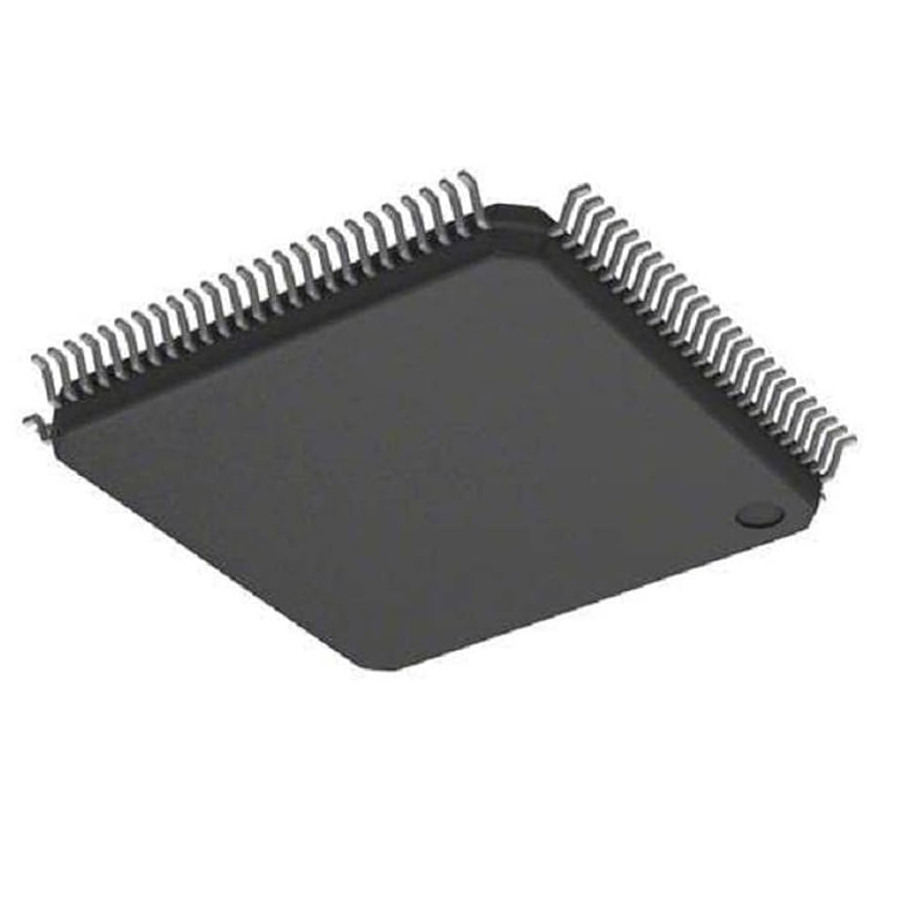

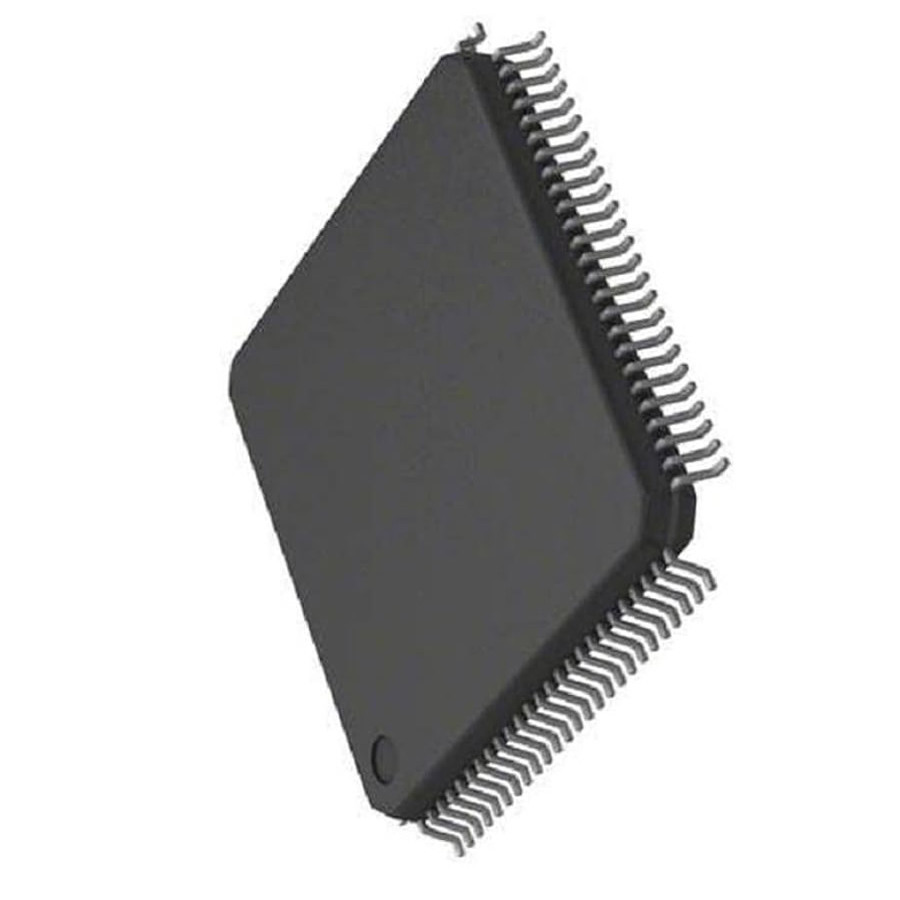

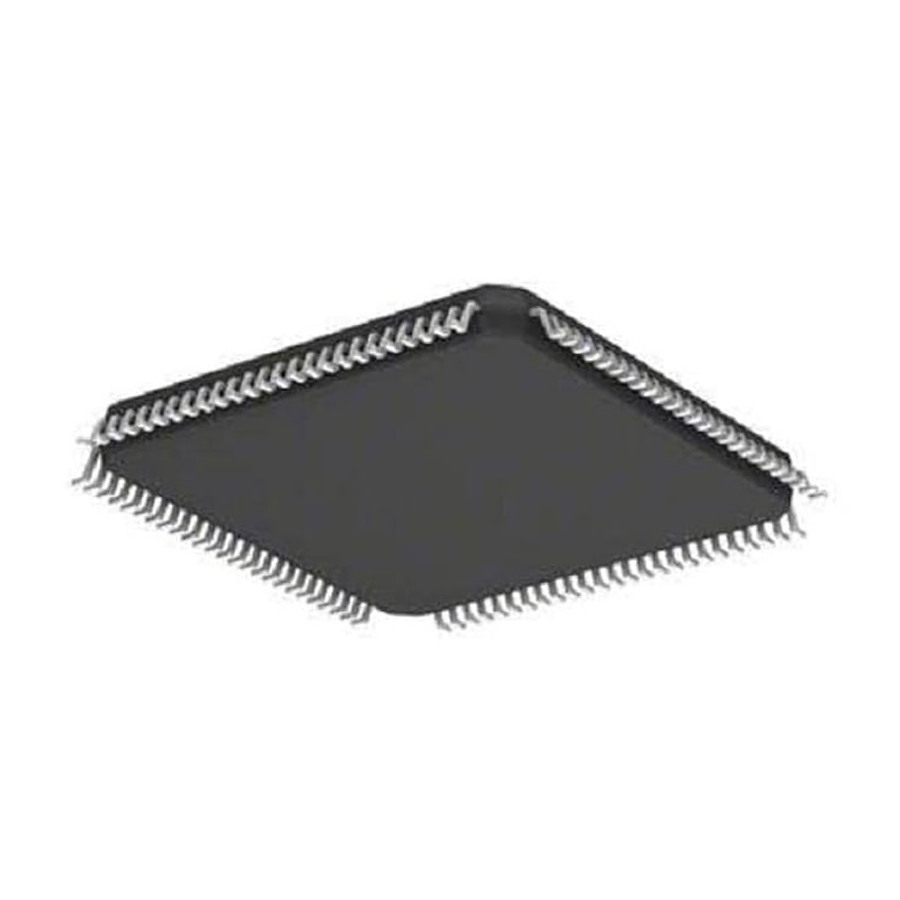

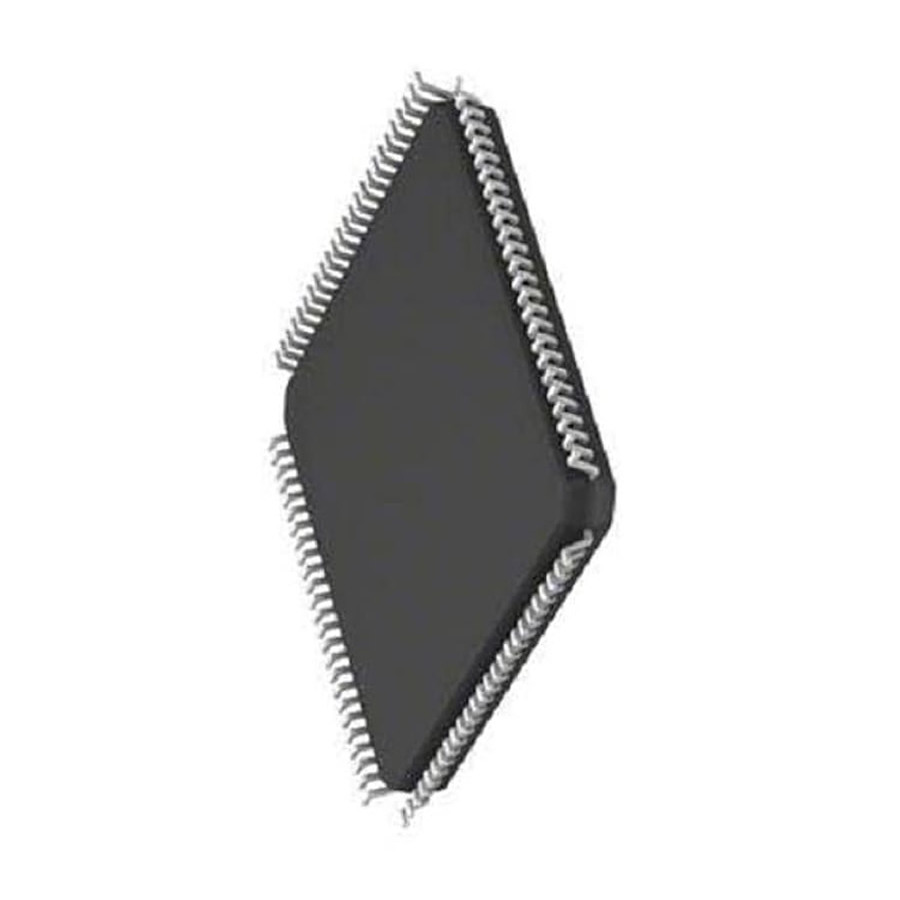

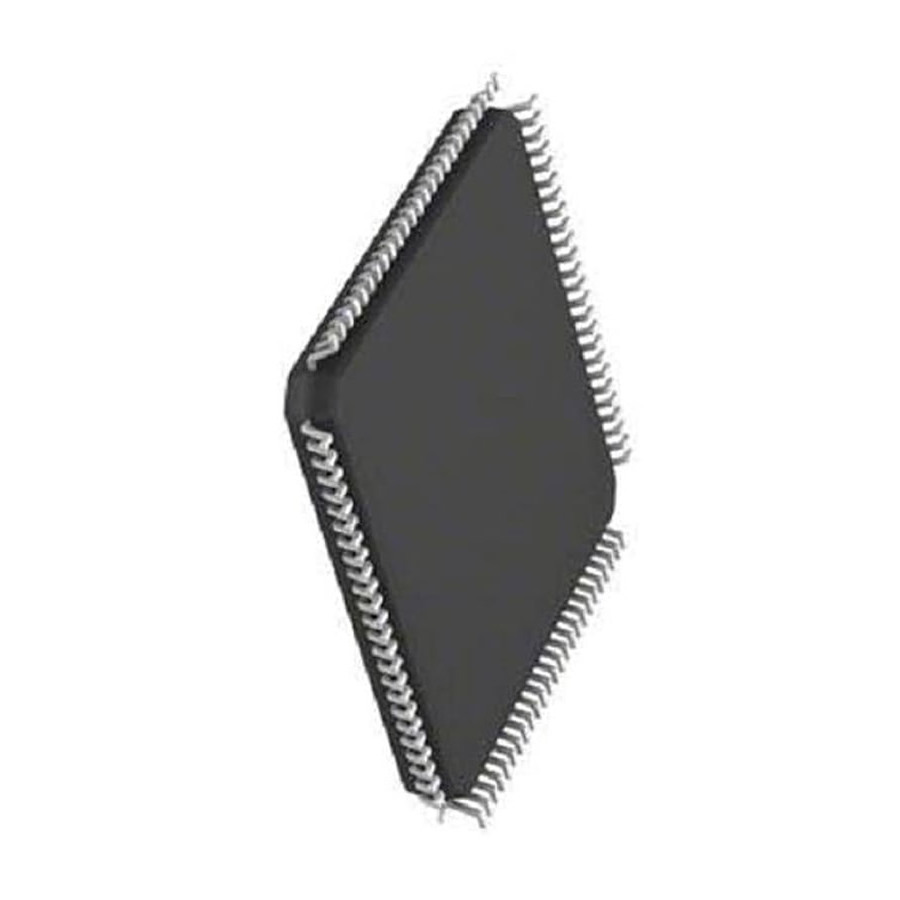

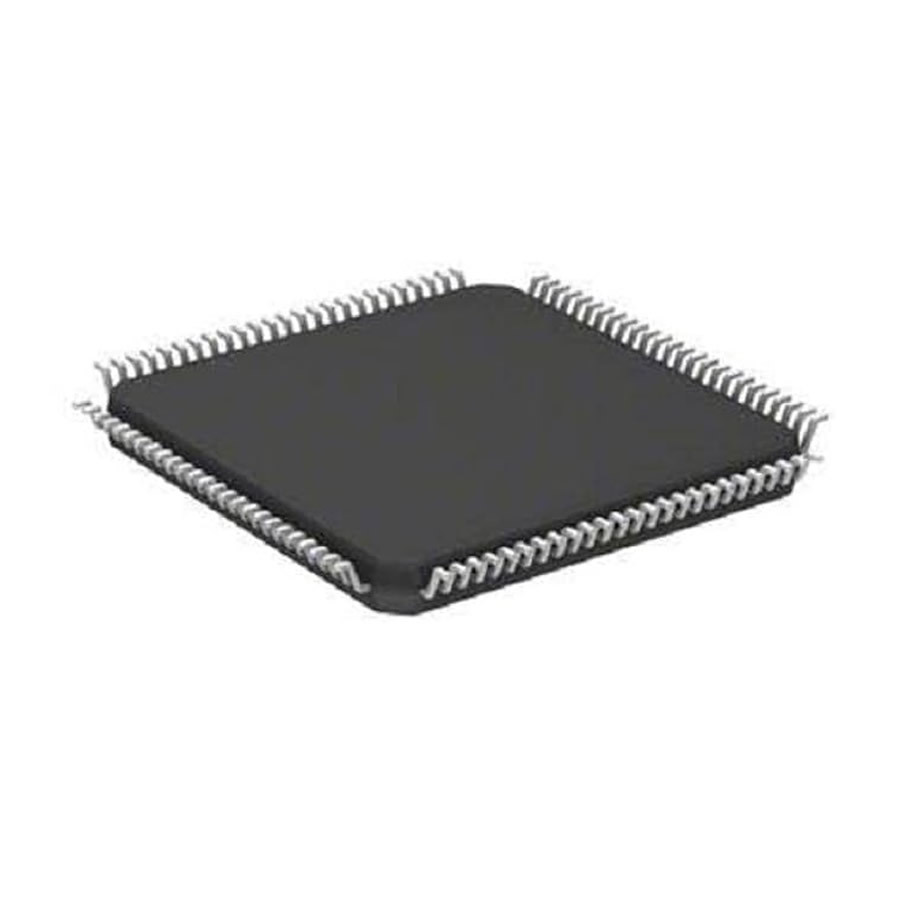

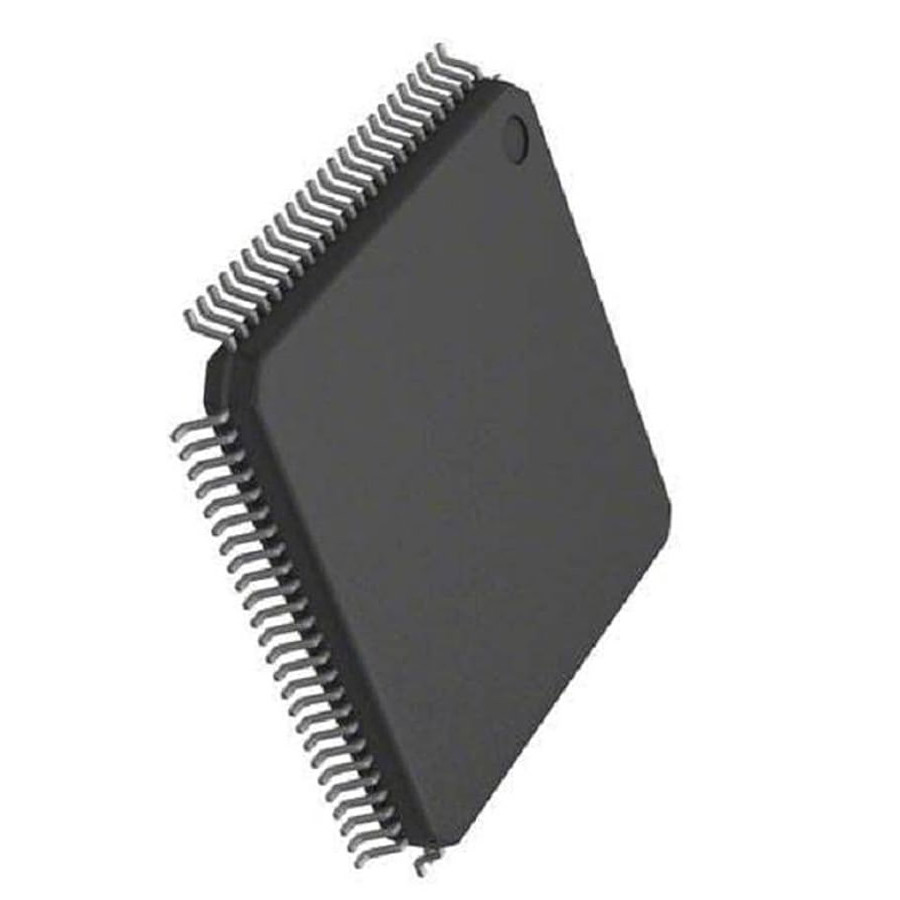

NG80386SXLP20 Integrated Circuit CASE: QFP100 MAKE: Intel
Product specifications
Type Integrated Circuit
Case QFP100
Manufacturer Intel
Mem. Addr Rnge 16M
No.of Addr. Modes 8
No. of I/O Lines 16
I/O Line Types Byte&Word
Max. Inst. Len (bits) 32
Min Inst. Len (bits) 8
No. of Intrpt Lines 2
No. of Intrpt (NMI) 1
Intrpt Types Int/Ex Vec
No. of Intrpt (mask) 1
fClk Max. (Hz) 20M
fClk Min (Hz) 2M
Nom. Supp Volt 5
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min 0#
Oper. Temp (°C) Max. 100#
Pinout Equivalence Number 100-60
Surface Mounted Yes/No YES
SKU 1122808
