Home / Integrated Circuit / NG80386SXLV25
NG80386SXLV25

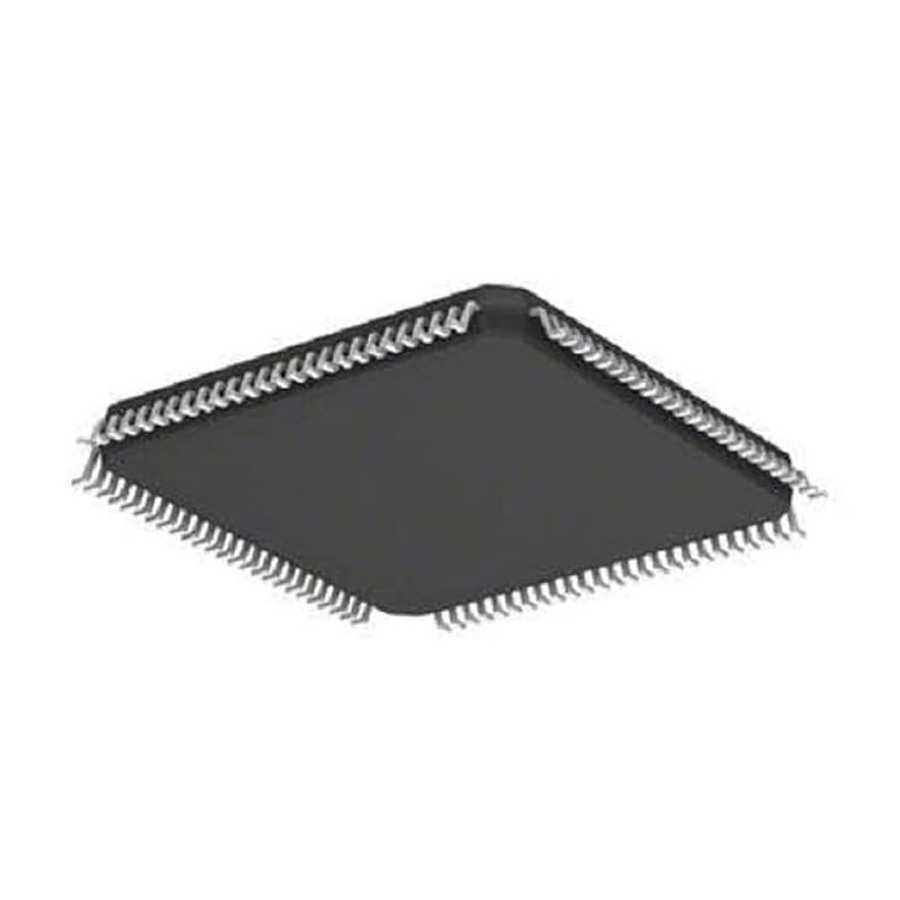

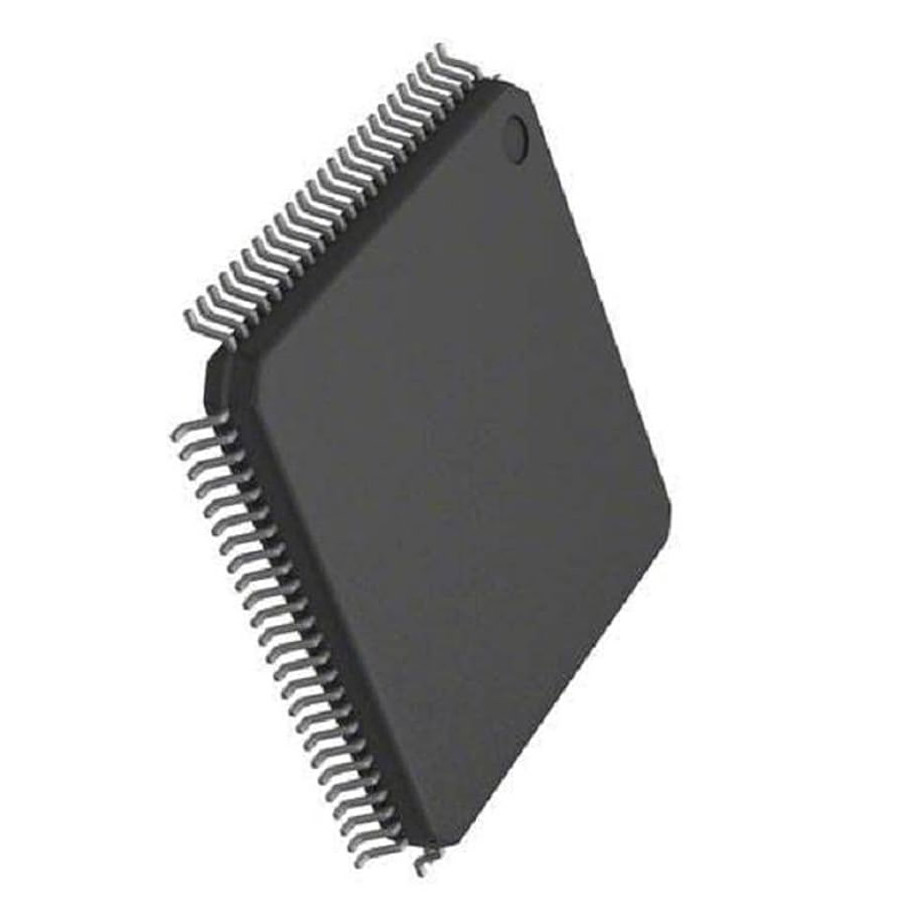

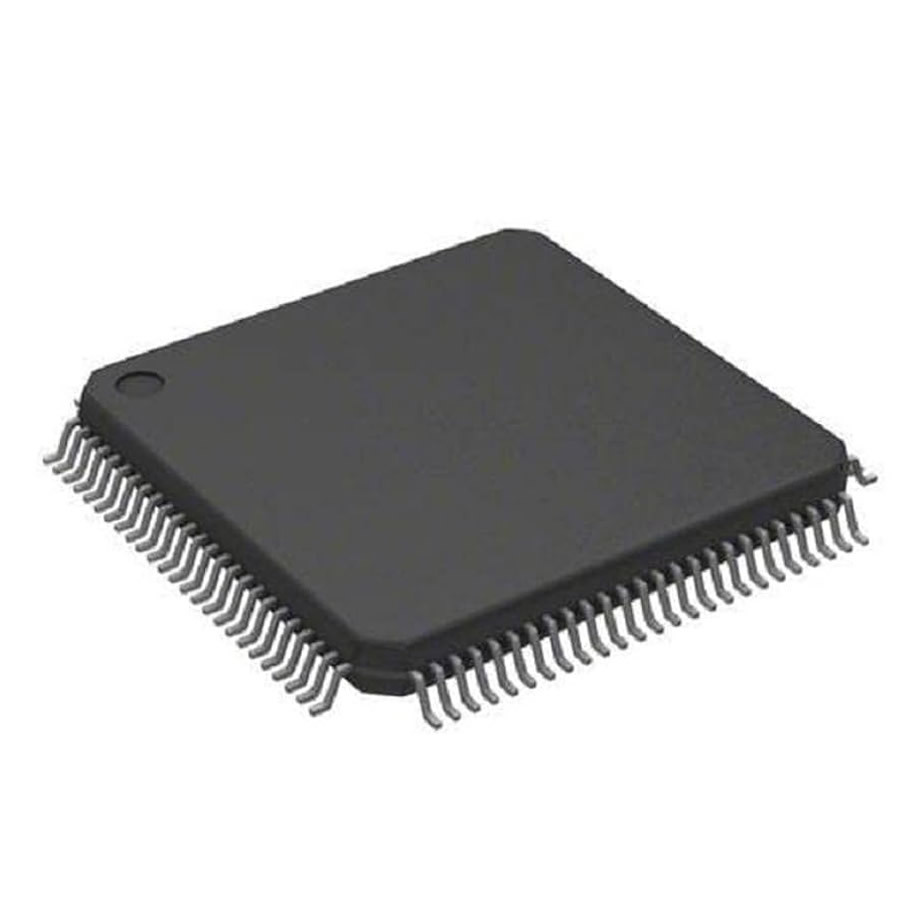

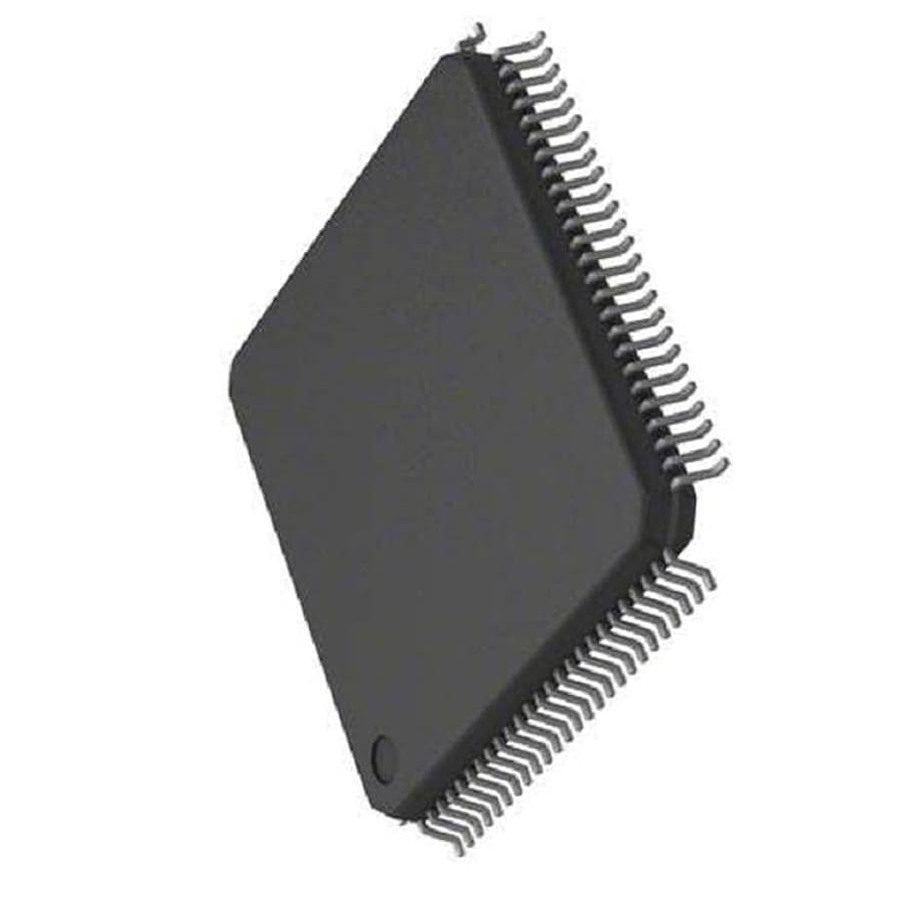

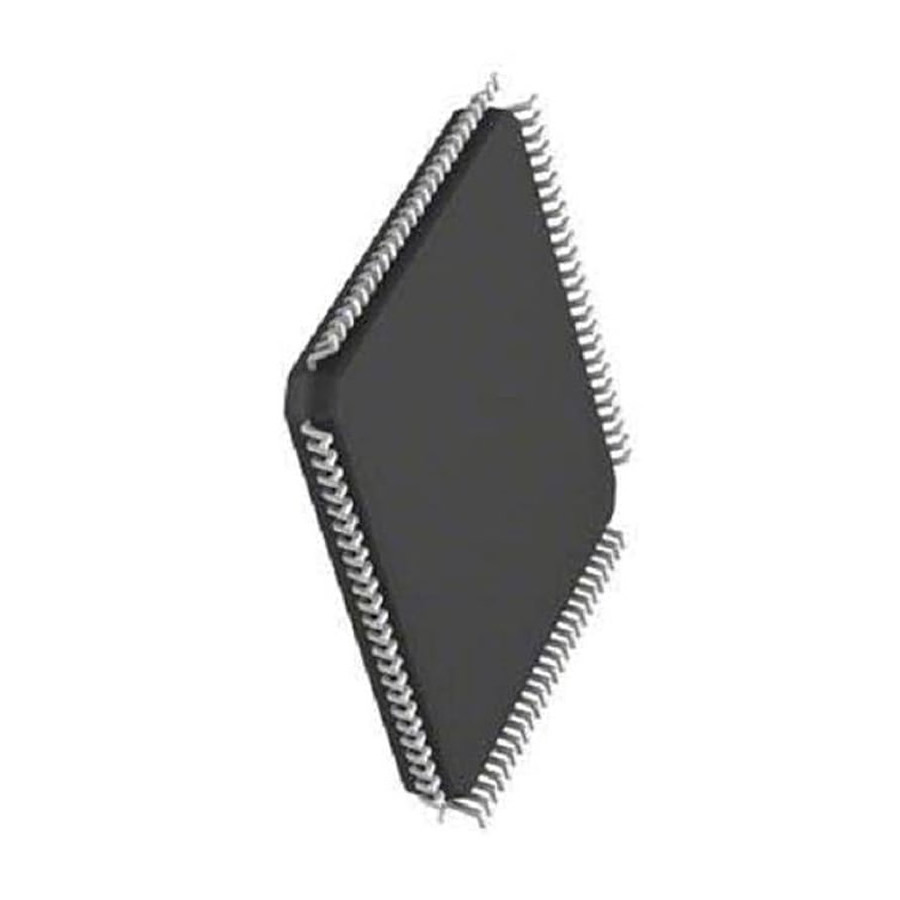

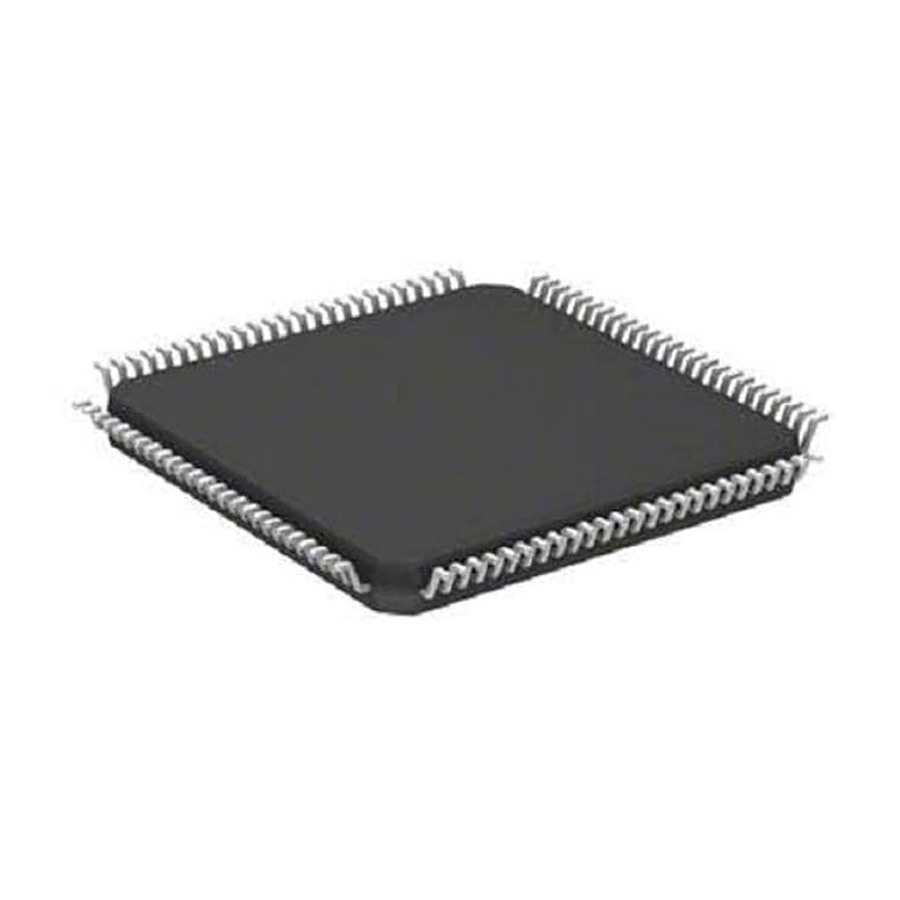

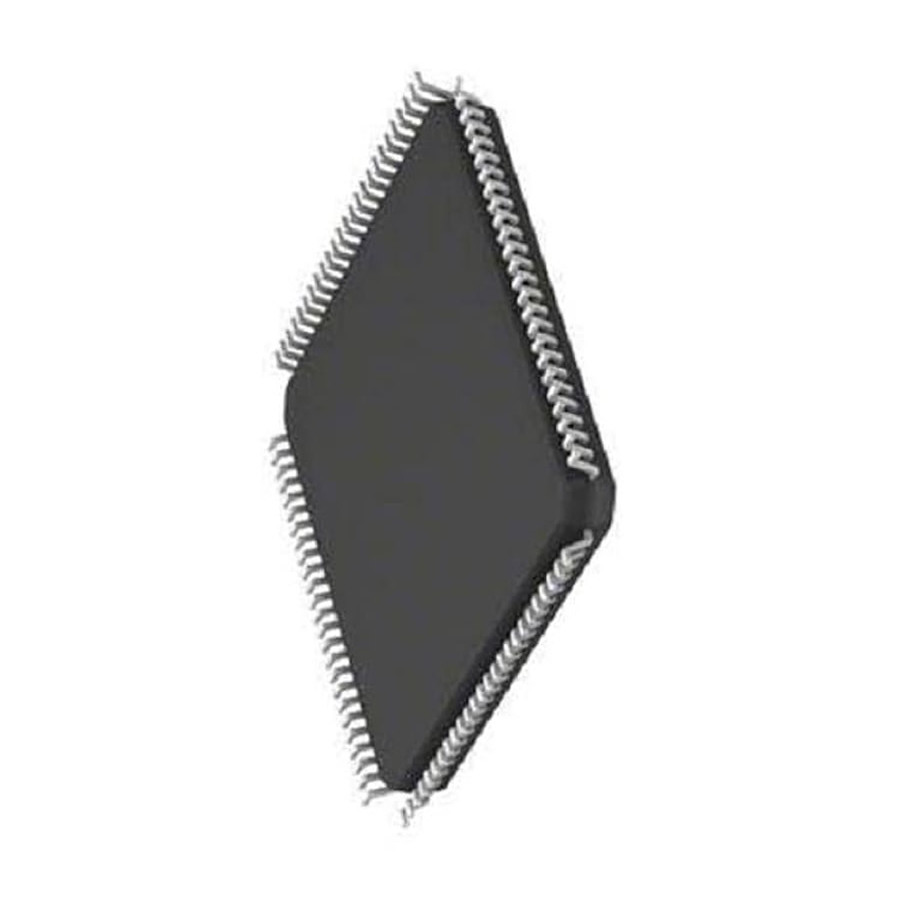

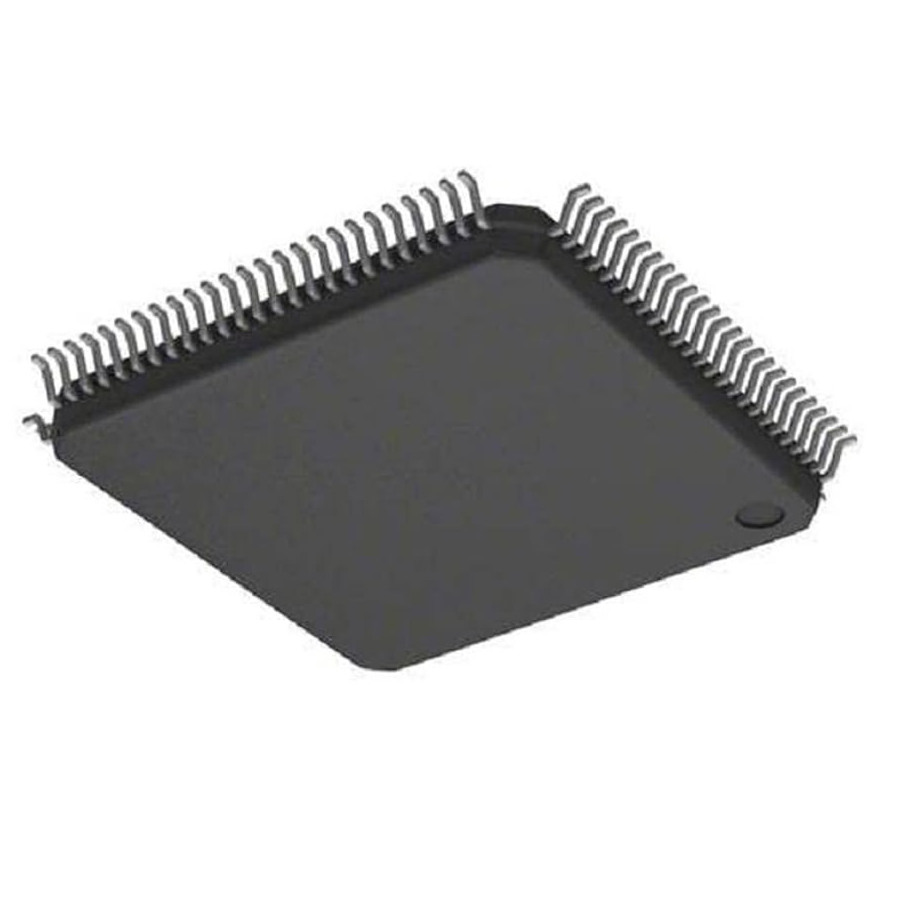

View detailed images (8)

NG80386SXLV25

SKU: NG80386SXLV25
NG80386SXLV25 Integrated Circuit CASE: QFP100 MAKE: Analog Devices - AMD
Product specifications
Type Integrated Circuit
Case QFP100
Manufacturer Analog Devices - AMD
Mem. Addr Rnge 8M
No.of Addr. Modes 11
No. of I/O Lines 32
I/O Line Types Byte&Word
Max. Inst. Len (bits) 32
Min Inst. Len (bits) 8
No. of Intrpt Lines 2
No. of Intrpt (NMI) 1
Intrpt Types Int/Ex Vec
No. of Intrpt (mask) 1
fClk Max. (Hz) 25M
fClk Min (Hz) 0
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 85
Pinout Equivalence Number 100-75
Surface Mounted Yes/No YES
SKU 435696
