NJM4559S

NJM4559S

SKU: NJM4559S

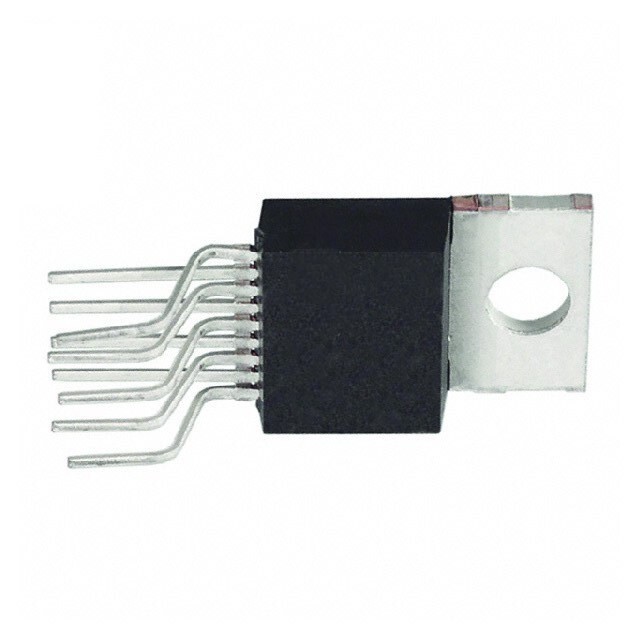

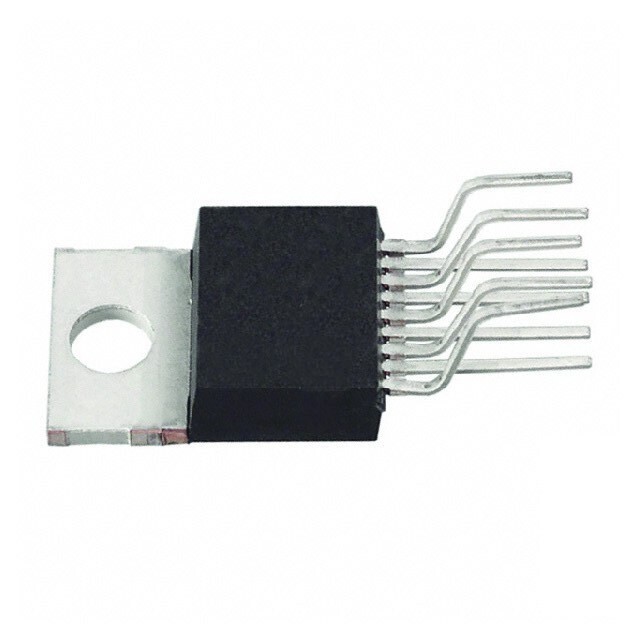

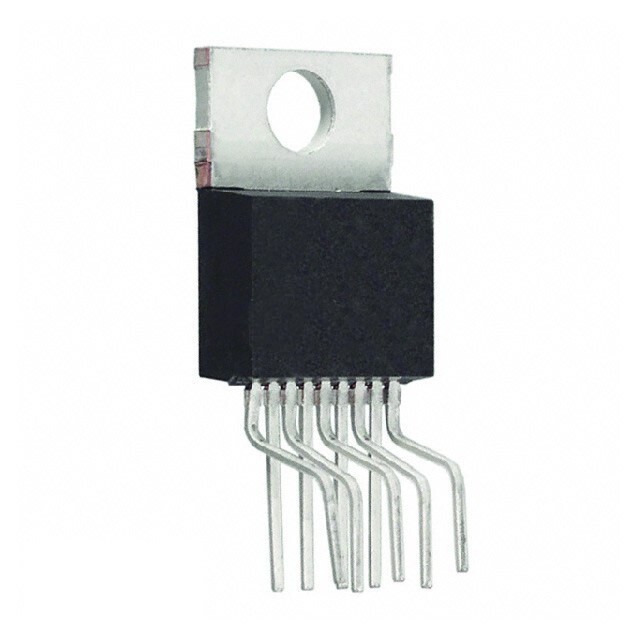

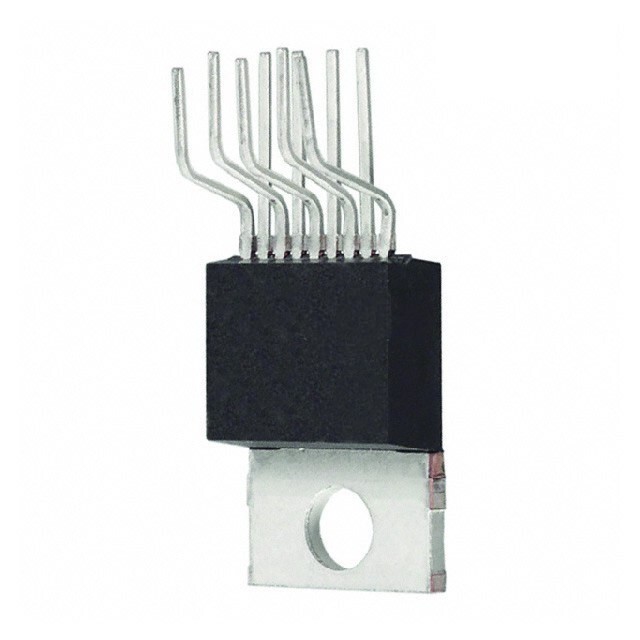

NJM4559S Integrated Circuit CASE: ZIP9 MAKE: New Japan Radio - NJR
Datasheet
NJM4559S Datasheet
Product specifications
Type Integrated Circuit
Case ZIP9
Manufacturer New Japan Radio - NJR
R(in) (Û) 5.0M-
I(io) Max. (A) 200n
V(io) Max. (V) 6.0m
PD Max. (W) 500m
Inp Bias Curr. Max. (A) 500n
Unity Gain BW (Hz) 8.0M
Com Mode Inp Range (VICR) 14
Oper. Temp (°C) Min -20
Oper. Temp (°C) Max. 75
Pinout Equivalence Number 9-140
No. of Pins 9
Surface Mounted Yes/No NO
SKU 359915
