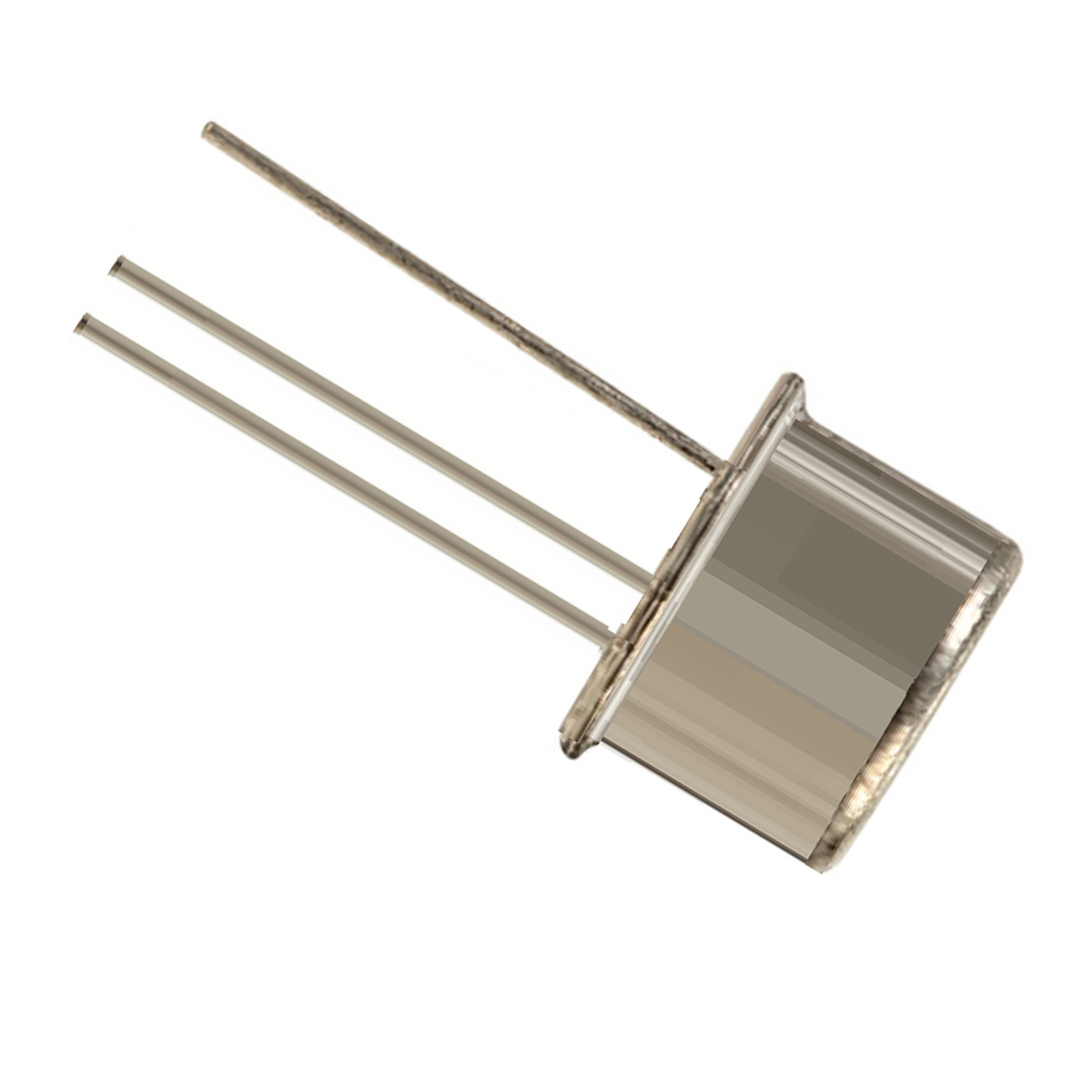

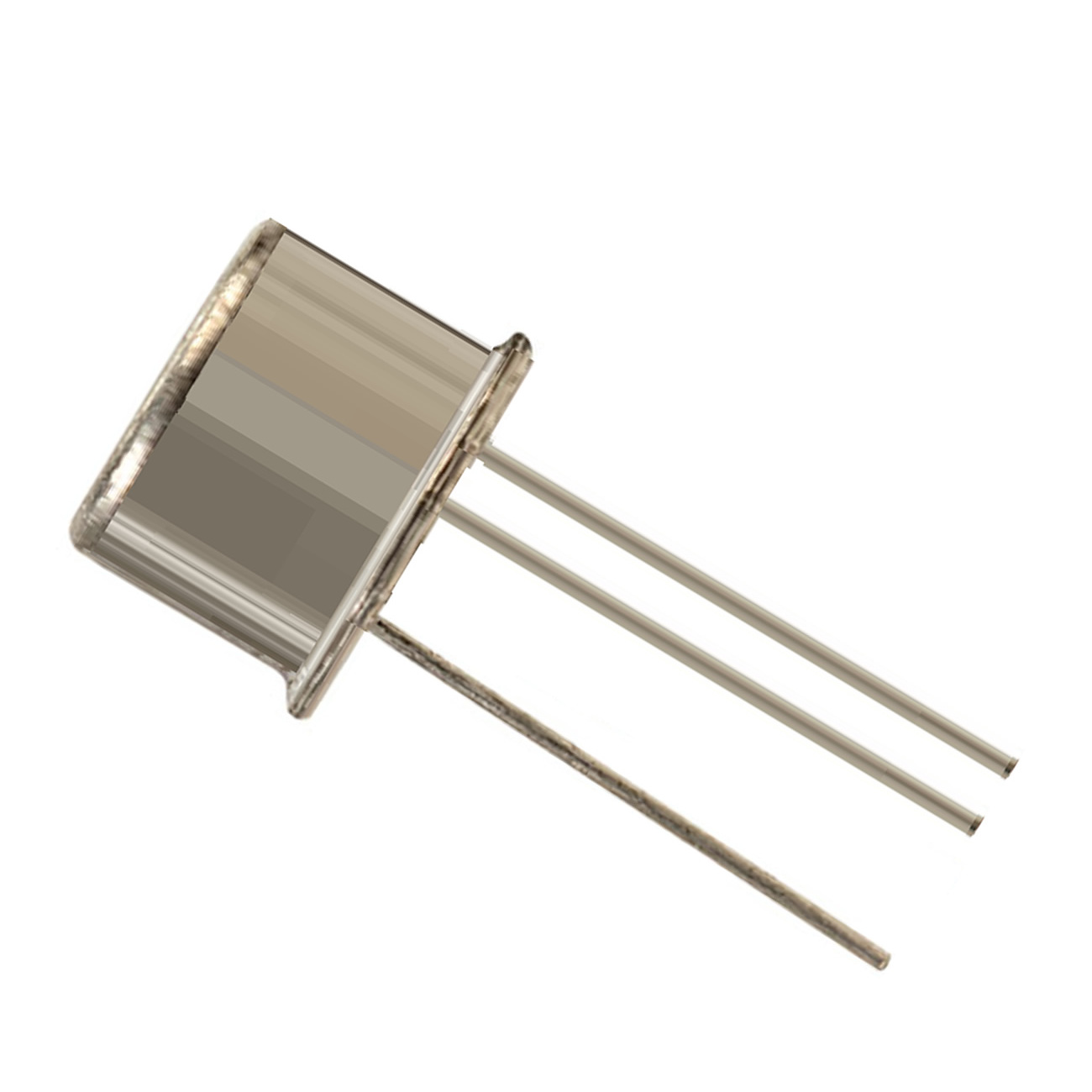

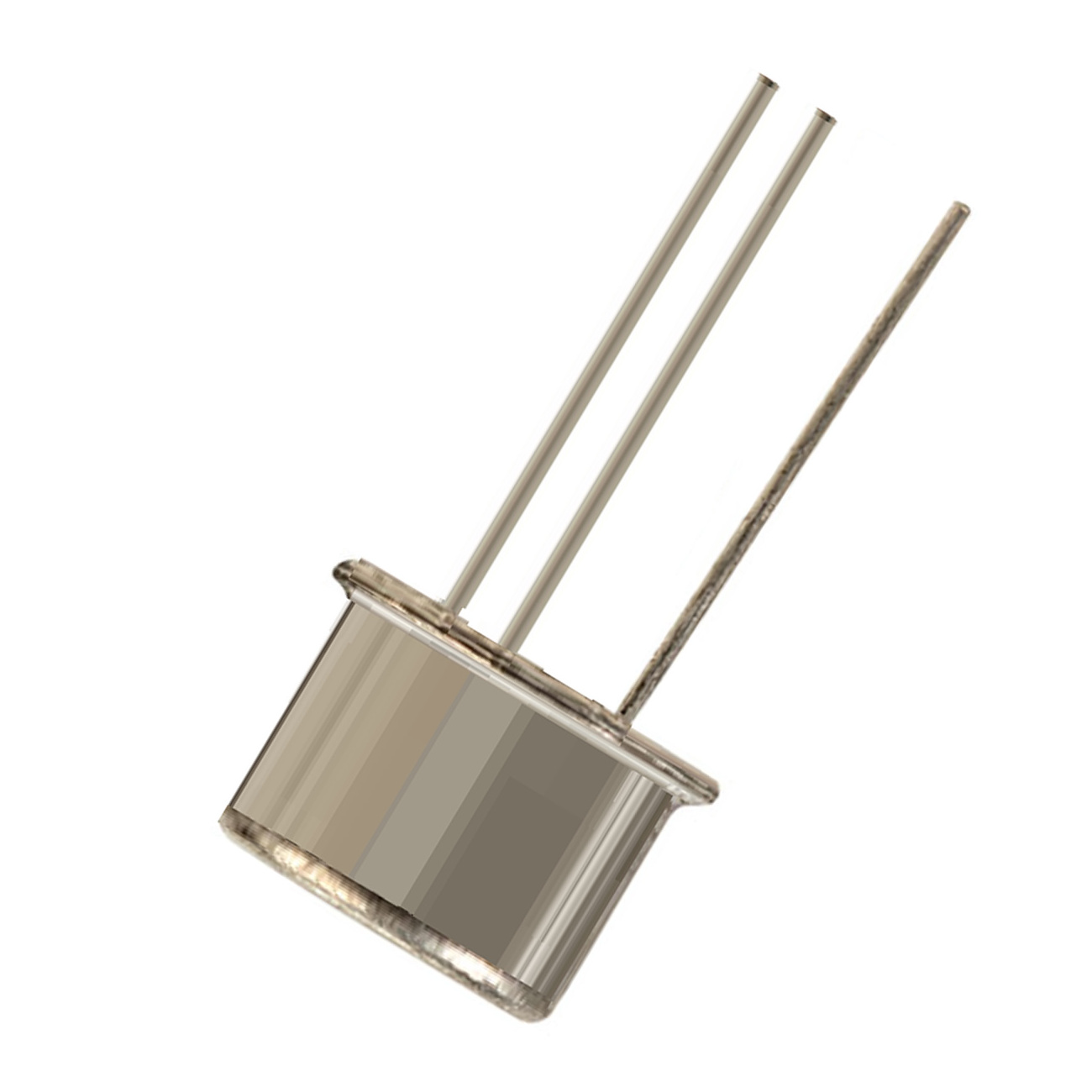

NKT109

SKU: NKT109
NKT109 SemiConductor - CASE: TO22 MAKE: Newmarket Transistors
+ VAT 20% for UK purchases
Product specifications
Type Transistor Germanium PNP
Case TO22
Manufacturer Newmarket Transistors
Vbr CBO 20
Vbr CEO 20
Max. PD (W) 75m
C(ob) (F) 20p
Derate (Amb) (W/°C) 1.5m
hfe 75
Ic Max. (A) 500m
Icbo Max. @Vcb Max. (A) 40u
Polarity PNP
Trans. Freq (Hz) Min. 5.0M
@VCE (test) (V) 4.5
Oper. Temp (°C) Max. 75
@Ic (A) 1.0m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.075 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 20 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 75 °C
Collector Capacitance (Cc) 30 pF
Transition Frequency (ft): 2 MHz
Forward Current Transfer Ratio (hFE), MIN 75
SKU 559330
