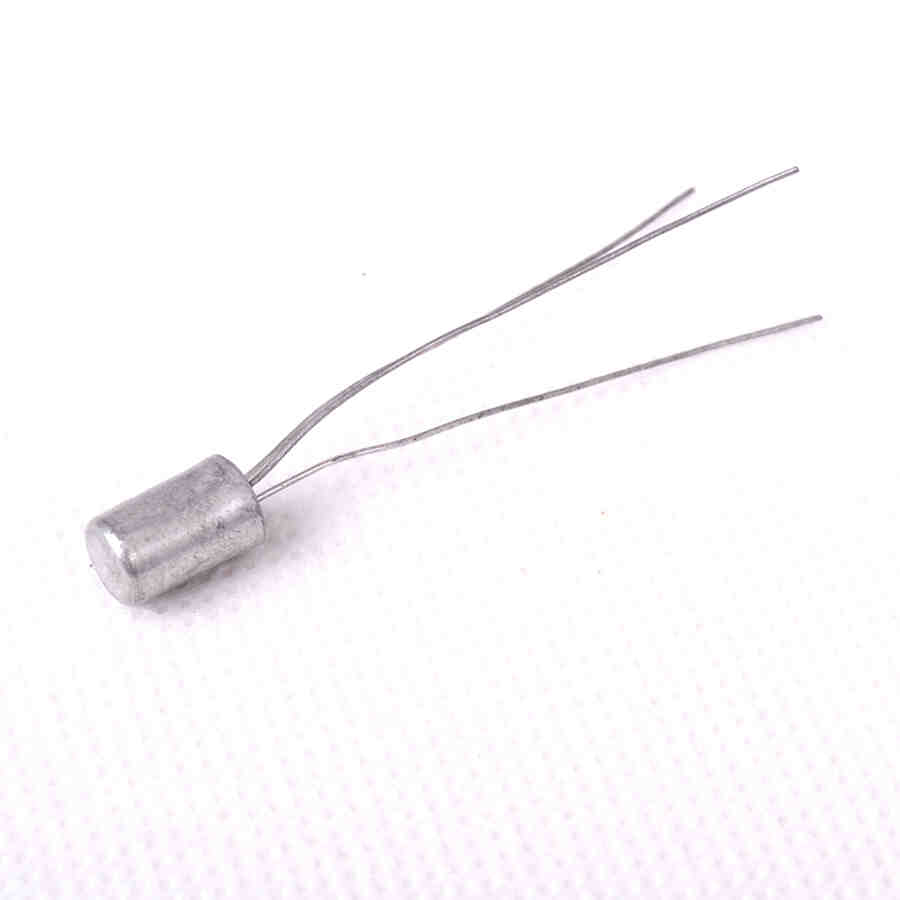

NKT272 Transistor Germanium - CASE: TO1 MAKE: Newmarket Transistors
+ VAT 20% for UK purchases
Product specifications
Type Transistor Germanium PNP
Case TO1
Manufacturer Newmarket Transistors
Vbr CBO 15
Vbr CEO 15
Max. PD (W) 200m
Derate (Amb) (W/°C) 3.1m
hfe 35
Ic Max. (A) 250m
Icbo Max. @Vcb Max. (A) 10u
Polarity PNP
Trans. Freq (Hz) Min. 1.0M
@VCE (test) (V) 4.5
Oper. Temp (°C) Max. 100
@Ic (A) 1.0m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 15 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.25 A
Max. Operating Junction Temperature (Tj) 90 °C
Collector Capacitance (Cc) 60 pF
Transition Frequency (ft): 0.5 MHz
Forward Current Transfer Ratio (hFE), MIN 35
SKU 116882
