NSV20101JT1G
View detailed images (4)

NSV20101JT1G

SKU: NSV20101JT1G

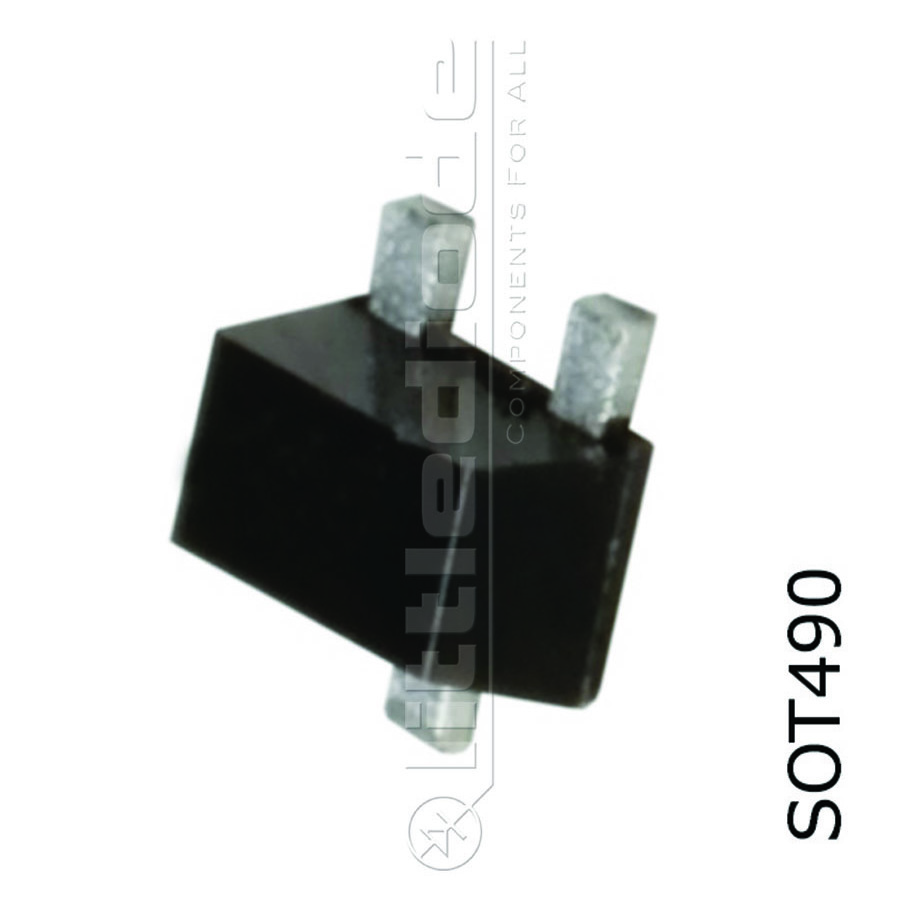

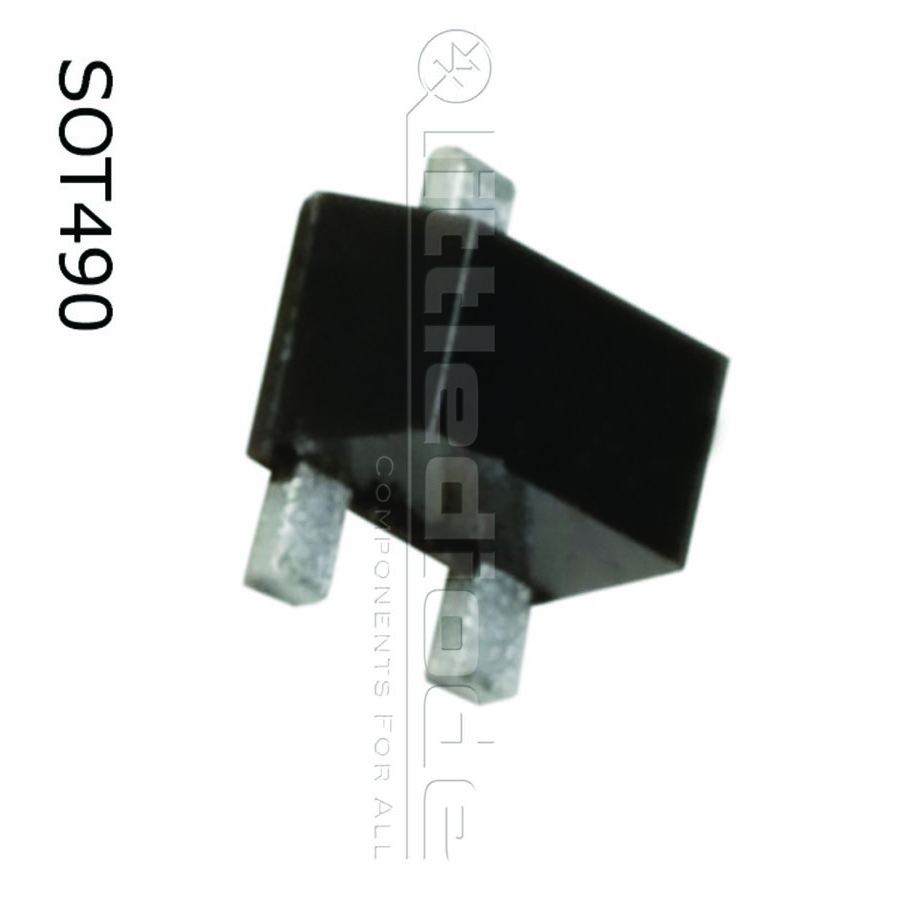

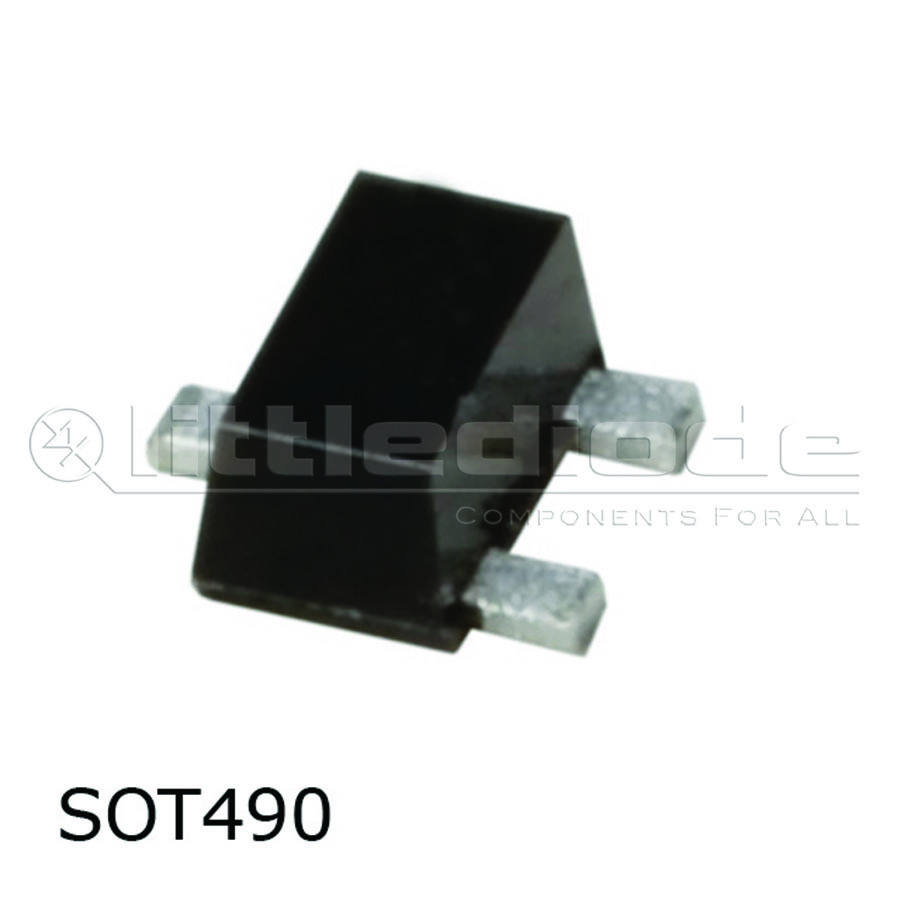

NSV20101JT1G Transistor Silicon NPN CASE: SOT490 MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case SOT490
Manufacturer Generic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.26 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 20 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 6 pF
Transition Frequency (ft): 350 MHz
Forward Current Transfer Ratio (hFE), MIN 200
SMD Transistor Code AA
SKU 1438787
