NSV40300MDR2G
View detailed images (4)

NSV40300MDR2G

SKU: NSV40300MDR2G

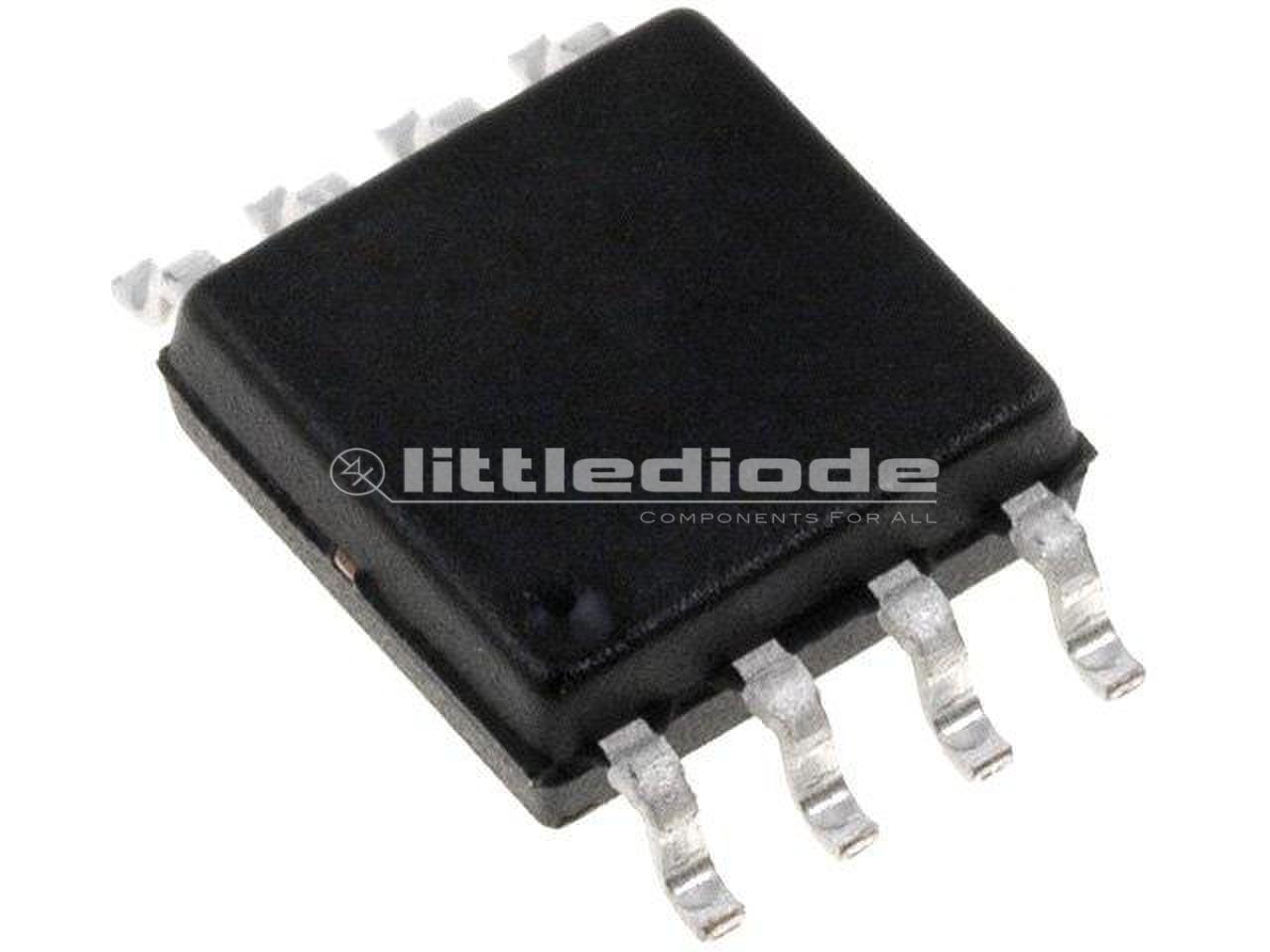

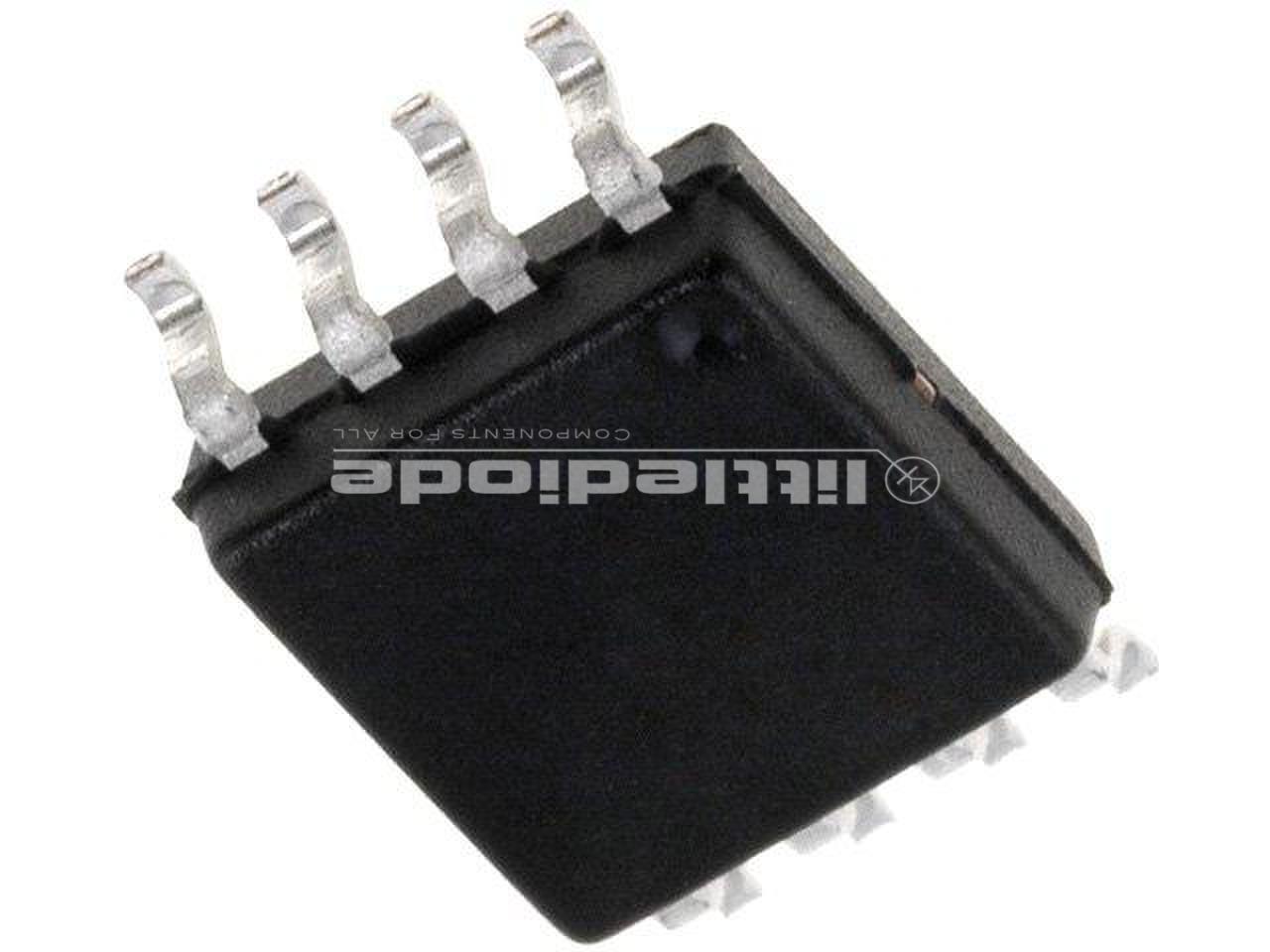

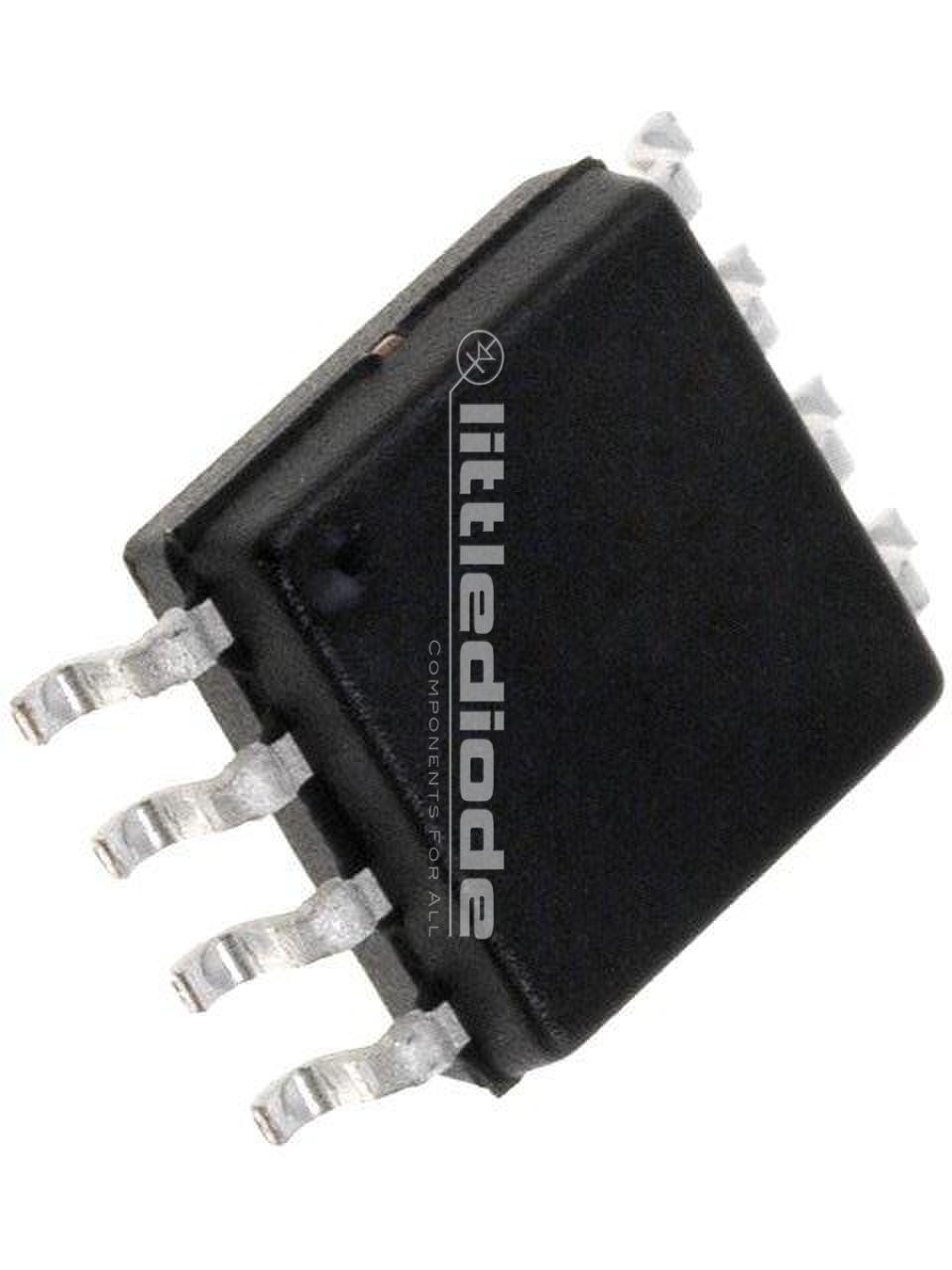

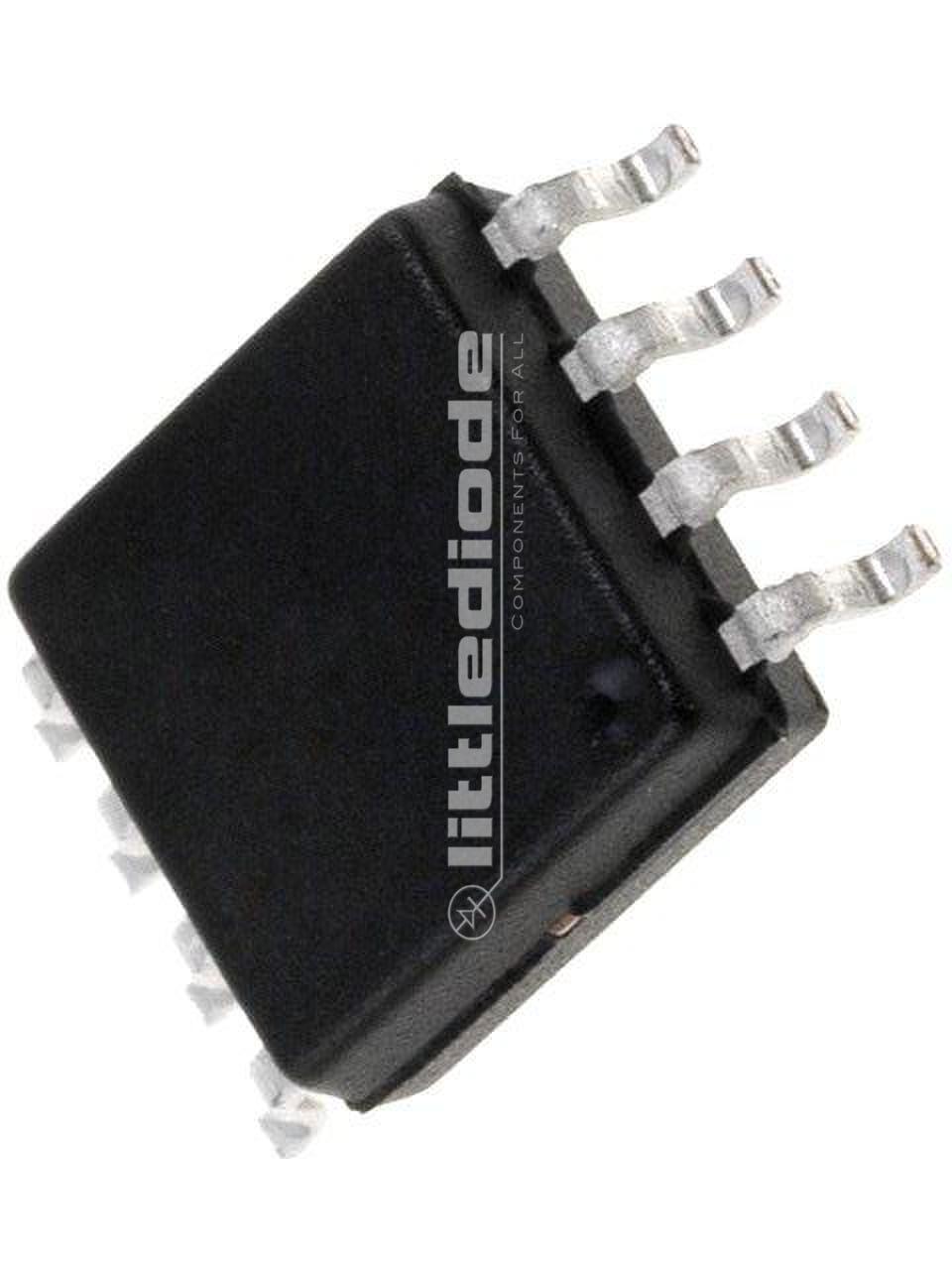

NSV40300MDR2G Transistor Silicon PNP CASE: SOIC8 MAKE: Generic
Product specifications
Type Transistor Silicon PNP
Case SOIC8
Manufacturer Generic
Polarity PNP
Maximum Collector Power Dissipation (Pc) 0.58 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 40 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 50 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 220
SMD Transistor Code P40300
SKU 1438796
