NSVT489AMT1G
View detailed images (4)

NSVT489AMT1G

SKU: NSVT489AMT1G

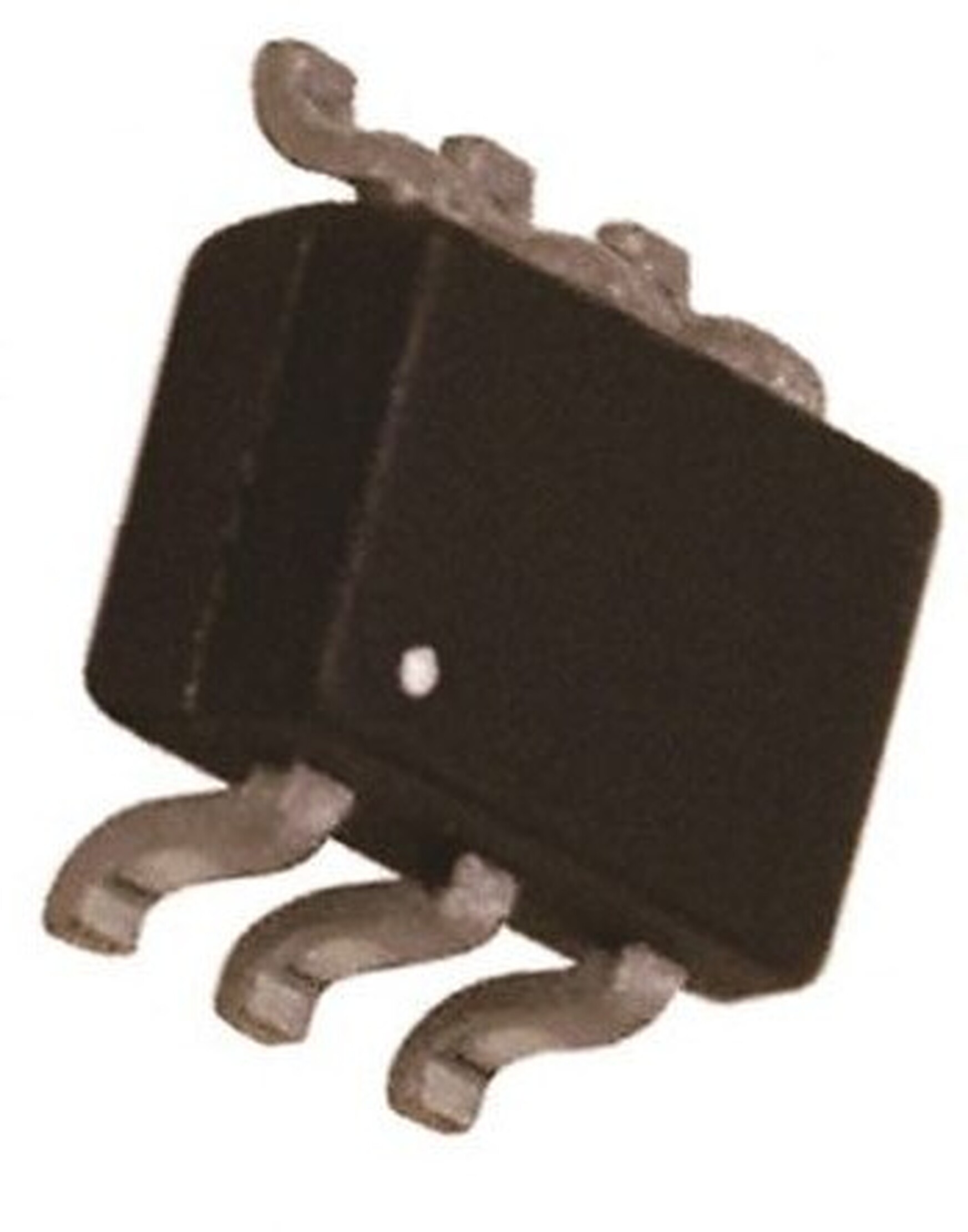

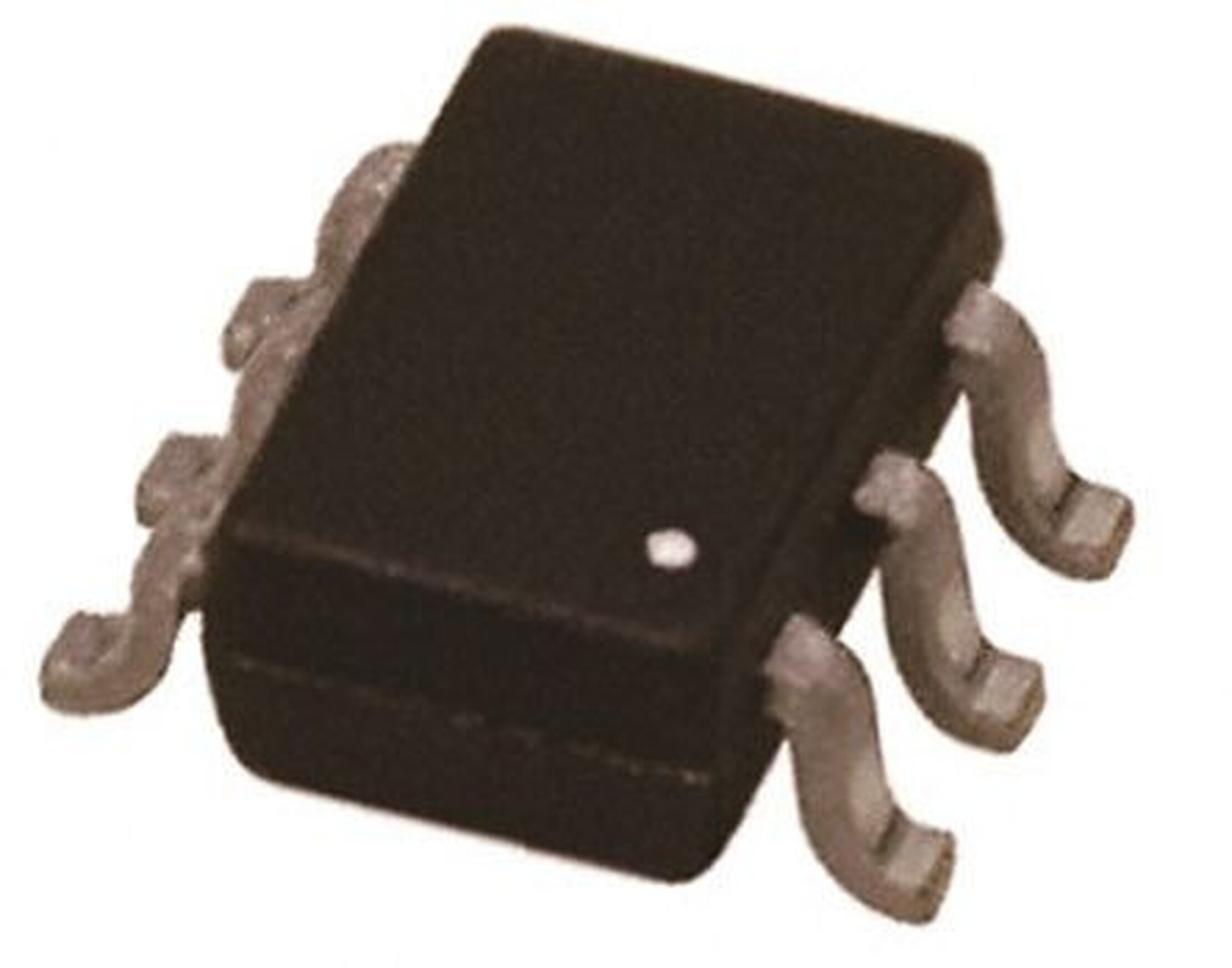

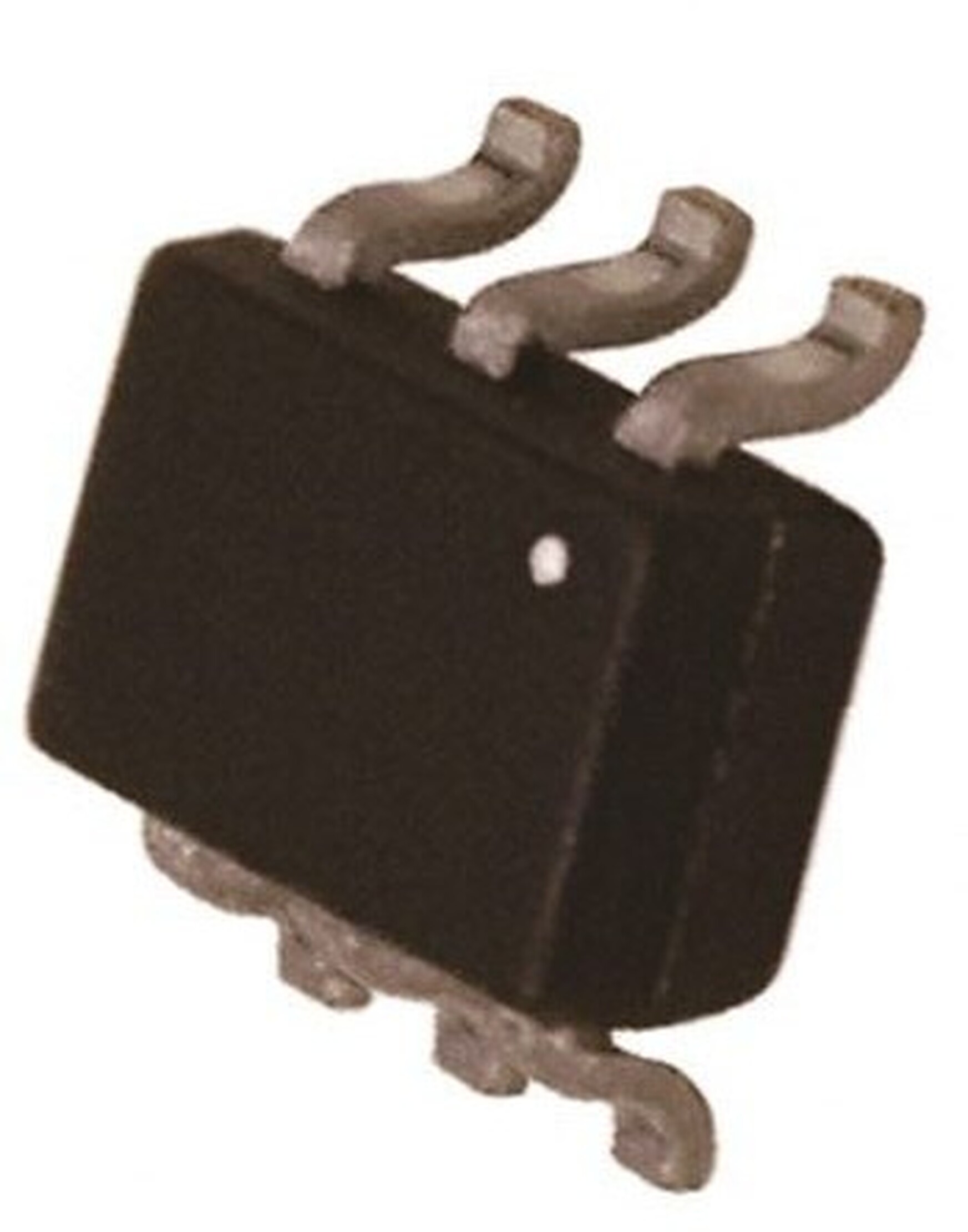

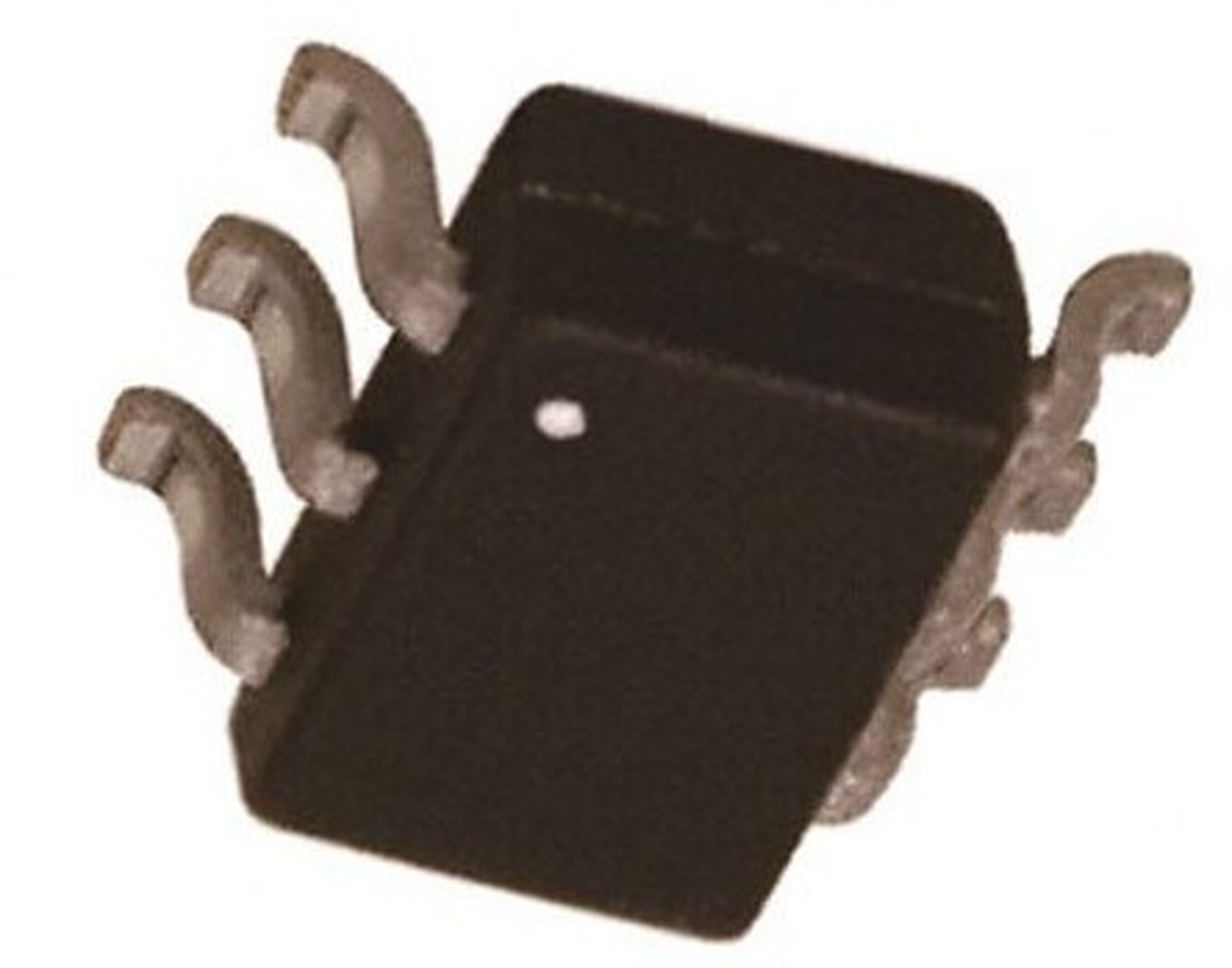

NSVT489AMT1G Transistor Silicon NPN CASE: SOT457 MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case SOT457
Manufacturer Generic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.54 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 15 pF
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN 300
SMD Transistor Code N2
SKU 1438927
