NTE102
View detailed images (4)

NTE102

SKU: NTE102

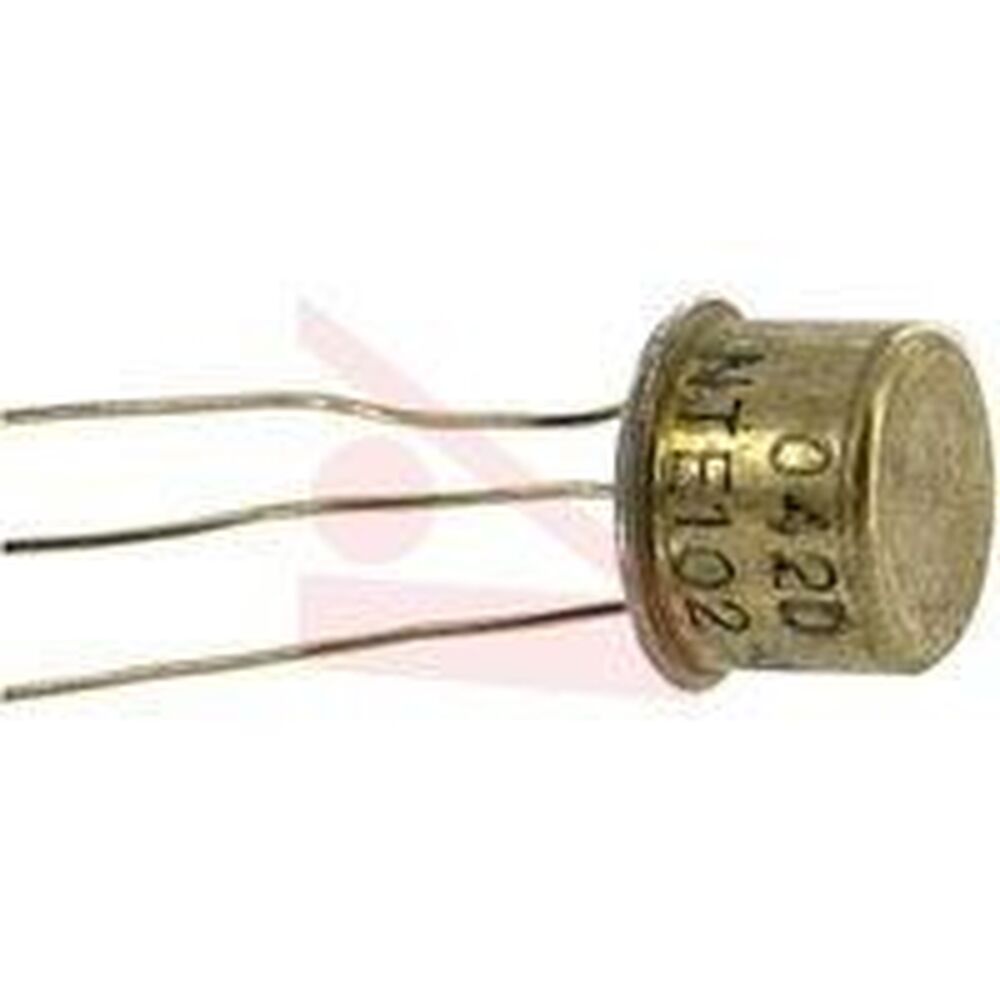

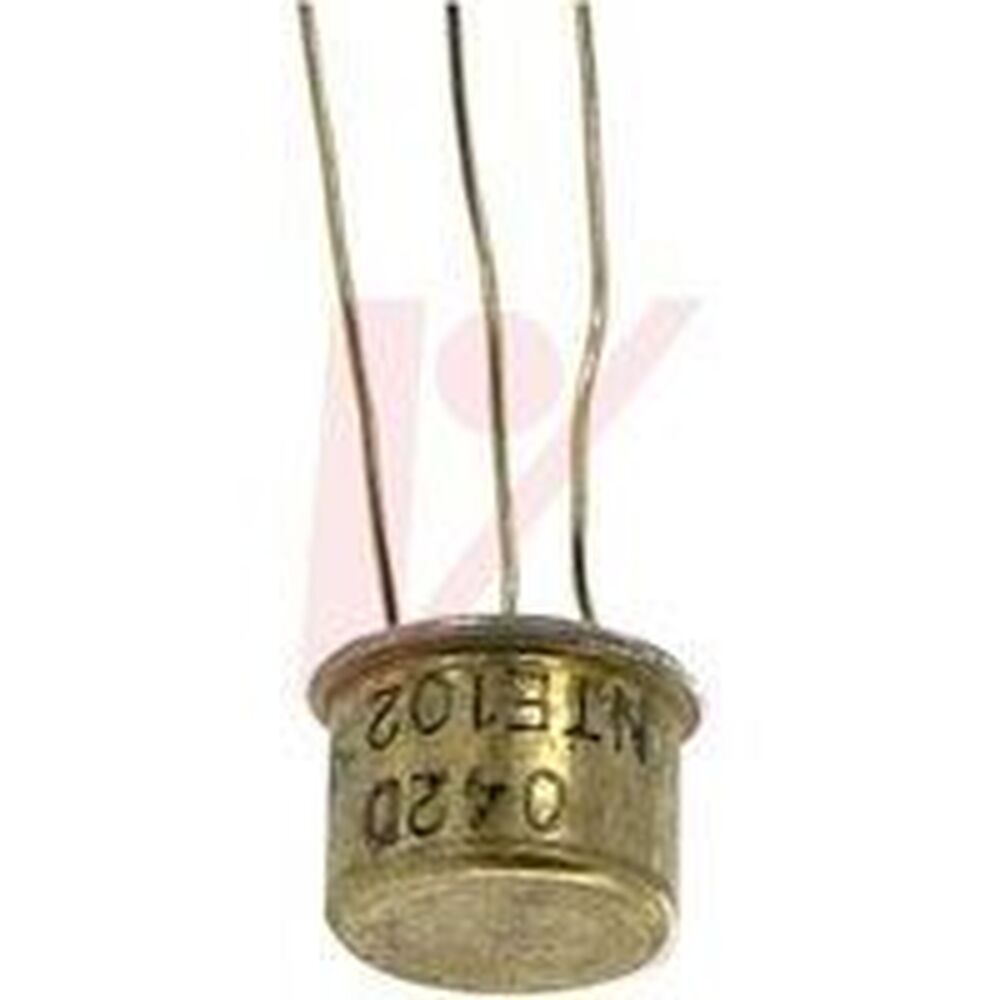

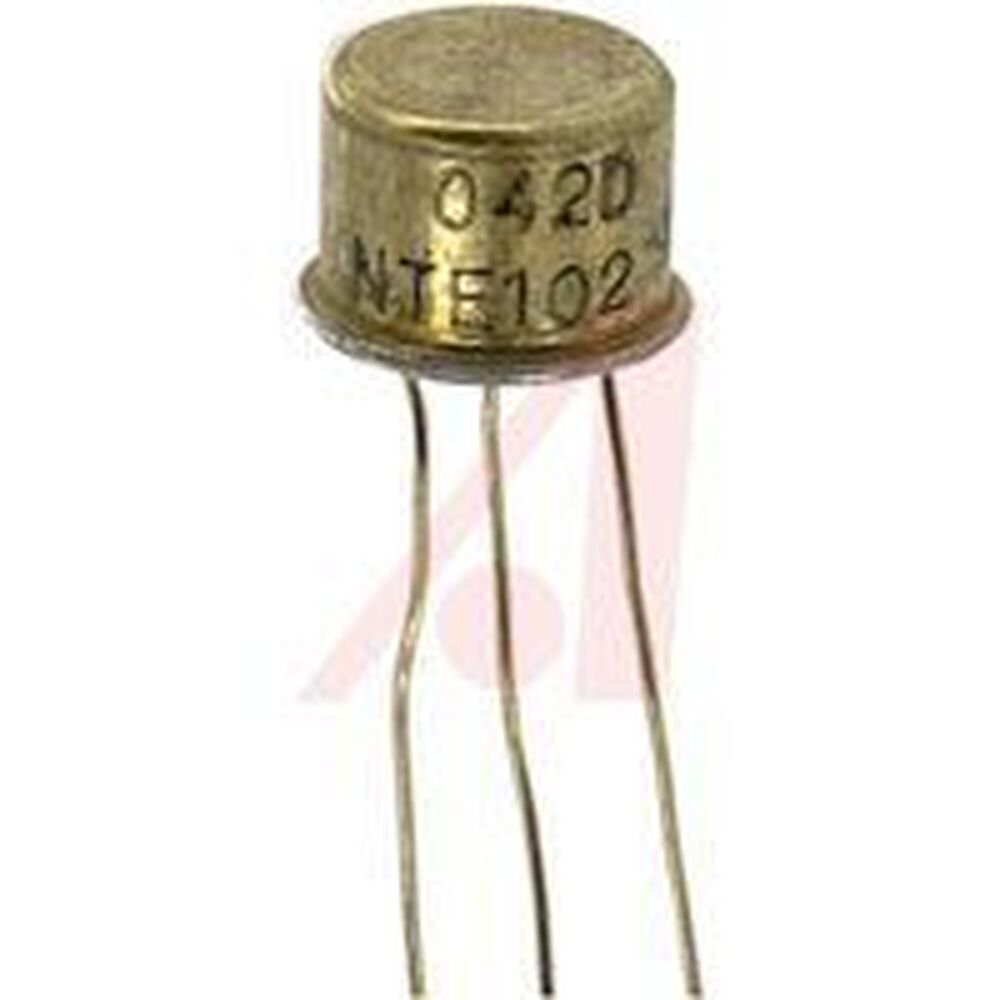

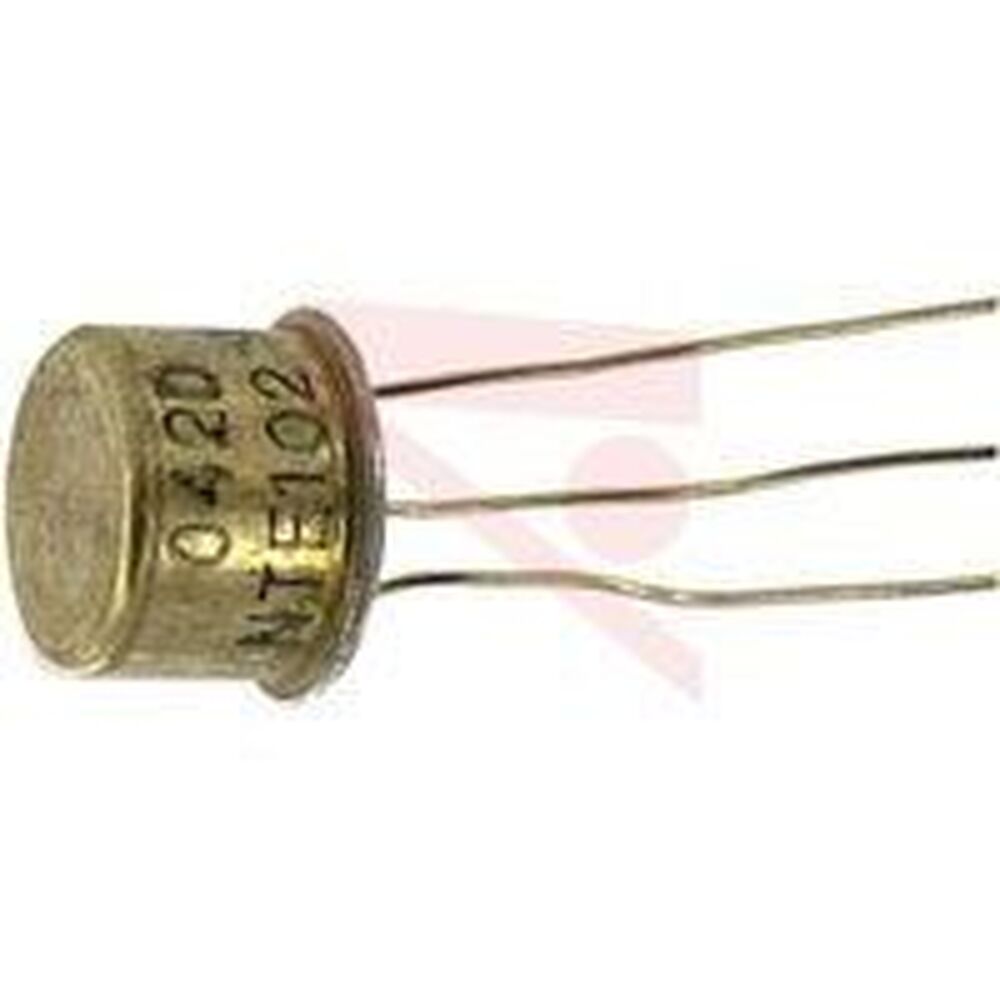

NTE102 Transistor Germanium PNP CASE: TO5 MAKE: NTE Electronics
Datasheet
NTE102 Datasheet
Product specifications
Type Transistor Germanium PNP
Case TO5
Manufacturer NTE Electronics
Vbr CBO 30
Vbr CEO 16
Max. PD (W) 150m
hfe 90
Ic Max. (A) 300m
Polarity PNP
Trans. Freq (Hz) Min. 2M
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Base Voltage |Vcb| 25 V
Maximum Collector-Emitter Voltage |Vce| 16 V
Maximum Collector Current |Ic max| 0.15 A
Transition Frequency (ft): 2 MHz
Forward Current Transfer Ratio (hFE), MIN 90
SKU 360236
