NTE126
View detailed images (4)

NTE126

SKU: NTE126

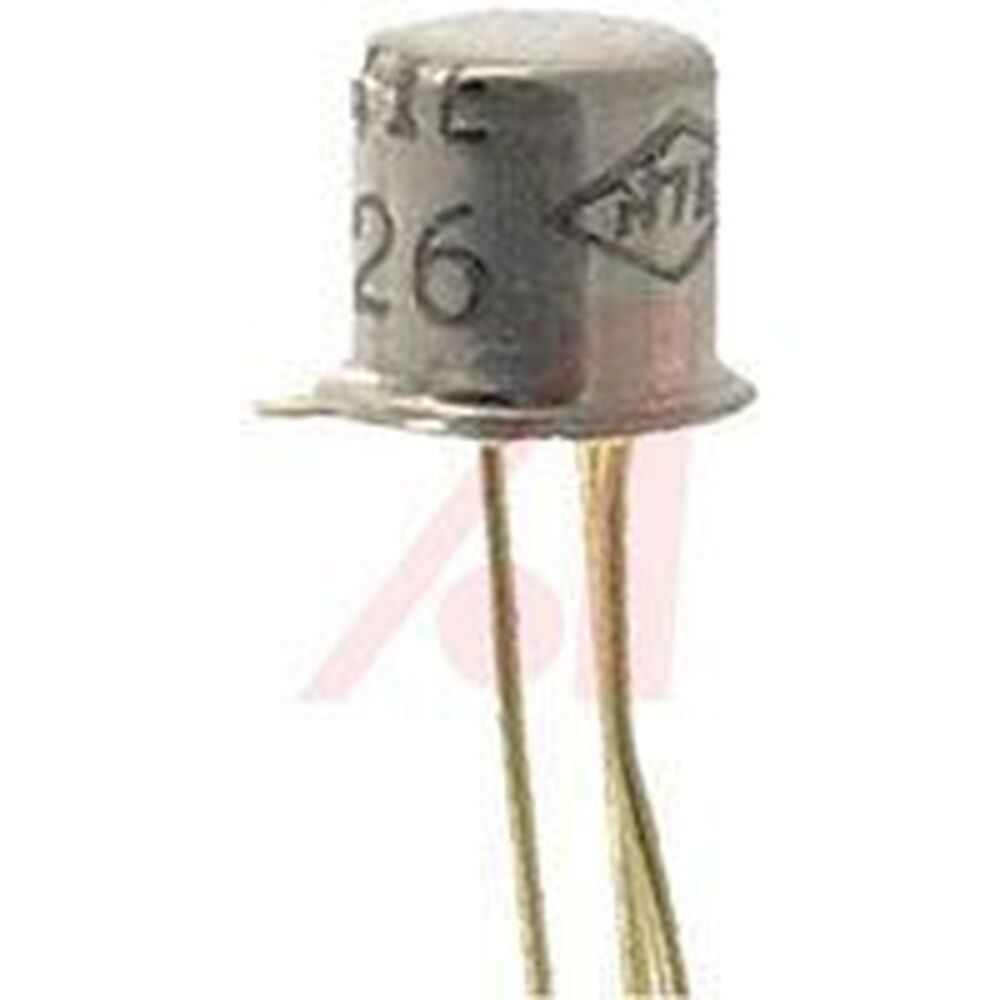

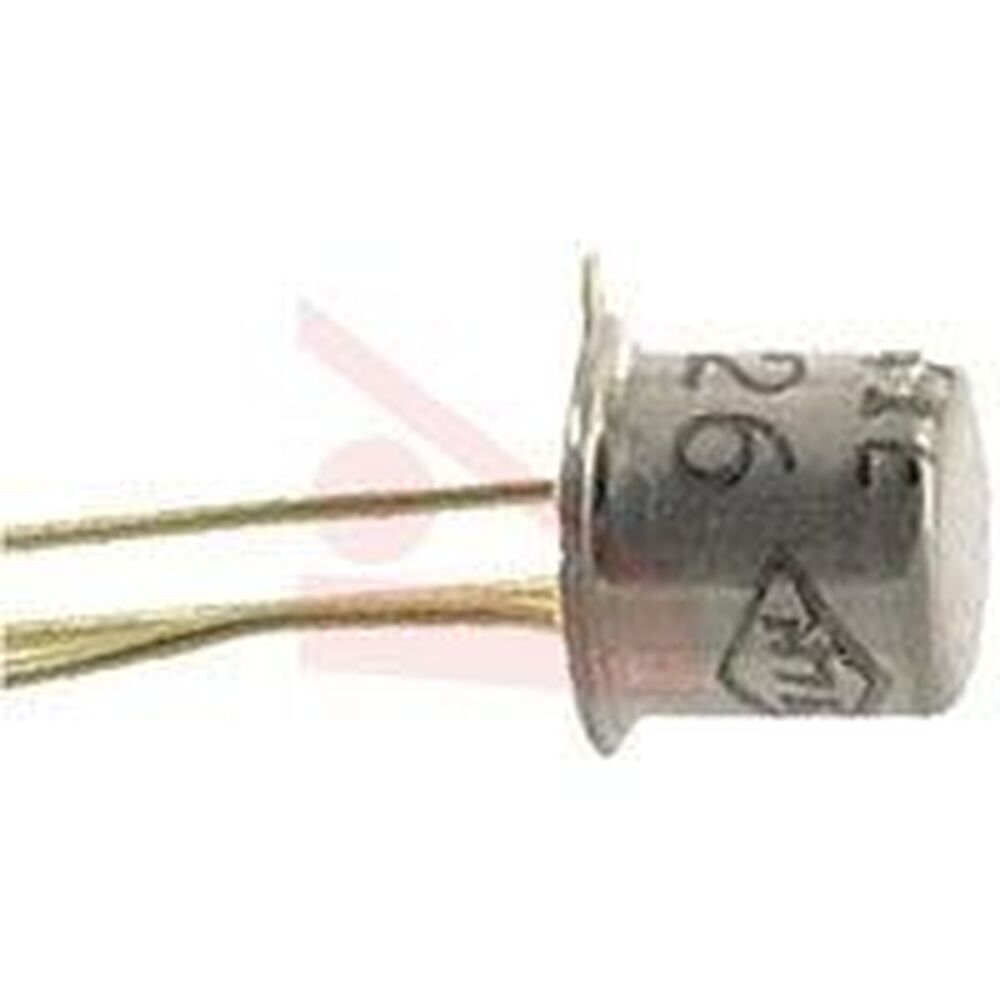

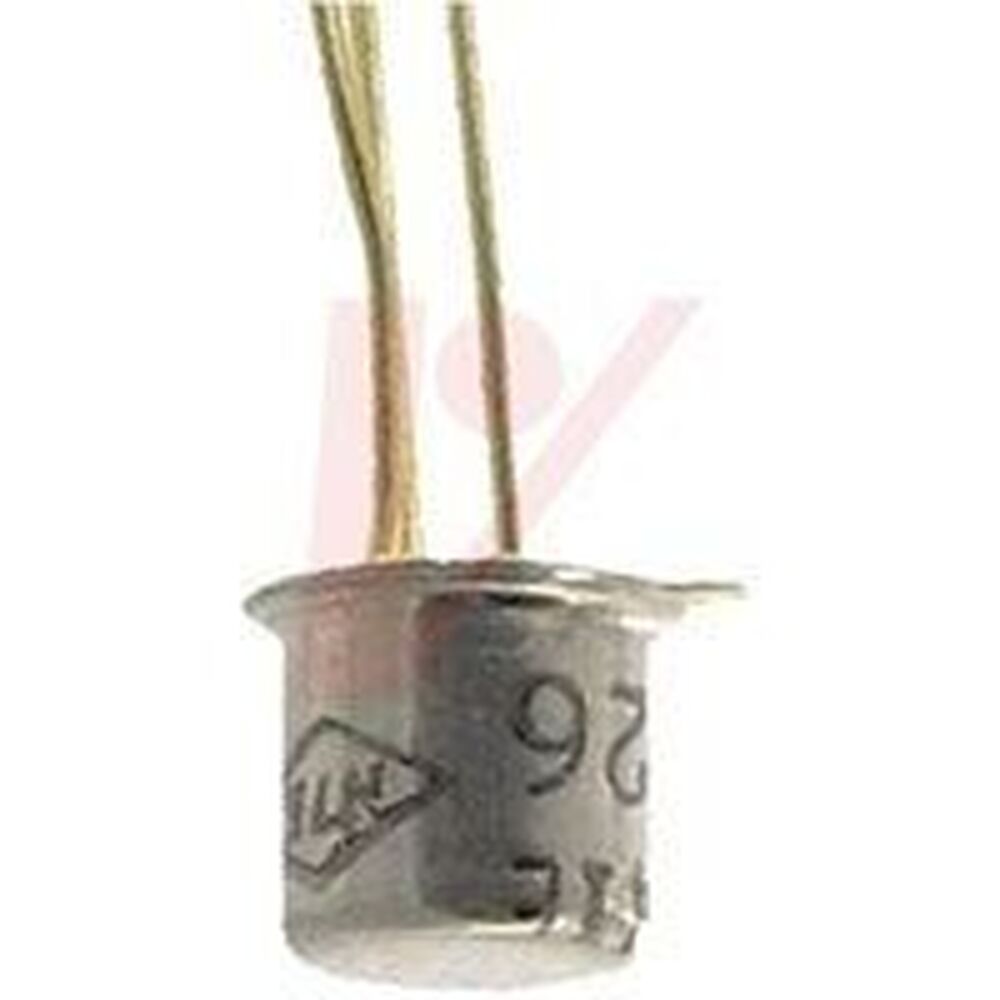

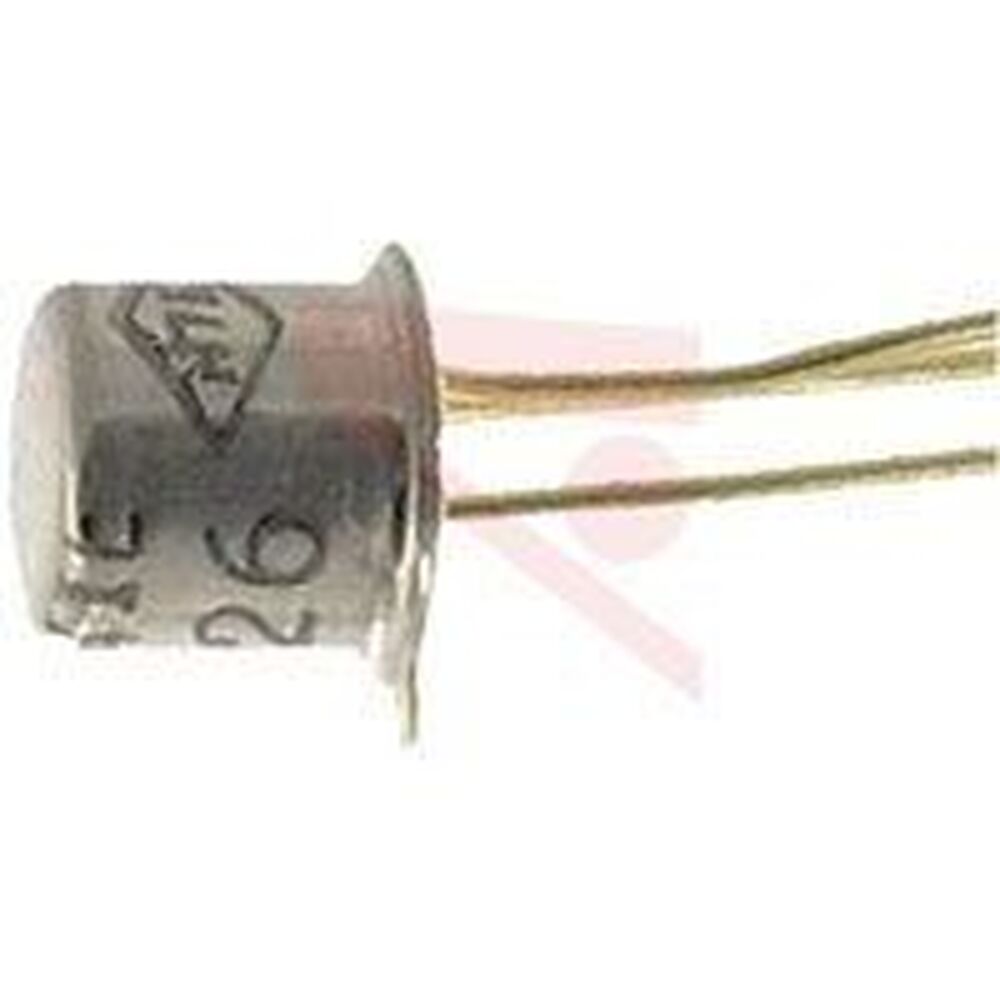

NTE126 Transistor Germanium PNP CASE: TO18 MAKE: NTE Electronics
Datasheet
NTE126 Datasheet
Product specifications
Type Transistor Germanium PNP
Case TO18
Manufacturer NTE Electronics
Vbr CBO 25
Vbr CEO 18
Max. PD (W) 200m
hfe 40
Ic Max. (A) 200m
Polarity PNP
Trans. Freq (Hz) Min. 250M
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 25 V
Maximum Collector-Emitter Voltage |Vce| 18 V
Maximum Collector Current |Ic max| 0.2 A
Transition Frequency (ft): 250 MHz
Forward Current Transfer Ratio (hFE), MIN 60
SKU 360254
