NTE179
View detailed images (4)

NTE179

SKU: NTE179

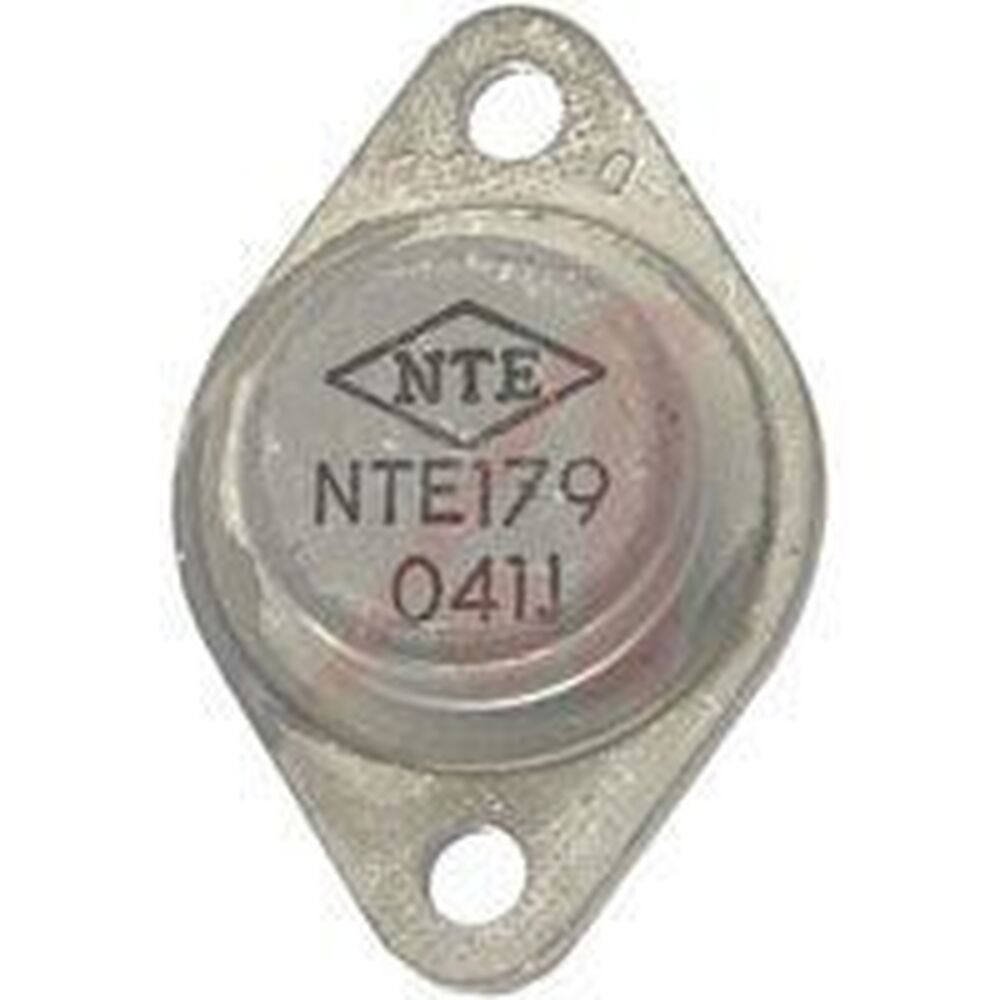

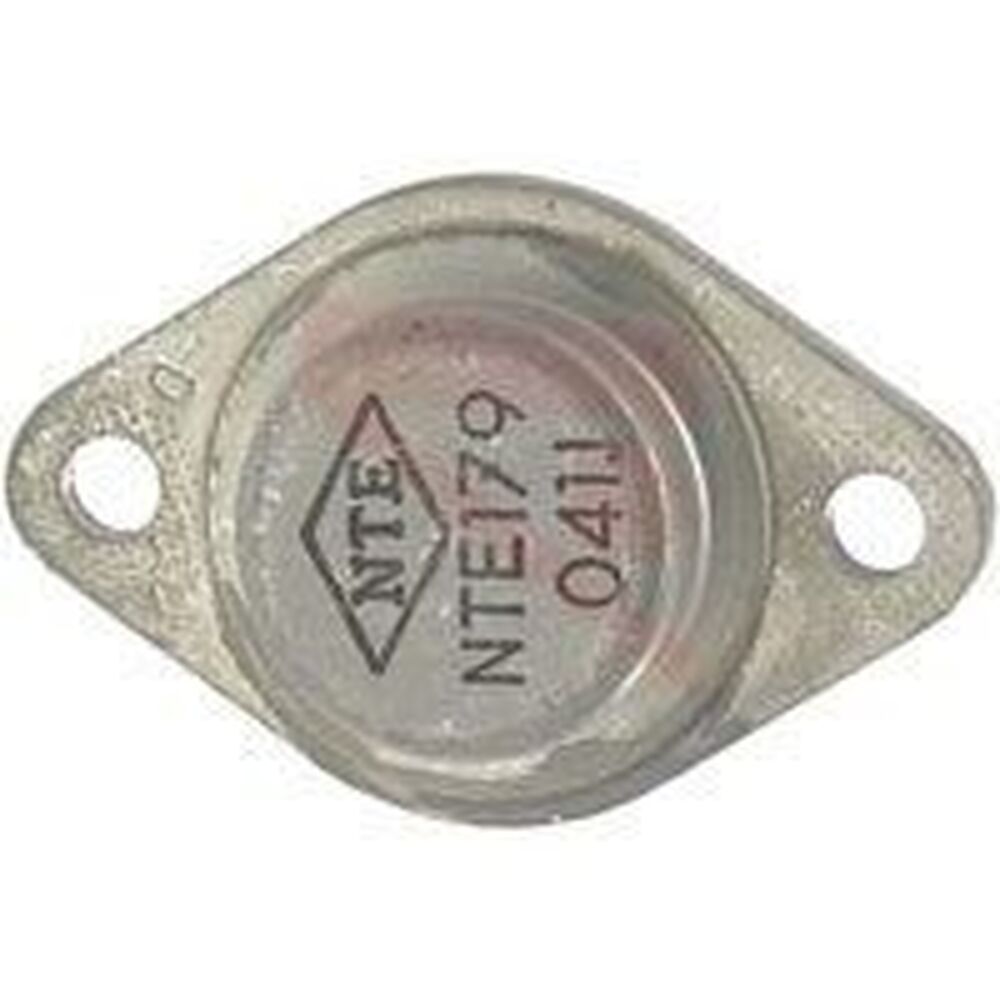

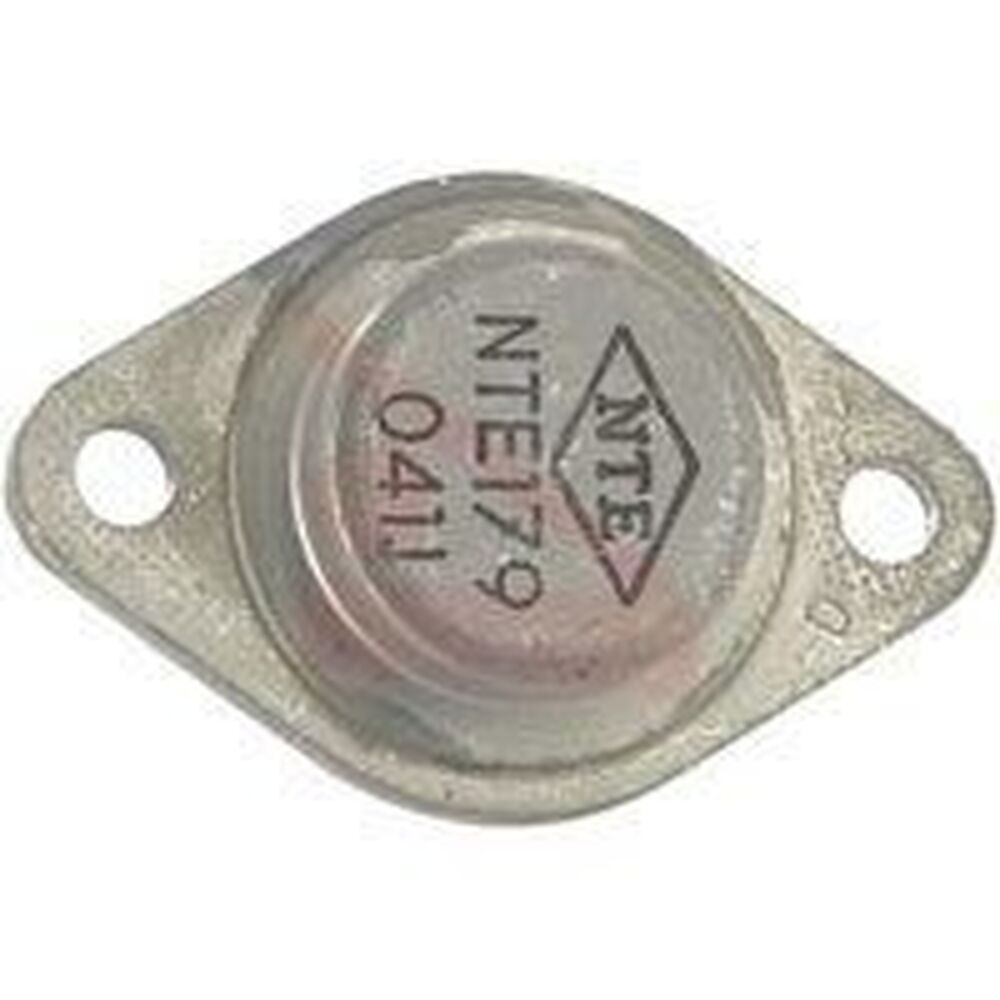

NTE179 Transistor Germanium PNP CASE: TO3 MAKE: NTE Electronics
Datasheet
NTE179 Datasheet
Product specifications
Type Transistor Germanium PNP
Case TO3
Manufacturer NTE Electronics
Vbr CBO 90
Vbr CEO 90
Max. PD (W) 106
Min hFE 55-
Ic Max. (A) 25
Polarity PNP
Trans. Freq (Hz) Min. 350k
Pinout Equivalence Number 3-14
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 106 W
Maximum Collector-Base Voltage |Vcb| 90 V
Maximum Collector-Emitter Voltage |Vce| 90 V
Maximum Collector Current |Ic max| 25 A
Transition Frequency (ft): 0.35 MHz
Forward Current Transfer Ratio (hFE), MIN 55
SKU 360308
