OC1075
View detailed images (4)

OC1075

SKU: OC1075

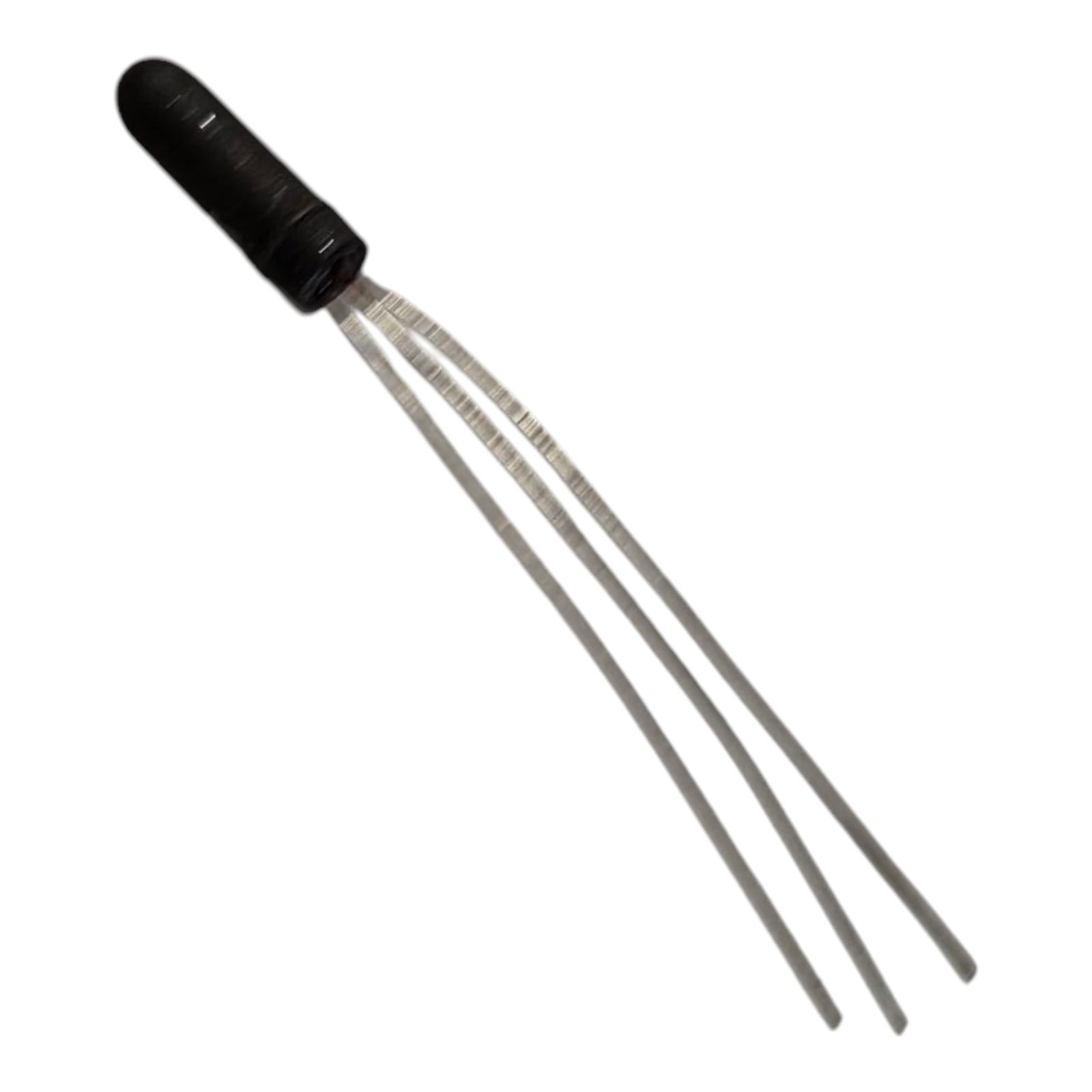

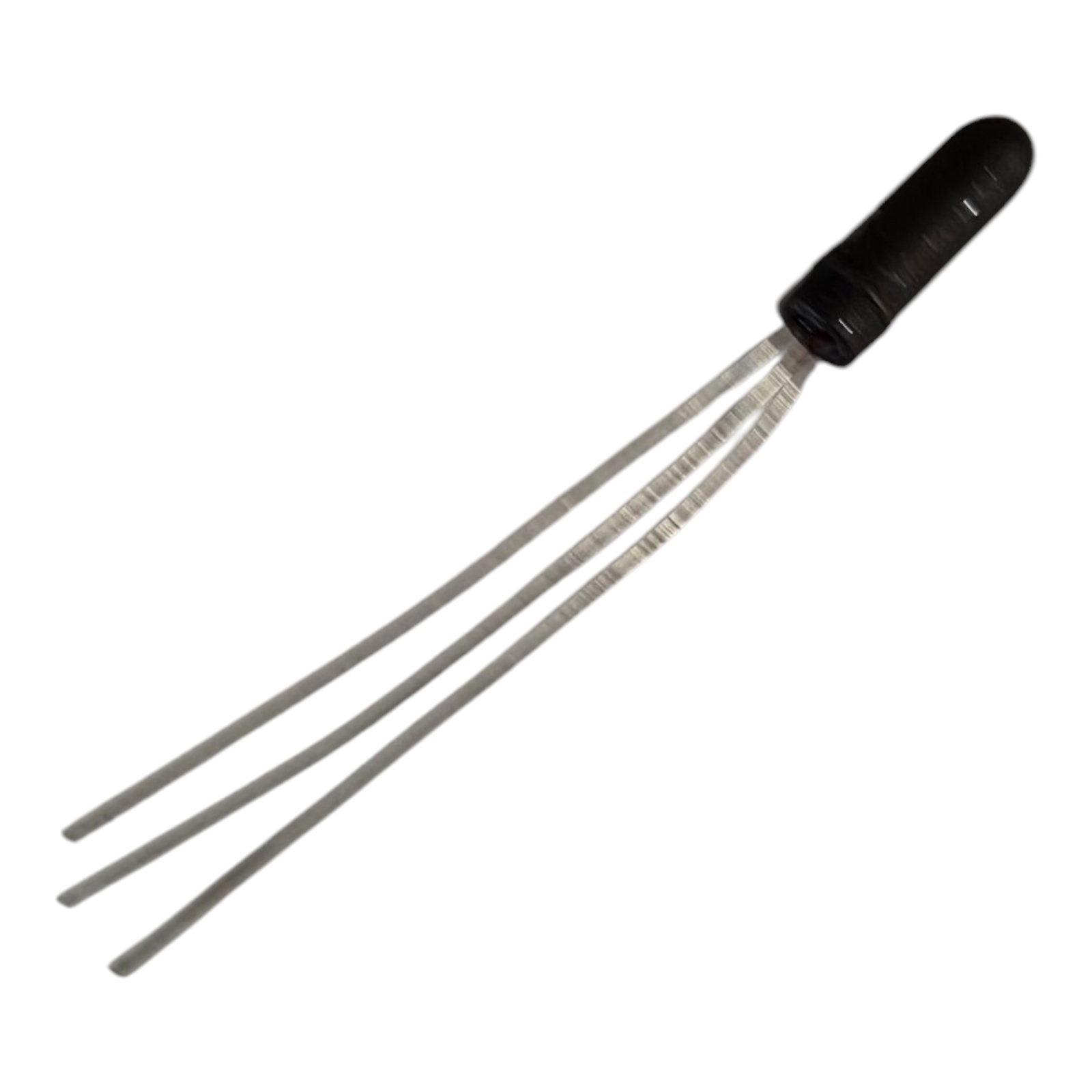

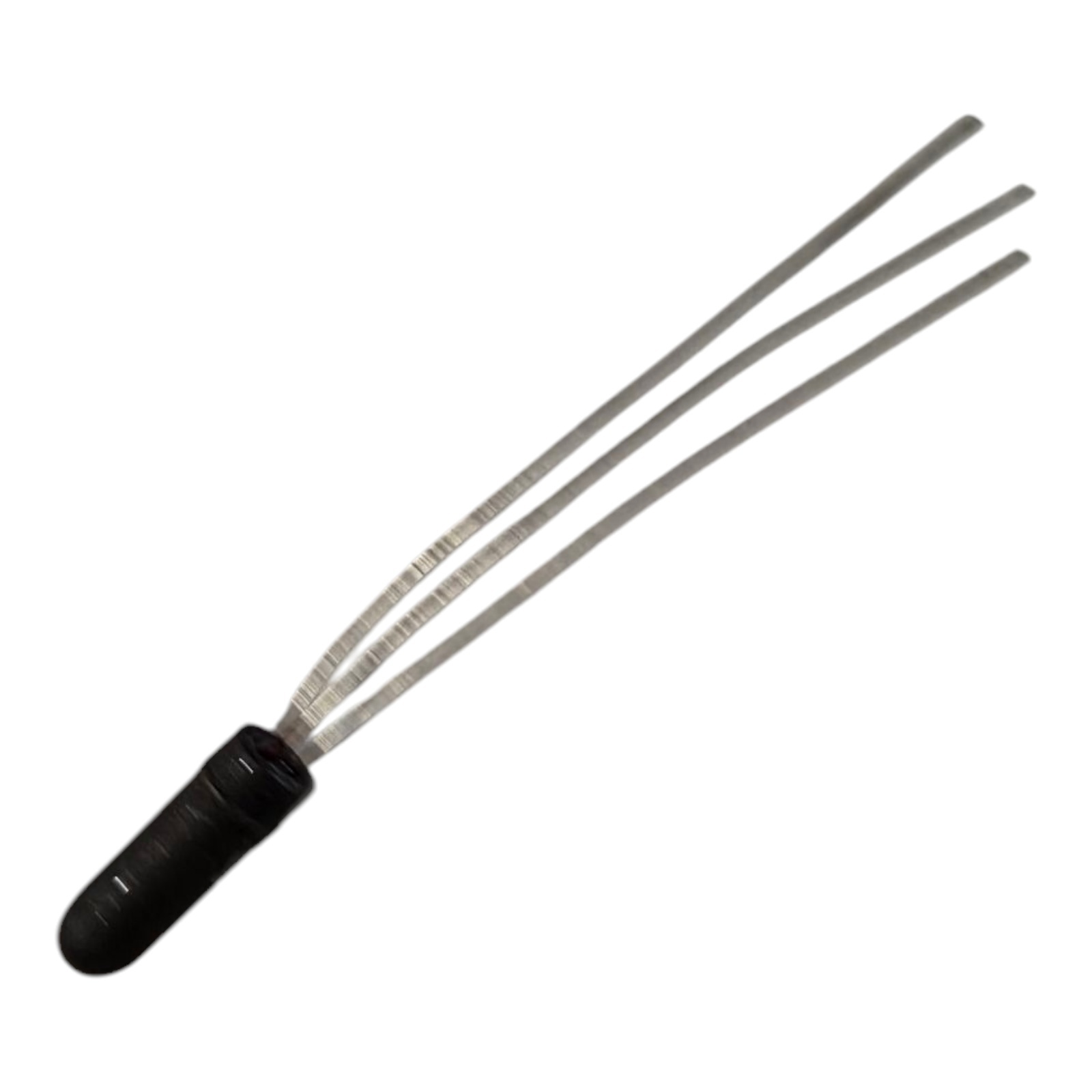

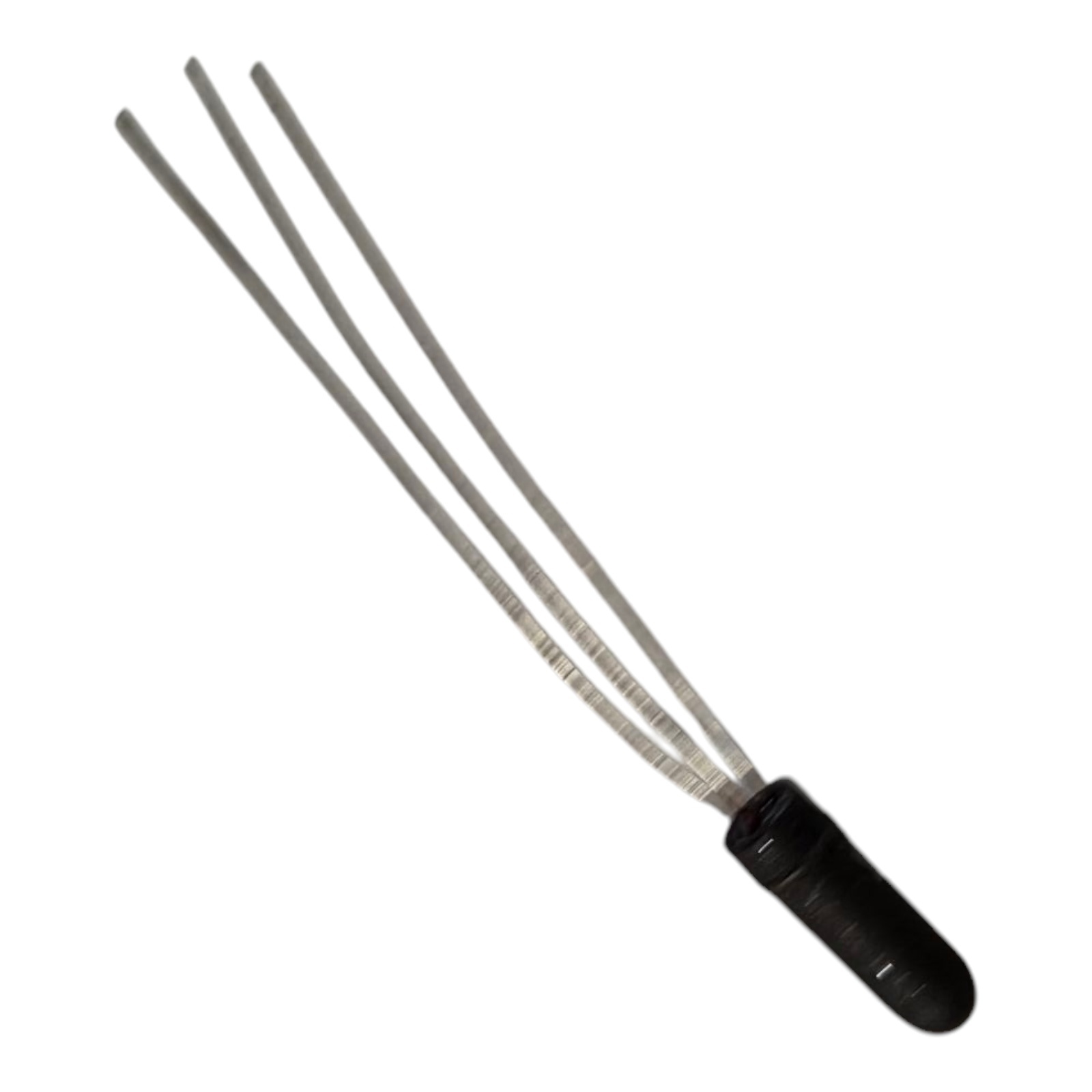

OC1075 Transistor Germanium PNP CASE: X01 MAKE: Tungsram
Product specifications
Type Transistor Germanium PNP
Case X01
Manufacturer Tungsram
Polarity PNP
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Base Voltage |Vcb| 32 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 110 °C
Transition Frequency (ft): 0.1 MHz
Forward Current Transfer Ratio (hFE), MIN 90
SKU 436127
