OC41

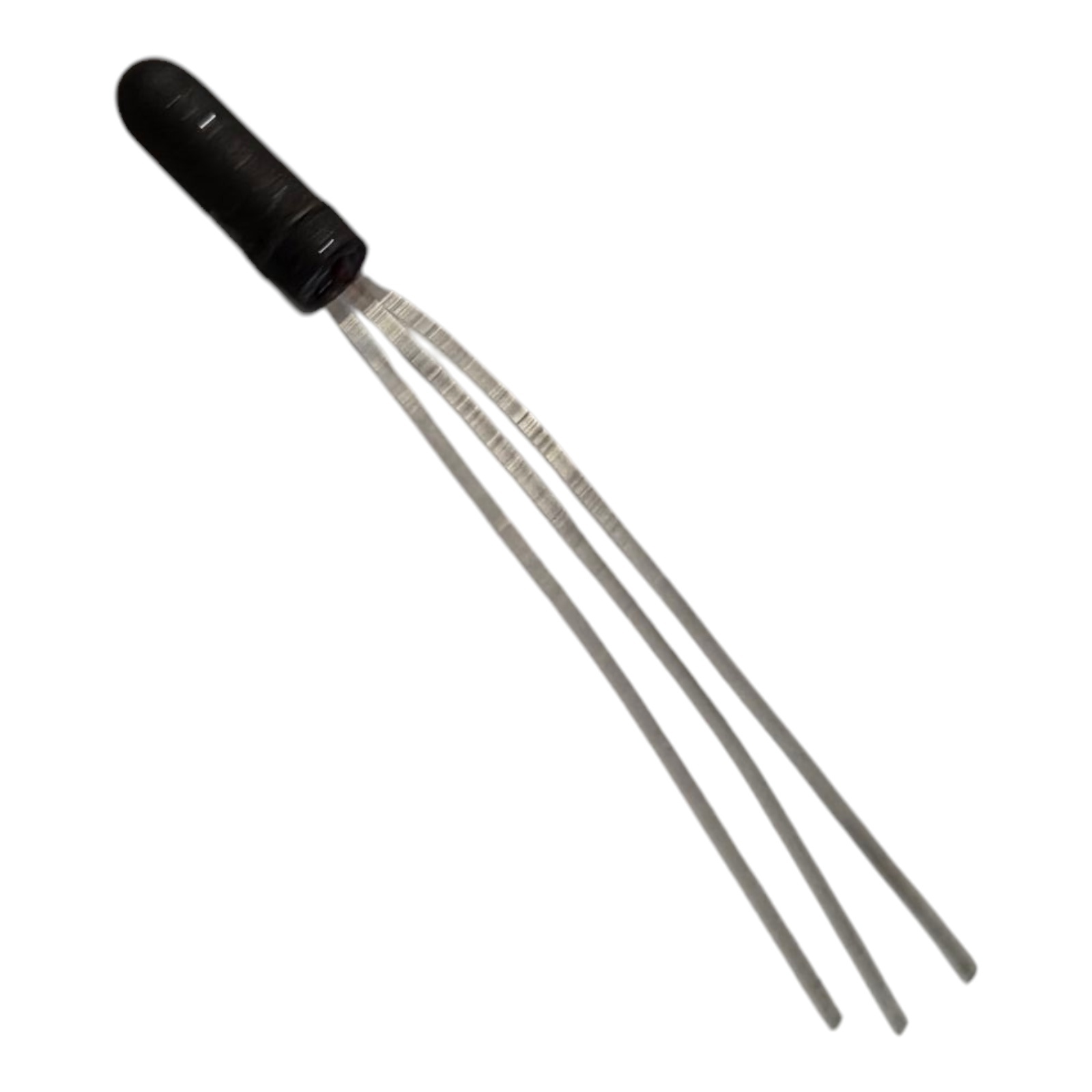

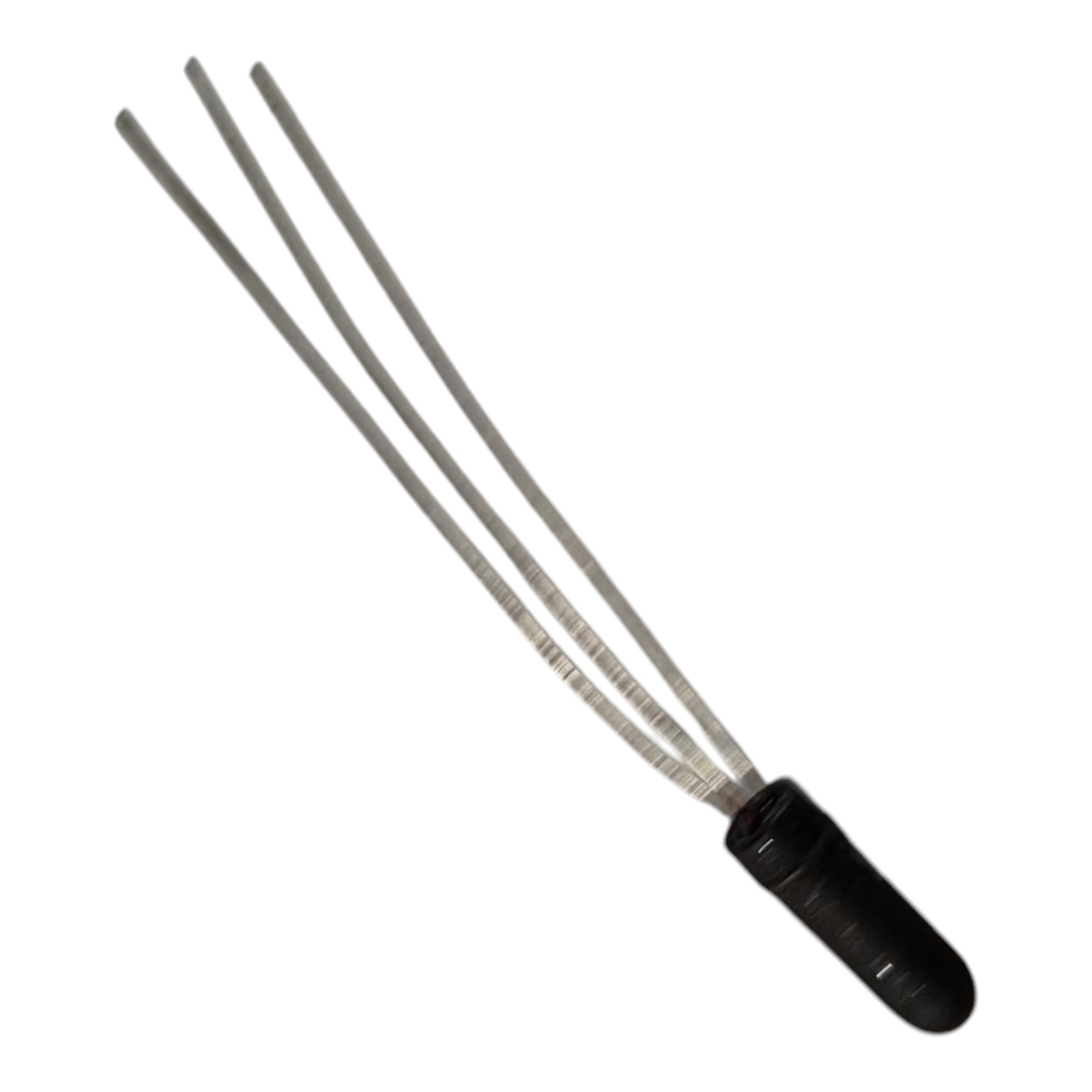

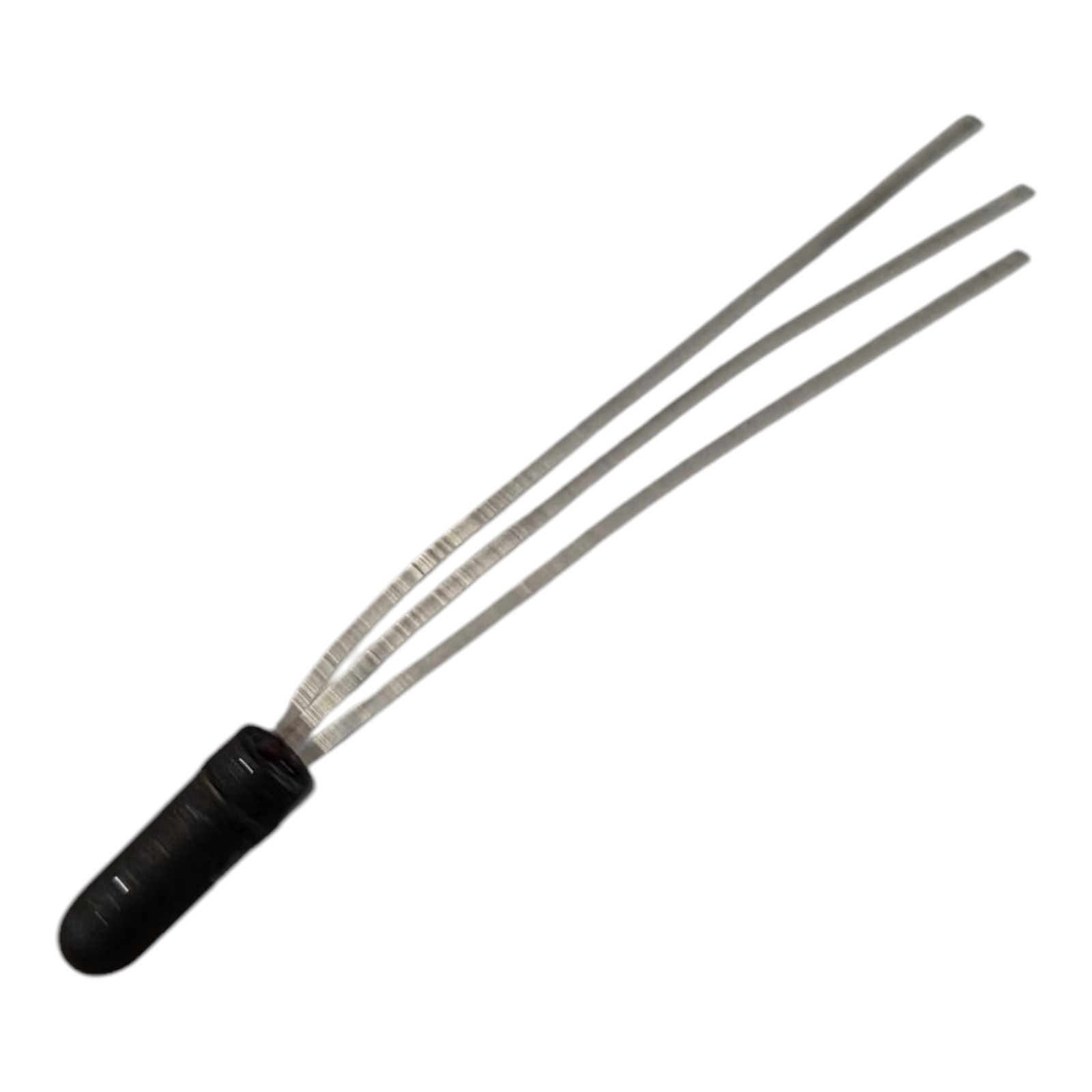

View detailed images (4)

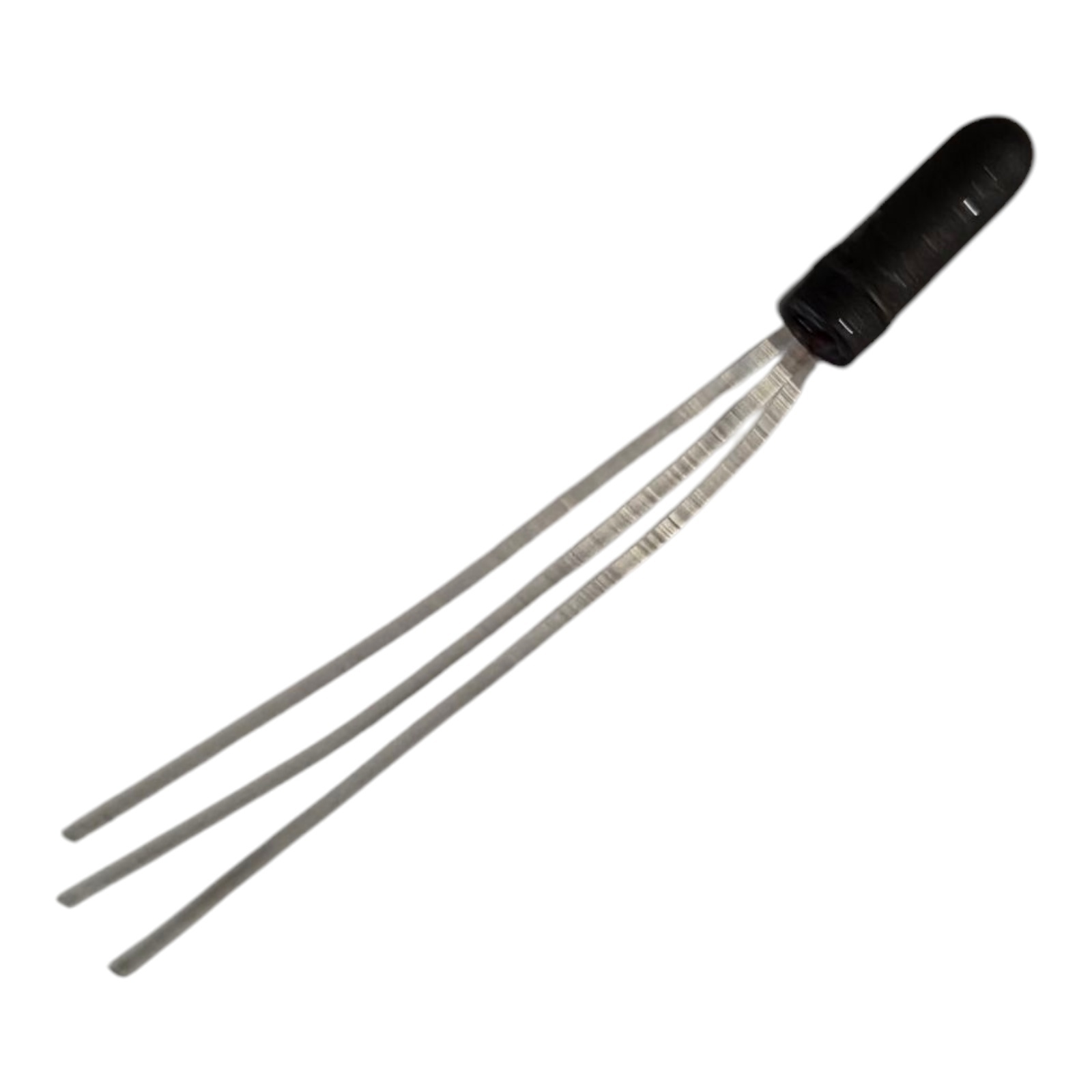

OC41

SKU: OC41
OC41 Transistor Germanium PNP CASE: X01 MAKE: Philips
+ VAT 20% for UK purchases
Product specifications
Type Transistor Germanium PNP
Case X01
Manufacturer Philips
Vbr CBO 16
Vbr CEO 15
Max. PD (W) 50m
hfe 35
Ic Max. (A) 50m
Polarity PNP
Trans. Freq (Hz) Min. 4.0M
Oper. Temp (°C) Max. 75
@Ic (A) 50m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.05 W
Maximum Collector-Base Voltage |Vcb| 16 V
Maximum Collector-Emitter Voltage |Vce| 16 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 80 °C
Collector Capacitance (Cc) 12 pF
Transition Frequency (ft): 4 MHz
Forward Current Transfer Ratio (hFE), MIN 35
SKU 116912
