OC43
View detailed images (4)

OC43

SKU: OC43

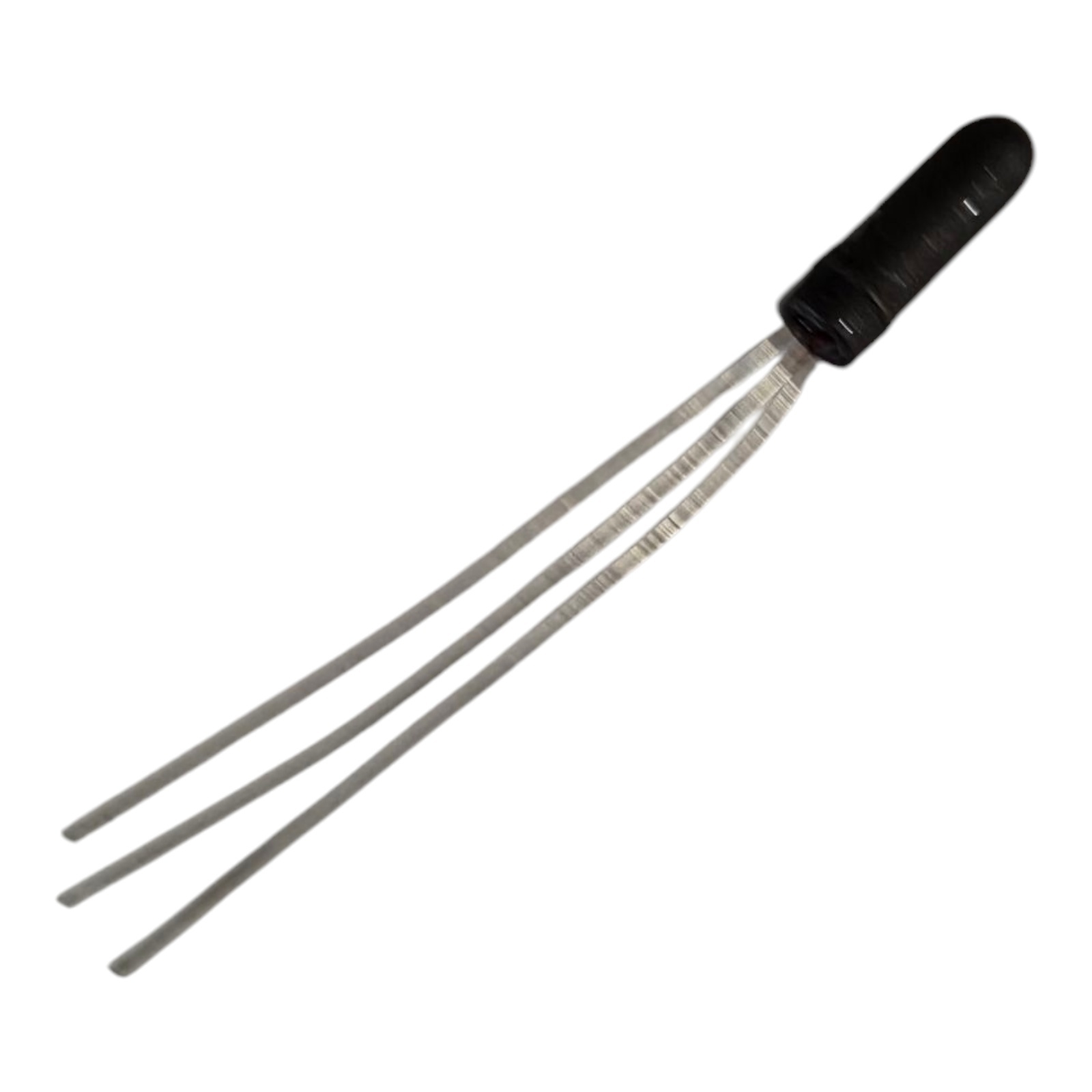

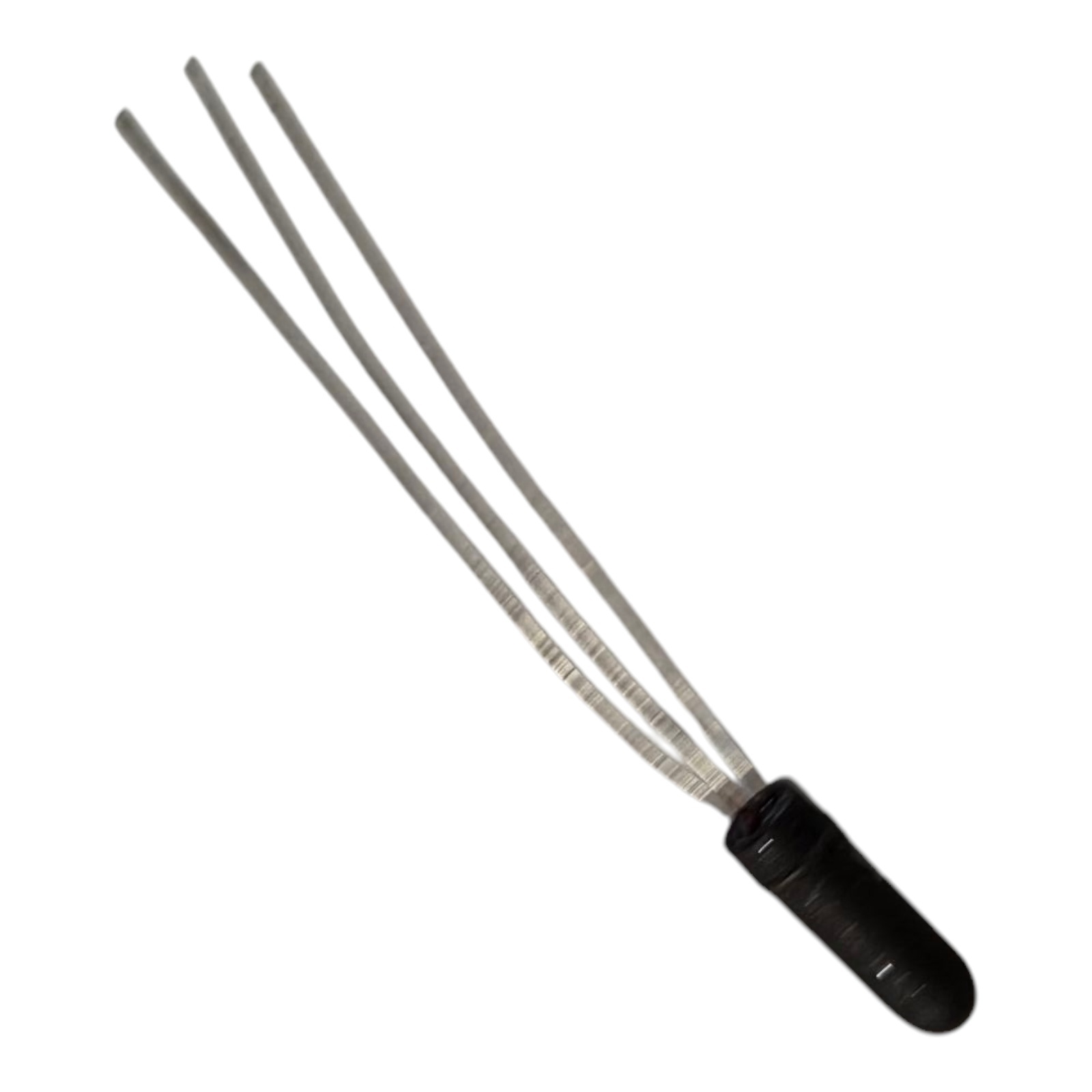

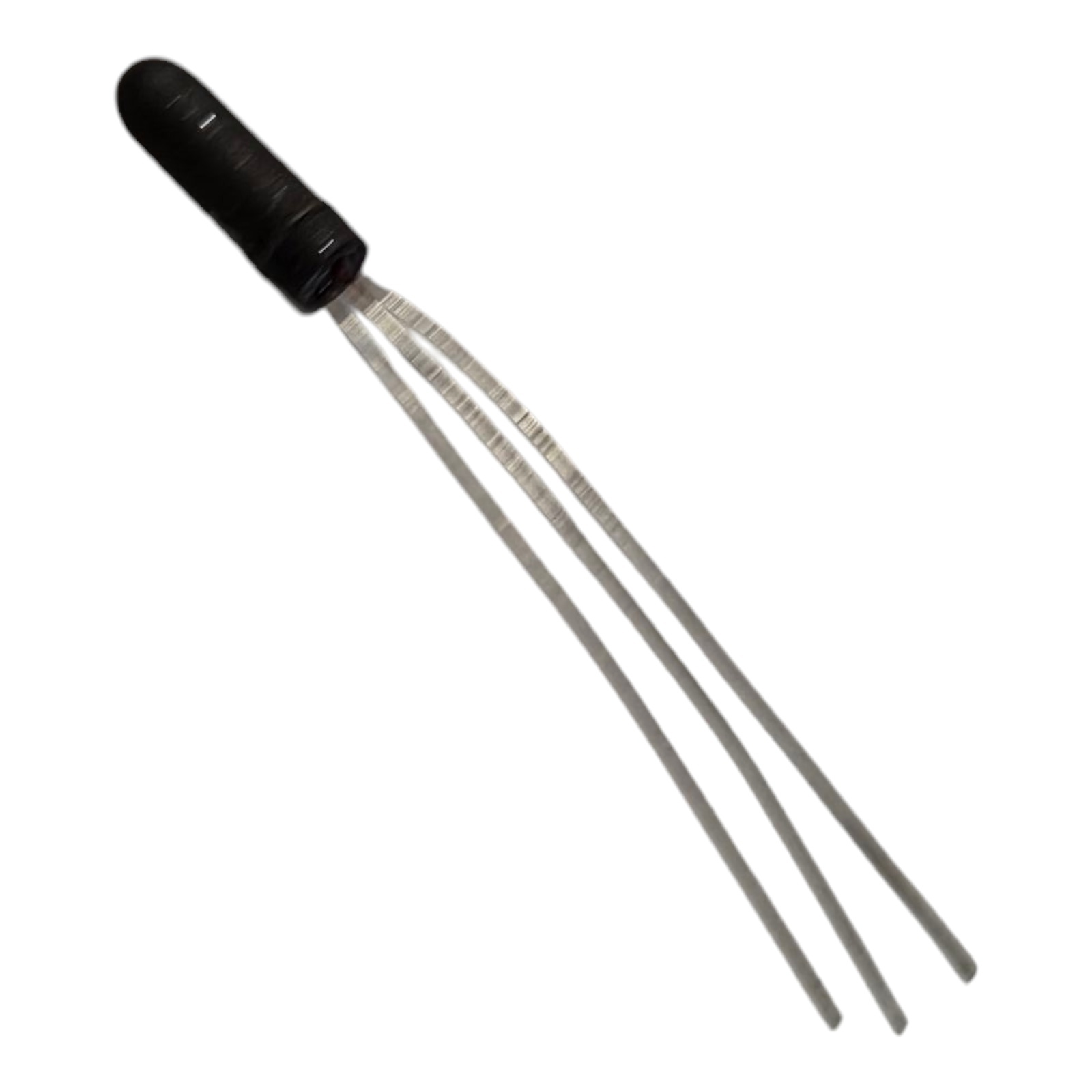

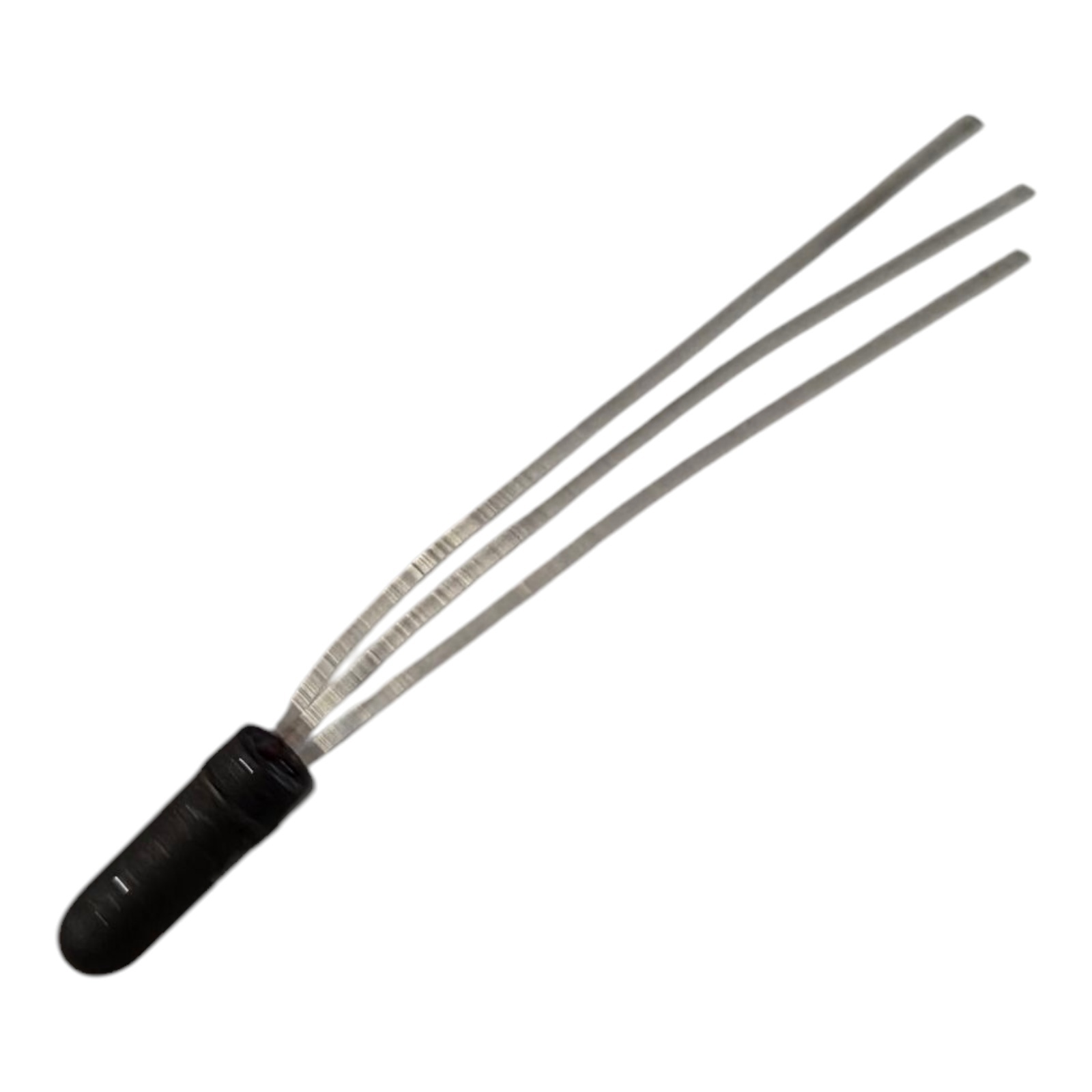

OC43 Transistor Germanium PNP CASE: X01 MAKE: Philips
Product specifications
Type Transistor Germanium PNP
Case X01
Manufacturer Philips
Vbr CBO 15
Vbr CEO 15
Max. PD (W) 80m
Derate (Amb) (W/°C) 1.6m
hfe 100
Ic Max. (A) 50m
Icbo Max. @Vcb Max. (A) 10u
Polarity PNP
Trans. Freq (Hz) Min. 18M
@VCE (test) (V) 0i
Oper. Temp (°C) Max. 75
@Ic (A) 50m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.08 W
Maximum Collector-Base Voltage |Vcb| 15 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 12 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 80 °C
Collector Capacitance (Cc) 12 pF
Transition Frequency (ft): 15 MHz
Forward Current Transfer Ratio (hFE), MIN 100
SKU 116914
