OC612

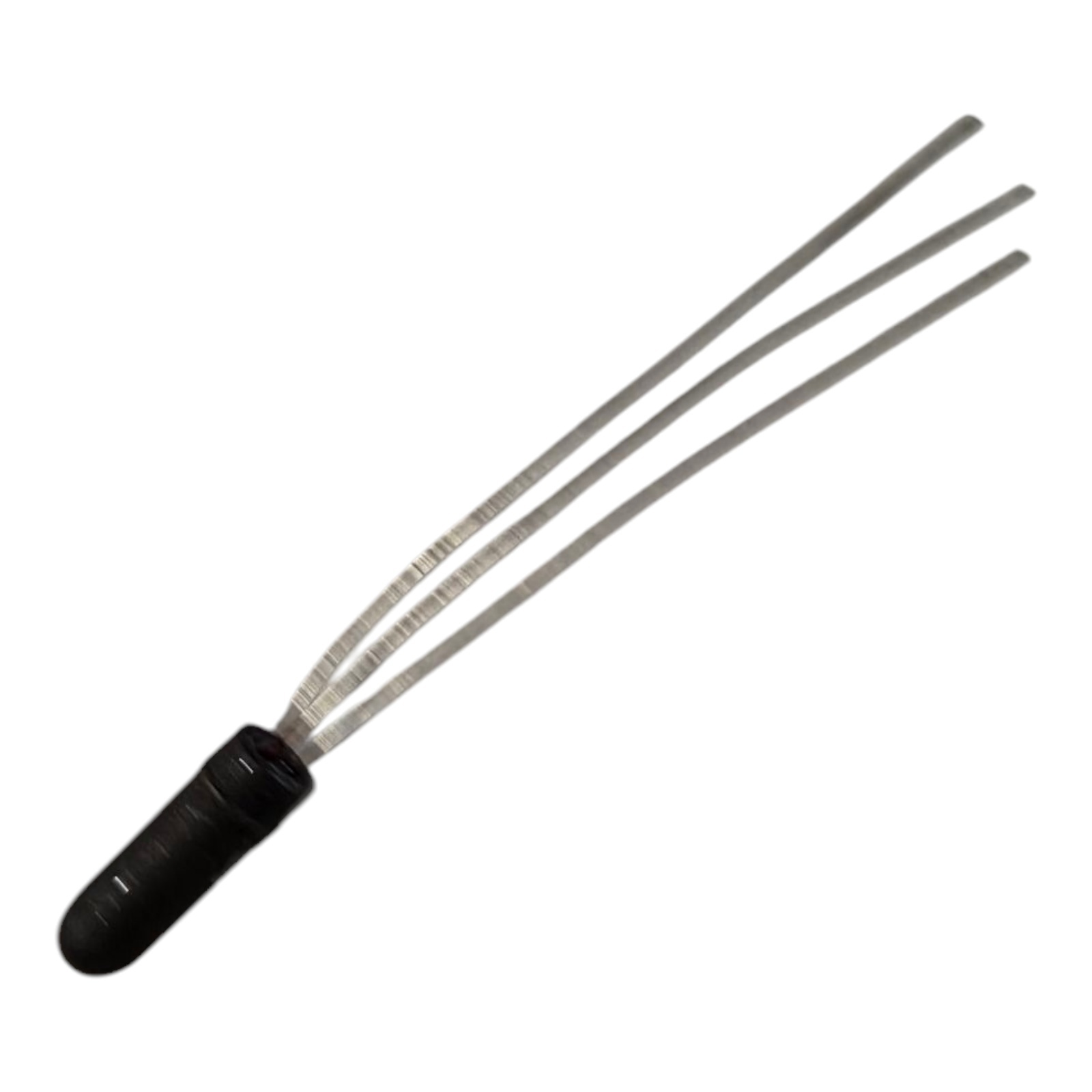

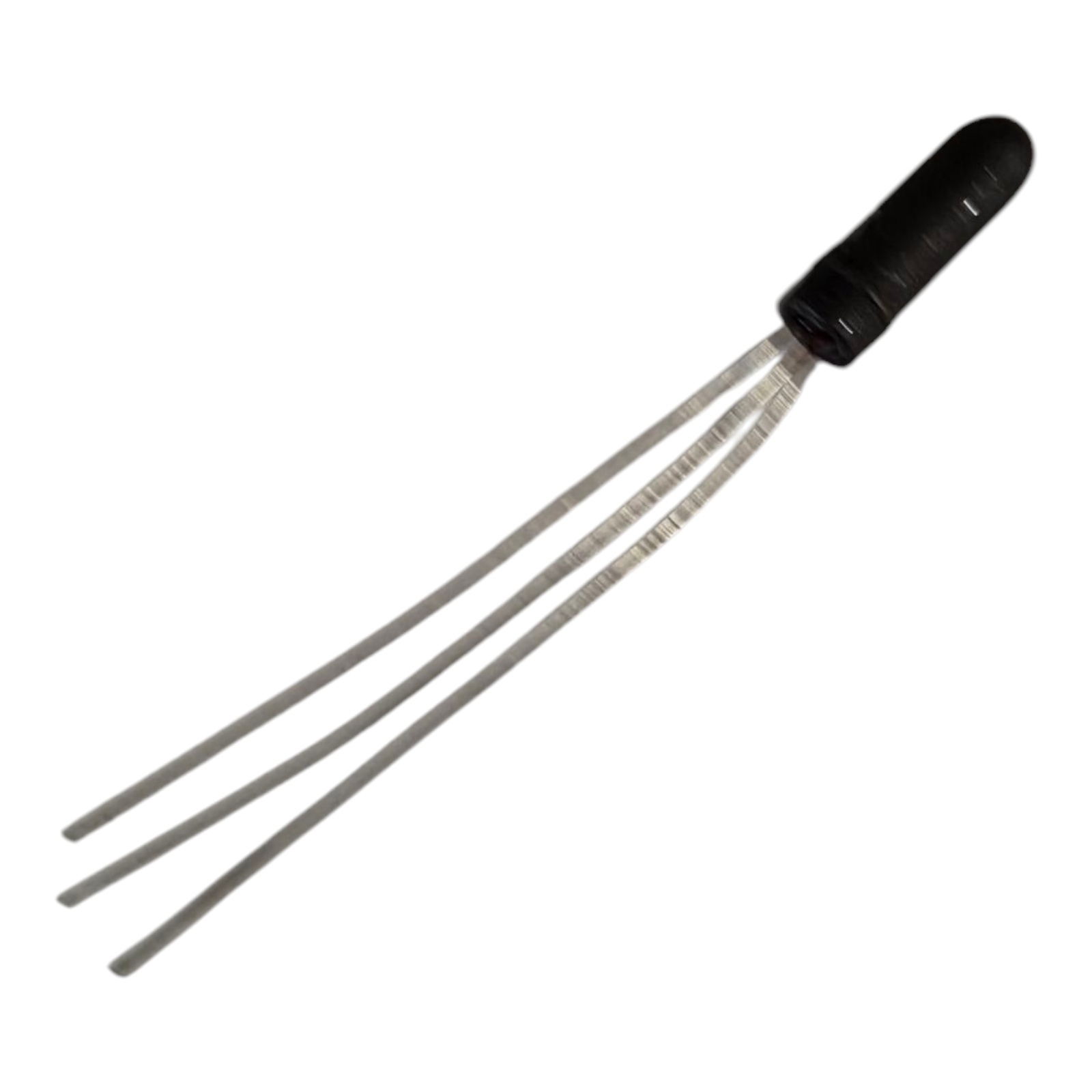

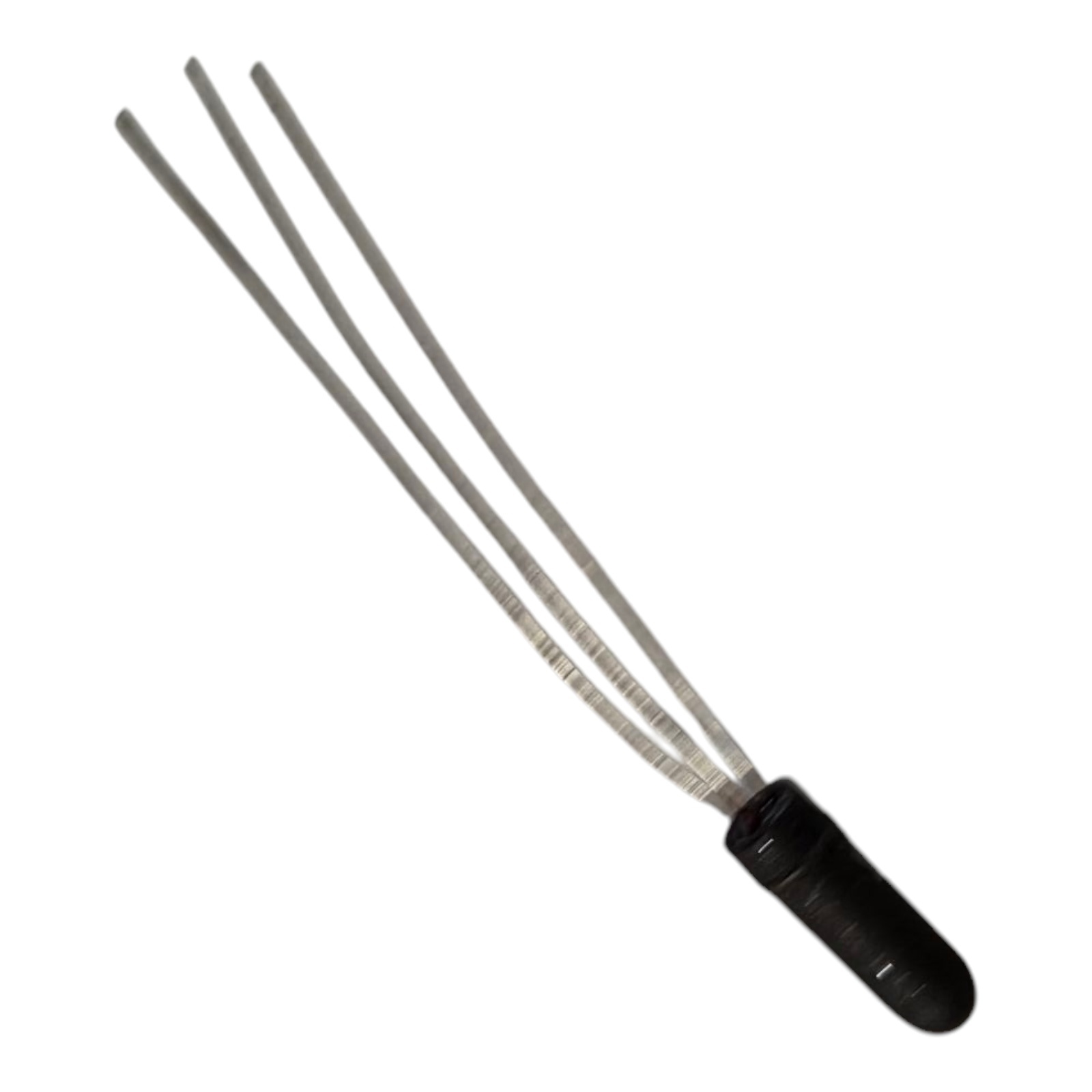

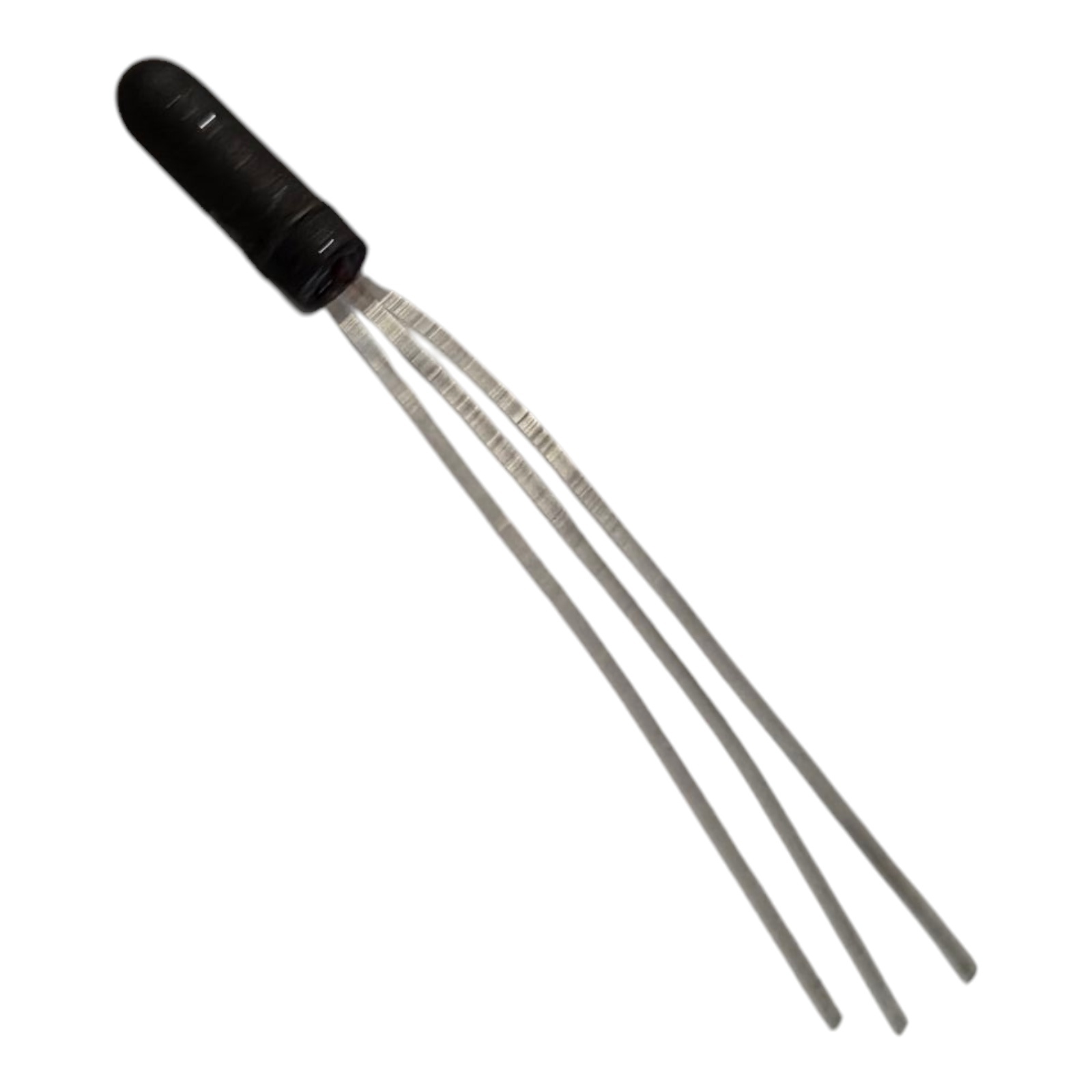

View detailed images (4)

OC612

SKU: OC612
OC612 Transistor Germanium PNP CASE: X01 MAKE: Temic
Product specifications
Type Transistor Germanium PNP
Case X01
Manufacturer Temic
Vbr CBO 17
Max. PD (W) 30m
Derate (Amb) (W/°C) 1.0m
hfe 60
Icbo Max. @Vcb Max. (A) 20u
Polarity PNP
Trans. Freq (Hz) Min. 6.0M
@VCE (test) (V) 6.0i
Oper. Temp (°C) Max. 75
@Ic (A) 500u
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.05 W
Maximum Collector-Base Voltage |Vcb| 15 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 100 °C
Transition Frequency (ft): 2 MHz
Forward Current Transfer Ratio (hFE), MIN 60
SKU 436144
