OC84
View detailed images (4)

OC84

SKU: OC84

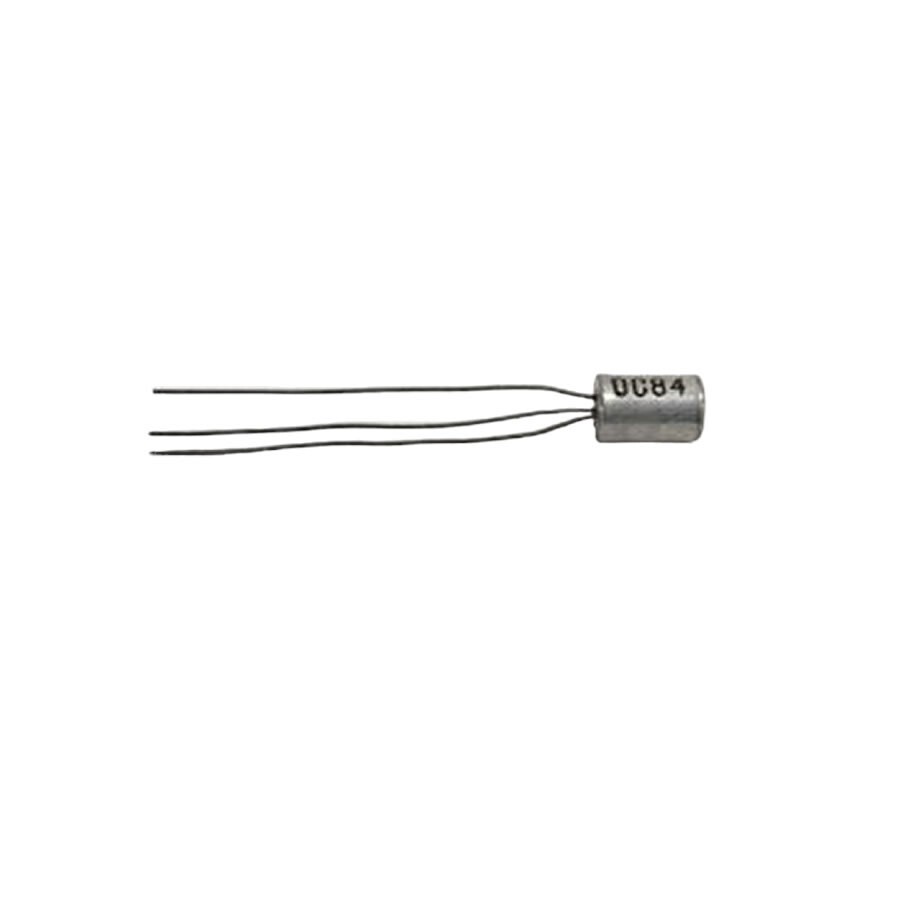

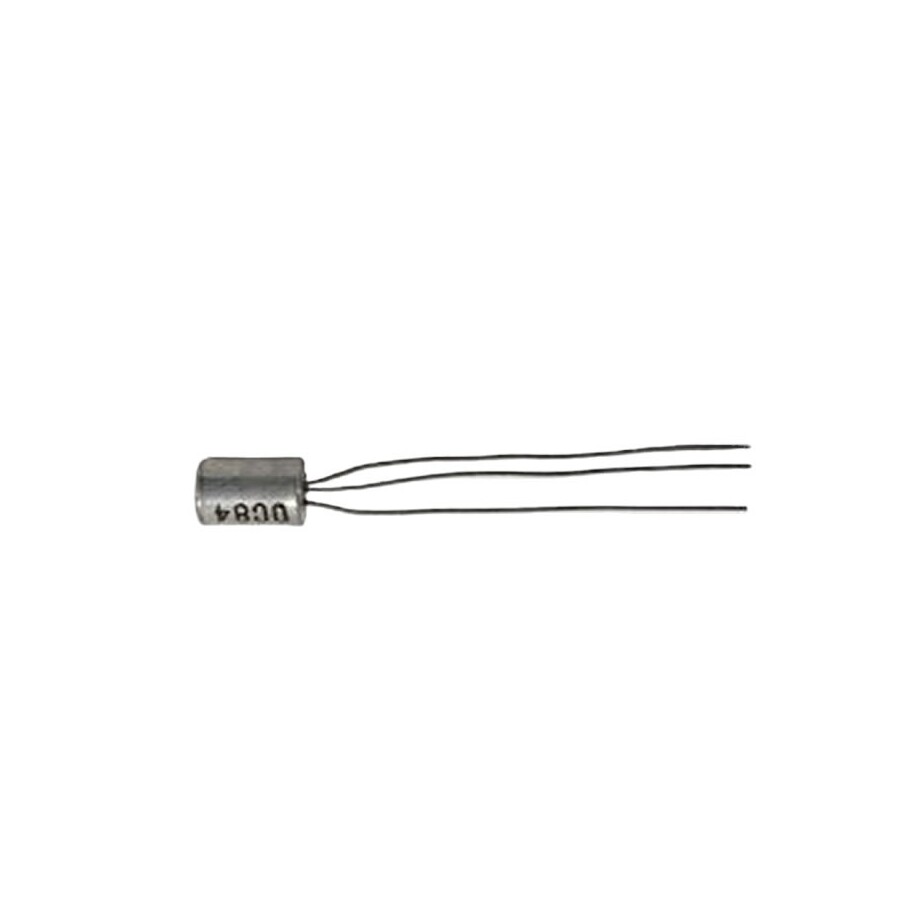

OC84 Transistor Germanium PNP CASE: TO1 MAKE: Philips
+ VAT 20% for UK purchases
Product specifications
Type Transistor Germanium PNP
Case TO1
Manufacturer Philips
Vbr CBO 32
Vbr CEO 32
Max. PD (W) 600m
Derate (Amb) (W/°C) 4.0m
hfe 90
Ic Max. (A) 500m
Icbo Max. @Vcb Max. (A) 100u
Polarity PNP
Trans. Freq (Hz) Min. 1.0M
@VCE (test) (V) 6.0
Oper. Temp (°C) Max. 100
@Ic (A) 1.0m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.6 W
Maximum Collector-Base Voltage |Vcb| 32 V
Maximum Collector-Emitter Voltage |Vce| 20 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 80 °C
Collector Capacitance (Cc) 100 pF
Transition Frequency (ft): 0.5 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SKU 385922
