P207
View detailed images (12)

P207

SKU: P207

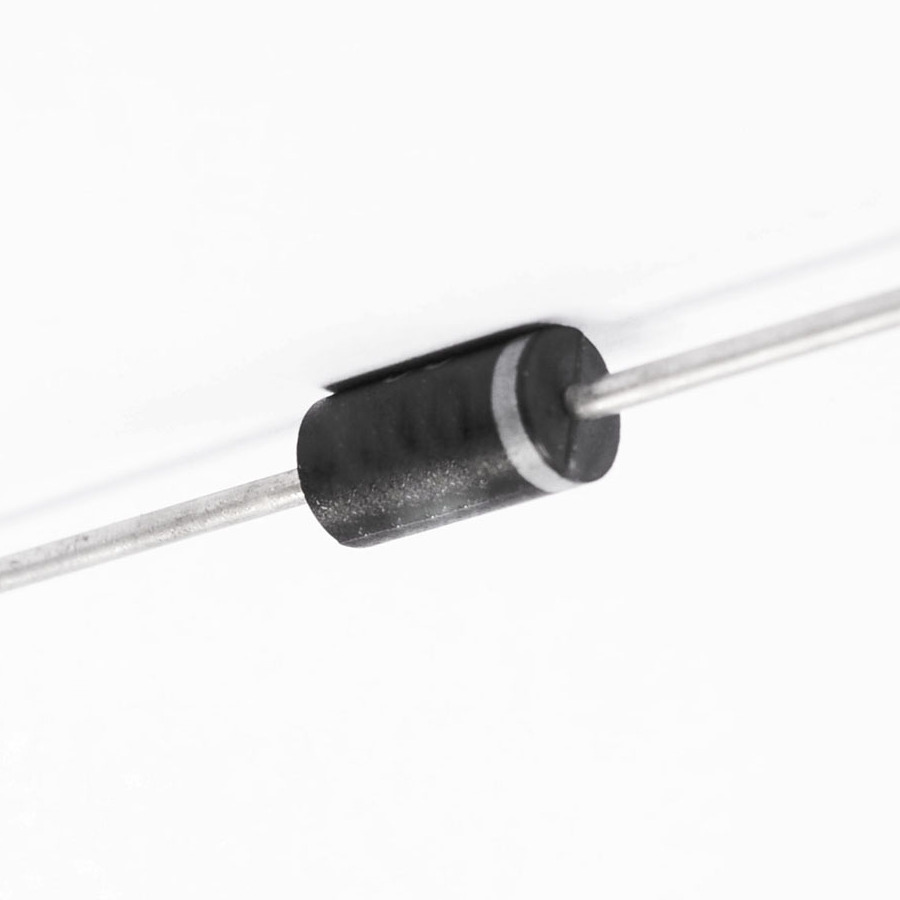

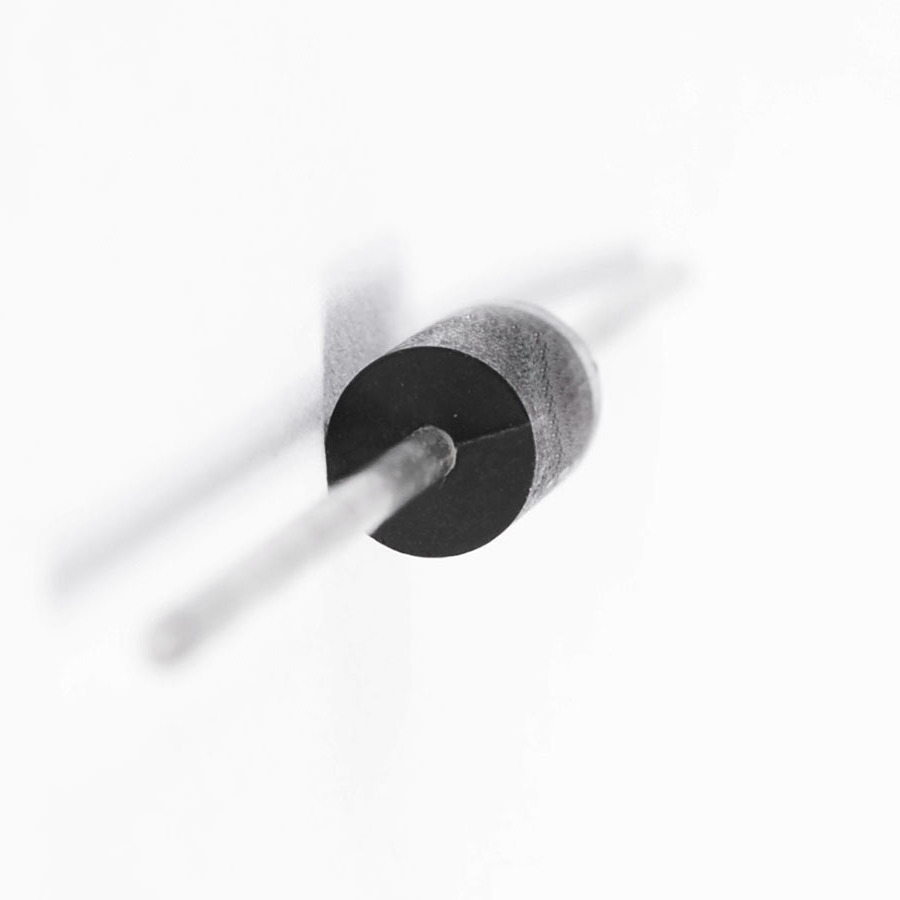

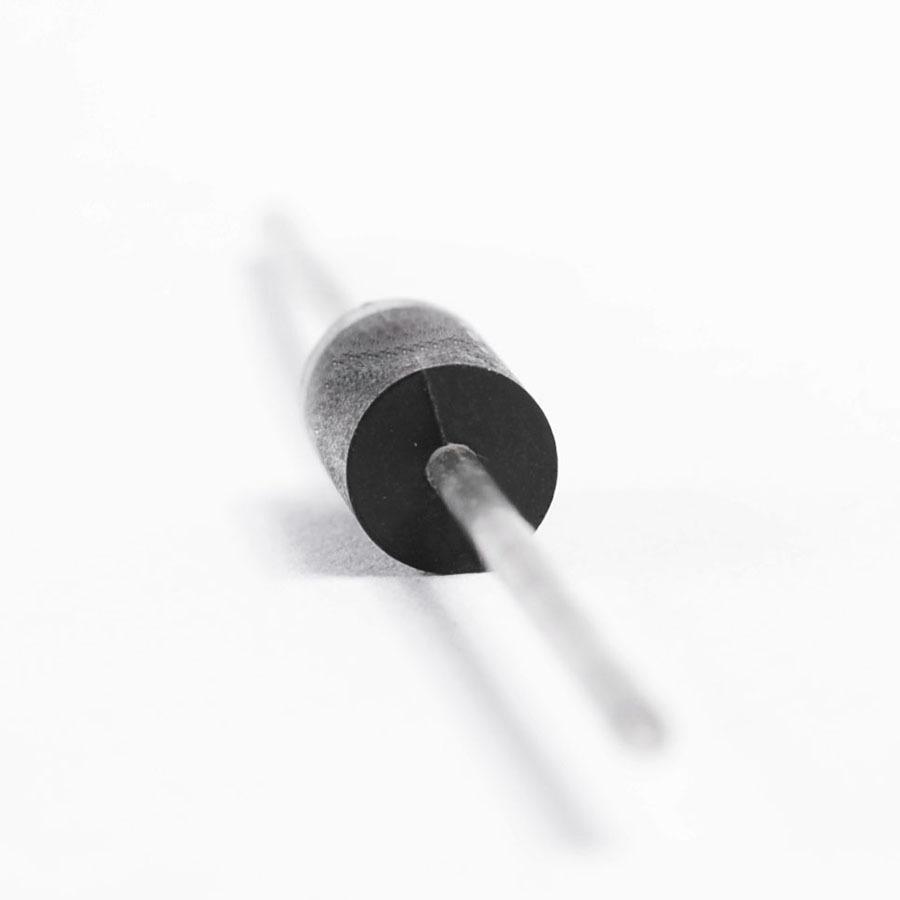

P207 Transistor Germanium PNP CASE: DO15 MAKE: Generic
Product specifications
Type Transistor Germanium PNP
Case DO15
Manufacturer Generic
@Temp. (test) (°C) 50
VRRM 1.0k
Polarity PNP
1-Cycle Surge Current (A) 70
@Temp. (test) for Vf) 25
Vf Max. 1.0
Ir @25°C 5.0u
I(out) (If AVG) Max. 2.0
@Volts (test) (V) 1.0k
@If (test) 2.0
Oper. Temp (°C) Max. 175
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 100 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Collector Current |Ic max| 25 A
Max. Operating Junction Temperature (Tj) 100 °C
Forward Current Transfer Ratio (hFE), MIN 5
SKU 862044
