PAL16L8B2VC
View detailed images (4)

PAL16L8B2VC

SKU: PAL16L8B2VC

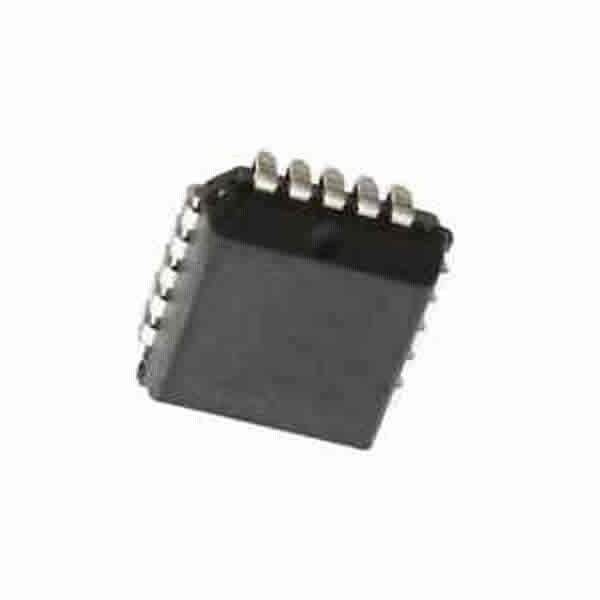

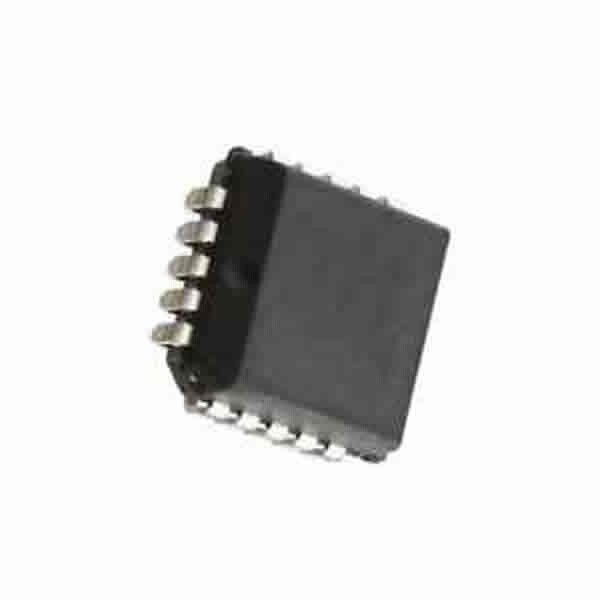

PAL16L8B2VC Integrated Circuit - Case: PLCC20 Make: National Semiconductor - NSC
+ VAT 20% for UK purchases
Product specifications
Type Integrated Circuit
Case PLCC20
Manufacturer National Semiconductor - NSC
No. of Outputs 8
Output Config 3-State
tPD Max. (S) 25n
Tech. TTL Integrated Circuit
Prod. Terms Max. 8
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Number of Inputs 16
Logic Modes Combinator
Pinout Equivalence Number 20-221
No. of Pins 20
Surface Mounted Yes/No YES
SKU 437159
