PAL16R4AVC

PAL16R4AVC

SKU: PAL16R4AVC

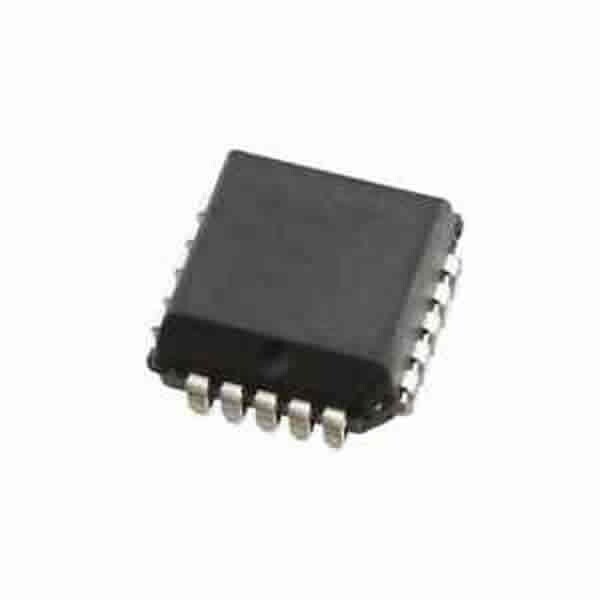

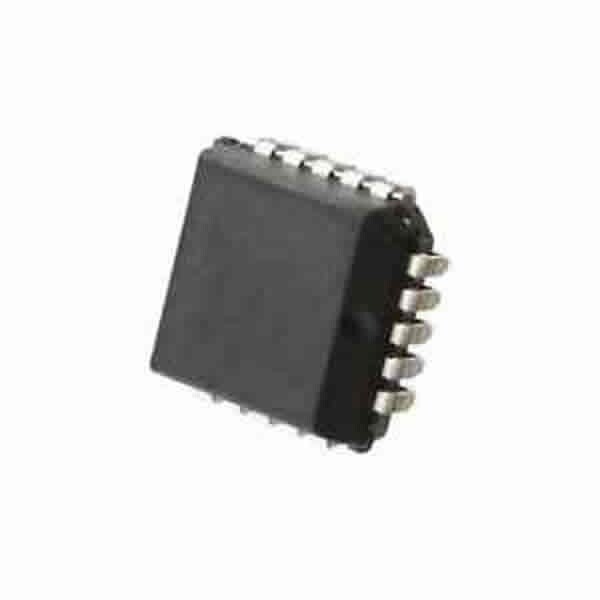

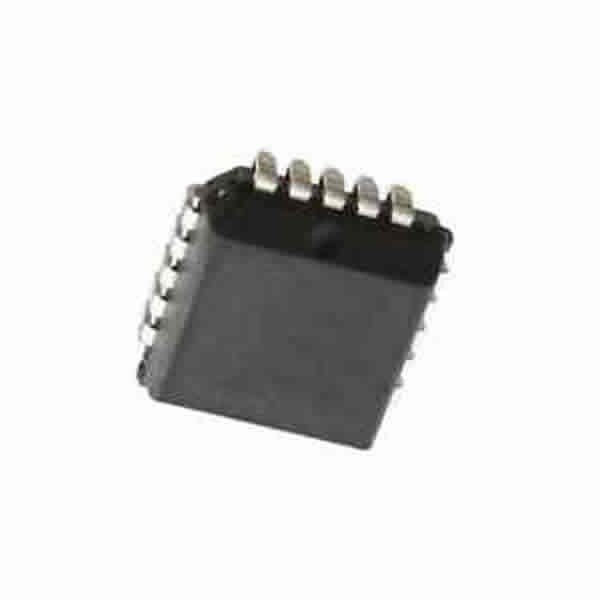

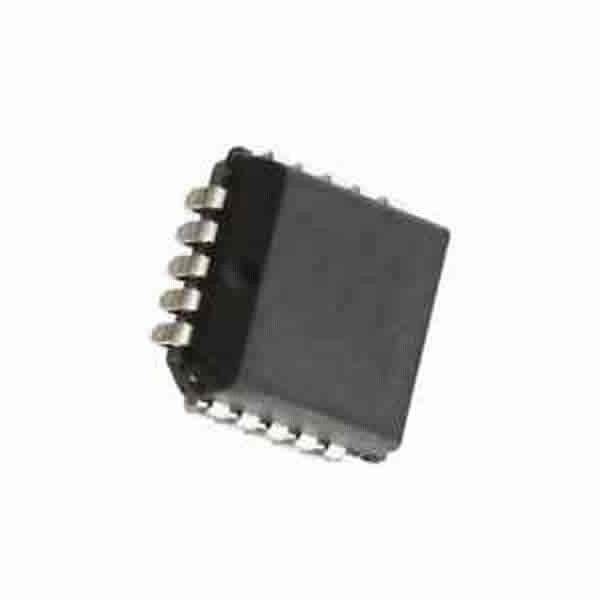

PAL16R4AVC Integrated Circuit CASE: PLCC20 MAKE: National Semiconductor - NSC
Product specifications
Type Integrated Circuit
Case PLCC20
Manufacturer National Semiconductor - NSC
No. of Outputs 8
Output Config 3-State
tPD Max. (S) 25n
Tech. TTL Integrated Circuit
Prod. Terms Max. 8
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Number of Inputs 16
Logic Modes Combin/Seq
Pinout Equivalence Number 20-415
No. of Pins 20
Surface Mounted Yes/No YES
SKU 269518
