PAL16R6A2VC

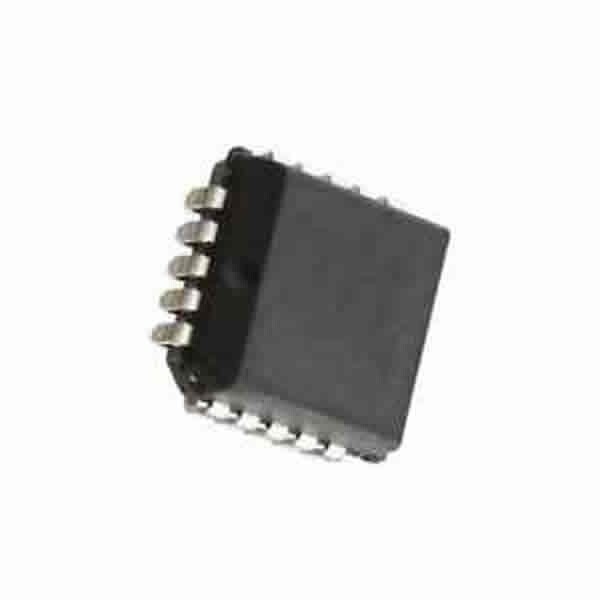

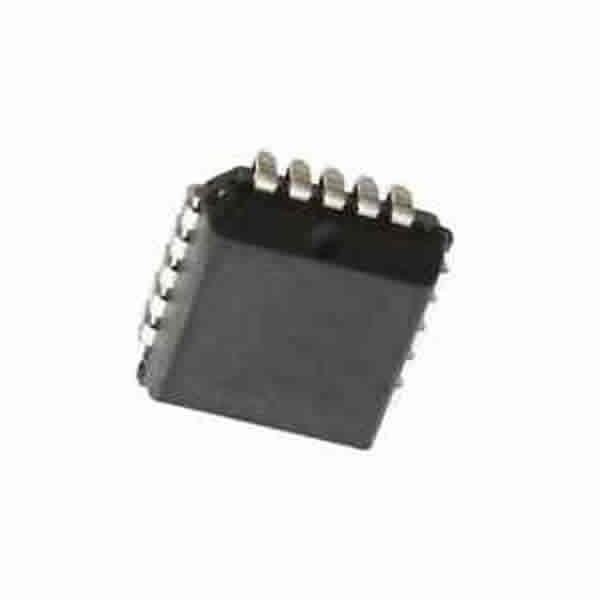

View detailed images (4)

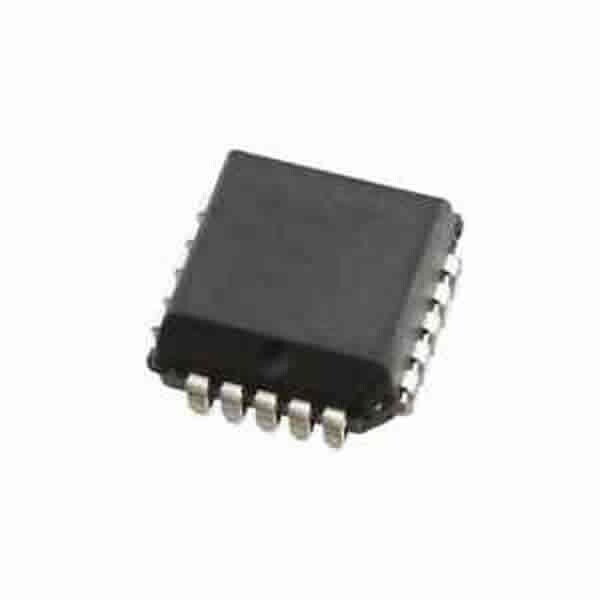

PAL16R6A2VC

SKU: PAL16R6A2VC
PAL16R6A2VC Integrated Circuit - Case: PLCC20 Make: National Semiconductor - NSC
+ VAT 20% for UK purchases
Product specifications
Type Integrated Circuit
Case PLCC20
Manufacturer National Semiconductor - NSC
No. of Outputs 8
Output Config 3-State
tPD Max. (S) 35n
Tech. TTL Integrated Circuit
Prod. Terms Max. 8
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Number of Inputs 16
Logic Modes Combin/Seq
Pinout Equivalence Number 20-43
No. of Pins 20
Surface Mounted Yes/No YES
SKU 437196
