PC503
View detailed images (13)

PC503

SKU: PC503

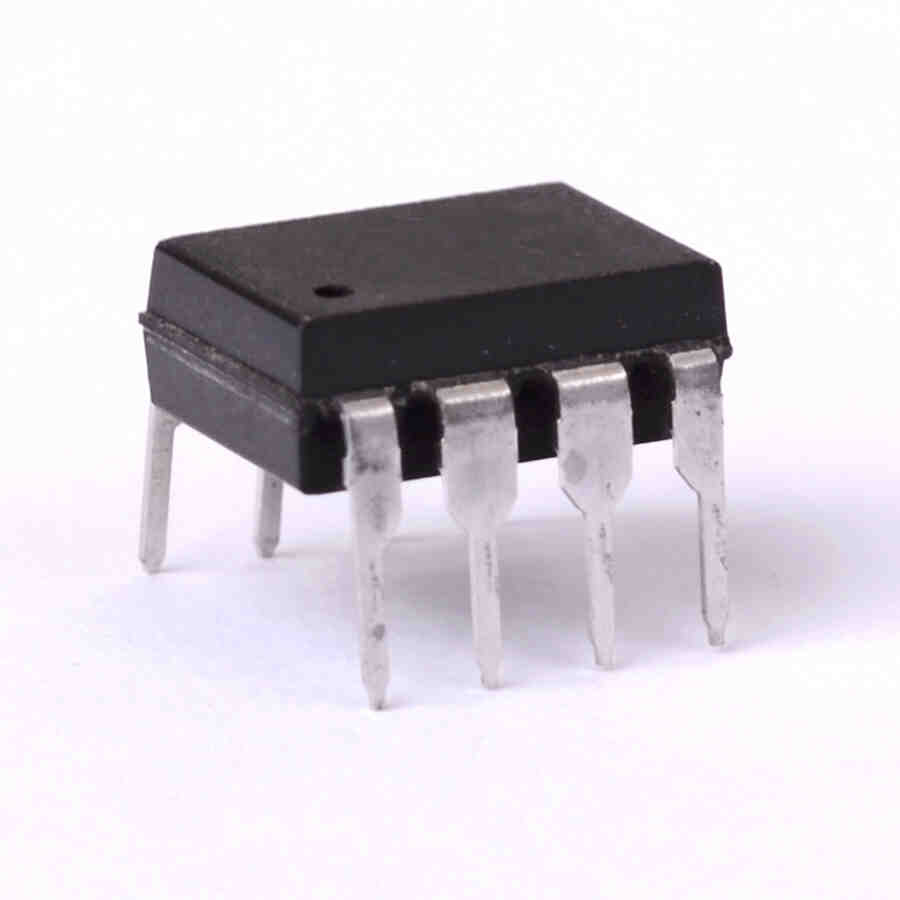

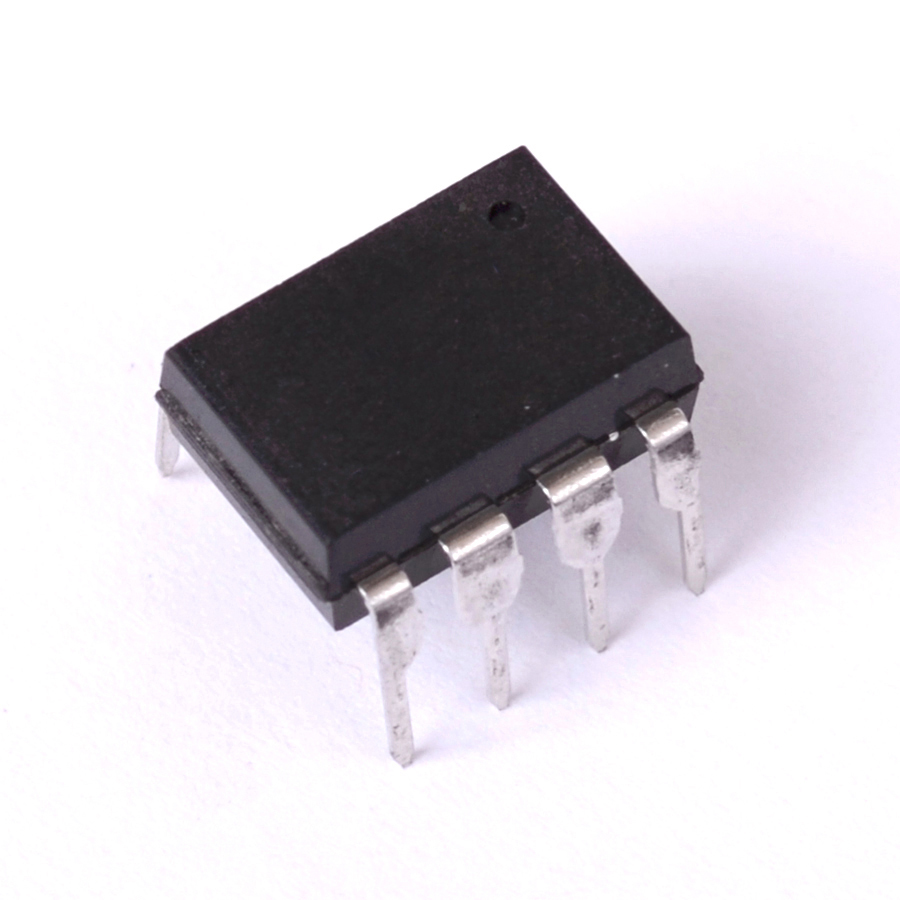

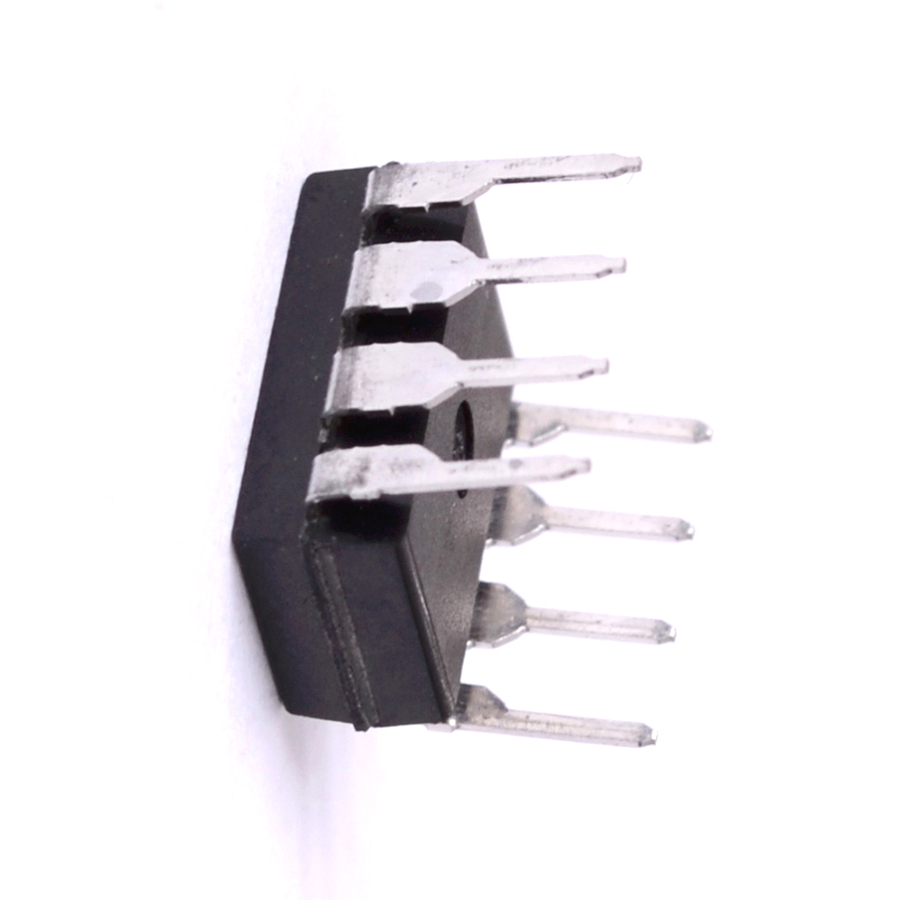

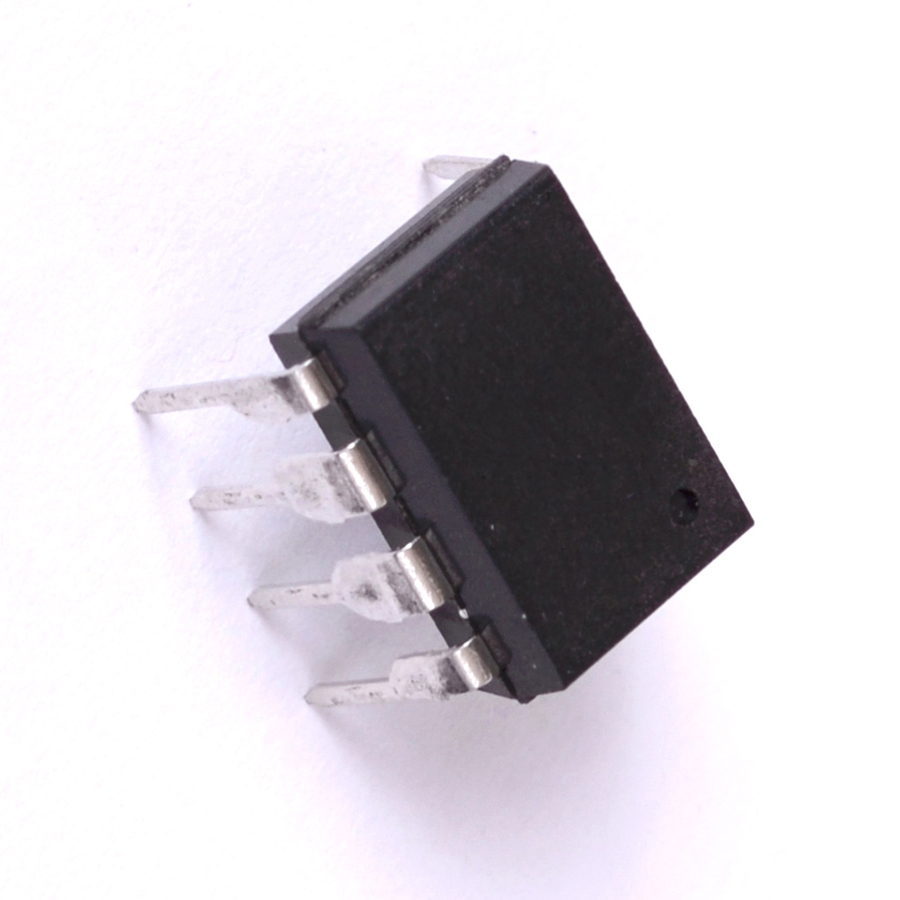

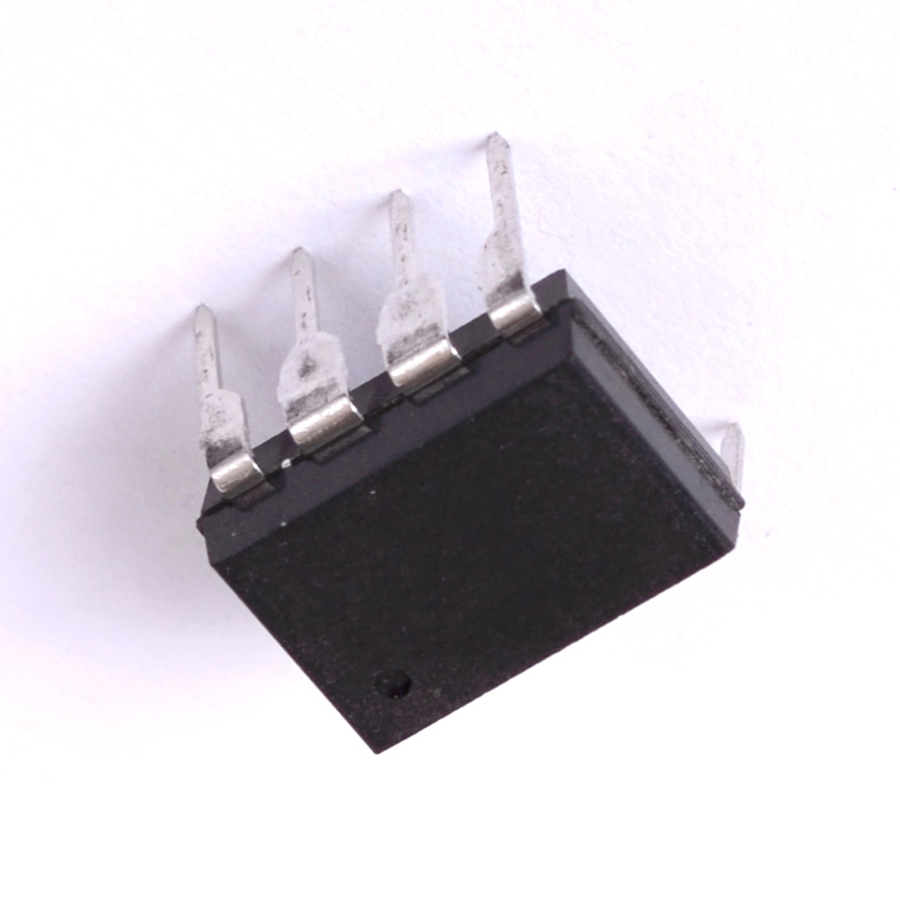

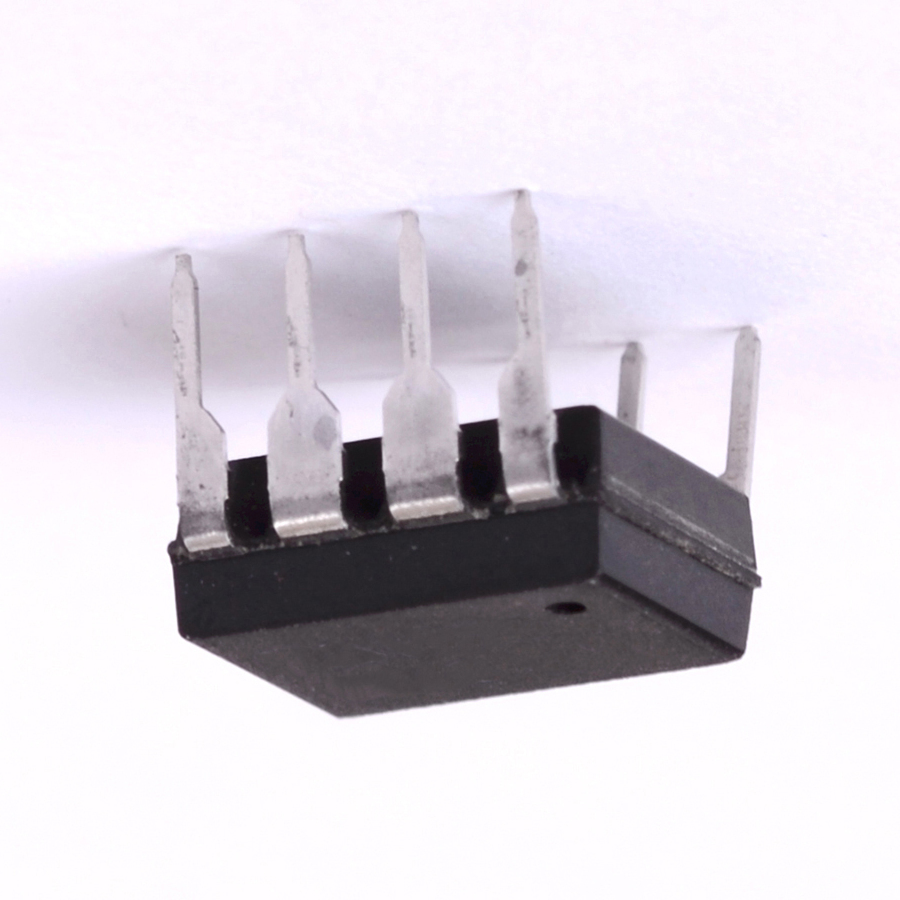

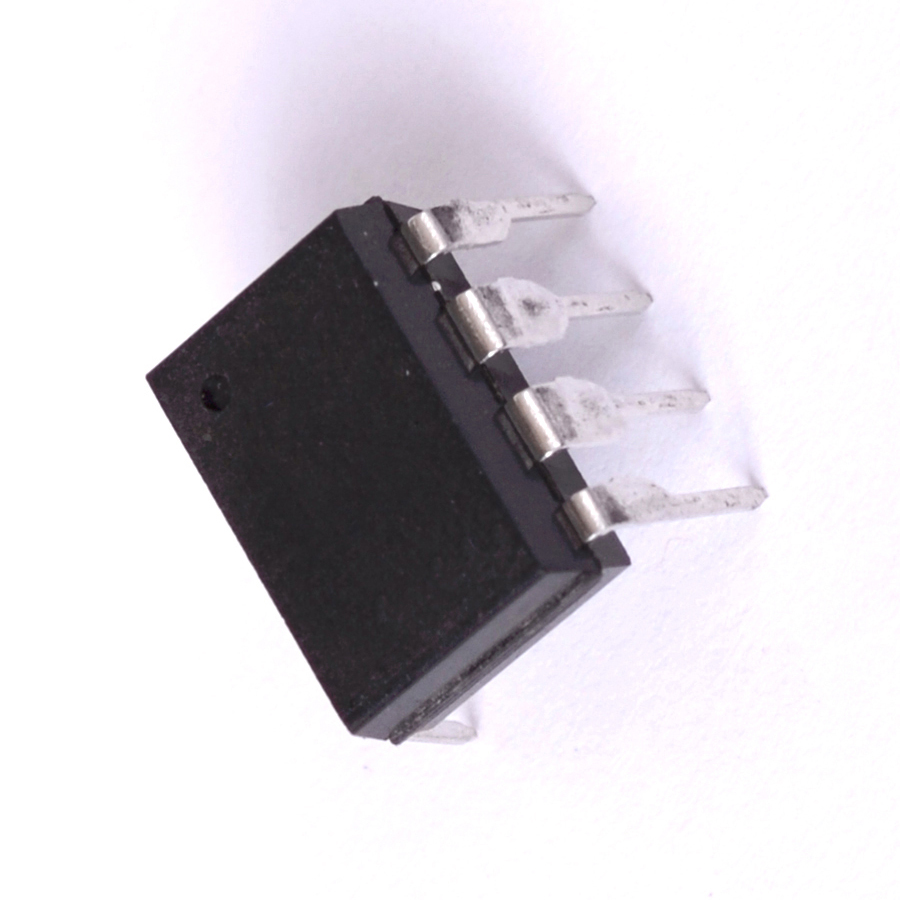

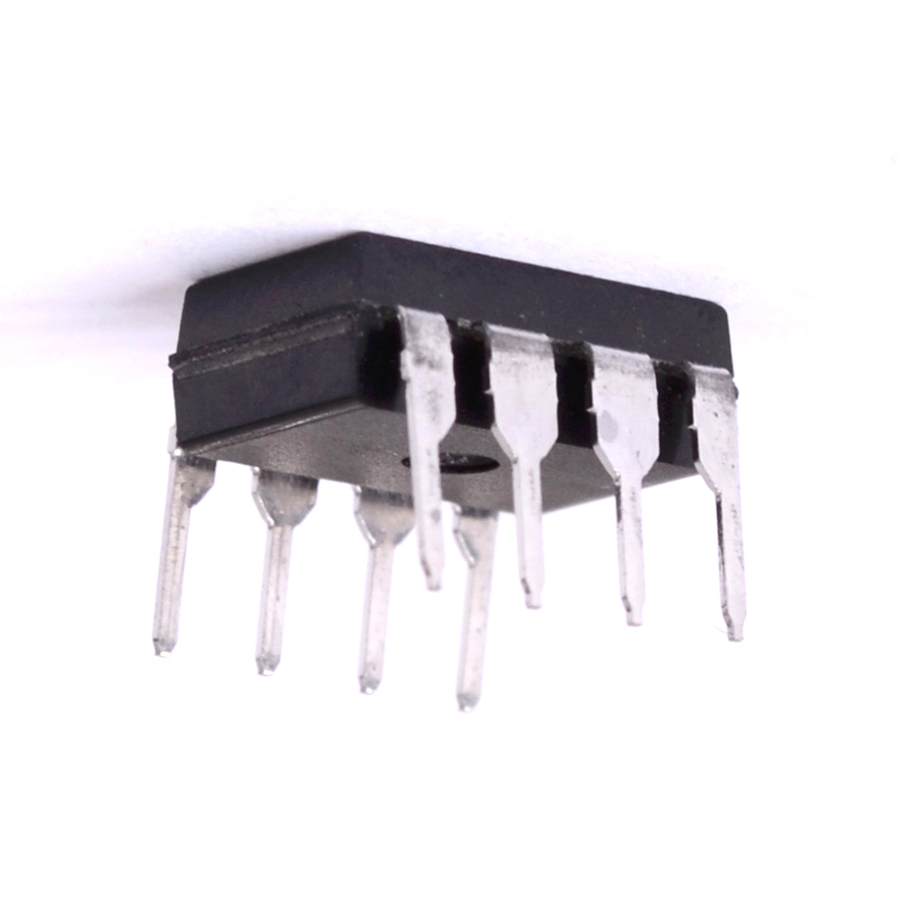

PC503 Semiconductor CASE: DIP8 MAKE: Generic
Product specifications
Type Semiconductor
Case DIP8
Manufacturer Generic
CTR (%) 50
V(isol) Max. (V) 1.5k
If Max. (A) 70m
@If (test) (A) 20m
Mat. Silicon Logic
VRRM 75
PD Max. (W) 200m
Min Q Factor 175
t(resp) (S) 2.0u
VCE(sat) Max. 400m
Vbr CEO 35
Vf Max. 1.4
Cap. Ct or Cj (F) 22p
@Ic (test) 1.0m
@VCE (test) 5.0
Oper. Temp (°C) Min -20
Oper. Temp (°C) Max. 100
@If (A) 5.0m
@If (A) 5.0m
Cap. Ratio 2.4
Number of Chan. 1
Pinout Equivalence Number 6-13
Surface Mounted Yes/No NO
SKU 938281
