PDTA144TEF

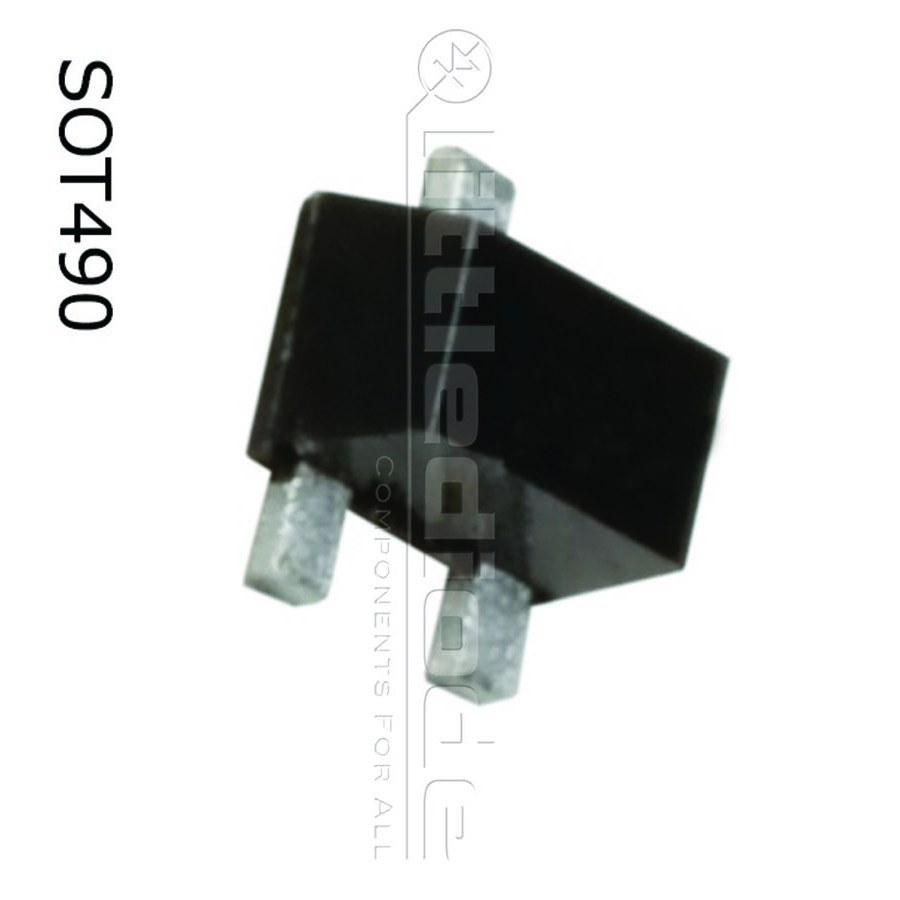

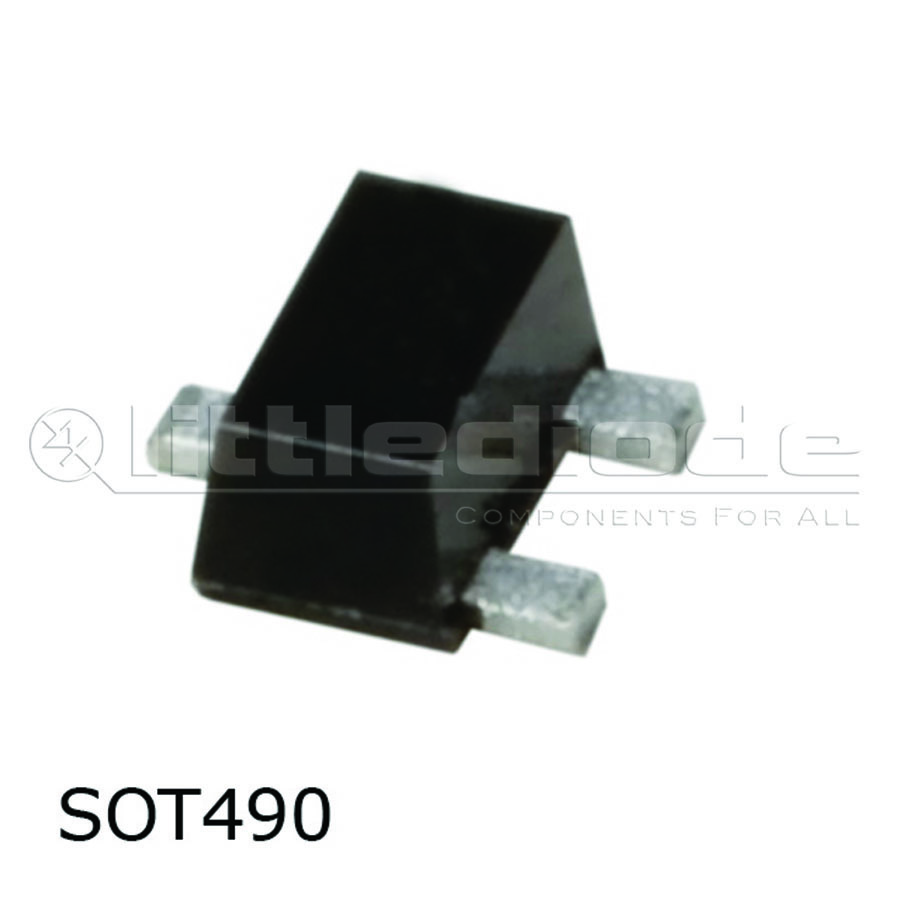

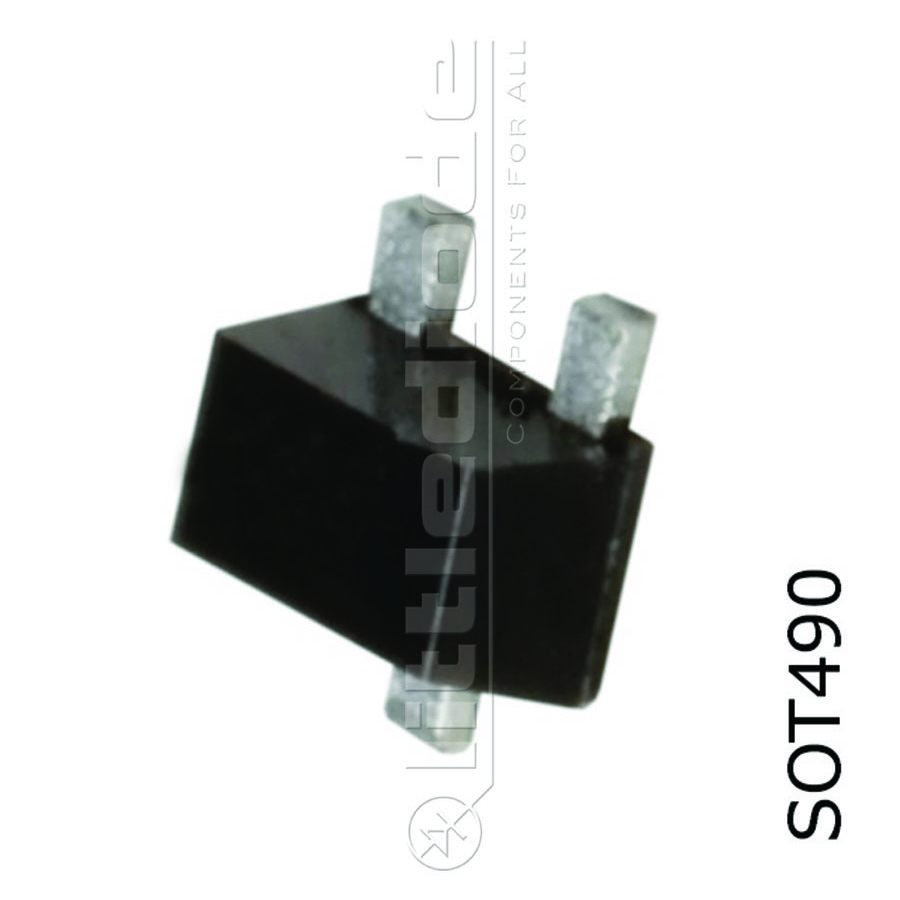

View detailed images (4)

PDTA144TEF

SKU: PDTA144TEF
PDTA144TEF Transistor Silicon PNP CASE: SOT490 MAKE: NXP Semiconductors
Product specifications
Type Transistor Silicon PNP
Case SOT490
Manufacturer NXP Semiconductors
Polarity Pre-Biased-PNP
Maximum Collector Power Dissipation (Pc) 0.25 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 3 pF
Forward Current Transfer Ratio (hFE), MIN 100
SMD Transistor Code 2M
Built in Bias Resistor R1 47 kOhm
SKU 1439361
