PEMD15
View detailed images (5)

PEMD15

SKU: PEMD15

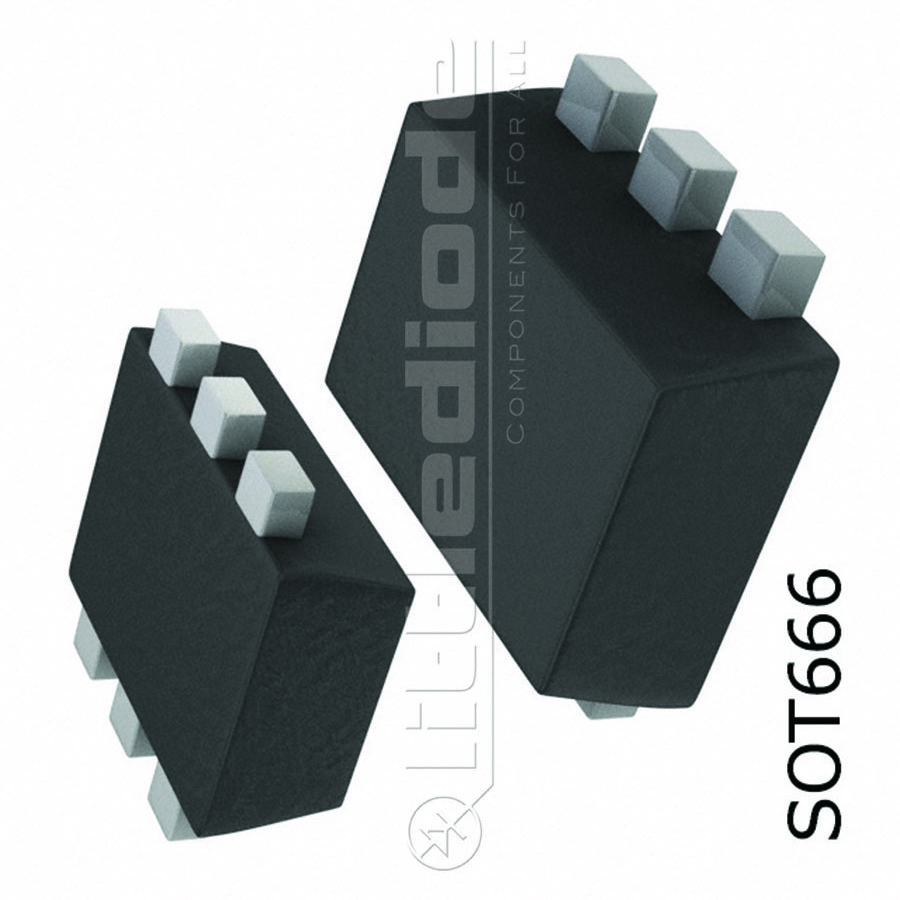

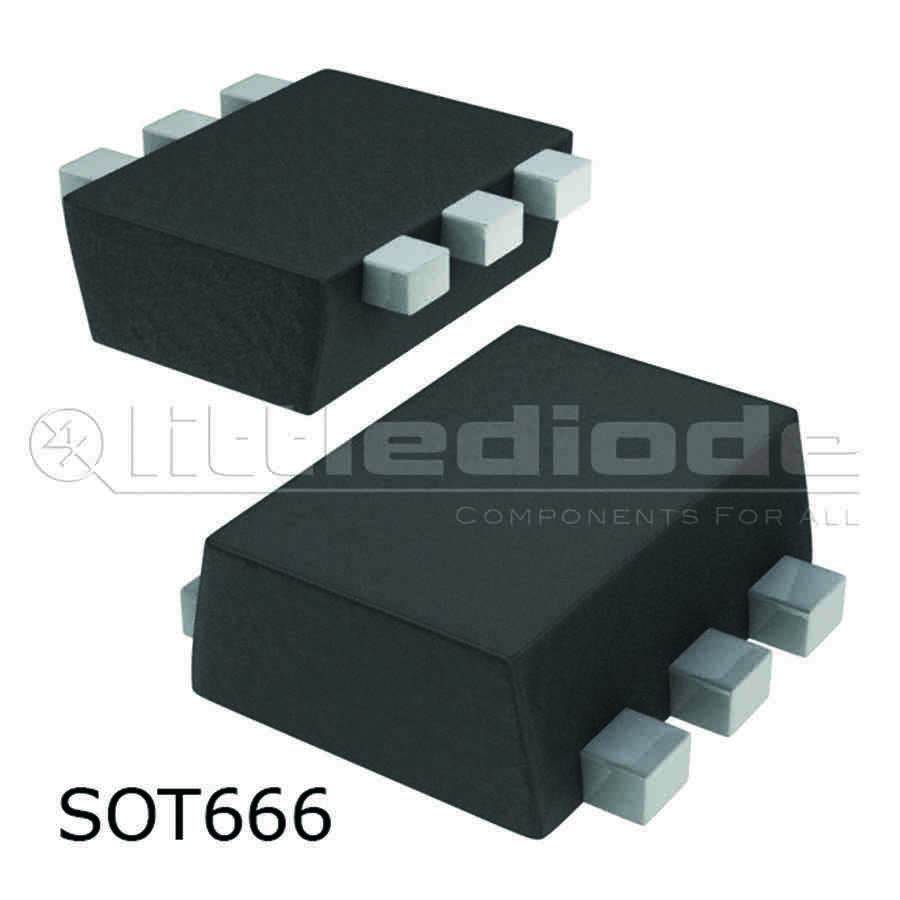

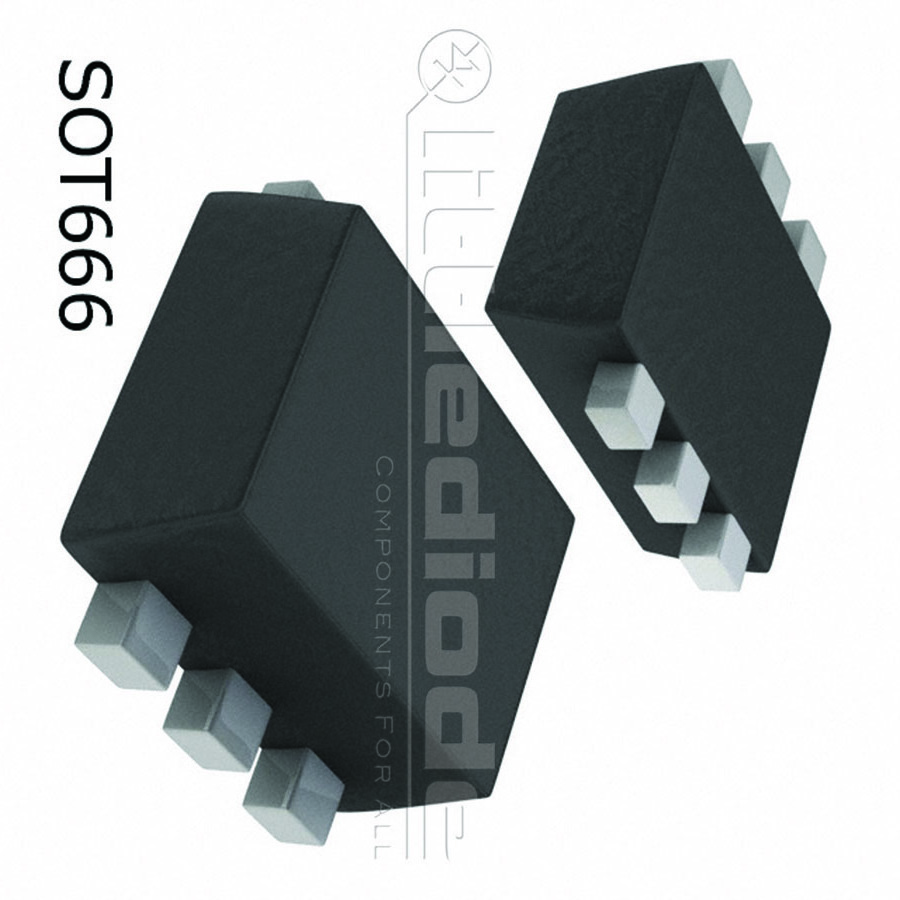

PEMD15 Transistor Silicon Pre-Biased-NPN - PNP CASE: SOT666 MAKE: Philips
Product specifications
Type Transistor Silicon Pre-Biased-NPN - PNP
Case SOT666
Manufacturer Philips
Polarity Pre-Biased-NPN*PNP
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 3 pF
Forward Current Transfer Ratio (hFE), MIN 30
SMD Transistor Code 5E
Built in Bias Resistor R1 4.7 kOhm
Built in Bias Resistor R2 4.7 kOhm
Typical Resistor Ratio R1/R2 1
SKU 562151
